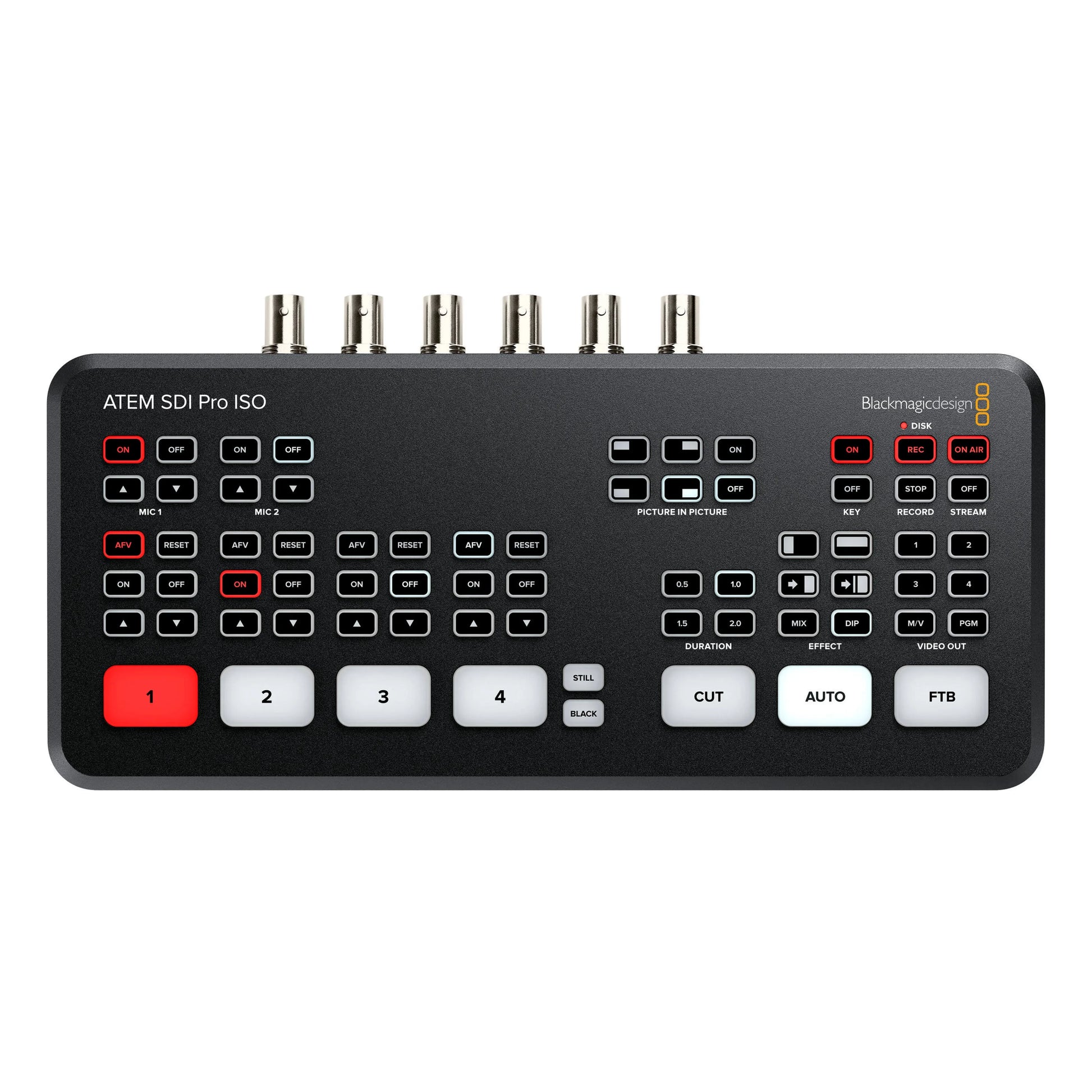

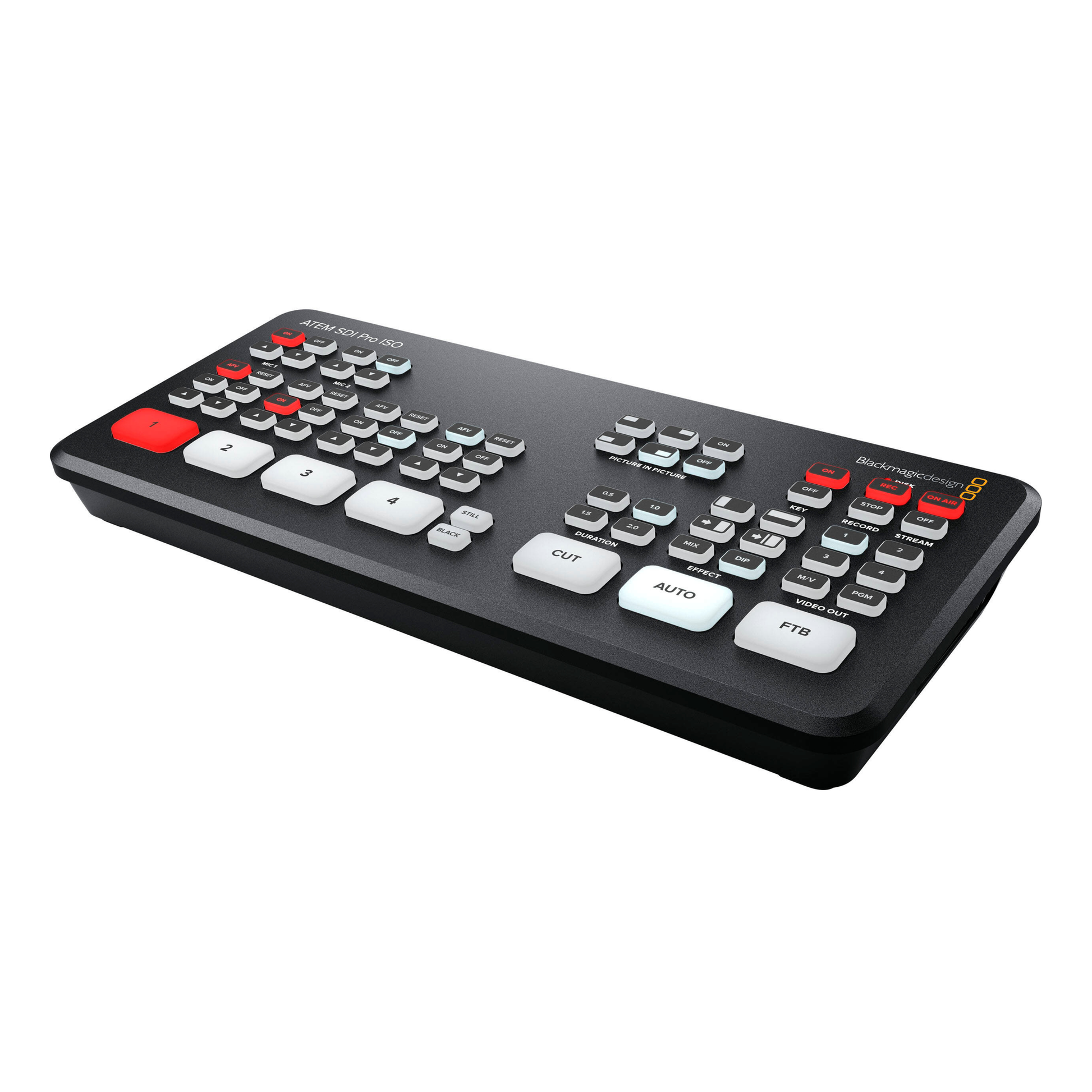

BLACKMAGICDESIGN Atem SDI Pro ISO
BLACKMAGICDESIGN Atem SDI Pro ISO
|
Blackmagic Design ATEM SDI Pro Specs |
|
|

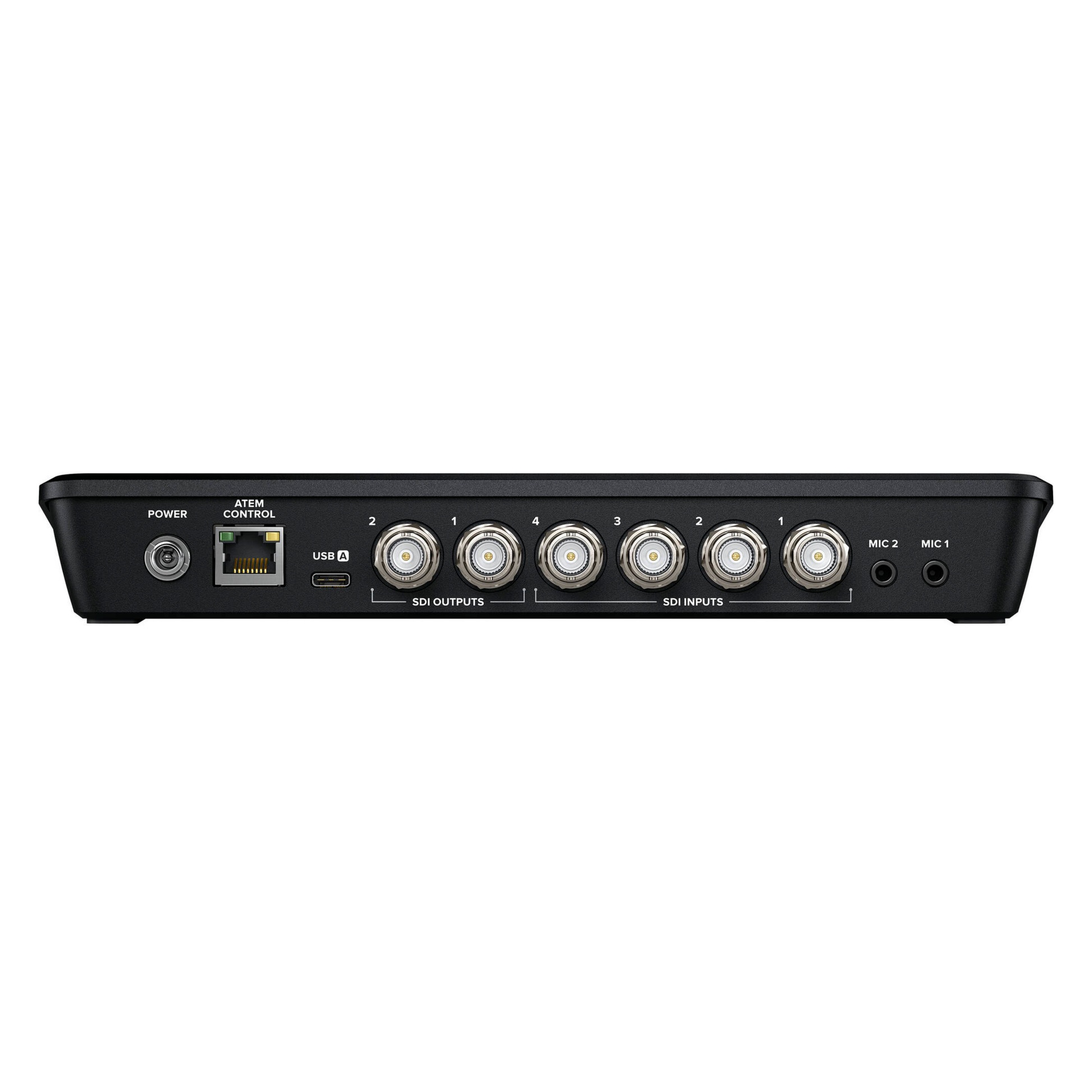

Video & Audio I/O |
|
|
Total Video Inputs / Connector |
4x Video Inputs | 4x BNC (3G-SDI) |
|
Supported Format |
Up to 1080p60 (10-Bit 4:2:2 YUV) |
|
Video Outputs |
2x BNC (3G-SDI) (Program) | 1x USB-C (Webcam/Recording) |
|
Multiview Output |
Yes (via one of the 3G-SDI or USB-C outputs) |
|
Audio Inputs |
2x 3.5 mm TRS Stereo Analog |
|
Processing & Effects |
|
|
Available M/E Layers |
5 M/E |
|
Effect Types |
DVE, Transition, Chroma Key |
|
Generators & Audio |
1x Pattern, 2x Color | 2-Channel Mixing (Fairlight) |
|
Switching Type |
IR Remote, Pushbutton, Software |
|
Connectivity & Physical |
|
|
Computer Interface / Control |
1x USB-C (Webcam/Recording) | 1x RJ45 (Control I/O) |
|
Dimensions (L x W x H) |
9.35 x 4.67 x 1.38" / 23.75 x 11.86 x 3.51 cm |
|
Weight / Power |
23.9 oz / 678 g | 36 W Max Consumption (12 VDC) |
