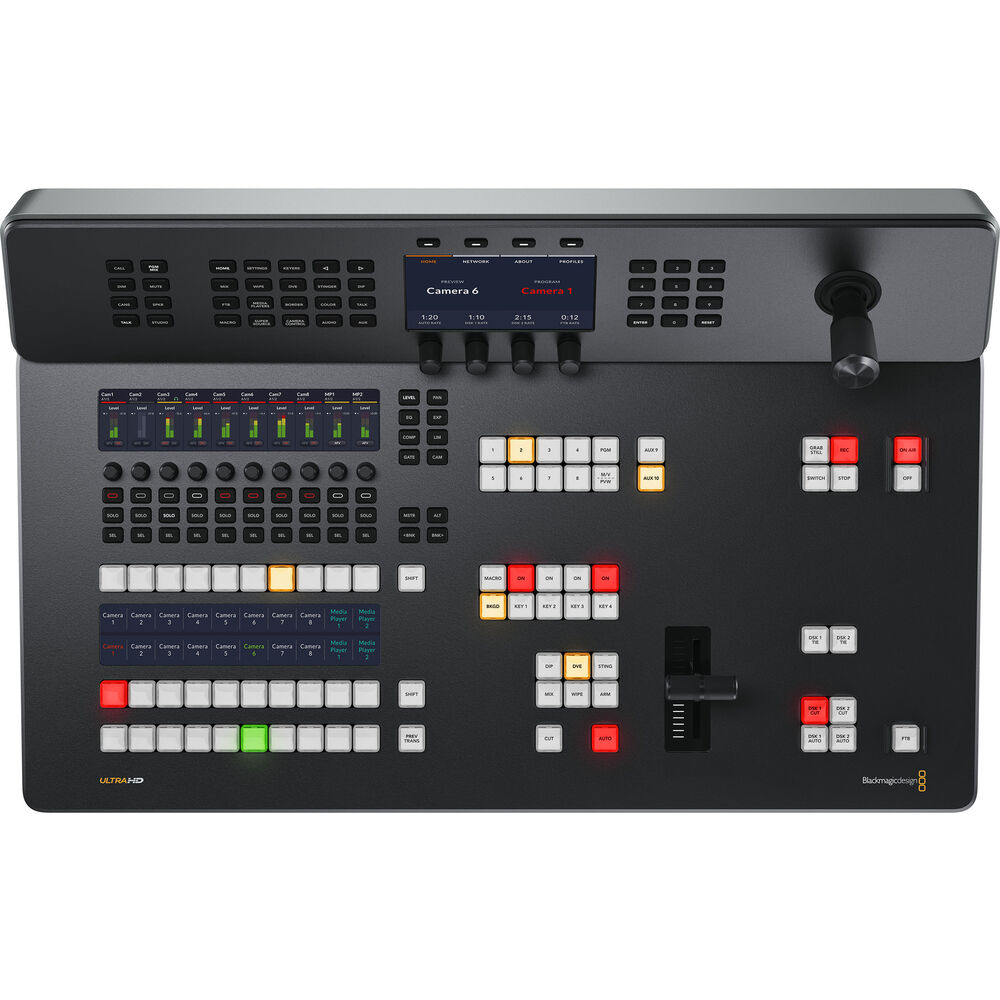

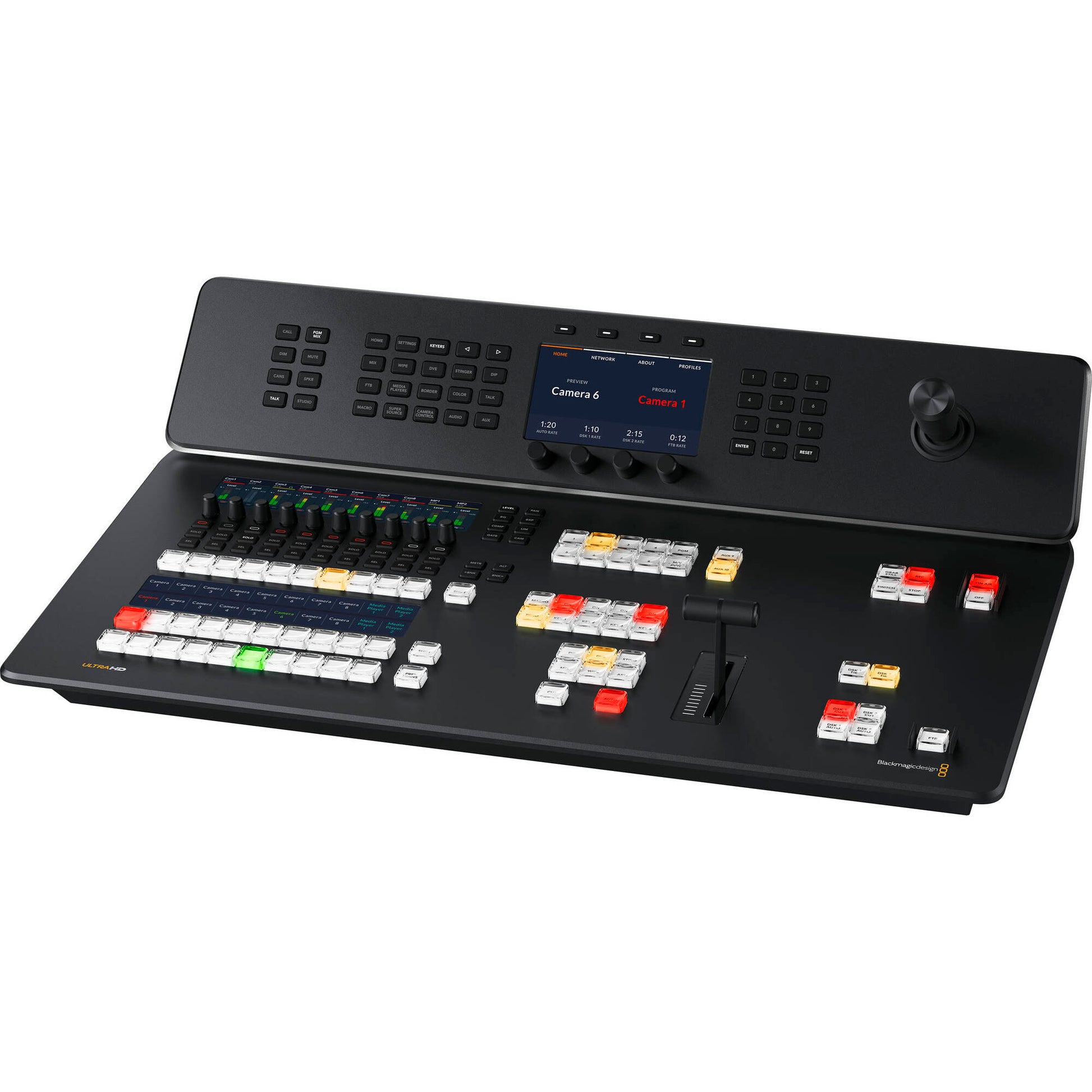

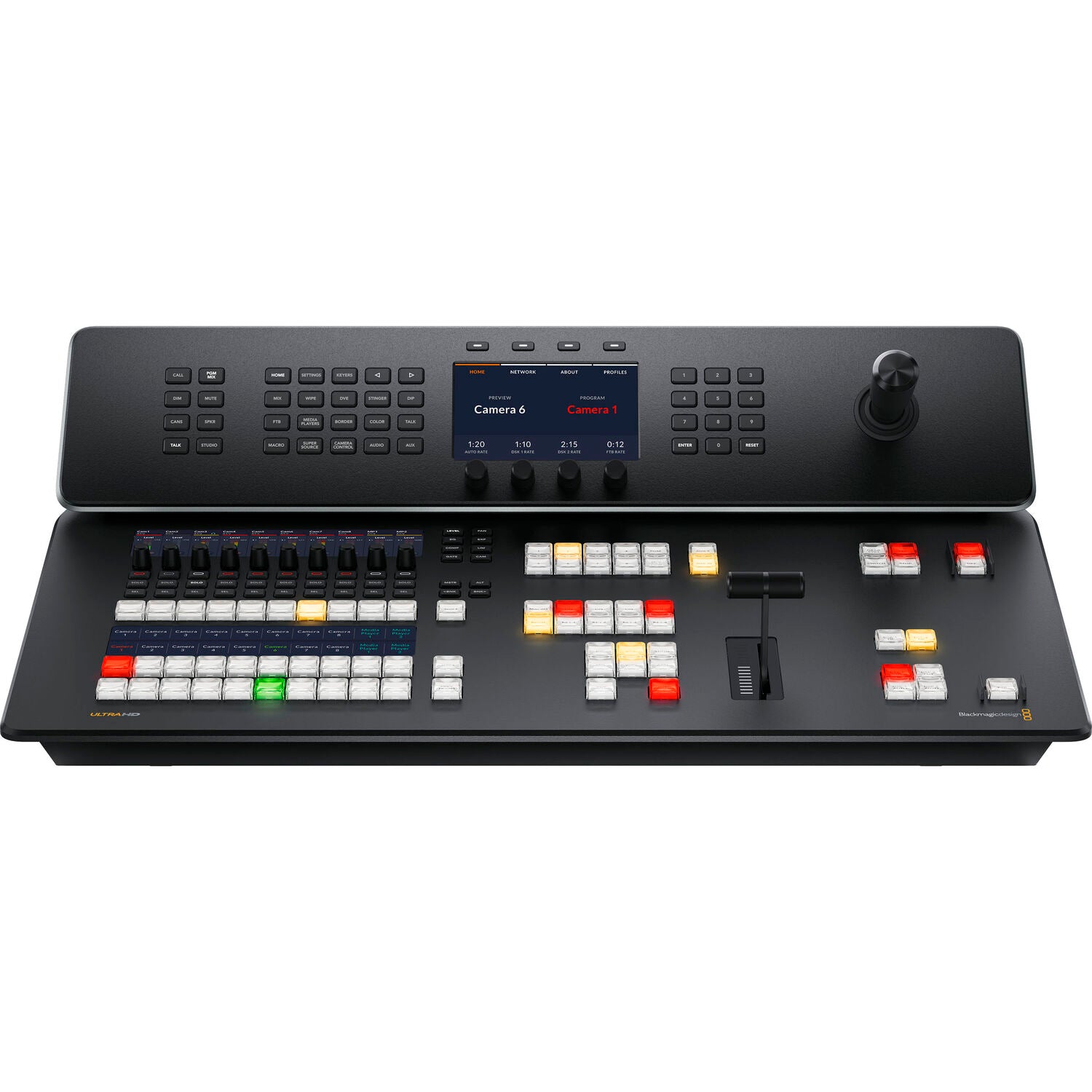

Key Specifications

Mix Effects

• Available M/E Layers: 1 M/E
• Effect Types: 1x DVE, Stinger, 4x Chroma Key, 7x Luma Key
• Downstream Keys: 2x Chroma, Luma, DVE
• Generators: 7x Pattern, 2x Color
• Audio Mixing: 58-Channel Mixing

Processing

• Switching Type: Pushbutton, Software, T-Bar
• Latency: 10 Lines
• Processing Resolution: UHD 4K at 60
• Color Processing: 10-Bit 4:2:2 RGB

Input

• Number of Video Input Sources: 8
• Video Inputs: 8x BNC (12G-SDI) Female
• Input Video Format:
  • SDI (10-Bit 4:2:2 RGB)
    • UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
    • 1080p at 23.98/24/25/29.97/30/50/60 fps
    • 1080i at 50/59.94/60 fps
    • 720p at 50/59.94/60 fps
• Audio Inputs: 1x BNC MADI Female, 1x 2RCA Stereo Analog Female, 2x XLR 3-Pin Analog Female, 1x XLR 5-Pin Female
• Embedded Audio Input: SDI

Output

• Video Output Channels: 12
• Video Outputs: 12x BNC (12G-SDI) Female
• Output Video Format:
  • SDI (10-Bit 4:2:2 RGB)
    • UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps
    • 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
    • 1080i at 50/59.94/60 fps
    • 720p at 50/59.94/60 fps
• Audio Outputs: 4x 1/4" TRS Analog Female, 1x BNC MADI Female, 1x XLR 5-Pin Analog Female
• Embedded Audio Output: SDI
• Multiview Output: 16-Way Multiview
• Monitor Output: 1x HDMI

Connectivity

• Other I/O: 1x BNC Reference Input, 1x BNC Reference Output, 1x BNC Timecode, 1x BNC Timecode, 4x RJ45 LAN Input/Output, 1x RJ45 Talkback Input/Output, 1x RJ12 Remote Input/Output, 2x USB-C Output
• Video Standard Compliance: SMPTE 292M/296M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10
• IP Encoding/Decoding: Transport Protocols: RTMP

Display

• Screen Resolution: 1366 x 768

Hardware

• OS Compatibility: macOS 12 to 13 or Later, Windows 10 to 11
• Processor: Not Specified by Manufacturer
• Wi-Fi: No
• Bluetooth: No

Power

• Power I/O: 1x IEC C14 (100 to 240 VAC) Input, 1x XLR 4-Pin (12 VDC) Input

General

• Operating Conditions: 32 to 72°F / 0 to 40°C up to 90% Humidity
• Storage Conditions: -4 to 140°F / -20 to 60°C up to 90% Humidity
• Dimensions: 23 x 14.8 x 6.38" / 58.4 x 37.6 x 16.21 cm
• Weight: 14.9 lb / 6.8 kg

Packaging Info

• Package Weight: 26.76 lb
• Box Dimensions: 28.5 x 21.5 x 10" (LxWxH)
