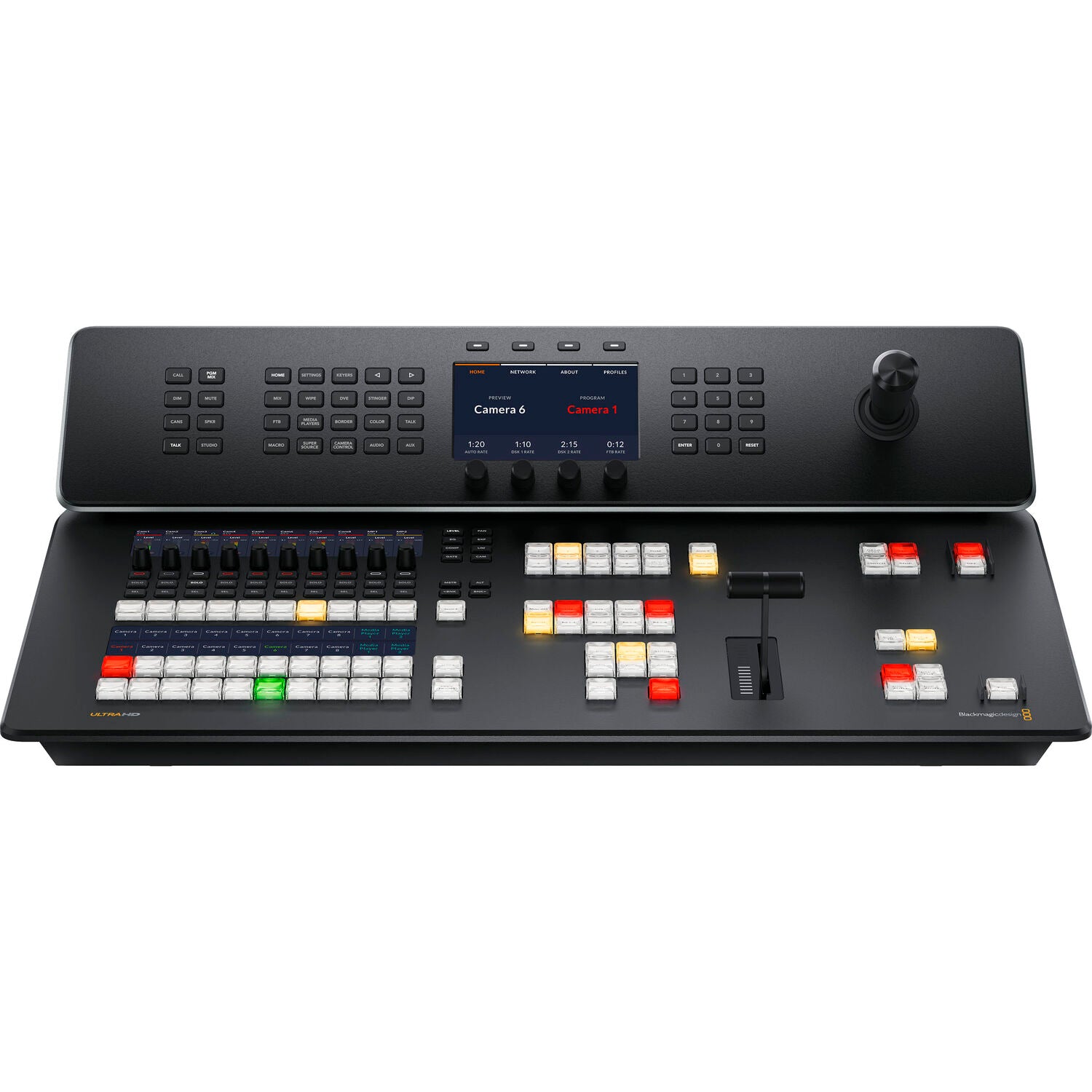

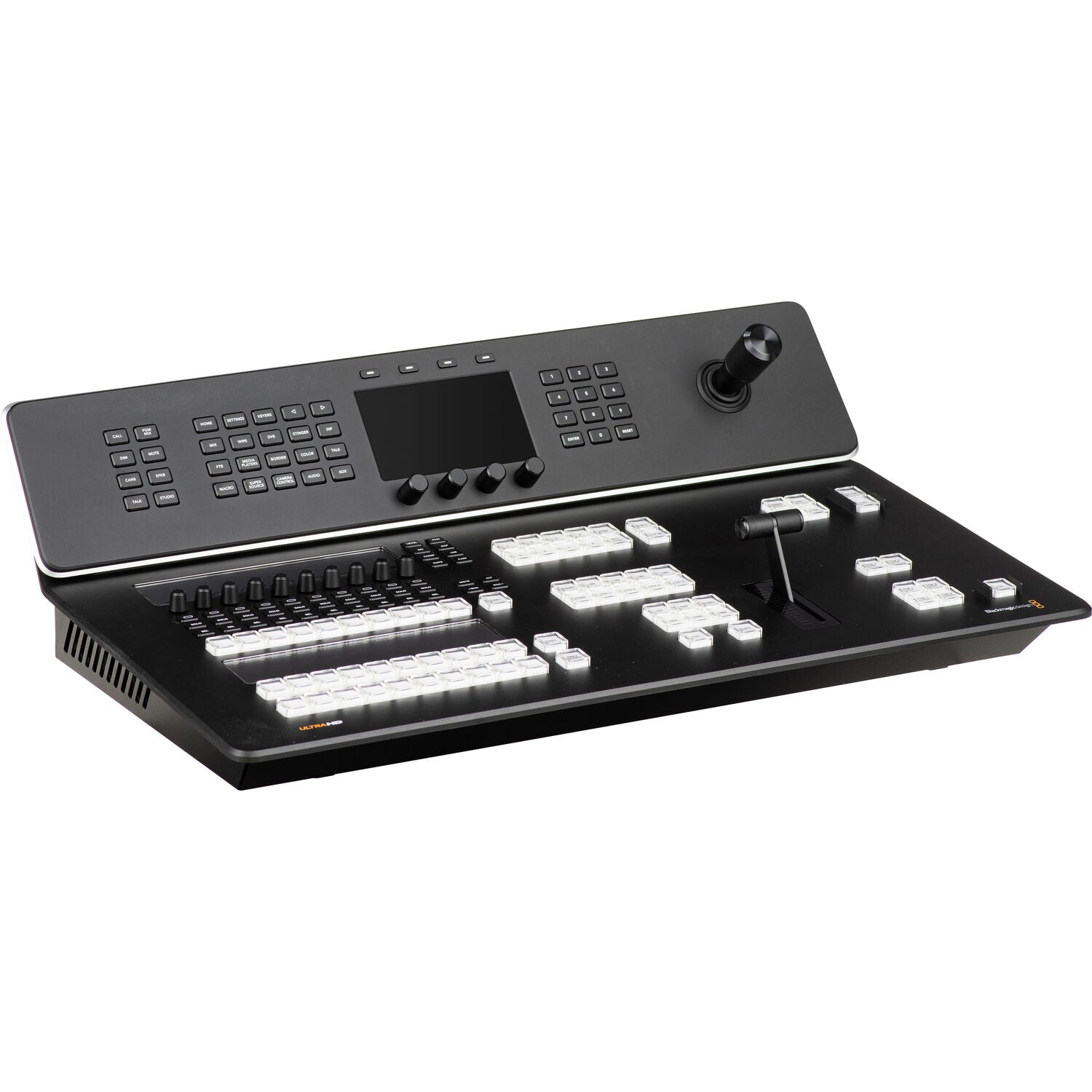

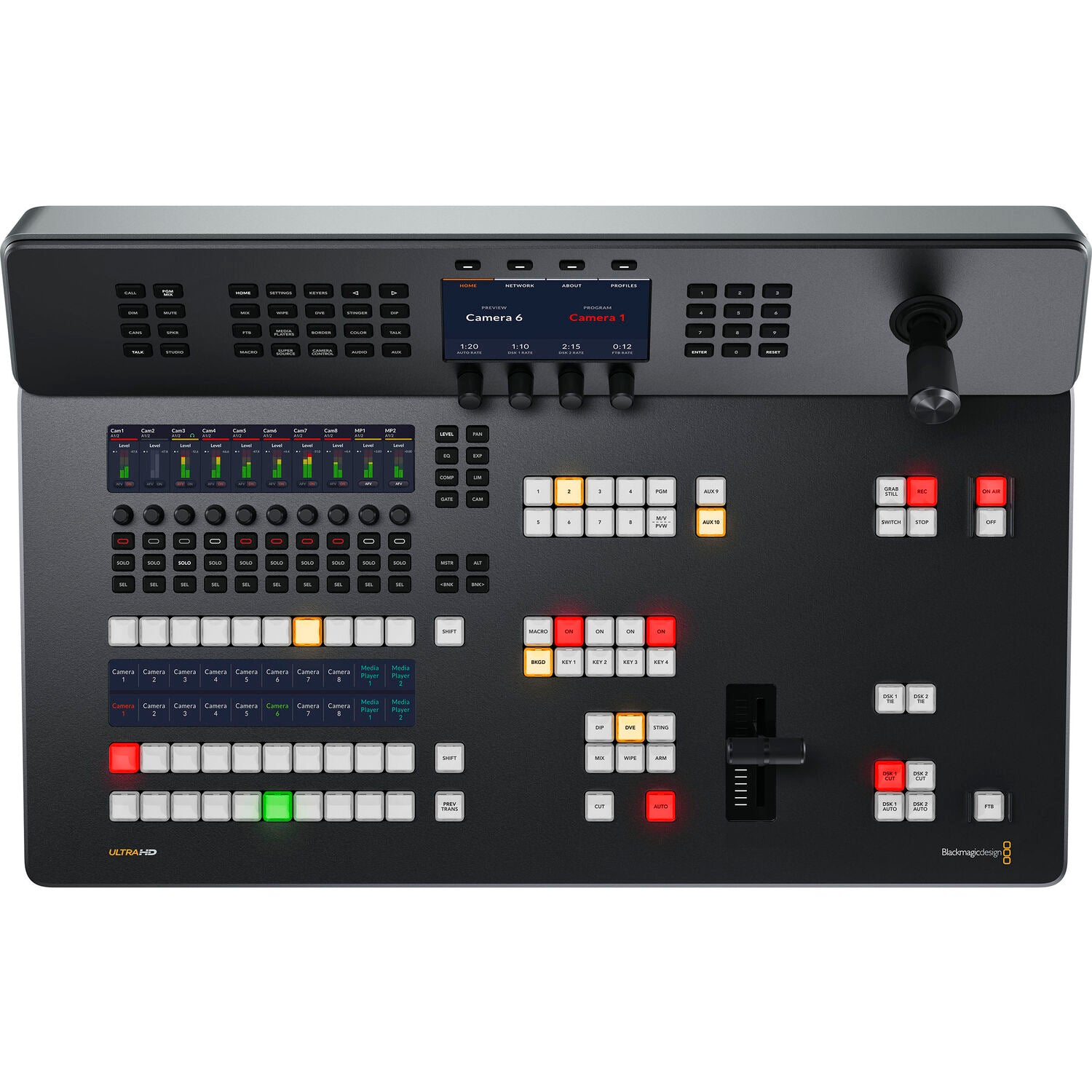

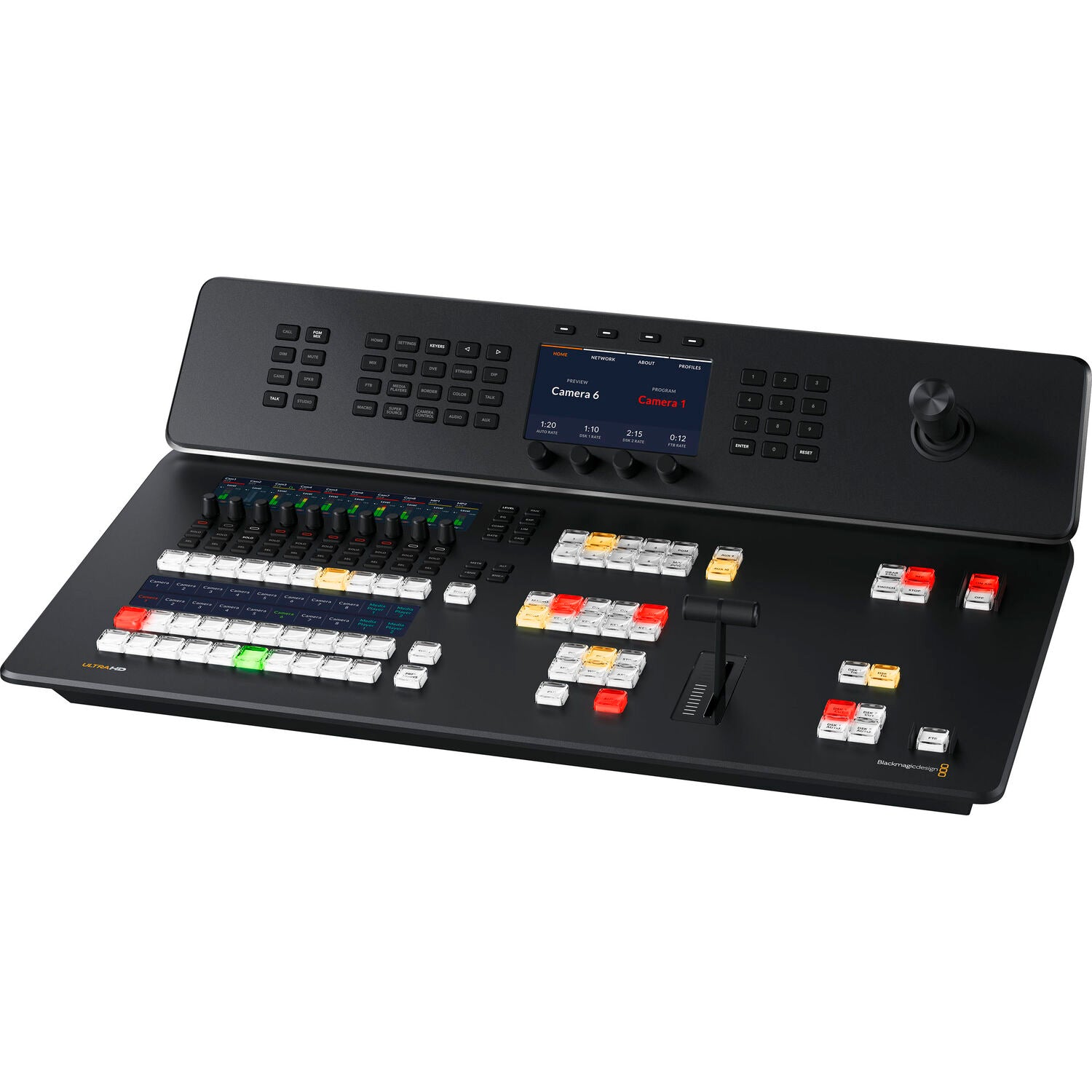

Key Specifications

Mix Effects

Available M/E Layers

8 M/E

Effect Types

1 × DVE, Stinger
4 × Chroma Key
7 × Luma Key

Downstream Keys

2 × Chroma, Luma, DVE

Generators

7 × Pattern
2 × Color

Audio Mixing

58-Channel Mixing

Processing

Switching Type

Pushbutton, Software, T-Bar

Processing Resolution

UHD 4K at 60

Color Processing

10-Bit 4:2:2 RGB

Video Inputs

Video Input Sources

8

Video Inputs

8 × BNC (3G-SDI, 6G-SDI, 12G-SDI, HD-SDI) Female

Input Video Format

SDI (10-Bit 4:2:2 RGB)
UHD 4K @ 23.98/24/25/29.97/30/50/59.94/60 fps
1080p @ 23.98/24/25/29.97/30/50/59.94/60 fps
1080i @ 50/59.94/60 fps
720p @ 50/59.94/60 fps

Audio Inputs

1 × BNC MADI Female
1 × 2 RCA Stereo Analog Female
2 × XLR 3-Pin Analog Female

Embedded Audio Input

SDI: 4-Channel (per Input)

Video Outputs

Video Output Channels

12

Video Outputs

12 × BNC (12G-SDI) Female
2 × USB-C (USB Video) Female

Output Video Format

SDI (10-Bit 4:2:2 RGB)
UHD 4K @ 23.98/24/25/29.97/30/50/59.94/60 fps
1080p @ 23.98/24/25/29.97/30/50/59.94/60 fps
1080i @ 50/59.94/60 fps
720p @ 50/59.94/60 fps

USB-C (10-Bit 4:2:2 RGB)
1080p @ 23.98/24/25/29.97/30/50/59.94/60 fps
720p @ 50/59.94/60 fps

Audio Outputs

4 × 1/4" TRS Analog Female
1 × BNC MADI Female

Embedded Audio Output

SDI: 16-Channel (per Output)

Multiview Output

16-Way Multiview

Monitor Output

1 × HDMI

Connectivity

Other I/O

1 × XLR 5-Pin Talkback Input
1 × XLR 5-Pin Talkback Output
1 × BNC Timecode Input
1 × BNC Timecode Output
1 × BNC Reference Input
1 × BNC Reference Output
4 × RJ45 LAN Input/Output
1 × RJ12 RS-422 Input/Output
2 × USB-C 3.0 / 3.1 / 3.2 Gen 1 Input/Output

Video Standard Compliance

SMPTE 292M / 296M / 424M / 425M-A / 425M-B

IP Encoding / Decoding

IP Video

H.264: 1920 × 1080 at 60p Encoding

Transport Protocols

RTMP, TCP/IP

Internal Recording

Internal Storage

2 TB

Hardware

OS Compatibility

macOS 14 or Later / Windows 10 or Later

Processor

Not Specified by Manufacturer

Wireless

No

Power

Power Input

1 × IEC C14 (100 to 240 VAC) Input
1 × XLR 4-Pin (12 VDC) Input

Power Consumption

100 W

Environmental

Operating Conditions

32 to 104°F (0 to 40°C), up to 90% Humidity

Storage Conditions

-4 to 140°F (-20 to 60°C), up to 90% Humidity

Physical Specifications

Dimensions

58.4 × 37.6 × 16.13 cm (23 × 14.8 × 6.35")

Weight

6.8 kg (14.9 lb)

Packaging Information

Package Weight

27 lb

Box Dimensions (L × W × H)

29 × 21.8 × 10.3"
