Key Specifications

Product Model

Audio-Technica ATM350D

Microphone Type

Instrument-Mount Condenser (Drum Mount)

Element Type

Fixed-charge back plate, permanently polarized condenser

Polar Pattern

Cardioid (Unidirectional)

Acoustic Performance

Frequency Response

40 Hz to 20 kHz

Max Input SPL

159 dB SPL (1 kHz at 1% T.H.D.)

Dynamic Range

130 dB (1 kHz at Max SPL)

Sensitivity

-49 dB (3.5 mV) re 1V at 1 Pa

Onboard Controls & Hardware

Low-Cut Filter

80 Hz, 12 dB/octave (Switchable on AT8543 module)

Mounting System

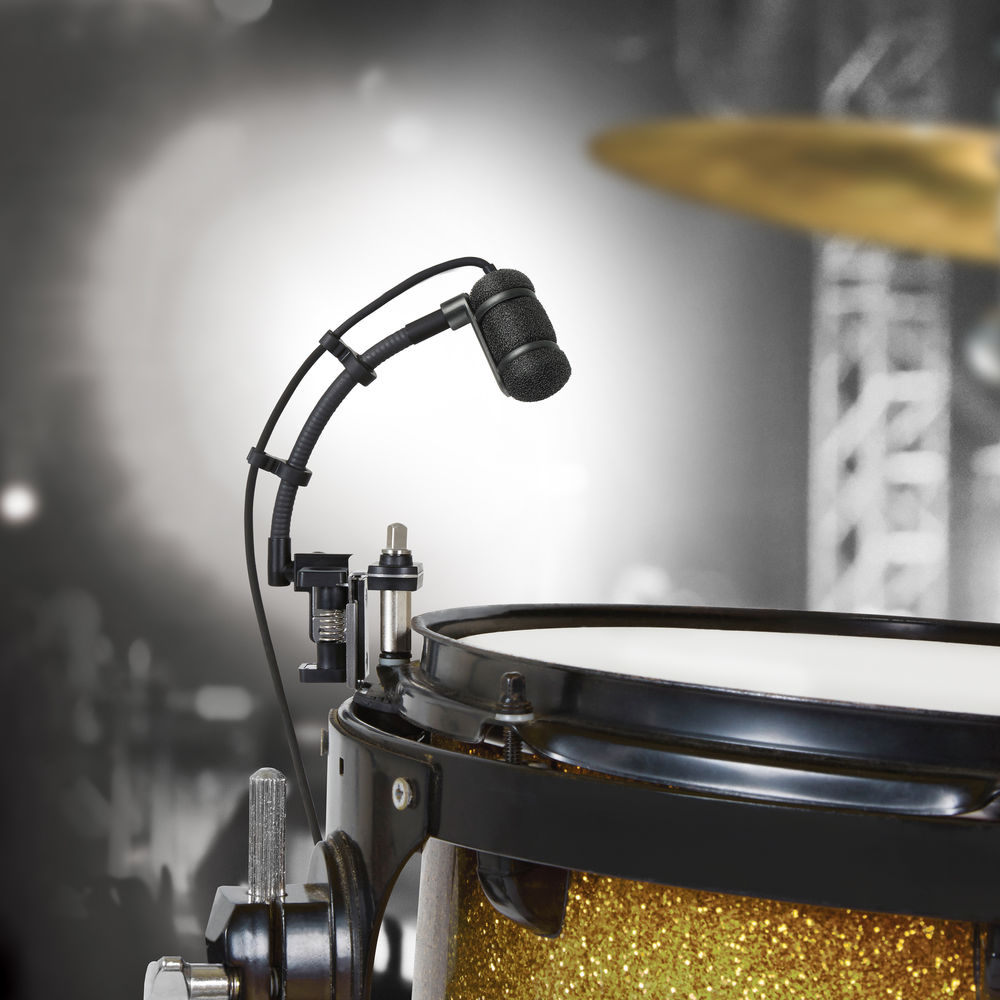

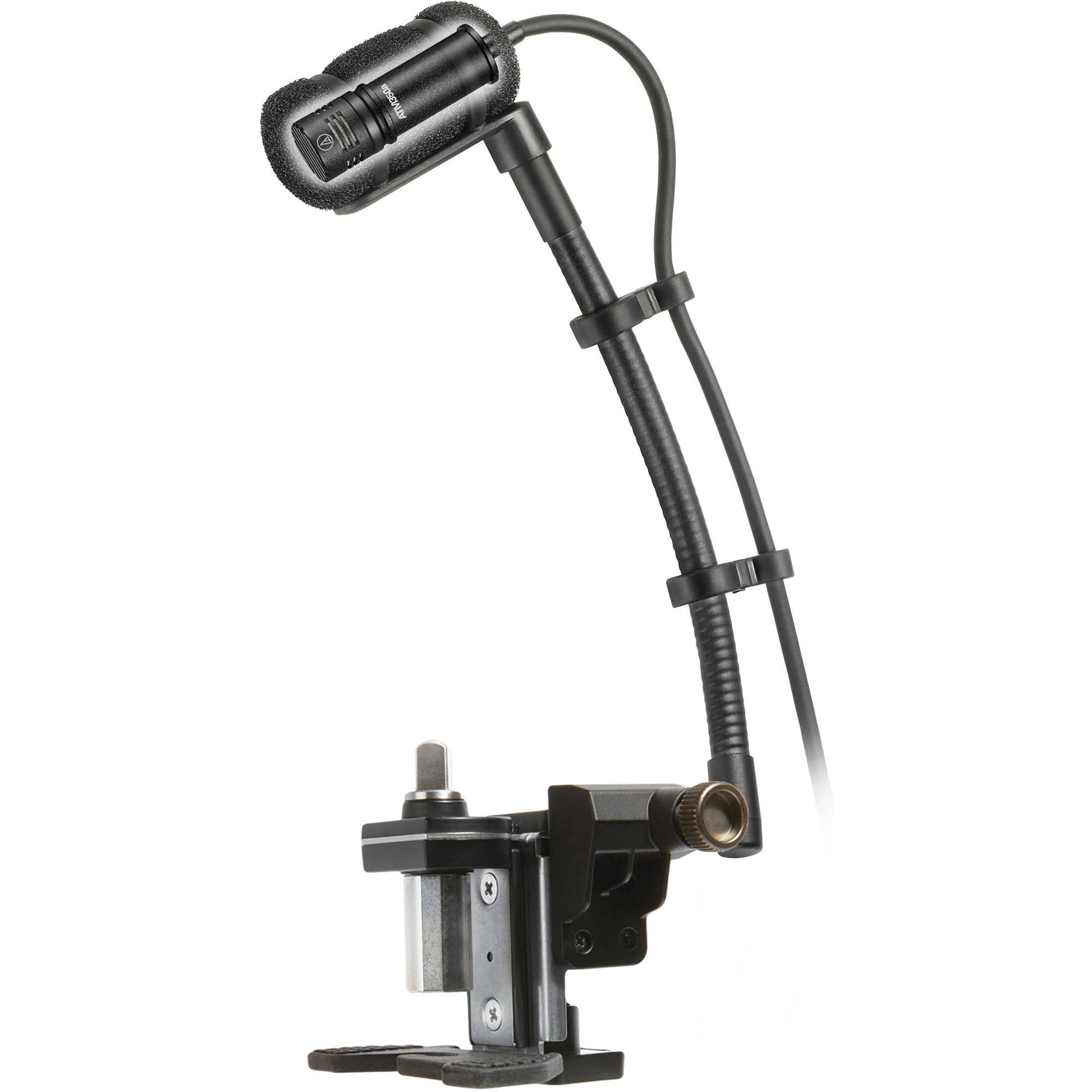

Drum Mount (AT8491D) with 5" Gooseneck

Output Connector

Hirose cH-Style 4-pin (Mic) to 3-pin XLRM (Power Module)

Physical Specifications

Cable Length

13.1' (4.0 m) / Permanently attached to mic

Dimensions

37.8 mm Long | 12.2 mm Head Diameter

Weight

Mic: 14.2 g | Power Module: 90 g
