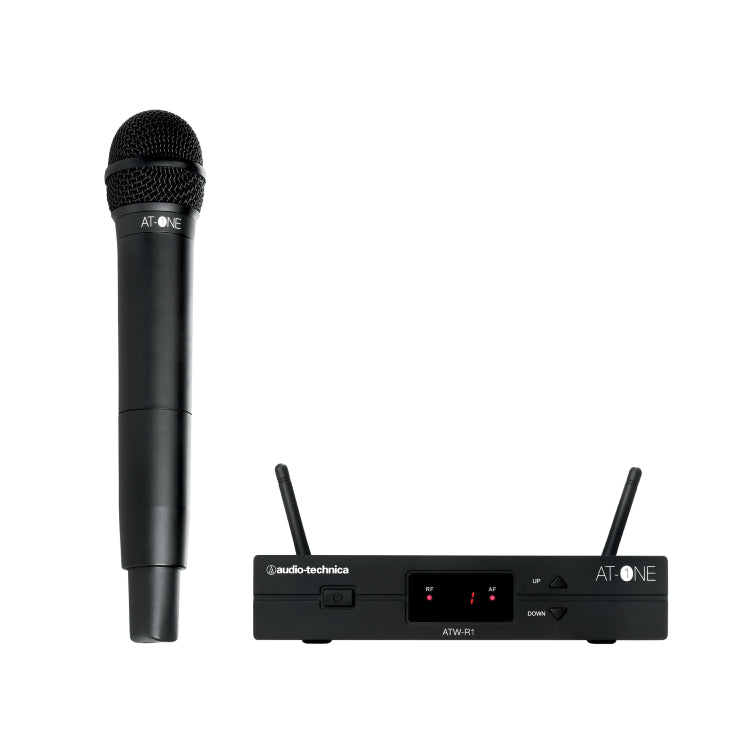

ATW-13DE3

Designed for quick and easy use
Perfect balance between price and performance, the AT-One is ideal for those looking for reliable results at low prices
The frequency plan of AT-One is divided into two groups with 4 channels available in each group, one in the range of authorized European frequencies and the other in the duplex Gap
Users can choose up to 4 channels in a group
The ATW-13 system is equipped with a cardioid condenser handheld transmitter
RF transmission power 10mW
Up to 10 hours’ battery life with 2 x 1.5V AA batteries
RF Indicator light
Robust construction from high quality components
Delivered in a transport case with a rack mount kit and detachable antennas

AUDIO TECHNICA

₱18,500.00 VAT INC.

₱18,500.00

UNIT: SET

Product Code: SKU:ATCH-ATW13DE3-CHN-769

Designed for quick and easy use
Perfect balance between price and performance, the AT-One is ideal for those looking for reliable results at low prices
The frequency plan of AT-One is divided into two groups with 4 channels available in each group, one in the range of authorized European frequencies and the other in the duplex Gap
Users can choose up to 4 channels in a group
The ATW-13 system is equipped with a cardioid condenser handheld transmitter
RF transmission power 10mW
Up to 10 hours’ battery life with 2 x 1.5V AA batteries
RF Indicator light
Robust construction from high quality components
Delivered in a transport case with a rack mount kit and detachable antennas

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

AUDIO TECHNICA ATW-13DE3

Key Specifications
Product Type	Dual-Channel UHF Wireless System
Receiving System	Antenna Switching Diversity
Operating Range	60m (Typical)
Dynamic Range	Handheld: 108 dB \| Bodypack: 103 dB
RF & Frequency Management
Frequency Band	F-Band: 824 – 831 MHz / 863 – 865 MHz
Channel Configuration	2 x 4 Frequencies
RF Power Output	10 mW
Handheld Transmitter
Microphone Element	Condenser Cardioid
Battery Life	~10 Hours (2 x 1.5V AA Alkaline)
Dimensions	268 mm Long \| 52 mm Diameter
Receiver Connectivity
Output Connectors	Balanced: XLRM-type (4dBV) Unbalanced: 6.3 mm Mono Jack (-2dBV)
Antenna Inputs	BNC Type (50 Ohm) \| 12V DC 100mA Bias Power
Included Accessories	AC Adapter, Antennas, Rack mount kit, Carrying case
