Key Specifications

Product Series

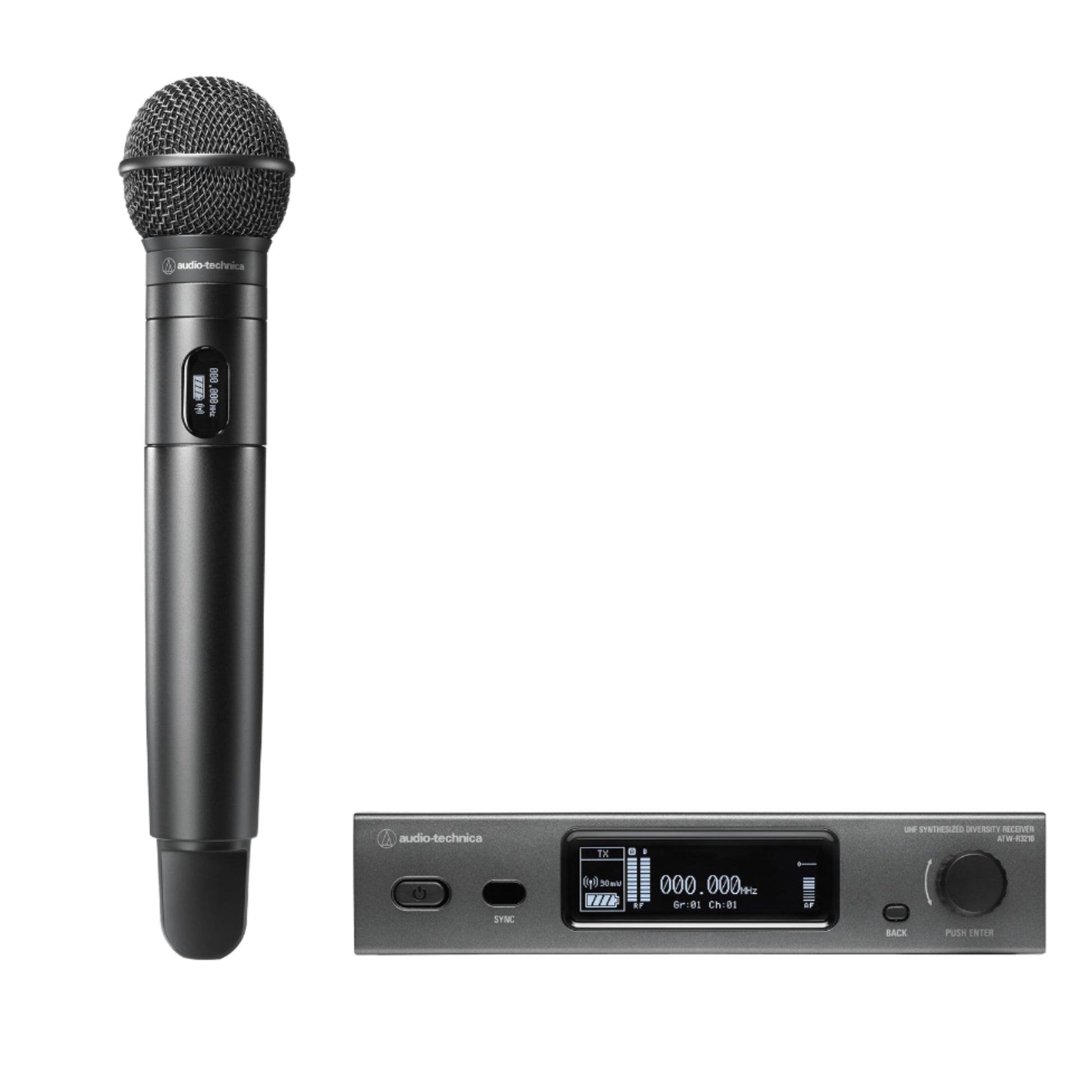

Audio-Technica 3000 Series (4th Gen)

Receiving System

True Diversity (Dual independent receiver sections)

Operating Range

100 m (328') Open range environment

Simultaneous Channels

Up to 40 Channels per band

RF & Frequency Bands

Available Bands

• DE2: 470.125 – 529.975 MHz
• EE1: 530.000 – 589.975 MHz
• EF1: 590.000 – 649.975 MHz
• FG1: 650.000 – 699.875 MHz

RF Power Output

High: 30 mW | Low: 10 mW (Switchable)

Transmitter Details (Handheld & Bodypack)

ATW-T3202 Handheld

• Capsule: Interchangeable (Industry standard thread)
• Battery Life: ~9.5 hours (Ni-MH)

ATW-T3201 Bodypack

• Input: cH-style screw-down 4-pin
• Low-cut Filter: 125Hz, 12dB/octave

Receiver Connectivity

Audio Outputs

• XLR Balanced (+14 dBV)
• 6.3 mm (1/4") Unbalanced (+8 dBV)

Antenna / Power

• Input: BNC (50 ohms) with 12V DC power
• Power: 12V DC 1A External Supply
