Key Specifications

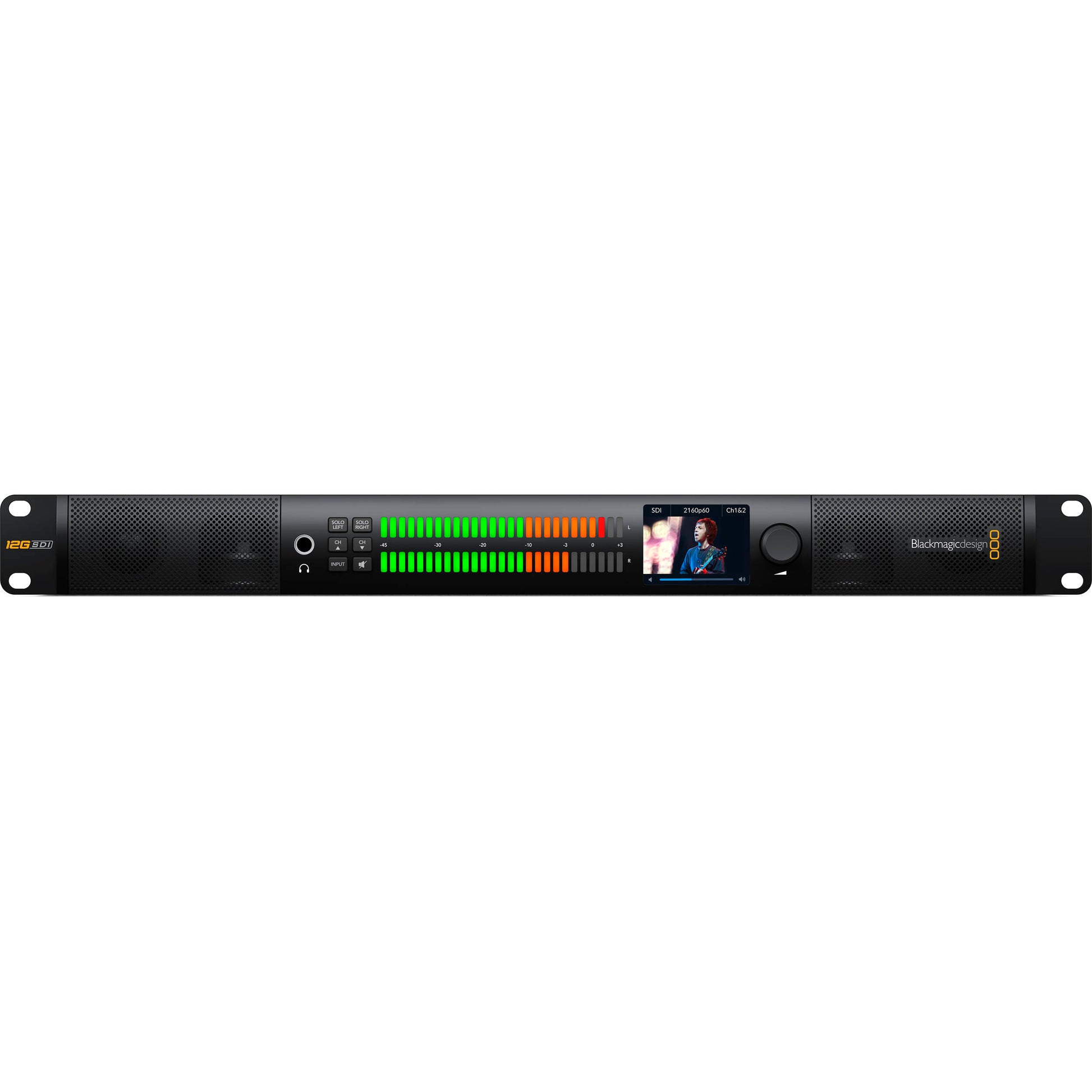

Display

• Panel Type: LCD
• Display Size: 2.2"
• Native Resolution: 320 x 240
• Touchscreen: No

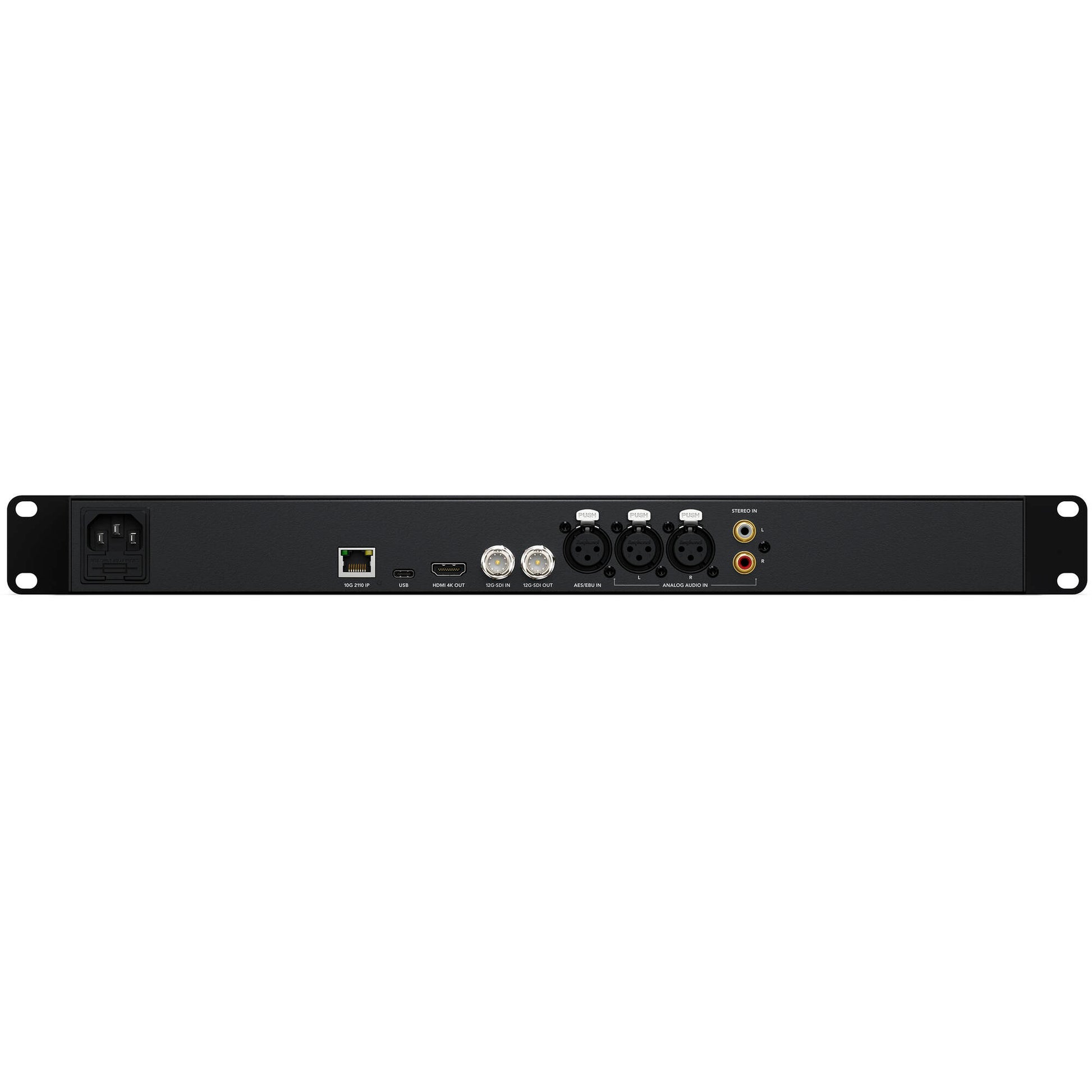

Inputs/Outputs

• USB: 1 x USB-C Female Input
• Video: 1 x BNC (12G-SDI) Input, 1 x BNC (12G-SDI) Loop Output, 1 x HDMI 2.0 Output
• Audio: 1 x XLR 3-Pin AES3/Line Input, 2 x XLR 3-Pin Input, 2 x RCA Input, 1 x 1/4" Headphone Output
• Other: 1 x RJ45 10G Ethernet 2110 IP Input

Compliance

• SMPTE Video: 295M, 292M, 296M, 424M, 425M-A, 425M-B, 2081-1, 2081-10, 2082-1, 2082-10
• SMPTE 2110 IP: 2110-20, 2110-21, 2110-30, 2110-40
• Other: SMPTE 2084, SMPTE 2108-1

Video & Audio Standards

• Video Resolutions: DCI 4K, UHD 4K, DCI 2K, 2KPsF, 1080p, 1080PsF, 1080i, 720p (at various frame rates), 525i, 625i
• Video Sampling: 4:2:2, 4:4:4
• Audio Sampling: 96 kHz / 24-Bit
• Wireless: Yes

Power

• Power Source: AC Input
• AC Input Power: 100 to 240 VAC, 50/60 Hz
• Power Consumption: 55 W

Physical

• Color: Black
• Material: Metal
• Dimensions: 19 x 9.53 x 1.74" / 48.3 x 24.21 x 4.42 cm
• Weight: 5.73 lb / 2.6 kg

Environmental

• Operating Temp: 32 to 104°F / 0 to 40°C (up to 90% humidity)
• Storage Temp: -4 to 113°F / -20 to 45°C
