Key Specifications

Display

No

Channels of I/O

Analog:
2 Inputs / 2 Outputs at 96 kHz

Built-In DSP

No

Maximum Sampling Rate

96 kHz / 24-Bit

Number of Microphone Inputs

2

Built-In Microphone

No

Input Level Adjustment

2x Knob

Signal Processing

Pad

No

Gain / Trim Range

Mic Inputs: 0 dB to +60 dB
Hi-Z Inputs: -10 dB to +30 dB
Monitor Outputs: -80 dB to +10 dB

High-Pass Filter

No

Solo / Mute

No

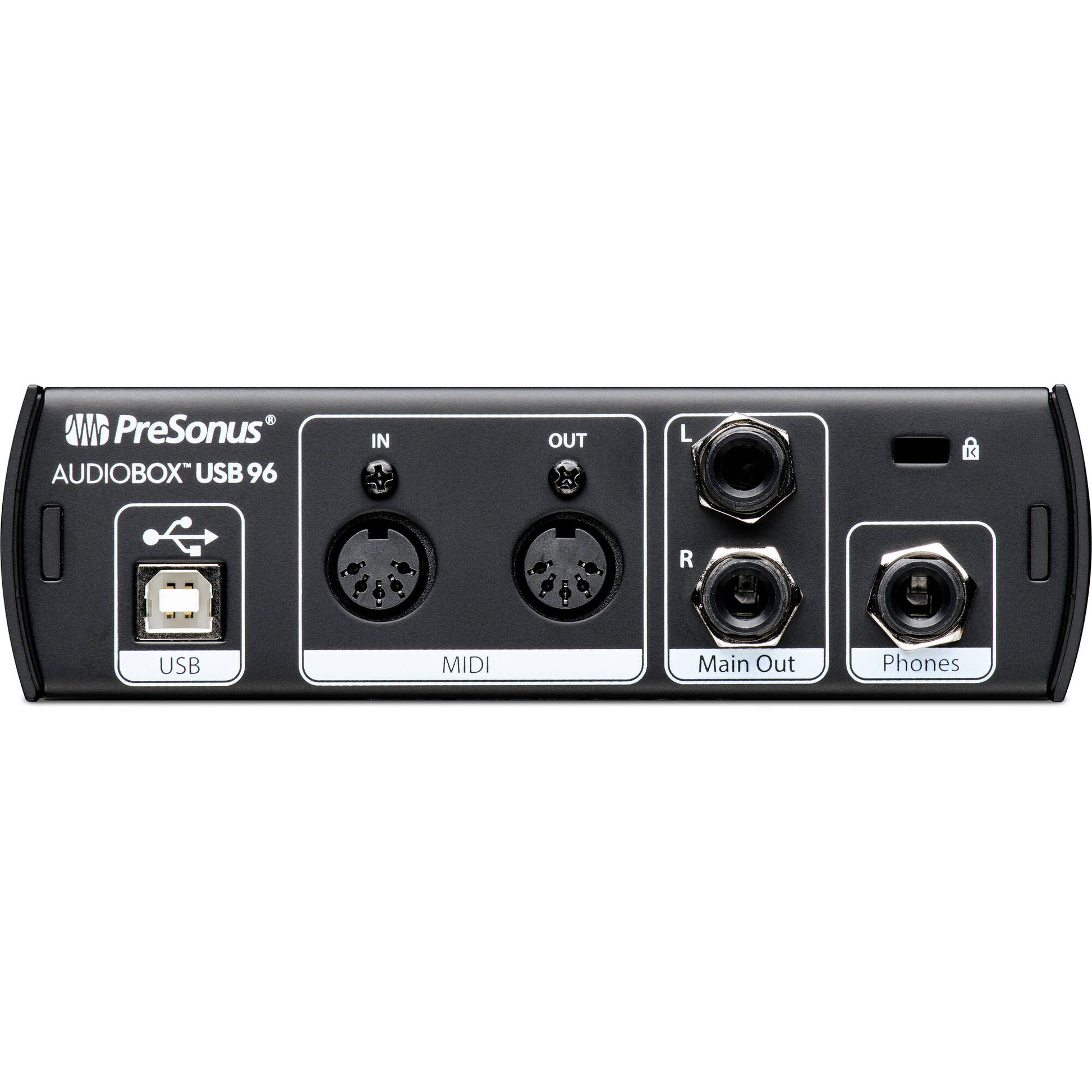

Connectivity

Analog Audio I/O

2x Combo XLR-1/4" TS Balanced/Unbalanced Mic/Hi-Z Input
2x 1/4" TRS Balanced Line/Monitor Output
1x 1/4" TRS Unbalanced Headphone Output

Phantom Power

48 V, Selectable On/Off (Applied to All Inputs)

Digital Audio I/O

No

Host Connection

1x USB-B

Host Connection Protocol

USB 2.0

USB (Non-Host)

No

Sync I/O

No

Network I/O

No

MIDI I/O

1x DIN 5-Pin Input
1x DIN 5-Pin Output

Expansion Slots

No

Wireless

No

Performance

Frequency Response

Mic Inputs: 20 Hz to 20 kHz ±3 dB
Headphone Outputs: 20 Hz to 30 kHz ±1 dB

Maximum Input Level

Mic Inputs: -3 dBu (Unity Gain, 1 kHz)

Headphone Output Power

60 mW per Channel into 60 Ohms (Max)

Impedance

Outputs: 51 Ohms (Balanced)
Mic Inputs: 1.2 Kilohms (Balanced)
Hi-Z Inputs: 0.5 Megohms (Unbalanced)

Dynamic Range

AD/DA Converters: 105 dBA (48 kHz Sample Rate)

SNR

95 dB (at +4 dBu, 1 kHz, Unity Gain)

THD+N

Mic Inputs: < 0.008% (Unweighted, 1 kHz, Unity Gain)

Digital Audio

Sample Rates

44.1 to 96 kHz

Sample Rate Conversion

No

Bit Depths

24-Bit

Sync Sources

Internal

Audio Storage & Playback

Media / Memory Card Slot

No

Compatibility

OS Compatibility

macOS / Windows

Processor Requirement

Mac: Intel Core Duo
PC: Intel Core 2

RAM Requirements

Mac: 2 GB (4 GB Recommended)
PC: 4 GB (8 GB Recommended)

Storage Requirements

20 GB

Mobile Device Compatibility

No

Required Hardware

Available USB 2.0 Port
USB Cable (Included)

Power

Power Requirements

USB Bus Power

Physical

Rackmount Size

1 U (with Non-Included Hardware, 1/3-Rack)

Dimensions

5.5 x 5.5 x 1.75" / 13.97 x 13.97 x 4.45 cm

Weight

1.3 lb / 0.6 kg

Packaging Info

Package Weight

16.445 lb

Box Dimensions (L x W x H)

20.6 x 16.1 x 9.6"
