Key Specifications

Max I/O Capacity

28x Input / 14x Output

Number of Analog Input Channels

22 (16 Mono / 3 Stereo)

Number of Mic Preamps

16

Number of Analog Output Channels

11

Faders & Level Adjustment

9x 3.9" / 100 mm Motorized Fader

Built-In Effects

23x

Analog Inputs

16x Combo XLR-1/4" Mic/Line Input
4x 1/4" TRS Line Input (2 Stereo Pairs)
1x 1/4" TRS Footswitch Input
2x RCA Coaxial Line Input (1 Stereo Pair)

Analog Outputs

8x XLR Line Output
2x XLR Main Output
1x 1/4" Headphone Output
2x RCA Control Room Output

Digital I/O

1x XLR AES3 Output
1x RJ45 Ethernet Output

USB I/O

USB-B
USB-A

Wireless

Wi-Fi / Bluetooth

Rack Mountable

Yes

Mixer

Max I/O Capacity

28x Input / 14x Output

Number of Analog Input Channels

22 (16 Mono / 3 Stereo)

Number of Mic Preamps

16

Number of Analog Output Channels

11

Mix Routing

8x Aux Send
8x Bus
2x Main LRC

Groups

4x DCA Group
3x Mute Group

Presets

Yes

Display

Main Display:
10" LCD Touchscreen

Faders & Level Adjustment

9x 3.9" / 100 mm Motorized Fader

Meters

Main Meter:
1x 12-Segment LED
Channel Meter:
8x 2-Segment LED

Signal Processing

Gain/Trim Range

-60 dB to +10 dB (in 10 dB Steps)

Dynamic Processing

Compressor, Gate

EQ

5-Band Parametric

Graphic EQ

Yes

Solo/Mute

Solo, Mute per Input Channel, Bus, FX Bus, Master

Built-In Effects

23x

Audio Delay

No

Connectivity

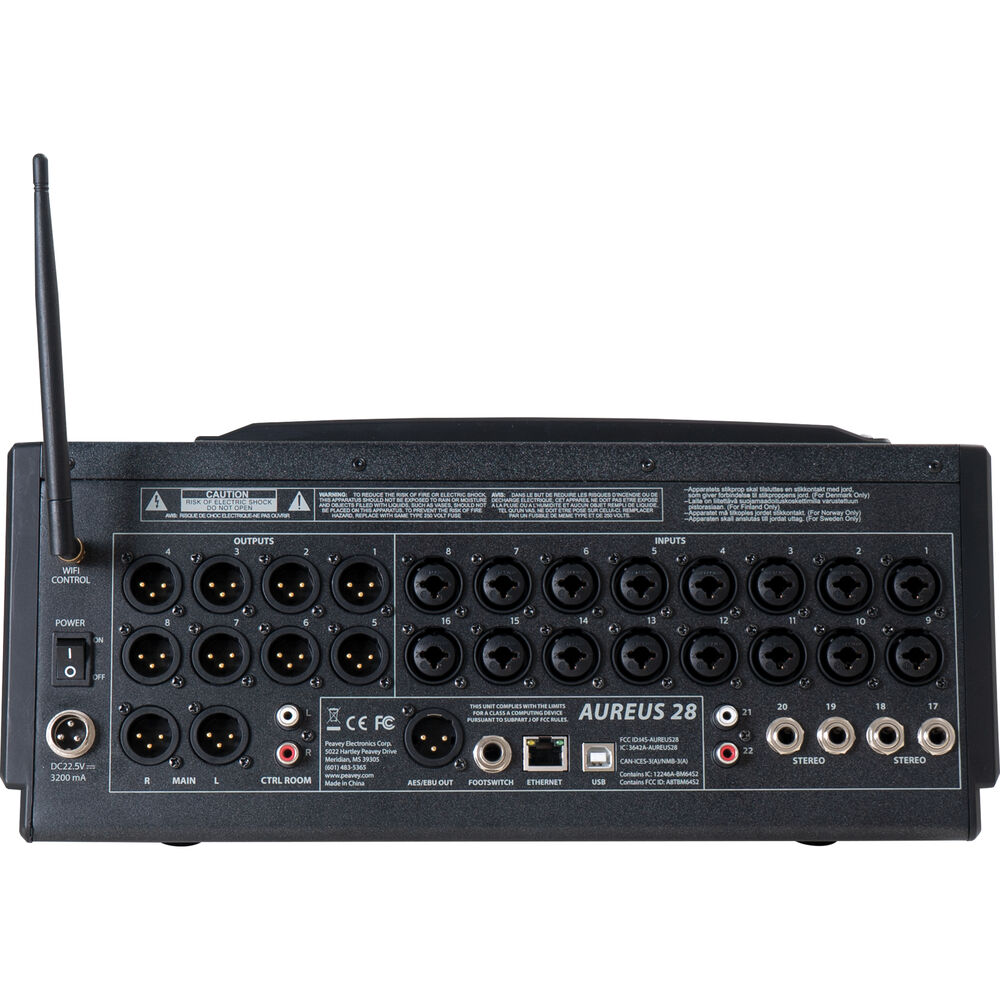

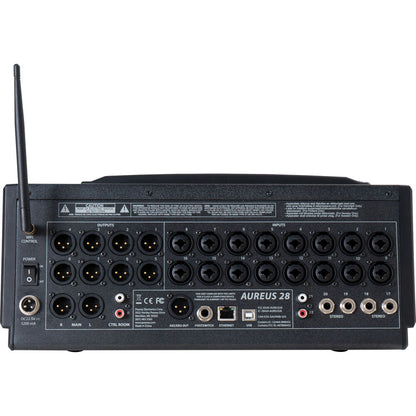

Analog Inputs

16x Combo XLR-1/4" Mic/Line Input
4x 1/4" TRS Line Input (2 Stereo Pairs)
1x 1/4" TRS Footswitch Input
2x RCA Coaxial Line Input (1 Stereo Pair)

Analog Outputs

8x XLR 3-Pin Mono Line Output
2x XLR Main Output (1 Stereo Pair)
1x 1/4" TRS Stereo Headphone Output
2x RCA Control Room Output (1 Stereo Pair)

Phantom Power

+48 V, Selectable On/Off (on 16 Channels)

Digital I/O

1x XLR AES3 Output
1x RJ45 Ethernet Output

MIDI I/O

No

USB I/O

1x USB-B 2.0 (Audio Playback, Audio Streaming, Host Connection, I/O, Multitrack Record, Recording)
1x USB-A 2.0 (External Memory)

Expansion Ports

No

Wireless

Wi-Fi / Bluetooth

External Display I/O

No

Recording

Media Support

USB Drive

Compatibility

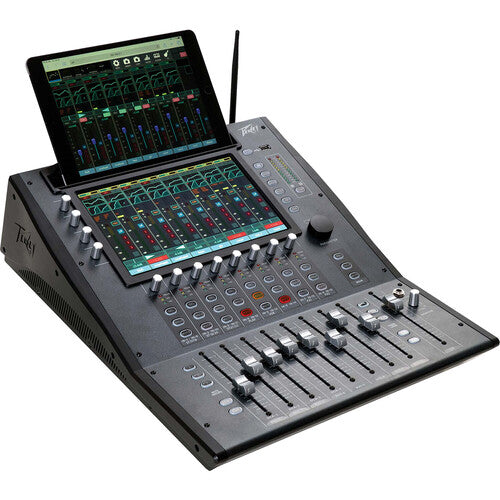

Mobile Device Compatibility

iPad
Android Tablet

Physical

Rack Mountable

Yes

Packaging Info

Package Weight

23.185 lb

Box Dimensions (LxWxH)

23.1 × 19.3 × 10.6"
