Key Specifications

Image Sensor

1/3.06" CMOS color image sensor

TV Lines

1000

Total Pixels

13 MP

Zoom

230X total zoom (10X optical zoom x 23X digital zoom)

Output Resolution

HDMI: 4K at 60 / 30Hz, Full HD 1080p at 60Hz, HD 720p at 60Hz
VGA: Full HD 1080p at 60Hz, HD 720p at 60Hz

Frame Rate

60fps (max.)

Focus

Auto / Manual

Shooting Area

Larger than A4 landscape (430 x 310 mm)

Image Rotation

0° / 180°

Internal Storage

200 pictures at XGA (1024 x 768)

External Storage

SDHC Card & USB Thumb Drive (Up to FAT32 / 32 GB)

One-touch Recording

Yes

One-touch Capturing

Yes

Image Effects

Color / B&W / Negative

Image Adjustments

Auto / Manual white balance and exposure

Display Modes

Normal / Motion / High Quality / Microscope / Macro / Infinity

Capture Modes

Single / Continuous

User Profiles

Up to 3

Timer

Yes

Flicker Filter Control

Yes

ePTZ

Yes

Light Source

Embedded LED lamp

HDMI I/O

1 input; 1 output

VGA I/O

1 input; 1 output

USB 2.0 Ports

Type-A x1 (USB thumb drive or mouse connection)
Type-C x1 (PC)

Audio

Line out (3.5 mm), Mic in (3.5 mm), Built-in Mic

Security

Kensington Slot

RS-232 Port

Mini-DIN Jack (available for F50+ with RS-232 only)

Dimensions (Operating)

200 x 380 x 540 mm

Dimensions (Folded)

245 x 305 x 77 mm

Net Weight

2.56 kg (5.64 lbs)

Power Source

DC 12V / 2A
AC 100 to 240V, 50 / 60Hz

Power Consumption

12.8 Watts (Lamp on); 12 Watts (Lamp off)

Warranty

Visualizer: 5 Years; Accessories: 1 Year

Software

AVerTouch, Sphere Lite

Windows OS

Windows® 7, 10, 11

Mac OS

macOS® X 10.15, 11, 12

Chrome OS

Chrome™ OS 88 or later (via Sphere Lite App only)

Optional Accessories

Microscope Adaptor, Anti-Glare Sheet, Carrying Bag, RS-232 Cable

Package Contents

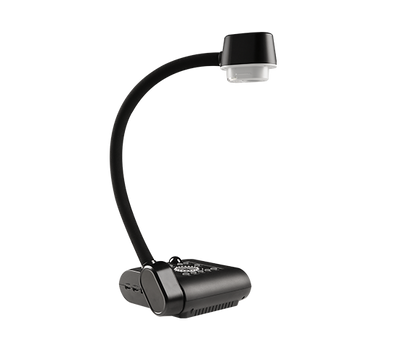

AVerVision F50+, USB Type-A to Type-C Cable, VGA Cable, Power Adapter, Remote Control, Warranty Card, Quick Start Guide, CD
