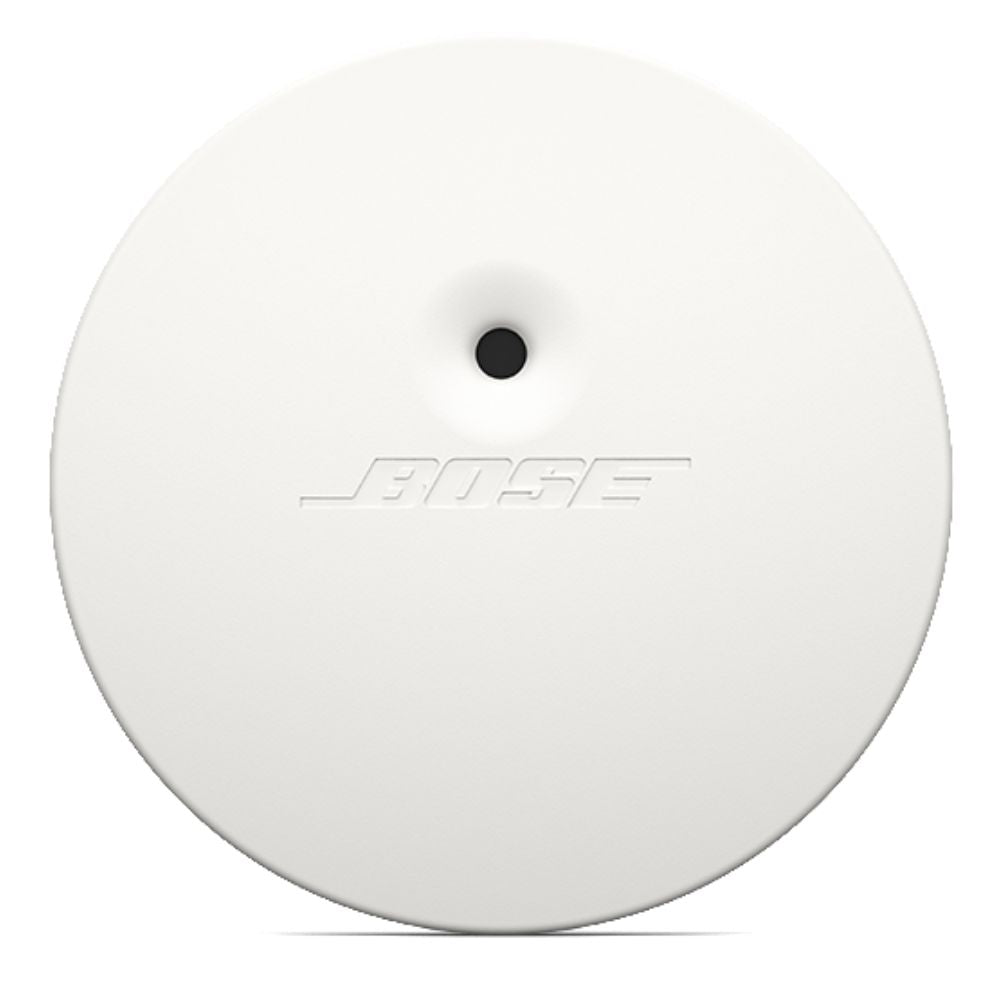

ControlCenter AVM-1 Sense Microphone

Mounts Flush in Common Ceiling Surfaces
Provides Analog Out over Balanced Audio
Works with Bose AutoVolume Compensation
Continuous Ambient Room Noise Reference

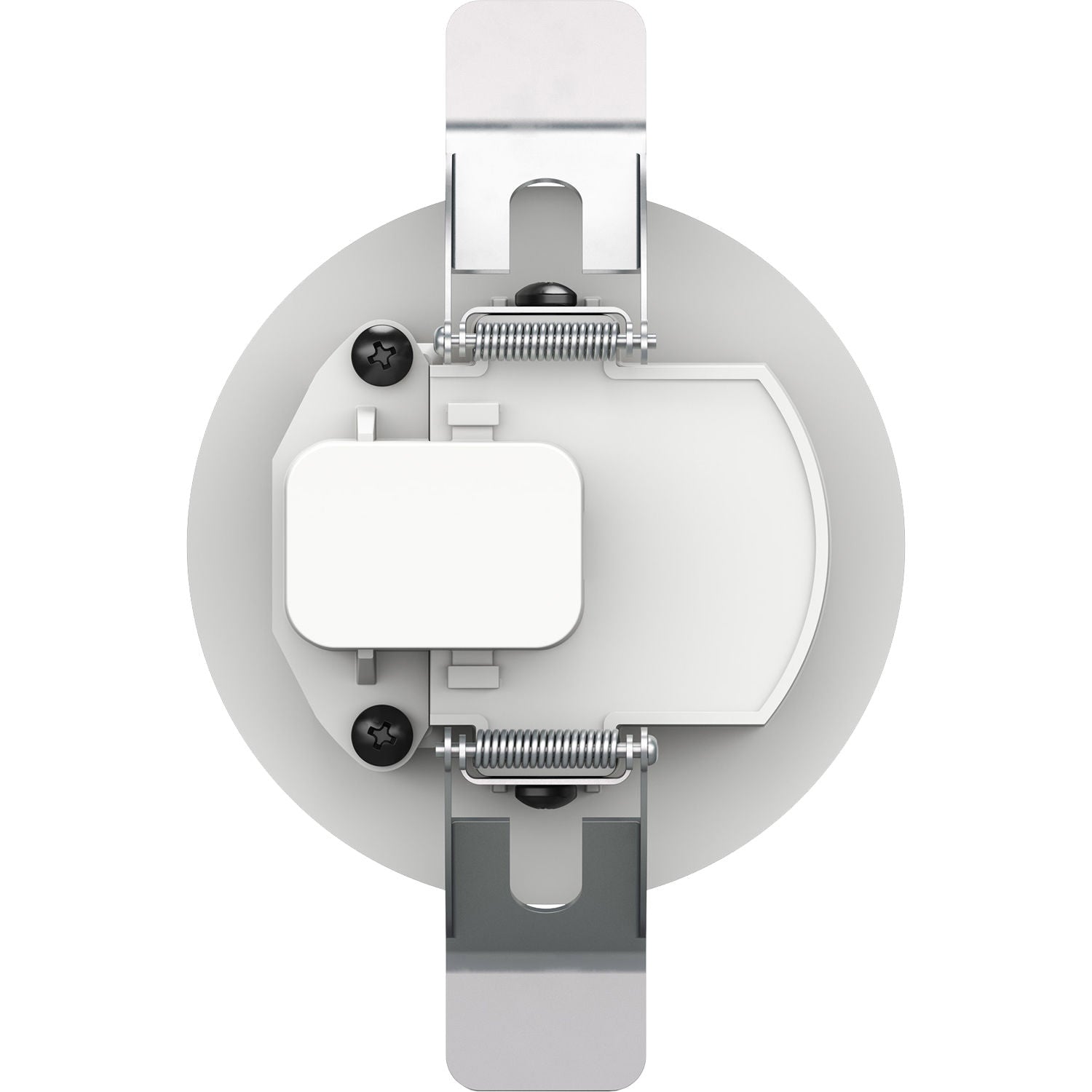

Spring clips help make installation easy while keeping the microphone firmly in place
Omnidirectional condenser microphone capsule operates on phantom power and can be located up to 610 meters (2,000 feet) away from the sound processor

₱10,980.00 VAT INC.

~~₱12,200.00~~ ₱10,980.00

UNIT: PIECE/S

Product Code: SKU:BOSE-CONTROLCAVM1-CHN-077

Mounts Flush in Common Ceiling Surfaces
Provides Analog Out over Balanced Audio
Works with Bose AutoVolume Compensation
Continuous Ambient Room Noise Reference
Spring clips help make installation easy while keeping the microphone firmly in place
Omnidirectional condenser microphone capsule operates on phantom power and can be located up to 610 meters (2,000 feet) away from the sound processor

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

BOSE ControlCenter AVM-1 Sense Microphone

Key Specifications
Frequency Response	100 Hz – 6 kHz (±4 dB), relative level 1 kHz
THD+N	< 1% at 1 kHz (1 Pa/94 dB SPL)
Audio Inputs, Analog
Maximum Input Level	115 dB at 1 kHz
Phantom Power	48 VDC, 10 mA, via ground terminal (typical)
Audio Outputs, Analog
Channels	1 balanced, mic

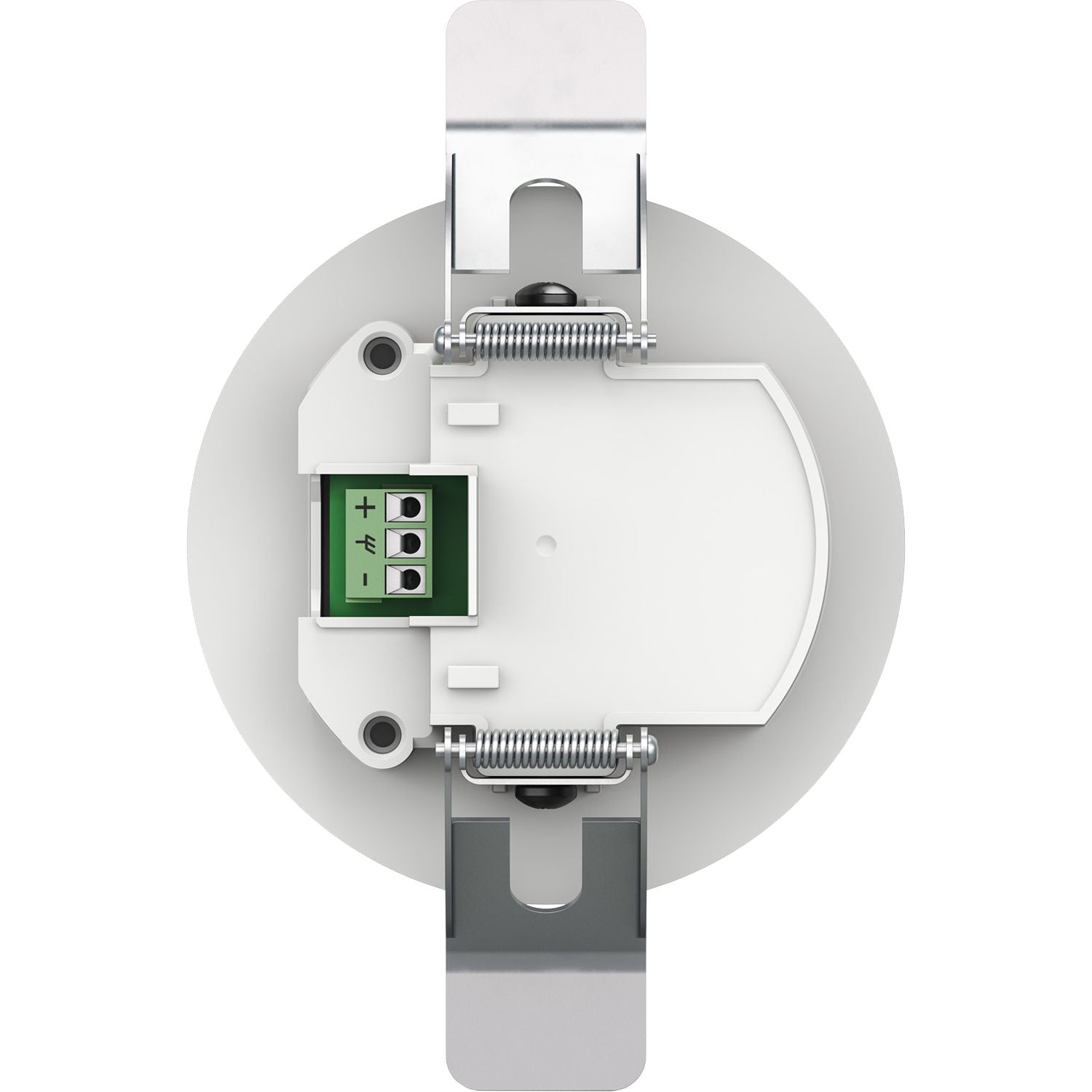

Connectors	(1) fixed 3-terminal bare-wire, 3.5 mm
Electrical
Connectors	(1) fixed 3-terminal bare-wire, 3.5 mm
Power Range	48 VDC, 10 mA phantom power via ground terminal (typical)
General
Compatible with	CSP-428, CSP-1248
Microphone
Technology	Omnidirectional electret condenser
Physical
Colors	White
Suspension/Mounting	Spring-loaded clips for ceiling < 1.0 in (25 mm) thick
Operating Temperature Range	0 °C to 40 °C (32 °F to 104 °F)
Product Dimensions (H×W×D)	1.7 in × 2.8 in × 3.9 in (43 mm × 70 mm × 99 mm)
Net Weight	0.14 lb (0.06 kg)
Product Codes
Model Number	808932-0210
Product Name	AVM-1
Included in Packaging
Items Included	(1) AVM-1
