AX 1200

Class-H topology offers high efficiency, reduced heat, compact size, and good audio quality.
Clear full-range audio with excellent transient response
Flexible connectivity options and user-friendly layout

₱36,500.00 VAT INC.

₱36,500.00

UNIT: PIECE/S

Product Code: SKU:FBT-AX1200-CHN-1435

Class-H topology offers high efficiency, reduced heat, compact size, and good audio quality.
Clear full-range audio with excellent transient response
Flexible connectivity options and user-friendly layout

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

FBT AX 1200

Key Specifications
Product Code	39695
Power Output
Both Channels Driven (8 Ω, 1% THD)	340 W Continuous / 350 W Impulsive
Both Channels Driven (4 Ω, 1% THD)	460 W Continuous / 600 W Impulsive
Bridge Mode (8 Ω, 1% THD)	920 W Continuous / 1200 W Impulsive
Audio Performance
Input Impedance	20 kΩ Balanced
Signal-to-Noise Ratio (S/N)	>100 dB
Total Harmonic Distortion (THD)	<0.03% (1 kHz, 4 Ω)
Frequency Response	20 Hz – 40 kHz (-6 dB)
Damping Factor	>400
Amplifier Class	Class H (2-Step)
Power
Maximum Power Consumption	1300 VA
Power Supply	220–230 VAC, 50/60 Hz
Protection Features
Protections	Short Circuit, Thermal Protection

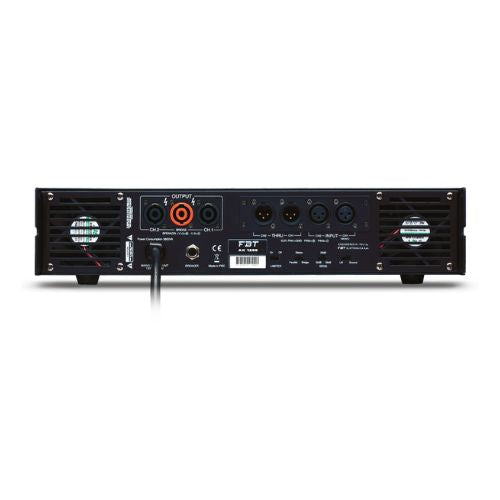

Connectivity
Input Connectors	XLR, 1/4" Jack
Output Connectors	Speakon, Binding Post
Physical Specifications
Dimensions (W × H × D)	482 × 88 × 367 mm (19 × 3.5 × 14.4 in)

```
