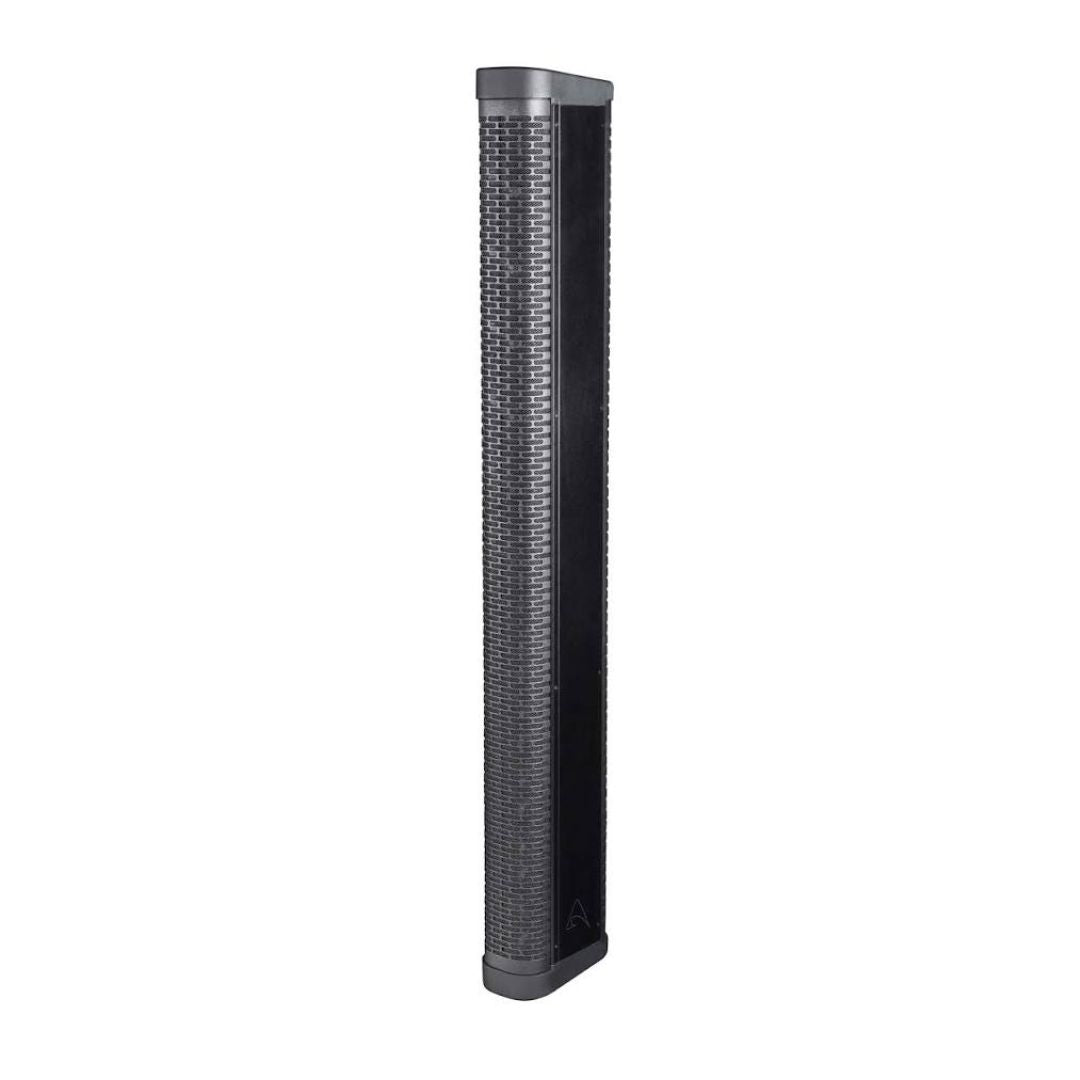

AXIOM AX12C
AXIOM AX12C
|
Key Specifications |
|
|
System Acoustic Principle |
Line Array Element with Short Transmission Line Back Loading and Acoustic Diffractor |
|
Enclosure Material & Finish |
Aluminum Cabinet, Black Anodization with Black Epoxy Paint |
|
Flying / Rigging System |
Aluminum Fast Link Structure with Dedicated Quick-Release Pins |
|
Transducer Specifications |
|
|
Transducers |
12x 3.5" (88 mm) Neodymium Magnet Woofers (1" / 25 mm Voice Coil) |
|
Cone & Voice Coil Features |
Waterproof Cone, Ventilated Voice Coil Design |
|
Acoustic & Performance Specifications |
|
|
Frequency Response (-6 dB) |
180 Hz to 16 kHz (Processed) |
|
Nominal Impedance |
16 Ω |
|
Horizontal Coverage Angle |
100° |
|
Sensitivity (4V @ 1m) |
105 dB SPL (Measured @ 4m, Scaled to 1m) |
|
Maximum Peak SPL (@ 1m) |
130 dB SPL (Measured @ 4m, Scaled to 1m) |
|
Power Handling Specifications |
|
|
Continuous AES Power |
360 W (Pink Noise Power) |
|
Program Power |
720 W |
|
Connectivity & Physical Specifications |
|
|
Input Connectors |
2x Neutrik® Speakon® NL4 (1+/1- Signal IN & LINK; 2+/2- Thru) |
|
Item Dimensions (W×H×D) |
Width: 107mm (4.2") |
|
Net Weight |
13.0 kg (28.6 lbs) |
AXIOM AX12C Accessories
- No accessories available.
