Key Specifications

System Acoustic Principle

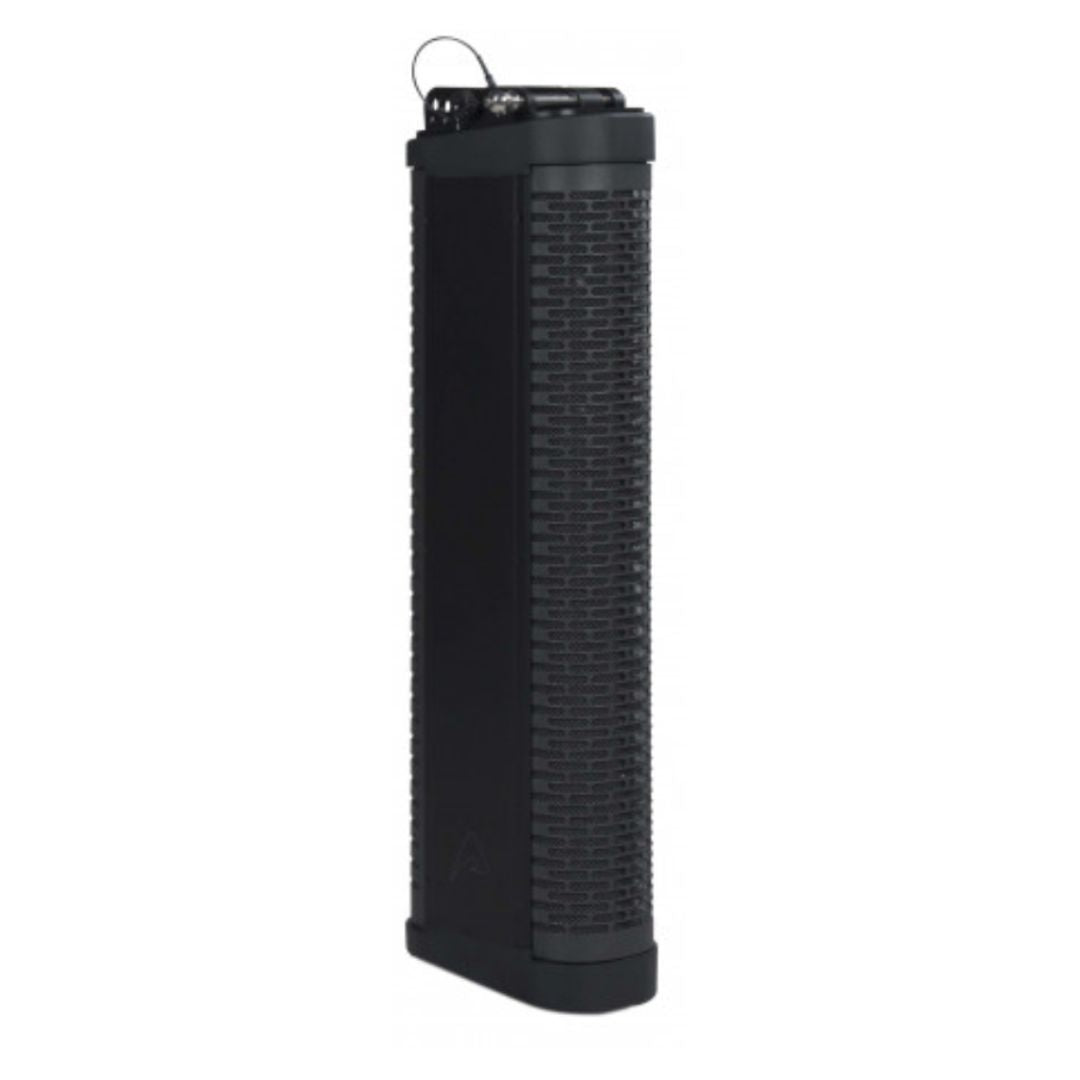

Line Array Element with Short Transmission Line Back Loading and Acoustic Diffractor

Enclosure Material & Finish

Aluminum Cabinet, High Resistance Water-Based Paint

Flying / Rigging System

Aluminum Fast Link Structure with Dedicated Quick-Release Pins

Transducer Specifications

Transducers

6x 3.5" (88 mm) Neodymium Magnet Woofers (1" / 25 mm Voice Coil)

Cone & Voice Coil Features

Waterproof Cone, Ventilated Voice Coil Design

Acoustic & Performance Specifications

Frequency Response (-6 dB)

200 Hz to 16 kHz (Processed)

Nominal Impedance

32 Ω

Horizontal Coverage Angle

100°

Sensitivity (5.66V @ 1m)

102 dB SPL (Measured @ 4m, Scaled to 1m)

Maximum Peak SPL (@ 1m)

124 dB SPL (Measured @ 4m, Scaled to 1m)

Power Handling Specifications

Continuous AES Power

180 W (Pink Noise Power)

Program Power

360 W

Connectivity & Physical Specifications

Input Connectors

2x Neutrik® Speakon® NL4 (1+/1- Signal IN & LINK; 2+/2- Thru)

Item Dimensions (W×H×D)

Width: 107mm (4.21")
Height: 626mm (24.65" w/o rigging) / 673mm (26.50" with rigging)
Depth: 193mm (7.60")

Net Weight

6.6 kg (14.55 lbs w/o rigging) / 8.7 kg (19.18 lbs with rigging)
