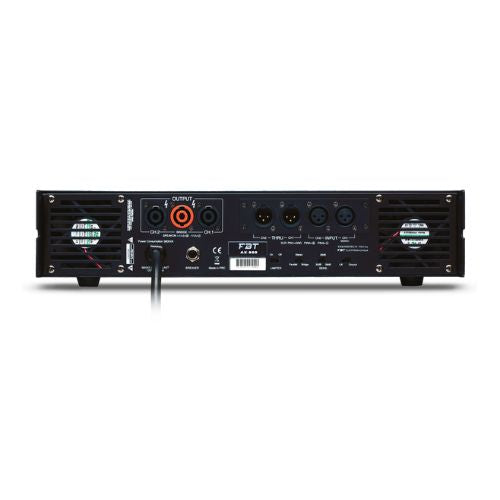

AX 800
AX 800
FBT
UNIT: PIECE/S
Product Code: SKU:FBT-AX800-CHN-0832
Key Features
FBT AX 800
FBT AX 800
|
Key Specifications |
|
|
Product Code |
39694 |
|
Power Output |
|
|
Both Channels Driven (8 Ω, 1% THD) |
230 W Continuous / 250 W Impulsive |
|
Both Channels Driven (4 Ω, 1% THD) |
350 W Continuous / 400 W Impulsive |
|
Bridge Mode (8 Ω, 1% THD) |
700 W Continuous / 800 W Impulsive |
|
Audio Performance |
|
|
Input Impedance |
20 kΩ Balanced |
|
Signal-to-Noise Ratio (S/N) |
>100 dB |
|
Total Harmonic Distortion (THD) |
<0.03% (1 kHz, 4 Ω) |
|
Frequency Response |
20 Hz – 40 kHz (-6 dB) |
|
Damping Factor |
>400 |
|
Amplifier Class |
Class AB |
|
Power |
|
|
Maximum Power Consumption |
1000 VA |
|
Power Supply Voltage |
220–230 VAC, 50/60 Hz |
|
Protection Features |
|
|
Protections |
Short Circuit Protection, Thermal Protection |
|
Connectivity |
|
|
Input Connectors |
XLR, 1/4" Jack |
|
Output Connectors |
Speakon, Binding Post |
|
Physical Specifications |
|
|
Dimensions (W × H × D) |
482 × 88 × 290 mm (19 × 3.5 × 11.4 in) |
```
FBT AX 800 Accessories
- No accessories available.
