Key Specifications

Product / Accessory Type

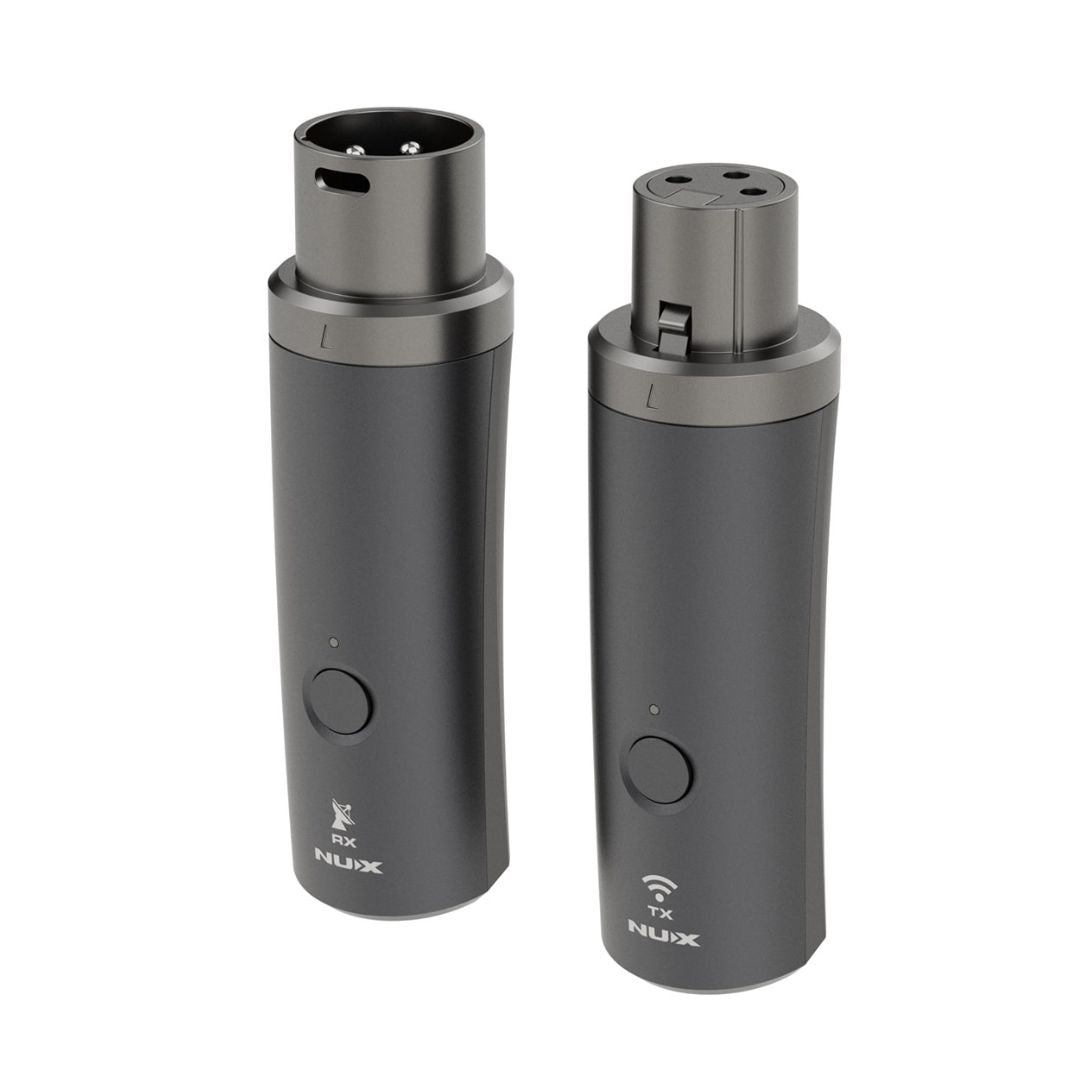

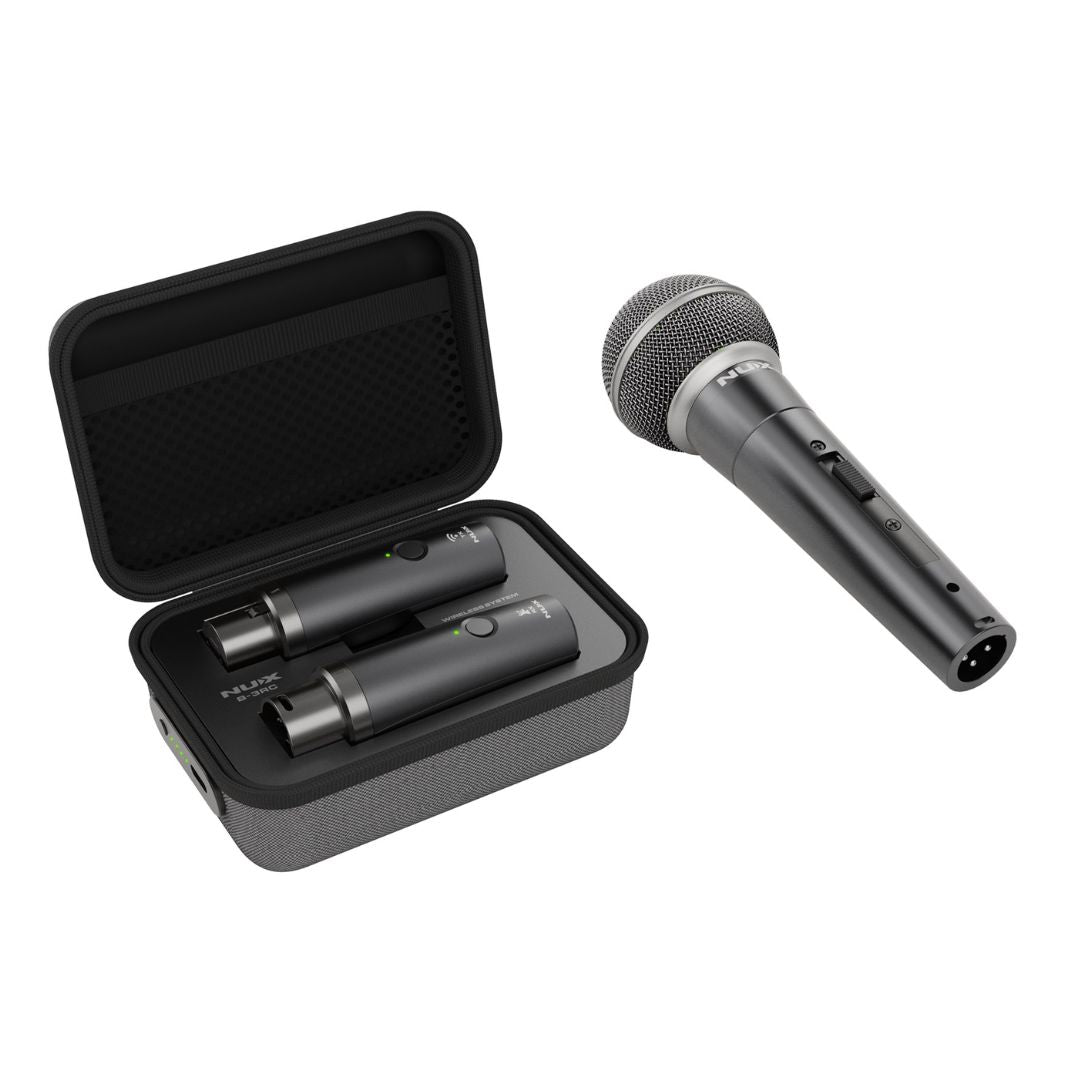

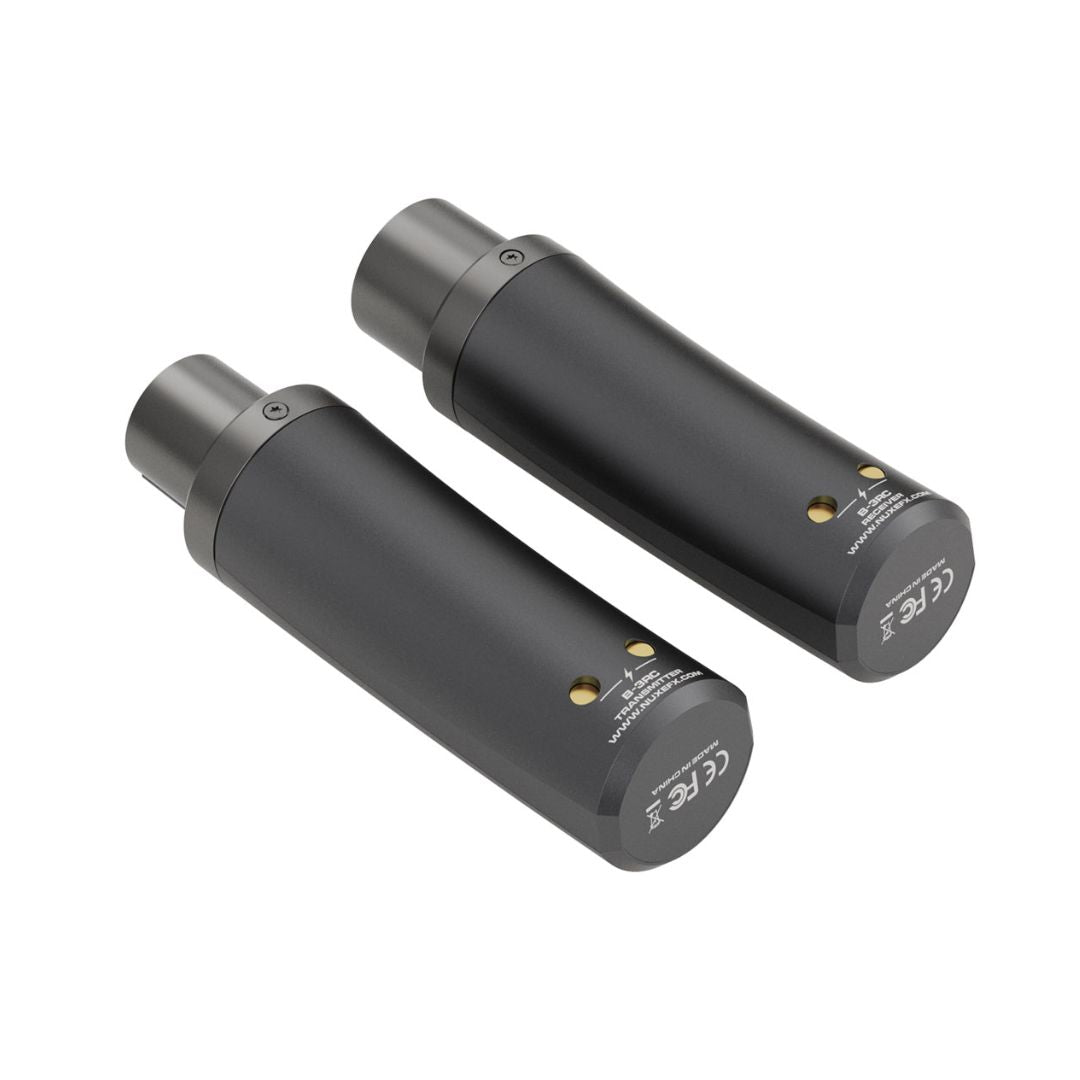

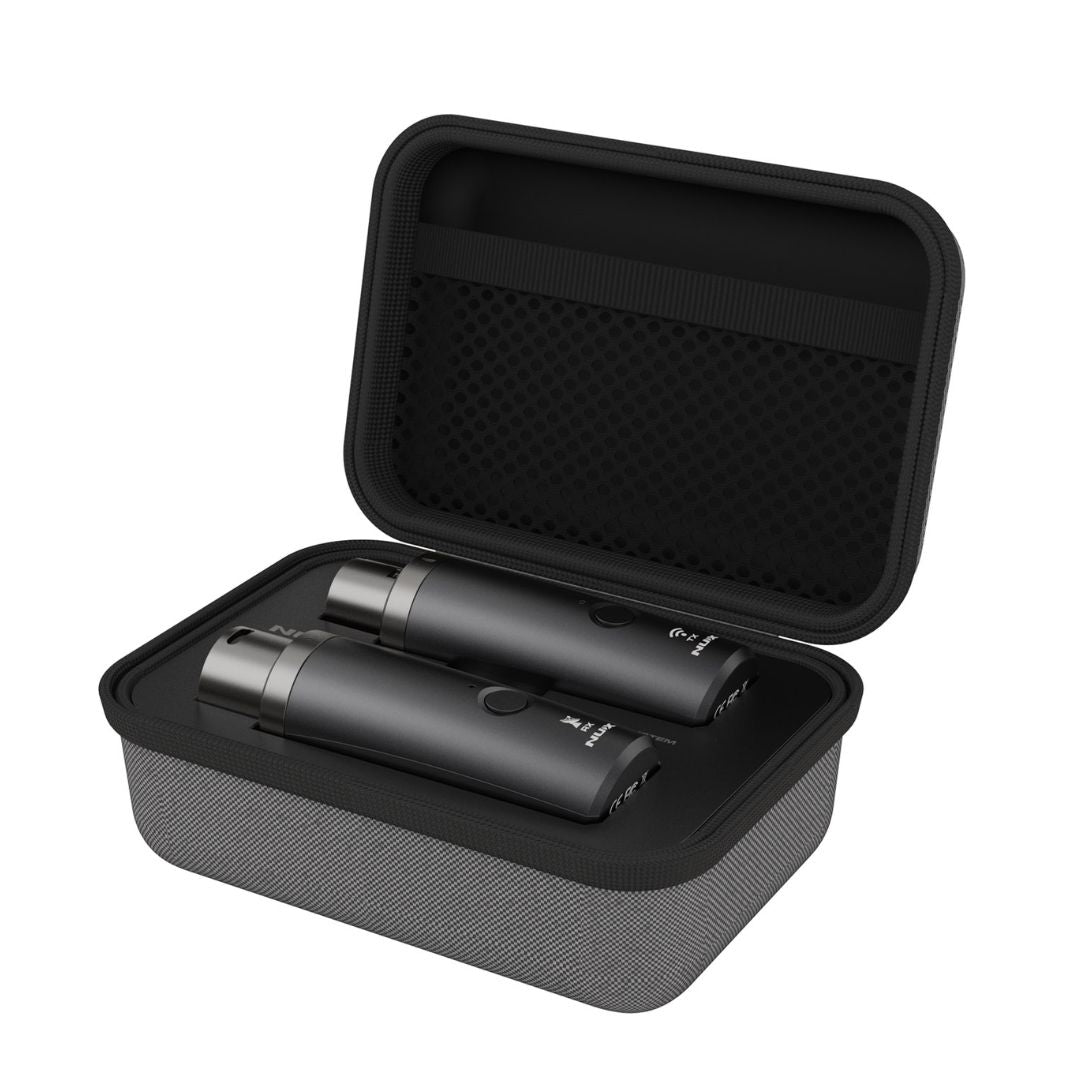

2.4 GHz Digital Wireless Microphone System

System Architecture

Digital Wireless

RF Carrier Frequency Range

2.4 GHz ISM Band

Manufacturer Part Number

NUX B3RC

Microphone Capsule Specifications

Microphone Transducer Type

Dynamic Capsule Element

Directional Polar Pattern

Cardioid Polar Pattern

Microphone Frequency Response

50 Hz to 15,000 Hz (15.00 kHz)

Transmitter Specifications

Transmitter Form Factor

Handheld Transmitter with Integrated Microphone Capsule

Power Source & Battery Type

Rechargeable Lithium-Ion Battery

Continuous Battery Operating Time

Up to 3.5 Hours

Transmitter Dimensions

79.76 mm x 23.88 mm (3.14" x 0.94")

Transmitter Net Weight

0.03 kg (0.07 lbs)

Receiver Specifications

Receiver Form Factor

Compact Plug-On Receiver

Analog Audio Outputs

1x 3-Pin XLR Output

Power Source & Battery Type

Rechargeable Lithium-Ion Battery

Receiver Dimensions

79.76 mm x 23.88 mm (3.14" x 0.94")

Receiver Net Weight

0.03 kg (0.07 lbs)
