Key Specifications

Product / Accessory Type

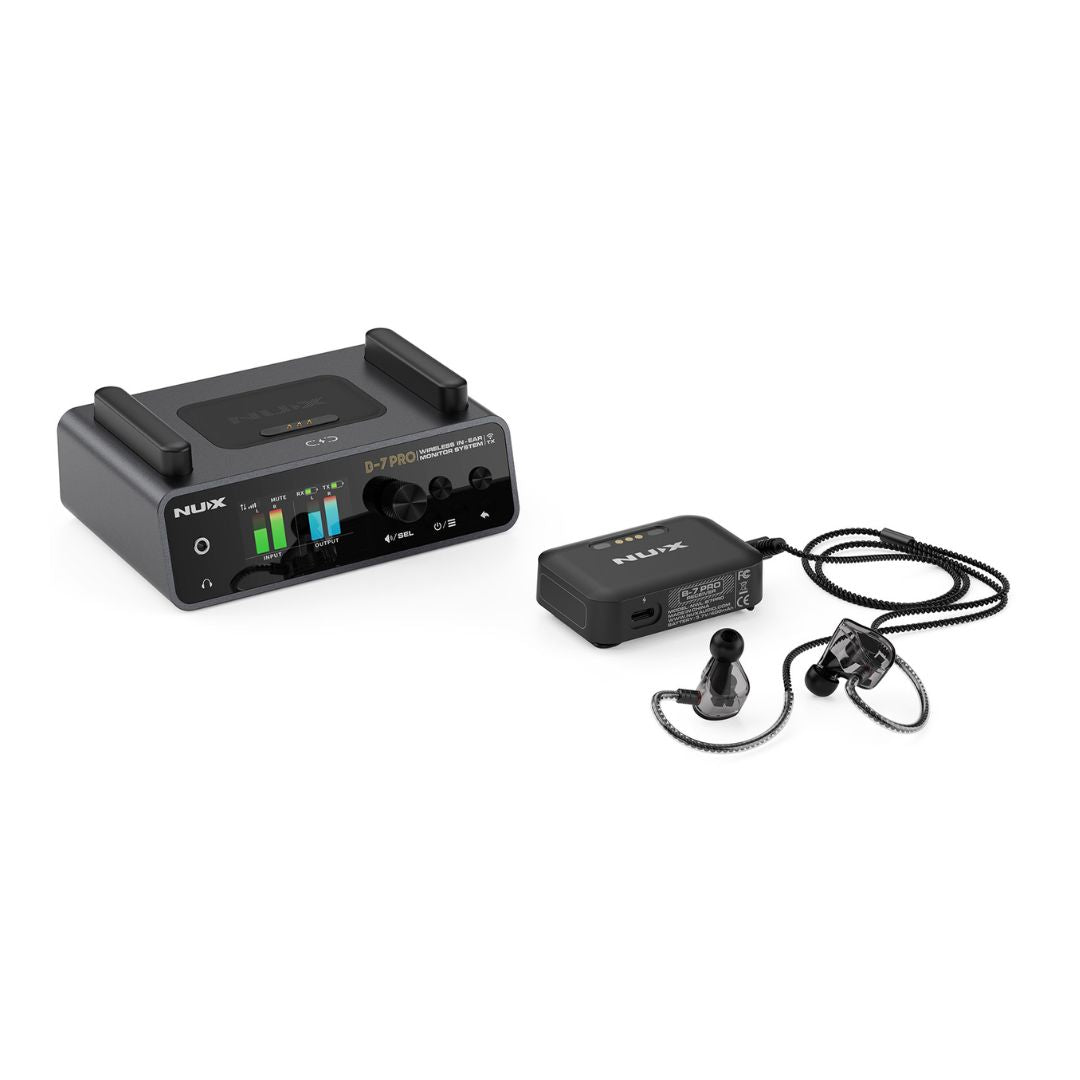

2.4 GHz Wireless In-Ear Monitoring / Stereo Transmission System

Operating RF Bandwidth

2.4 GHz ISM Band (2400.0 MHz to 2483.5 MHz)

Transmission Technology & RF Power

Frequency Hopping Spread Spectrum (FHSS) / 10 mW EIRP Maximum RF Power

Wireless Transmission Operating Range

Up to 50.00 m (165.00 ft) Line-of-Sight Unobstructed

Automatic Power Management

Auto-Off After 10 Minutes of Signal Inactivity or Disconnection

Audio, DSP & Performance Specifications

Digital Processing Resolution

24-Bit Processing with 48 kHz Sampling Rate

System Audio Frequency Response

20 Hz to 20,000 Hz (20.00 kHz)

System Latency Settings

Low Latency: 7.33 ms / Default: 10.85 ms / Safe Setting: 14.33 ms

Dynamic Range

110 dB (A-Weighted)

Total Harmonic Distortion (THD + N)

< 0.01% Typical

Channel Separation / Crosstalk

-105 dB

Output Level Adjustment Range

Mute, -86.0 dB to +12.0 dB

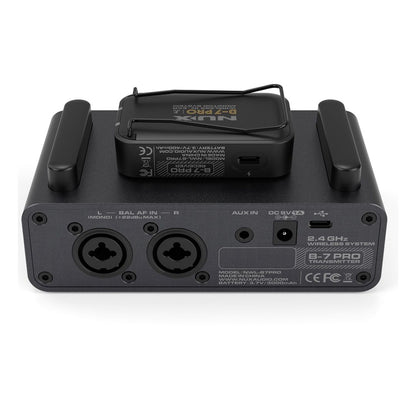

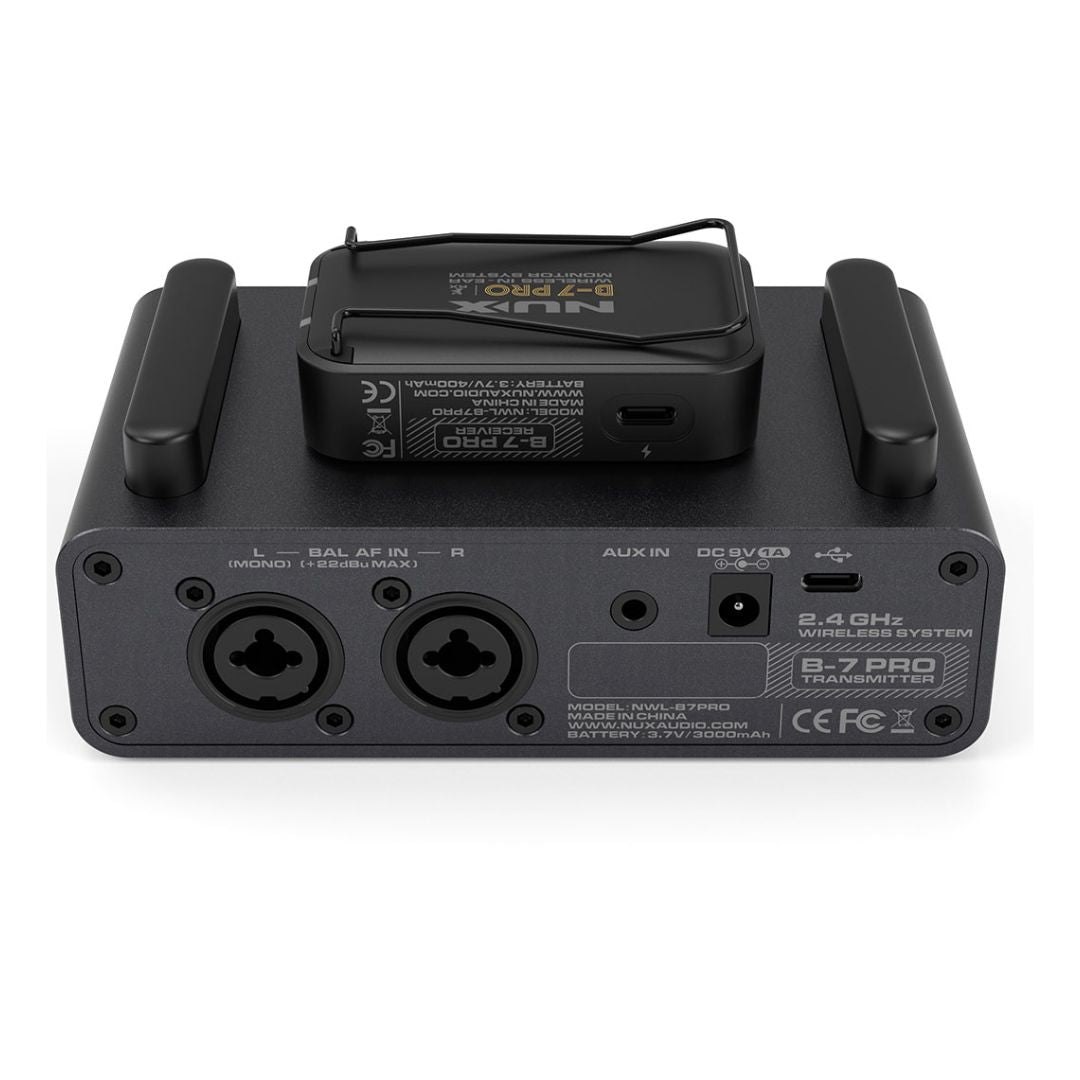

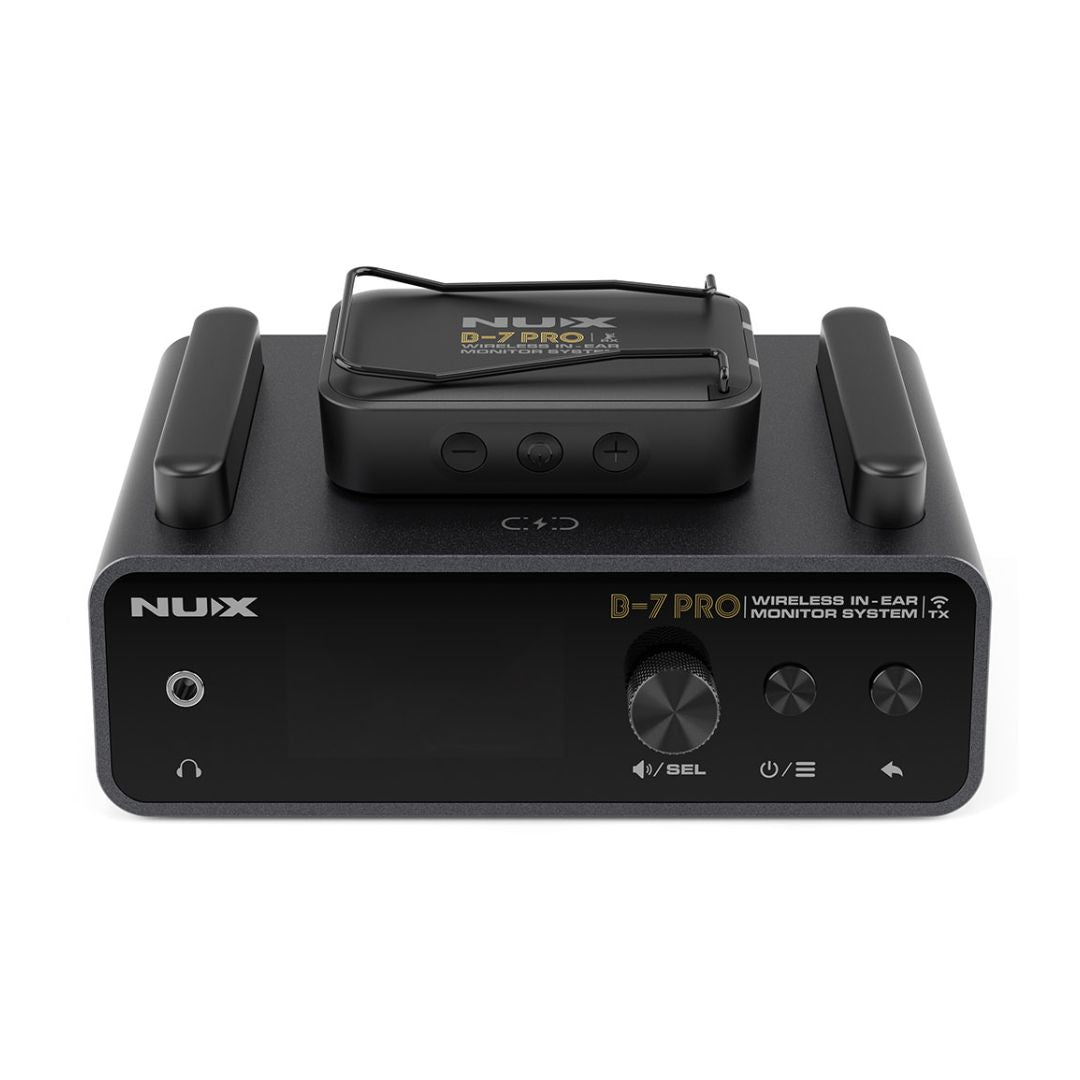

Transmitter (TX) Specifications

Transmitter Input Impedance

Unbalanced: 10 kΩ / Balanced: 20 kΩ

Maximum Input Signal Levels

AUX Input: 2.1 Vrms (8.7 dBu max) / Balanced Input: 9.8 Vrms (22.0 dBu max)

Transmitter External Power Requirements

9 VDC, 1 A Minimum (Center Negative Plug)

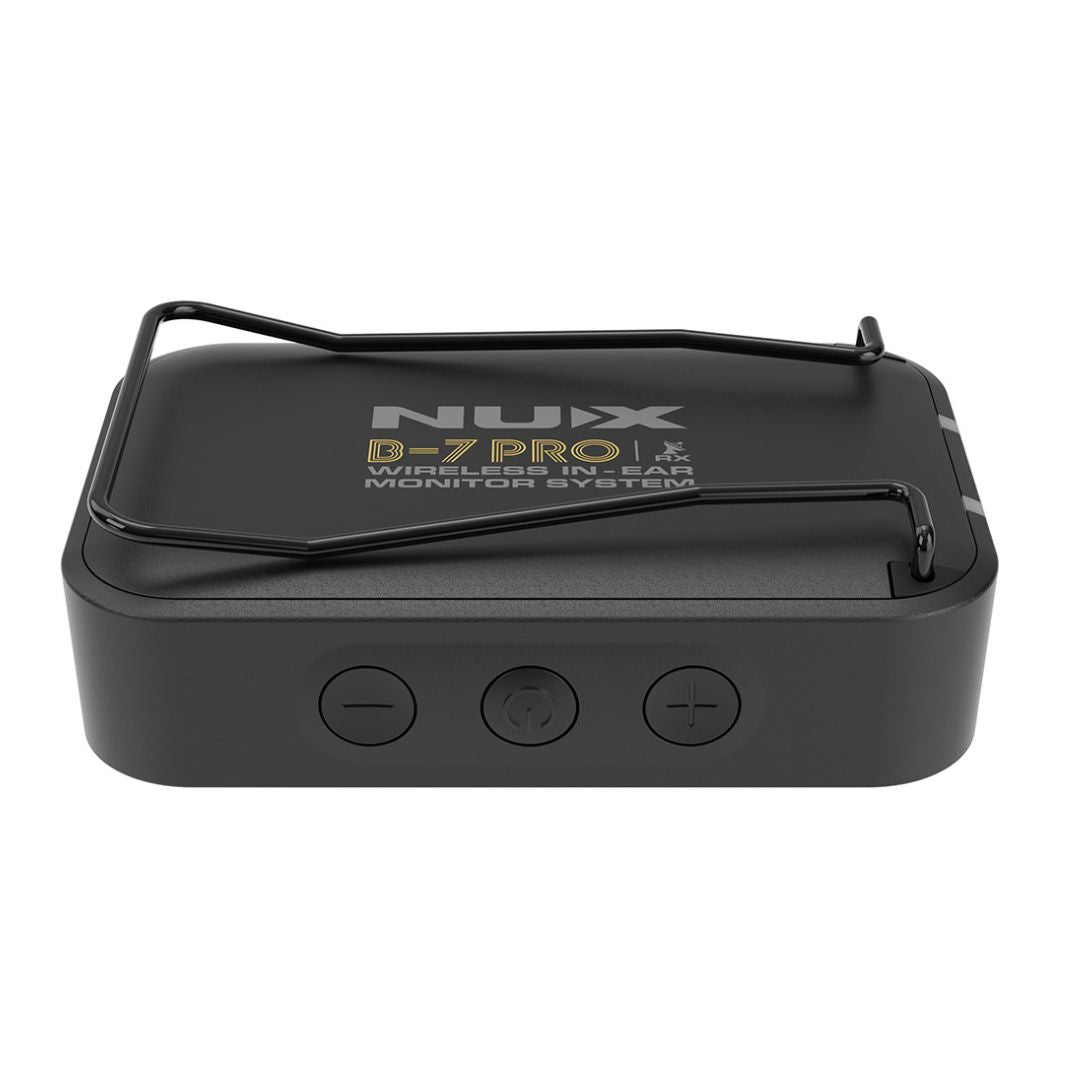

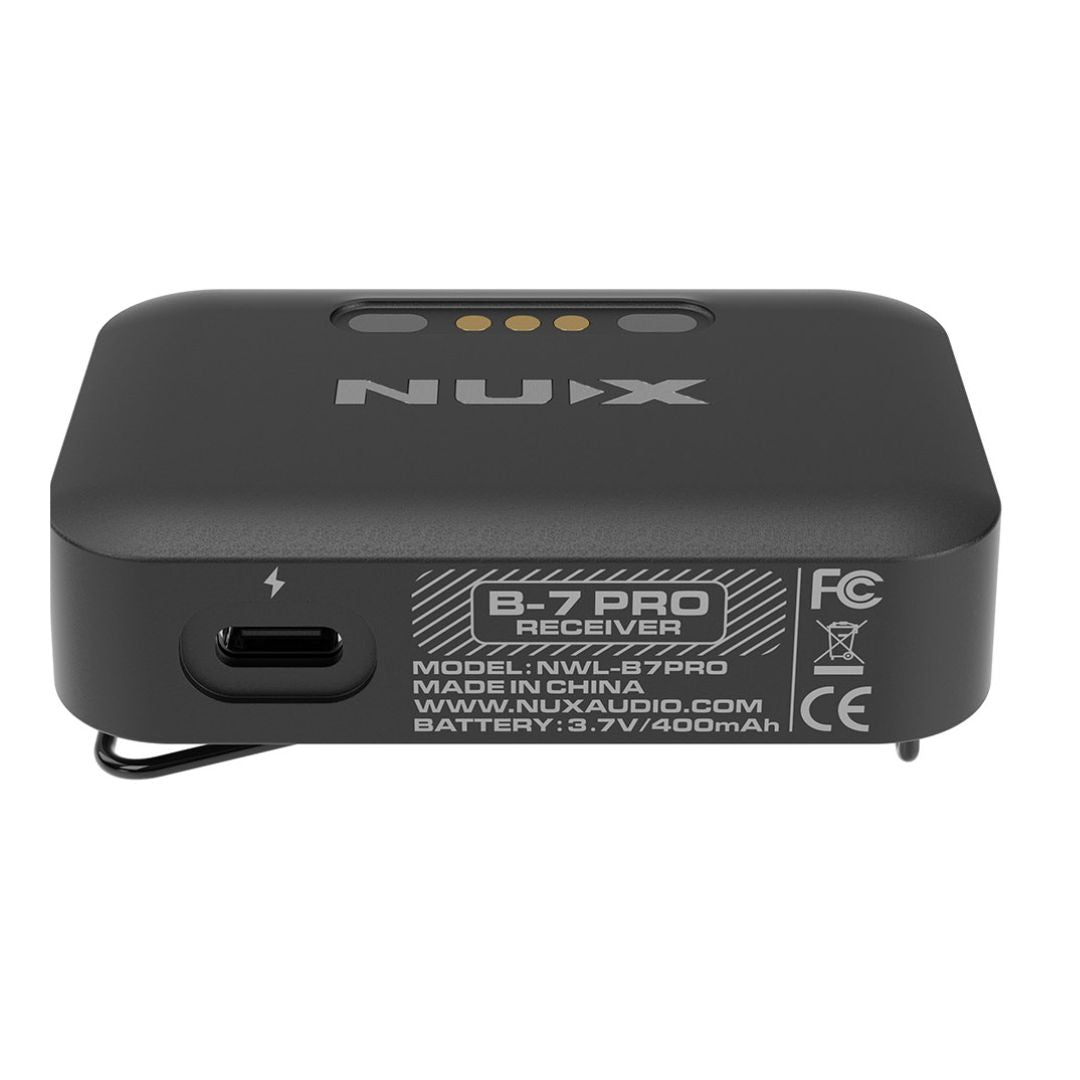

Receiver (RX) Specifications

Headphone Output Impedance

≥ 13 Ω Recommended Load

Headphone Output Power (Per Channel)

57 mW Continuous (THD < 0.1%, into 16 Ω Load at 1 kHz)

Power & Battery Specifications

Transmitter Battery Capacity & Runtime

Rechargeable Li-Polymer (3.7 V / 3,000 mAh Capacity) / Up to 6 Hours

Receiver Battery Capacity & Runtime

Rechargeable Li-Polymer (3.7 V / 400 mAh Capacity) / Up to 6 Hours

Dimensions & Weight Specifications

Transmitter Dimensions (L×W×H)

140.00 mm x 97.00 mm x 53.00 mm (5.51" x 3.82" x 2.09")

Transmitter Net Weight

525.00 g (0.525 kg / 1.16 lbs)

Receiver Dimensions (L×W×H)

47.00 mm x 71.00 mm x 22.00 mm (1.85" x 2.80" x 0.87")

Receiver Net Weight

51.00 g (0.051 kg / 0.11 lbs)
