Key Specifications

Product / Accessory Type

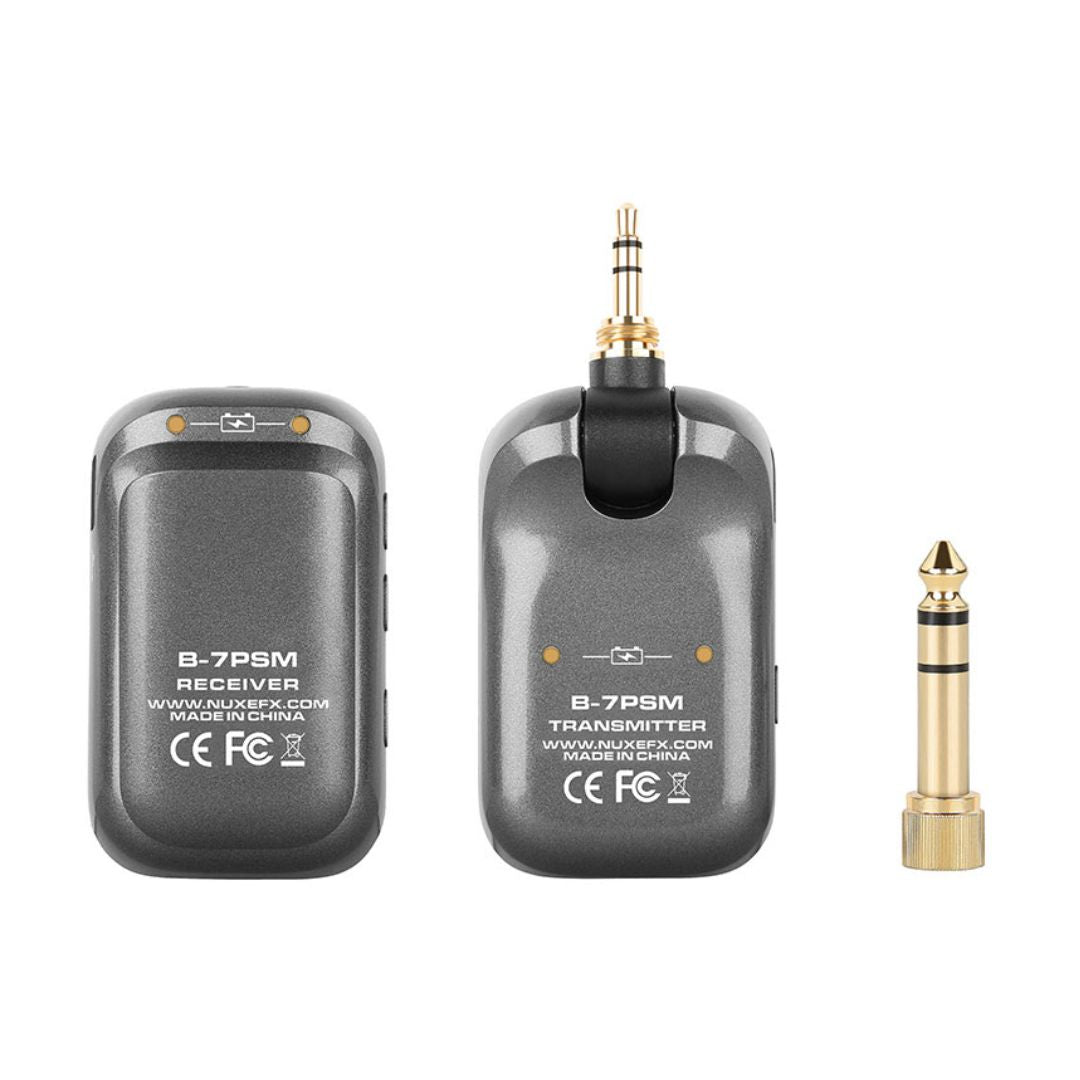

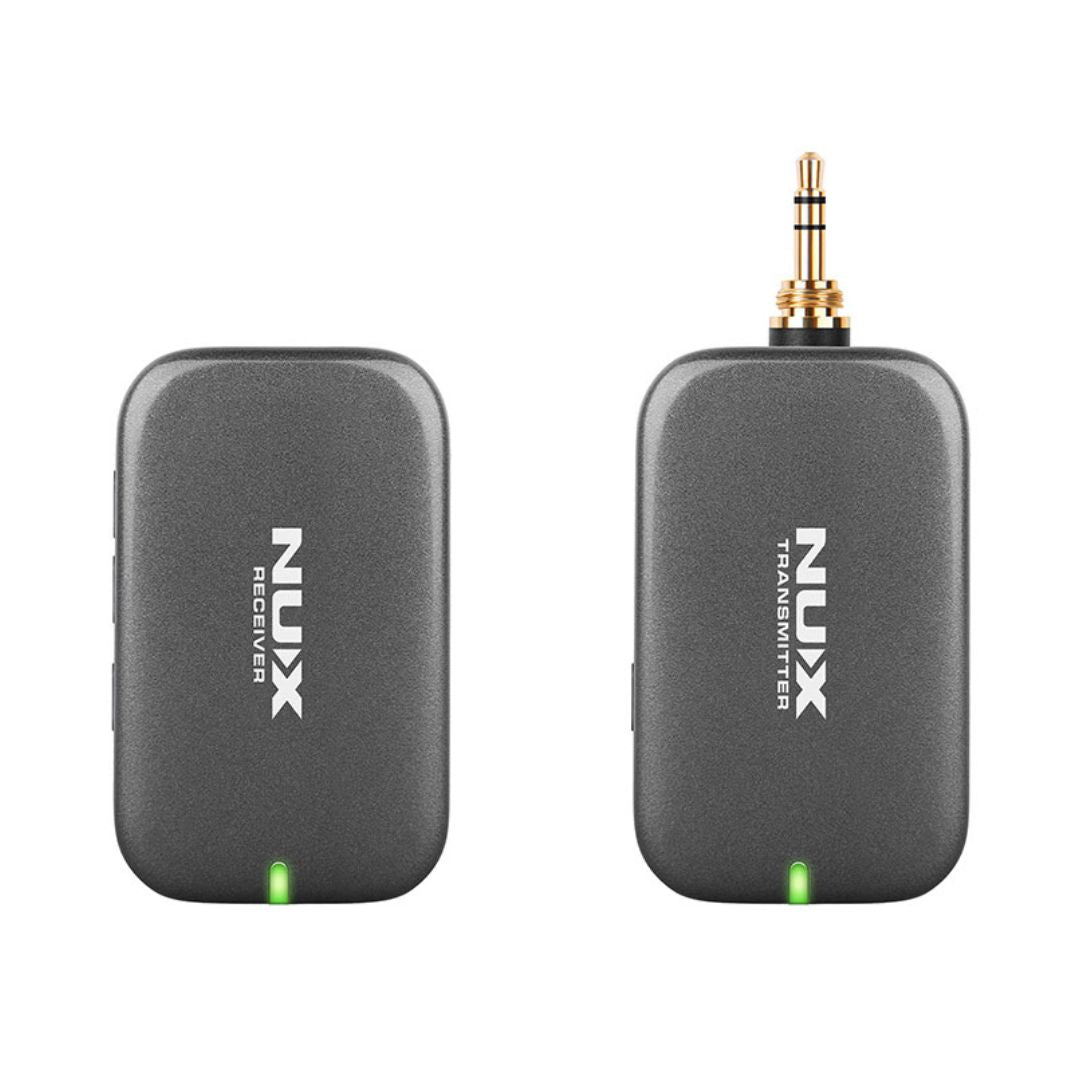

5.8 GHz Wireless In-Ear Monitoring / Transmission System

Operating RF Bandwidth

5.8 GHz ISM Band

RF Transmission Power

< 25 mW EIRP

Wireless Transmission Operating Range

< 30.00 m (< 100.00 ft) Line-of-Sight Unobstructed;
< 10.00 m (< 33.00 ft) Outdoor with Obstructions

Audio, DSP & RF Performance Specifications

Digital Processing Resolution

24-Bit Processing with 40 kHz Sampling Rate

System Audio Frequency Response

20 Hz to 19,000 Hz (19.00 kHz)

System Signal Latency

< 5.50 ms Ultra-Low Latency

Dynamic Range

92 dB

Total Harmonic Distortion (THD + N)

< 0.60% (at 1 kHz)

Output Volume Control Range

-64.0 dB to 0.0 dB (0.5 dB Steps)

Transmitter (TX) Specifications

Transmitter Input Impedance

3.5 kΩ

Maximum Input Signal Level

7.6 Vpp (8.6 dBV / 2.7 Vrms)

Transmitter Power Consumption

< 90 mA

Receiver (RX) Specifications

Recommended Headphone Impedance

16 Ω to 32 Ω

Maximum Audio Output Power

57 mW Continuous RMS (into 16 Ω Load at 1 kHz)

Receiver Power Consumption

< 45 mA

Power & Battery Specifications

Internal Battery Capacity (TX & RX Units)

3.7 V / 450 mAh Rechargeable Lithium-Ion Battery (Per Unit)

Continuous Battery Operating Time

> 4 Hours Continuous Runtime

Recharge Time

Approximately 1.5 Hours
