Key Specifications

Product / Accessory Type

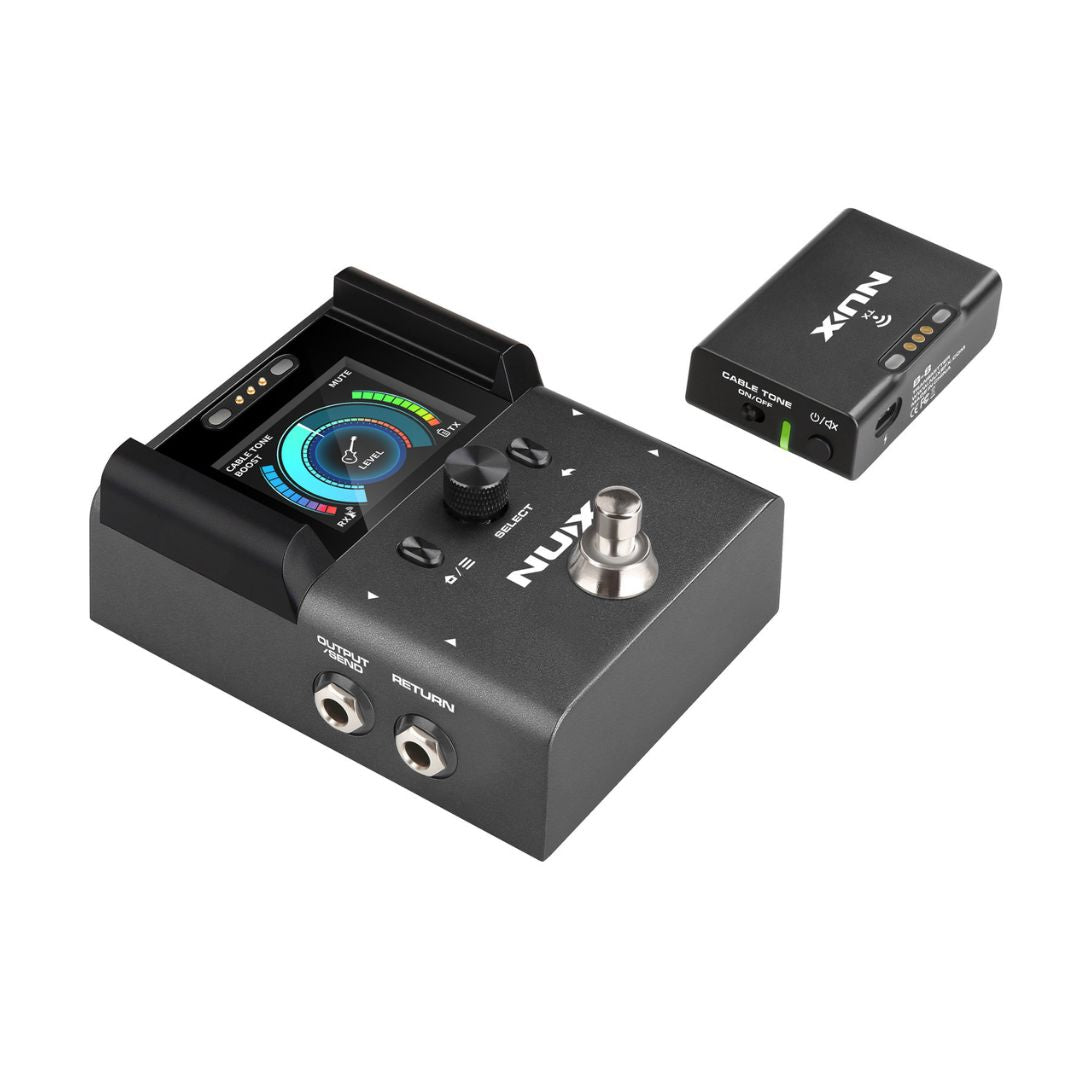

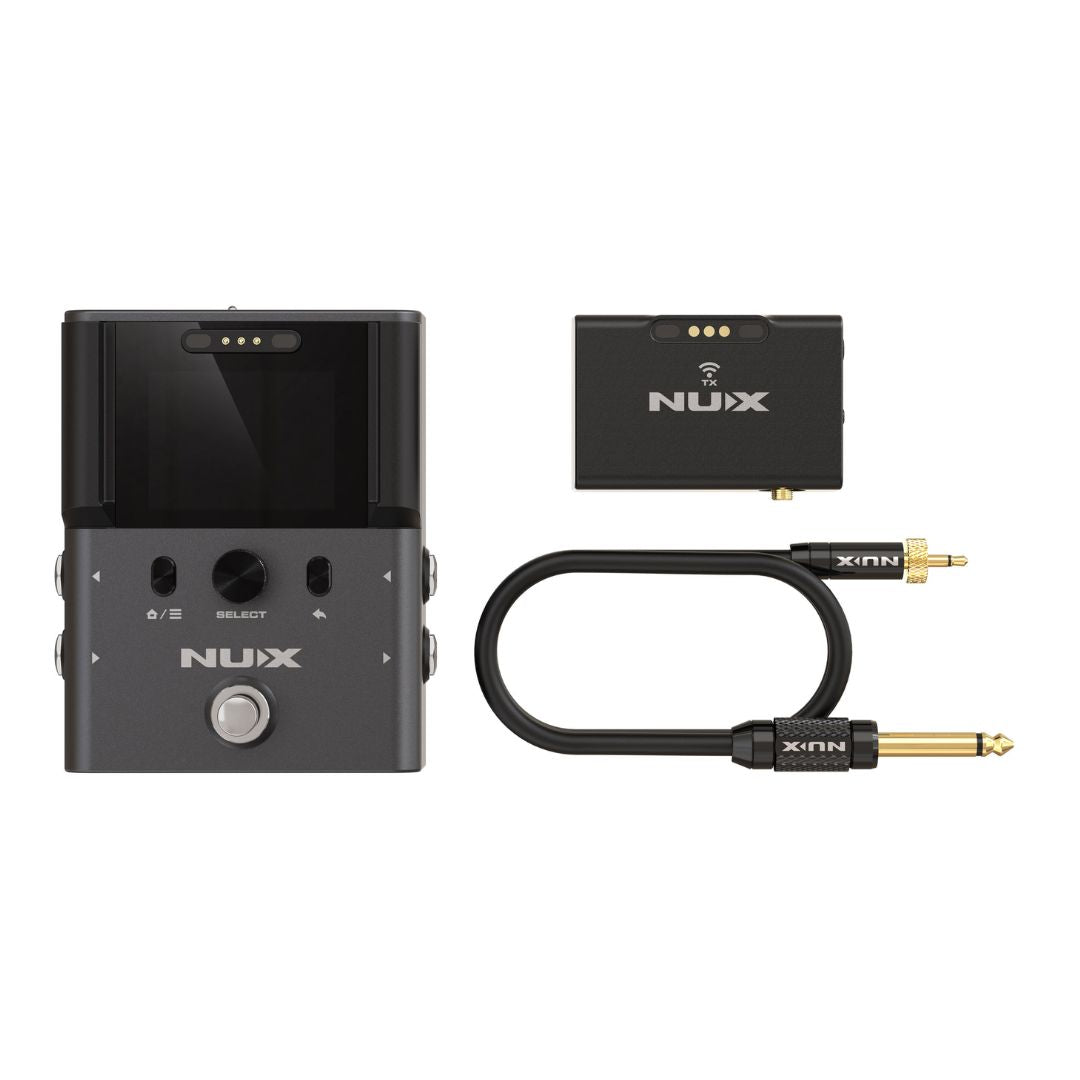

2.4 GHz Digital Wireless Instrument / Transmitter & Receiver System

Operating RF Bandwidth

2.4 GHz ISM Band (2400.0 MHz to 2483.5 MHz)

RF Transmission Power

< 10 mW EIRP

Wireless Transmission Operating Range

Up to 50.00 m (165.00 ft) Line-of-Sight Unobstructed

Auto-Sleep Mode Functionality

Not Applicable (N/A)

Audio, DSP & Performance Specifications

Digital Processing Resolution

24-Bit Processing with 48 kHz Sampling Rate

System Audio Frequency Response

20 Hz to 20,000 Hz (20.00 kHz)

System Signal Latency Range

2.50 ms (Best Performance Mode) to 8.70 ms (Safety Mode)

Dynamic Range

122 dB (A-Weighted, Output / Send)

Total Harmonic Distortion (THD + N)

0.01% Typical (at 1 kHz)

Output Level Adjustment Range

Mute, -64.0 dB to 0.0 dB

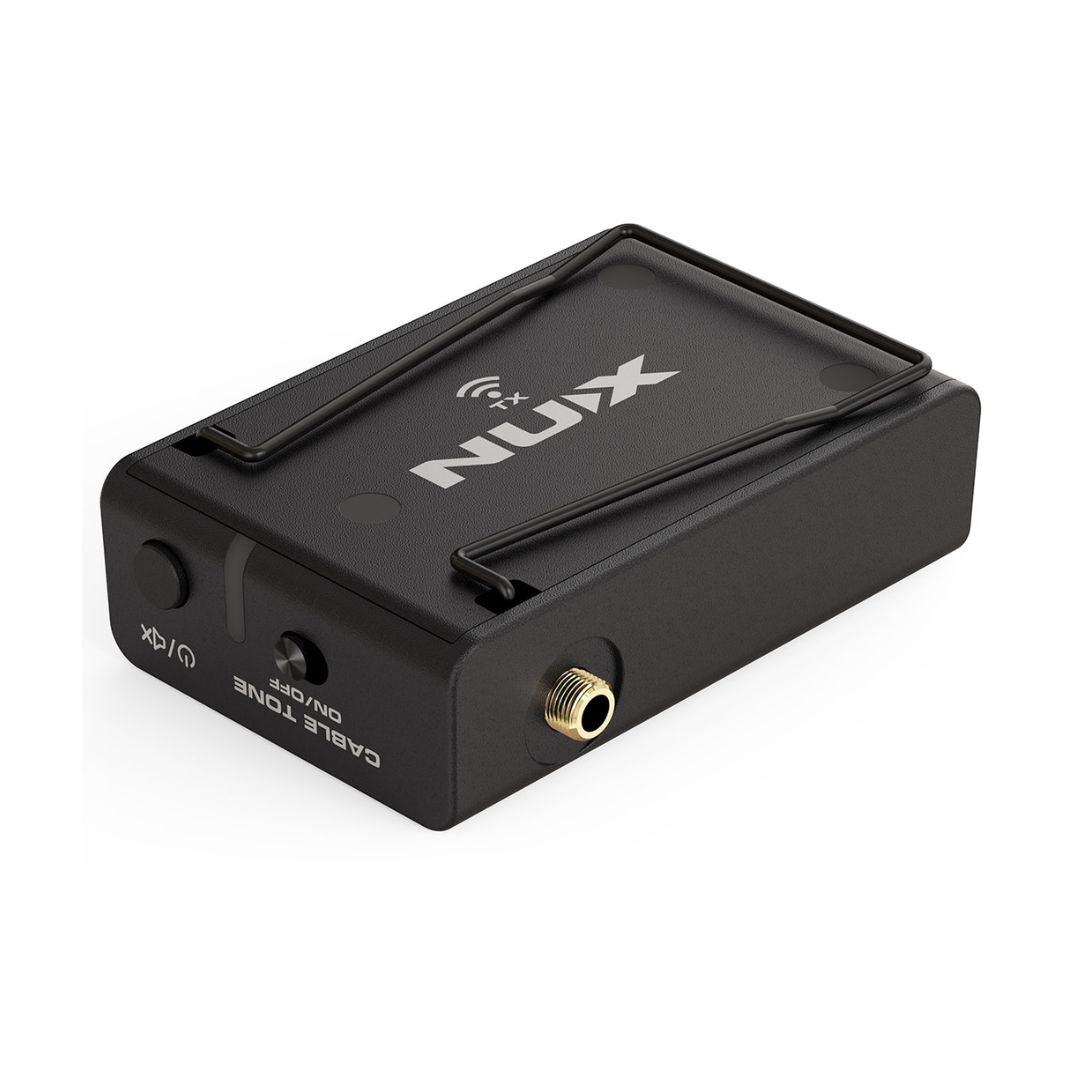

Transmitter (TX) Specifications

Transmitter Input Impedance

1 MΩ (Hi-Z Instrument Input)

Maximum Input Signal Level

+6.2 dBV / 5.78 Vp-p (at 1 kHz, 1% THD)

Transmitter Internal Battery Capacity

3.7 V / 500 mAh Rechargeable Li-Polymer Battery

Transmitter Battery Operating Time

Up to 6.5 Hours Continuous Runtime

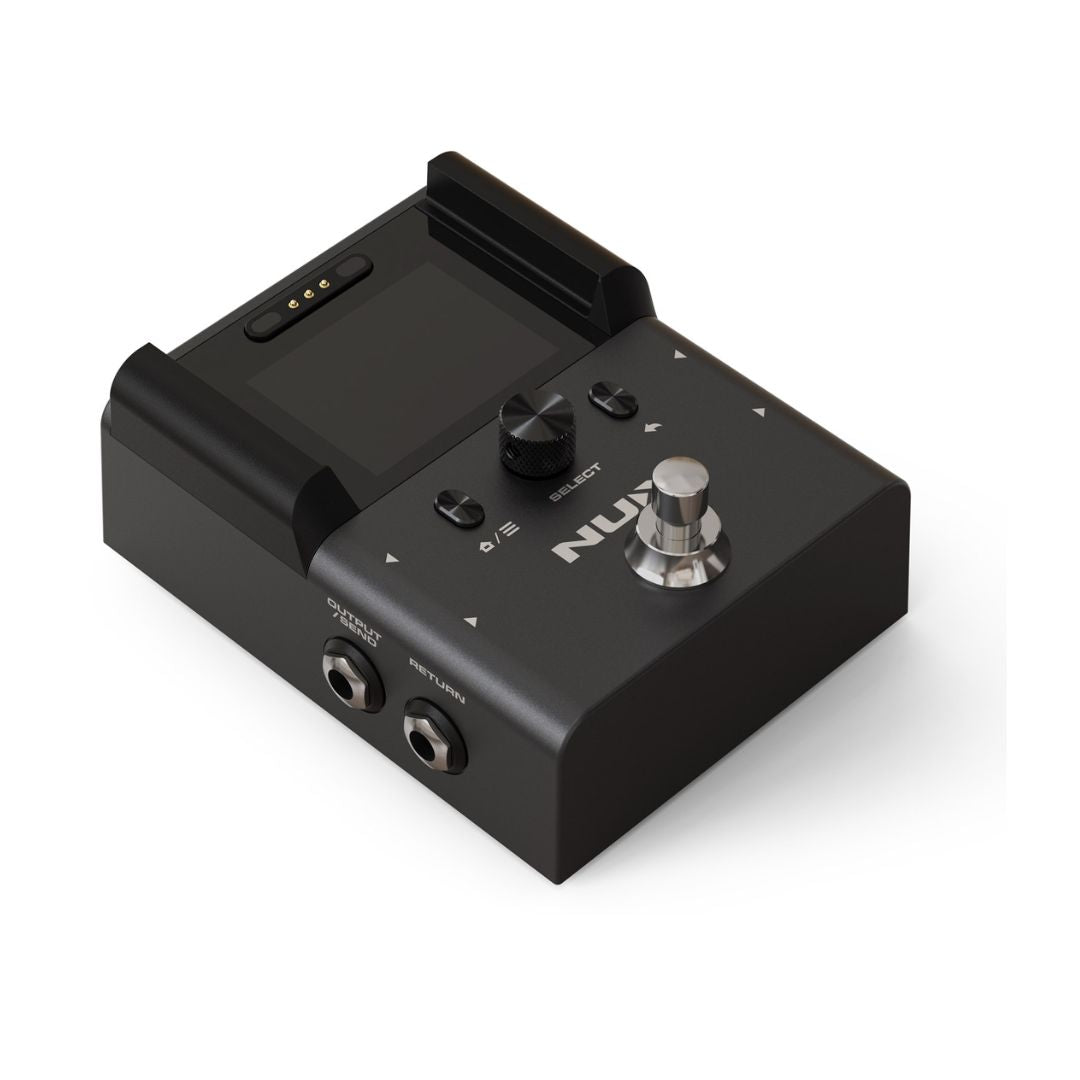

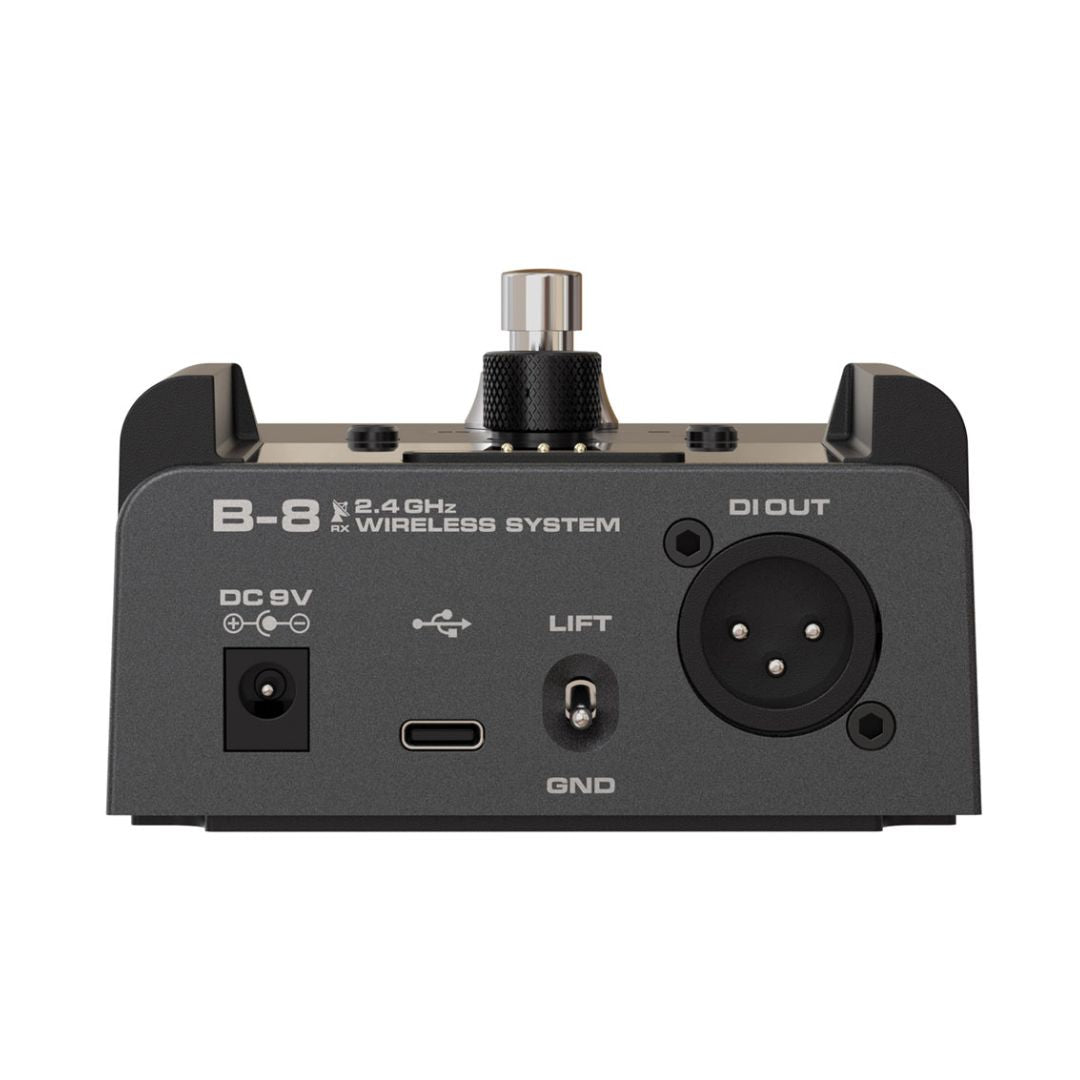

Receiver (RX) Specifications

Receiver External Power Requirements

7 VDC to 12 VDC, 500 mA Minimum (Center Negative Plug)

Dimensions & Weight Specifications

Transmitter Dimensions (L×W×H)

72.50 mm x 49.30 mm x 23.00 mm (2.85" x 1.94" x 0.91")

Transmitter Net Weight

63.00 g (0.063 kg / 0.14 lbs)

Receiver Dimensions (L×W×H)

122.00 mm x 95.00 mm x 60.00 mm (4.80" x 3.74" x 2.36")

Receiver Net Weight

500.00 g (0.50 kg / 1.10 lbs)
