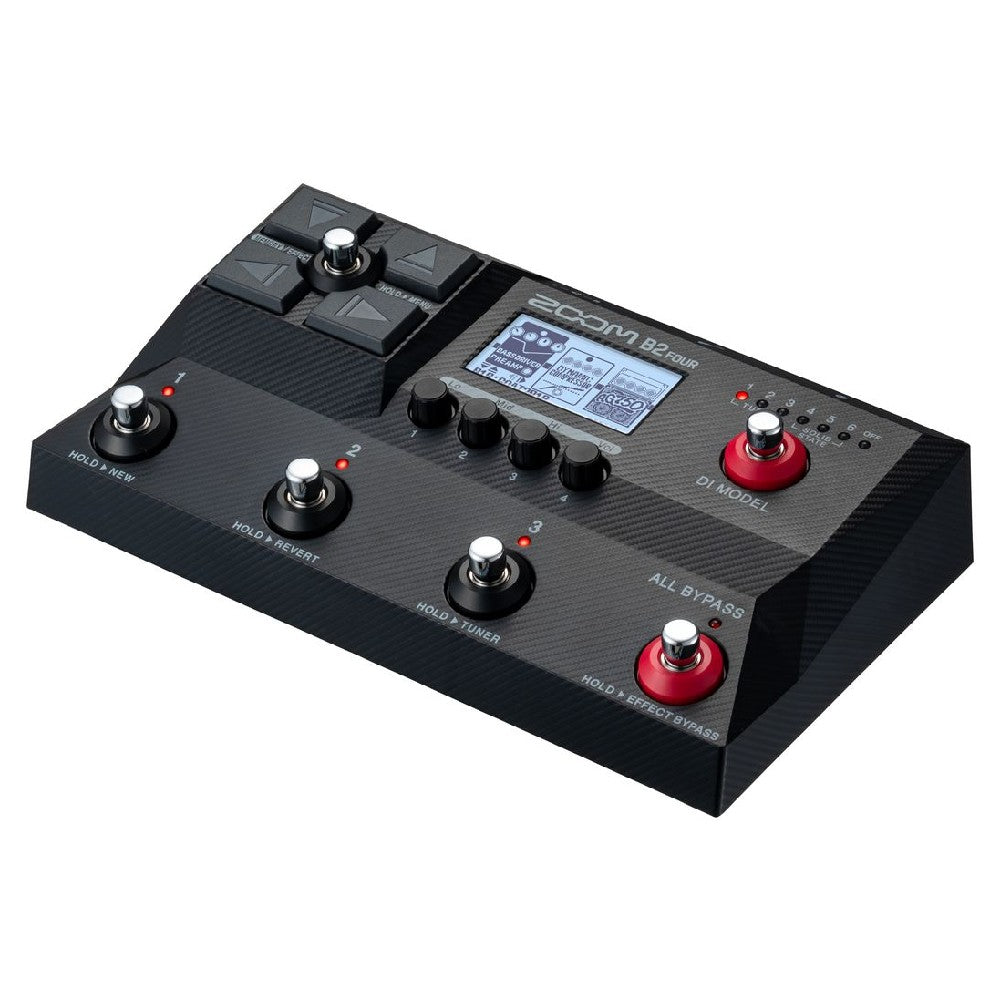

B2 Four Bass Multi-effect Processor Effects

PRICE FOR INQUIRY

6 built-in DI models: 3 tube and 3 solid state
11 realistic amp/cabinet models with newly developed Multi-Layer IR
11 preamp models (including 3 ZOOM original models)
82 bass effects including modeling of famous boutique pedals
Analog input circuit with excellent low-frequency response
Use up to 5 effects simultaneously
300 Patch Memories (250 Preset Patches with historic bass tones)
60 Second Looper + 68 rhythm patterns
USB port for Handy Guitar Lab connection, 2-in/2-out audio interface and firmware updates

Price for Inquiry

UNIT: PIECE/S

Product Code: SKU:ZOOM-B2FOUR-CHN-7715

6 built-in DI models: 3 tube and 3 solid state
11 realistic amp/cabinet models with newly developed Multi-Layer IR
11 preamp models (including 3 ZOOM original models)
82 bass effects including modeling of famous boutique pedals
Analog input circuit with excellent low-frequency response
Use up to 5 effects simultaneously
300 Patch Memories (250 Preset Patches with historic bass tones)
60 Second Looper + 68 rhythm patterns
USB port for Handy Guitar Lab connection, 2-in/2-out audio interface and firmware updates

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

ZOOM B2 Four Bass Multi-effect Processor Effects

Key Specifications
Maximum Number of Simultaneous Effects	5
User Patch Memories	300
A/D Conversion	24-bit 128× oversampling
D/A Conversion	24-bit 128× oversampling
Signal Processing	32-bit
Display	256×128 dot-matrix LCD
Input S/N	124 dB
Inputs
Input	Standard mono phone jack Rated input level: −20 dBu Input impedance (line): 1 or 10 MΩ (switchable)
Aux Input	Stereo mini jack Rated input level: −10 dBu Input impedance (line): 10 kΩ
Outputs
Left/Right Outputs	Standard mono phone jacks Maximum output level: +11.4 dBu (when output impedance 10 kΩ or higher)
Balanced Output	XLR jack Impedance: 100 Ω (HOT-GND, COLD-GND) / 200 Ω (HOT-COLD) GND LIFT (switchable)
Phones	Stereo mini jack Maximum output power: 33 mW + 33 mW (into 32 Ω load)
Noise Floor (Residual Noise)
Left/Right	−96.0 dBu
Balanced Output	−100.0 dBu
Phones	−96.0 dBu
Connectivity & Control
Control Input	FP02M input
USB	USB 2.0 Type-C port (use cable that supports Type-C) Handy Guitar Lab: USB 1.1 Full Speed Audio interface: USB 2.0 Full Speed, 32-bit, 2-in/2-out USB bus power supported
Power
Power Supply	AC adapter: 9V DC 500mA center negative (ZOOM AD-16)
Dimensions & Weight
Dimensions	146 mm (D) × 249 mm (W) × 72 mm (H)
Weight	906 g
Notes
Reference Level	0 dBu = 0.775 V
