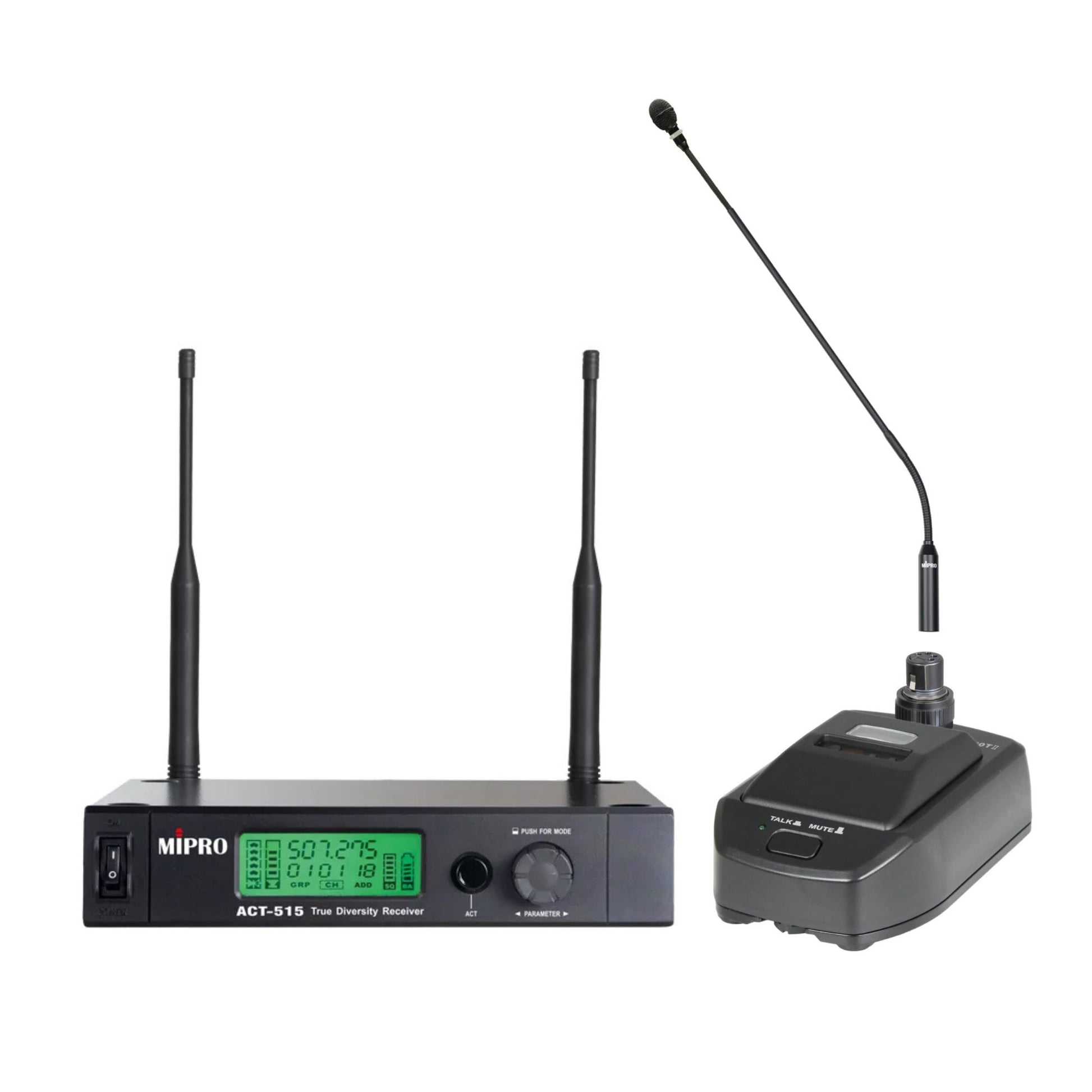

BC-100T II with ACT 515 and MM206
BC-100T II with ACT 515 and MM206
MIPRO
Price for Inquiry
UNIT: PIECE/S
Product Code: SKU:MPRO-BC100T-CHN-2443
Key Features
MIPRO BC-100T II with ACT 515 and MM206
MIPRO BC-100T II with ACT 515 and MM206
|
Key Specifications |
|
|

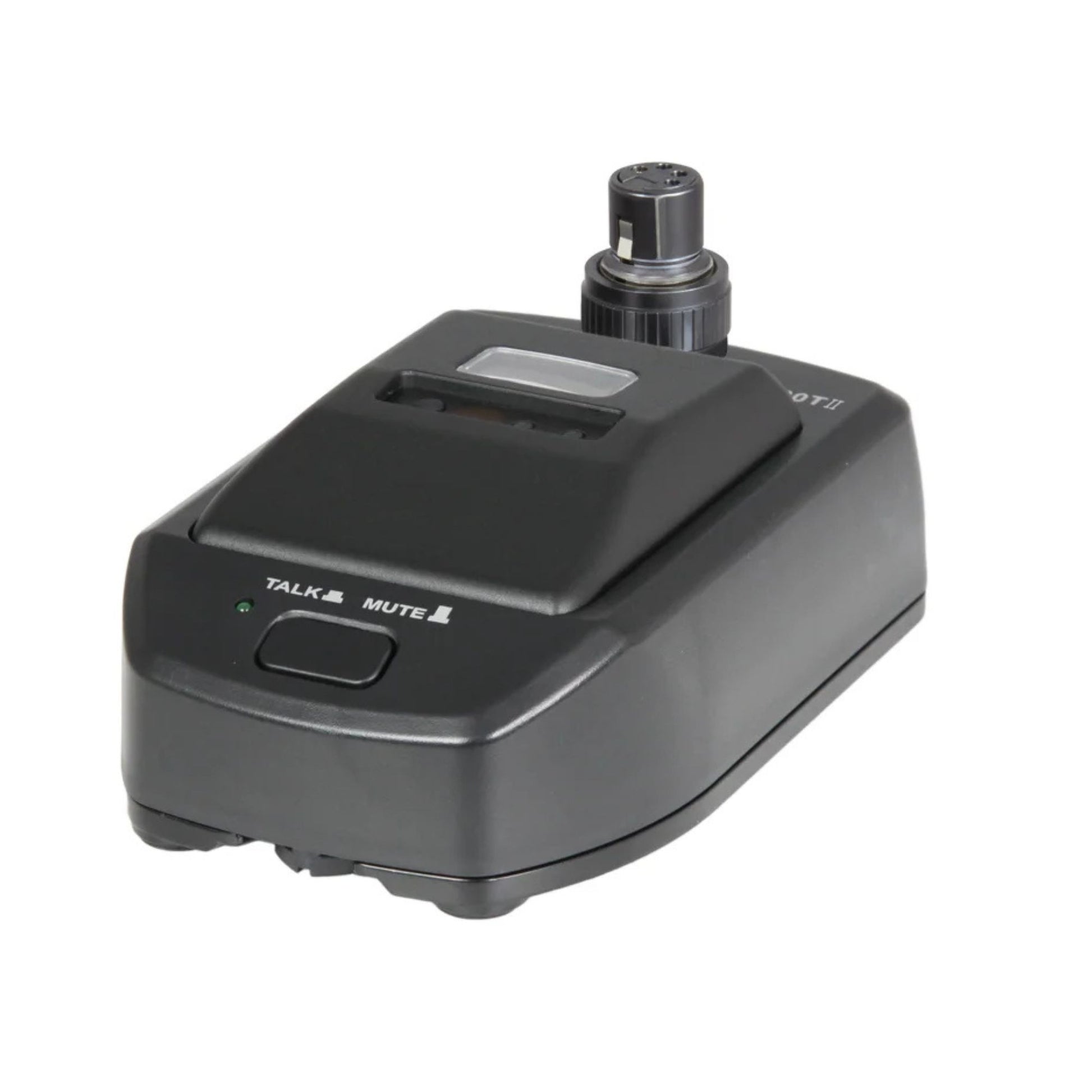

BC-100T II Specifications |
|
|
Model |
BC-100T II |
|
Name |
UHF Gooseneck Microphone Transmitter Base |
|
Frequency Range |
UHF 480 – 934 MHz |
|
Compatible Receivers |
ACT-300 / 500 Series |
|
Input Jack |
MIPRO 4-Pin XLR, compatible with MM-206L / MM-205L / MM-204L gooseneck microphone (optional) |
|
Output Jack |
3-Pin XLR |
|
Display |
Backlit LCD showing channel, battery level and menu |
|
Control Interface |
TALK / MUTE button, ACT sync sensor, setting buttons |
|
Audio Control |
AF Gain |
|
Gain Setting |
-12 to +12 dB, 6 dB steps |
|
RF Power Output |
10 mW / 50 mW switchable (country dependent) |
|
Power Supply |
DC 24 – 48 V phantom power (wired mode); one 18500 Li-ion battery (wireless mode) |
|
Charging Voltage |
DC 5 V / 1 A |
|
Dimensions |
100 × 78 × 150 mm (W × H × D) |
|
Weight |
Approx. 710 g |
|

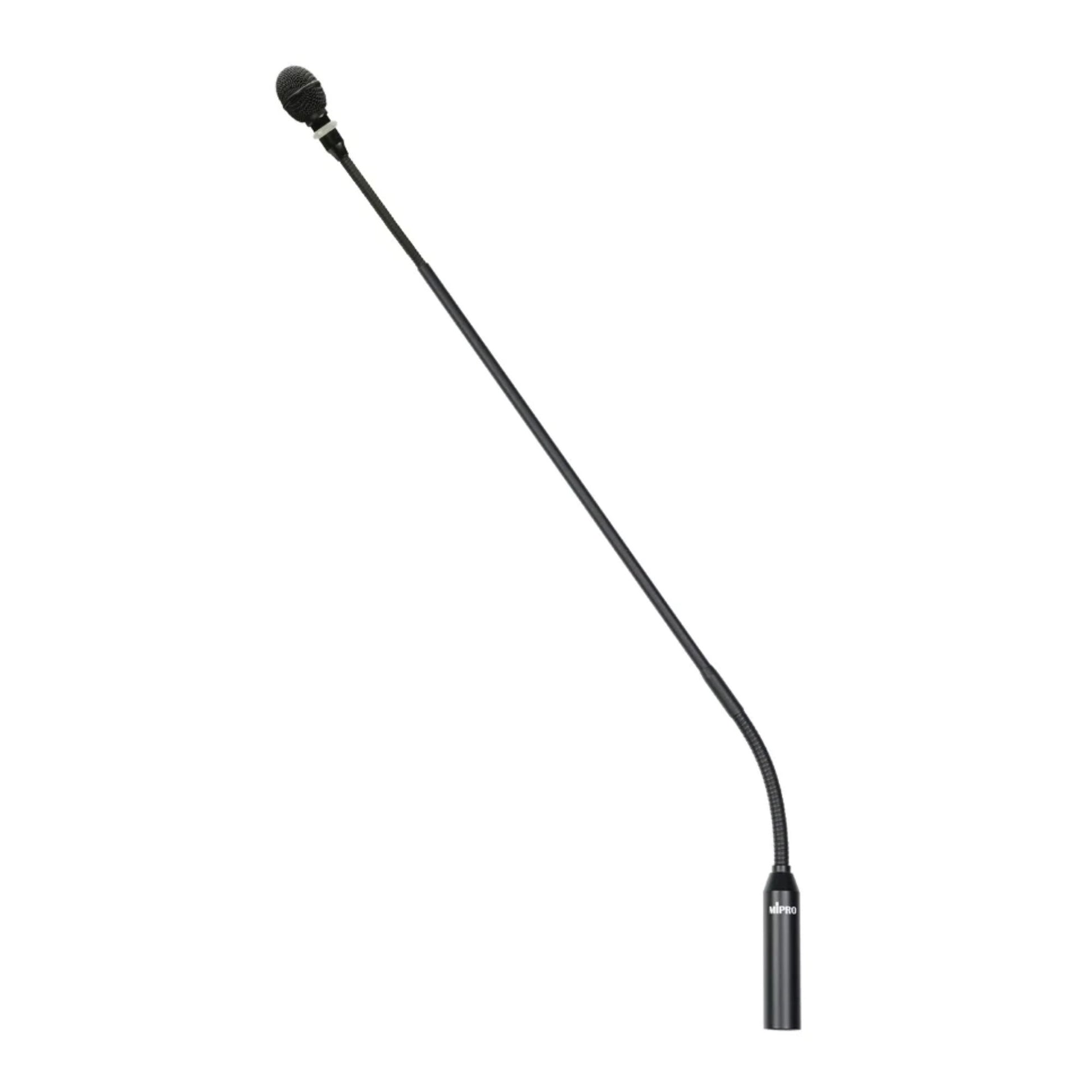

MM-206L Specifications |
|
|
Model |
MM-206L |
|
Name |
Gooseneck Microphone |
|
Capsule Type |
Condenser |
|
Polar Pattern |
Unidirectional |
|
Capsule Diameter |
10 mm |
|
Sensitivity |
-46 ± 3 dBV/Pa |
|
Frequency Response |
50 Hz – 18 kHz |
|
Max. SPL |
142 dB SPL |
|
Output Impedance |
200 Ω |
|
Output Jack |
MIPRO 4-Pin XLR |
|
Compatible Devices |
MIPRO BC-100 II Boundary Microphone Base and BC-T Series Transmitter Bases |
|
Power Supply |
+24 – 48 V phantom power |
|
Indicator |
Red LED ring indicator |
|
Gooseneck Length |
600 mm |
|
Weight |
Approx. 180 g |
|

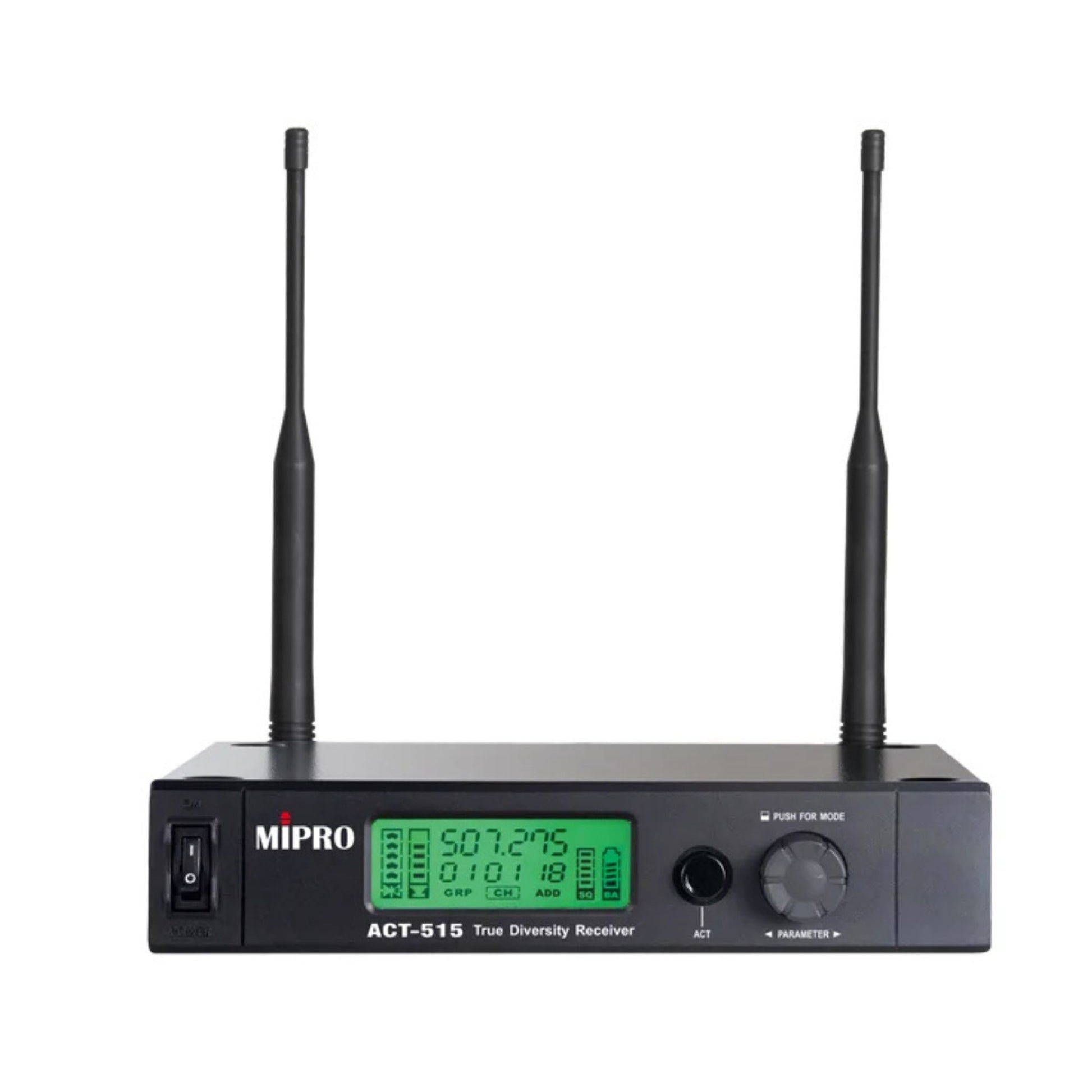

ACT-515 Specifications |
|
|
Model |
ACT-515 |
|
Name |
UHF Analog Single-Channel Receiver |
|
Channel |
Single |
|
Chassis |
Half-rack (9.5") metal chassis |
|
Frequency Range |
UHF 480–934 MHz (country dependent) |
|
Bandwidth |
24 MHz |
|
Receiving Mode |
True diversity |
|
Display |
Two-color backlit LCD |
|
Control Interface |
ACT sync button, channel selection buttons and rotary knob |
|
Sensitivity |
6 dBμV @ S/N > 80 dB |
|
Frequency Response |
50 Hz – 18 kHz |
|
Dynamic Range |
> 111 dBA |
|
Audio Outputs |
Balanced XLR for independent output with three-level gain: +16 / 0 / -6 dB (balanced), +10 / 0 / -6 dB (unbalanced) |
|
Management Interface |
RJ-11 × 2 for PC software control (requires MIPRO DVU adapter) |
|
Antenna |
Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems. |
|
Power Supply |
DC 12–15 V. External AC 100–240 V switching power supply |
|
Dimensions |
210 × 44 × 163 mm (W × H × D) |
|
Weight |
Approx. 0.9 kg |
