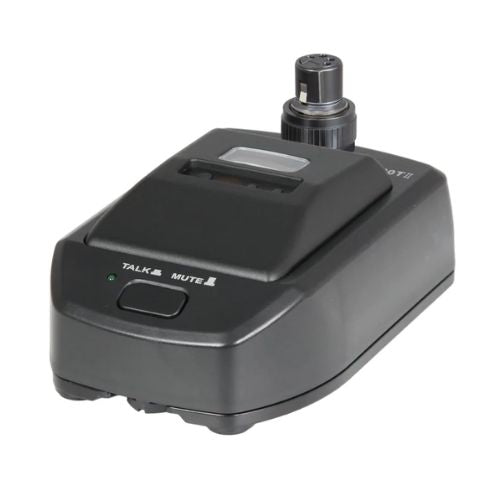

BC-100T II

Compatible with MM Series 4-Pin gooseneck microphones, offering both wired and wireless transmission modes.
In wired mode, the XLR output connects to a mixer with phantom power for direct audio output.
Wireless mode features a built-in UHF narrowband transmitter module (24 MHz bandwidth) designed for use with ACT-300 / 500 Series receivers.
Equipped with a built-in 18500 lithium-ion battery, rechargeable via DC 5 V or replaceable with a spare battery.
AF gain adjustment range from -12 to +12 dB in 6 dB steps.
TALK / MUTE button with speech status indication synchronizes the LED indicators on both the base and the gooseneck microphone.
Metal base with anti-slip pads ensures stability and prevents wobbling during use.

MIPRO

₱13,000.00 VAT INC.

₱13,000.00

UNIT: PIECE/S

Product Code: SKU:MPRO-BC100TII-CHN-8887

Compatible with MM Series 4-Pin gooseneck microphones, offering both wired and wireless transmission modes.
In wired mode, the XLR output connects to a mixer with phantom power for direct audio output.
Wireless mode features a built-in UHF narrowband transmitter module (24 MHz bandwidth) designed for use with ACT-300 / 500 Series receivers.
Equipped with a built-in 18500 lithium-ion battery, rechargeable via DC 5 V or replaceable with a spare battery.
AF gain adjustment range from -12 to +12 dB in 6 dB steps.
TALK / MUTE button with speech status indication synchronizes the LED indicators on both the base and the gooseneck microphone.
Metal base with anti-slip pads ensures stability and prevents wobbling during use.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

MIPRO BC-100T II

Key Specifications
Model	BC-100T II
Product Type	UHF Gooseneck Microphone Transmitter Base
Frequency Range	UHF 480 – 934 MHz
Compatible Receivers	ACT-300 / ACT-500 Series
Microphone Connectivity
Input Jack	MIPRO 4-Pin XLR (Compatible with MM-206L / MM-205L / MM-204L Gooseneck Microphones)
Output Jack	3-Pin XLR
Display	Backlit LCD (Channel, Battery Level, and Menu)
Control & Audio
Control Interface	TALK/MUTE Button, ACT Sync Sensor, Setting Buttons
Audio Control	AF Gain
Gain Setting	-12 dB to +12 dB (6 dB Steps)
RF Power Output	10 mW / 50 mW Switchable (Country Dependent)
Power
Power Supply	DC 24 – 48 V Phantom Power (Wired Mode) or One 18500 Li-ion Battery (Wireless Mode)
Charging Voltage	DC 5 V / 1 A
Physical
Dimensions	100 × 78 × 150 mm (W × H × D)
Weight	Approx. 710 g
