BCC-DB-EAST

PRICE FOR INQUIRY

2 channels, Fet and Tube with mix control (Remote switchable)
Dual DI's each with independent LA·IR, Post & Pre setting
2 x 500W RMS (minimum 4 ohms each output)
Two instrument inputs, with remote switching ability. Input 2 with additional gain trim matching control
Bass, Middle (with preshape voice select), Treble & Tilt control - all with +/- level.
2 x LA·IR equipped DI Outs following each input, with ground lift
Free LA·IR app to load your own IR's and adjust DI EQ.
2 x speakON compatible outputs (6.3mm jack compatible)
USB TYPE C Socket with Audio In/Out
USB TYPE C Socket supports our LA·IR APP connection

LANEY

Price for Inquiry

UNIT: PIECE/S

Product Code: SKU:LANEY-BCCDBEA-CHN-4132

2 channels, Fet and Tube with mix control (Remote switchable)
Dual DI's each with independent LA·IR, Post & Pre setting
2 x 500W RMS (minimum 4 ohms each output)
Two instrument inputs, with remote switching ability. Input 2 with additional gain trim matching control
Bass, Middle (with preshape voice select), Treble & Tilt control - all with +/- level.
2 x LA·IR equipped DI Outs following each input, with ground lift
Free LA·IR app to load your own IR's and adjust DI EQ.
2 x speakON compatible outputs (6.3mm jack compatible)
USB TYPE C Socket with Audio In/Out
USB TYPE C Socket supports our LA·IR APP connection

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

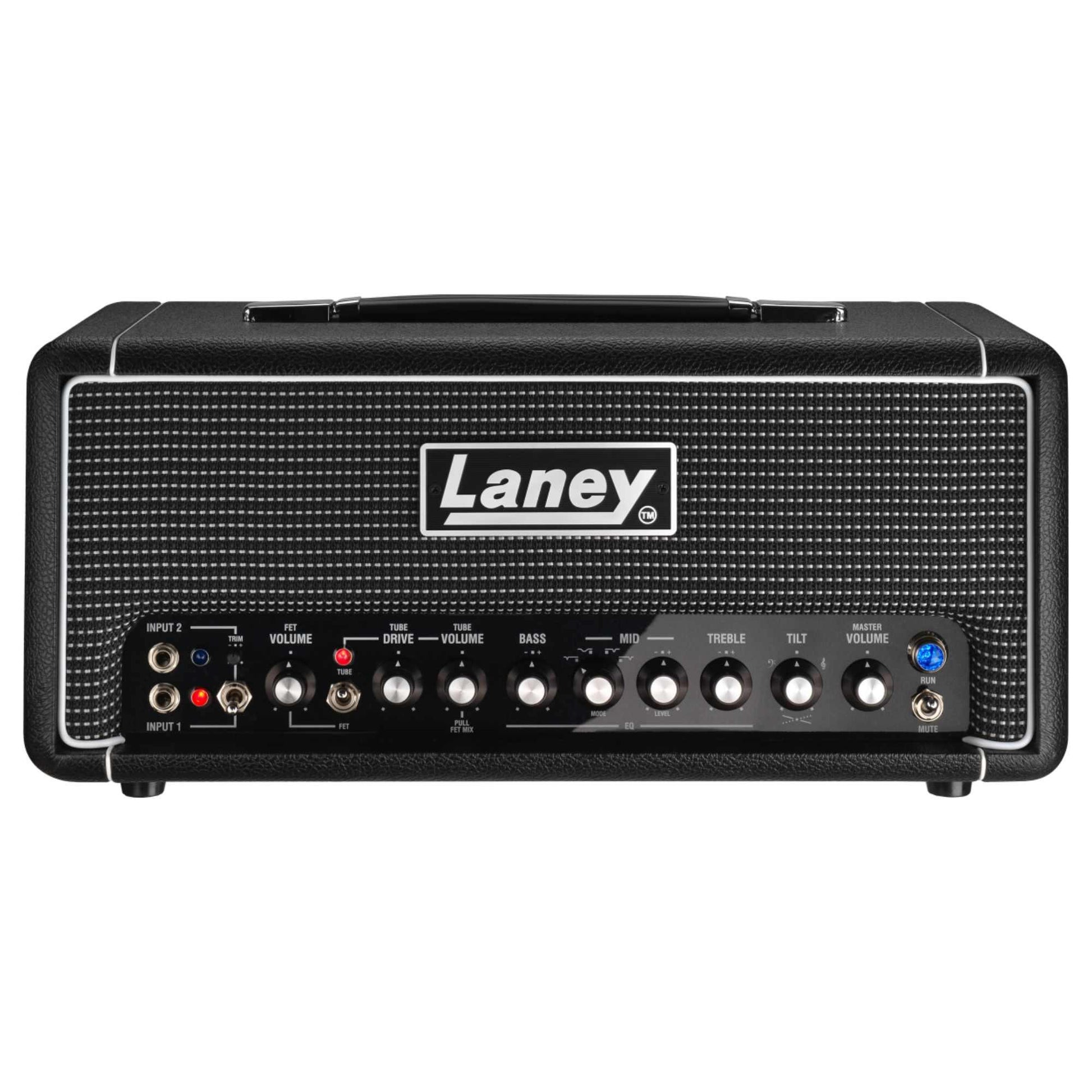

LANEY BCC-DB-EAST

Key Specifications
Channels	2 Channels

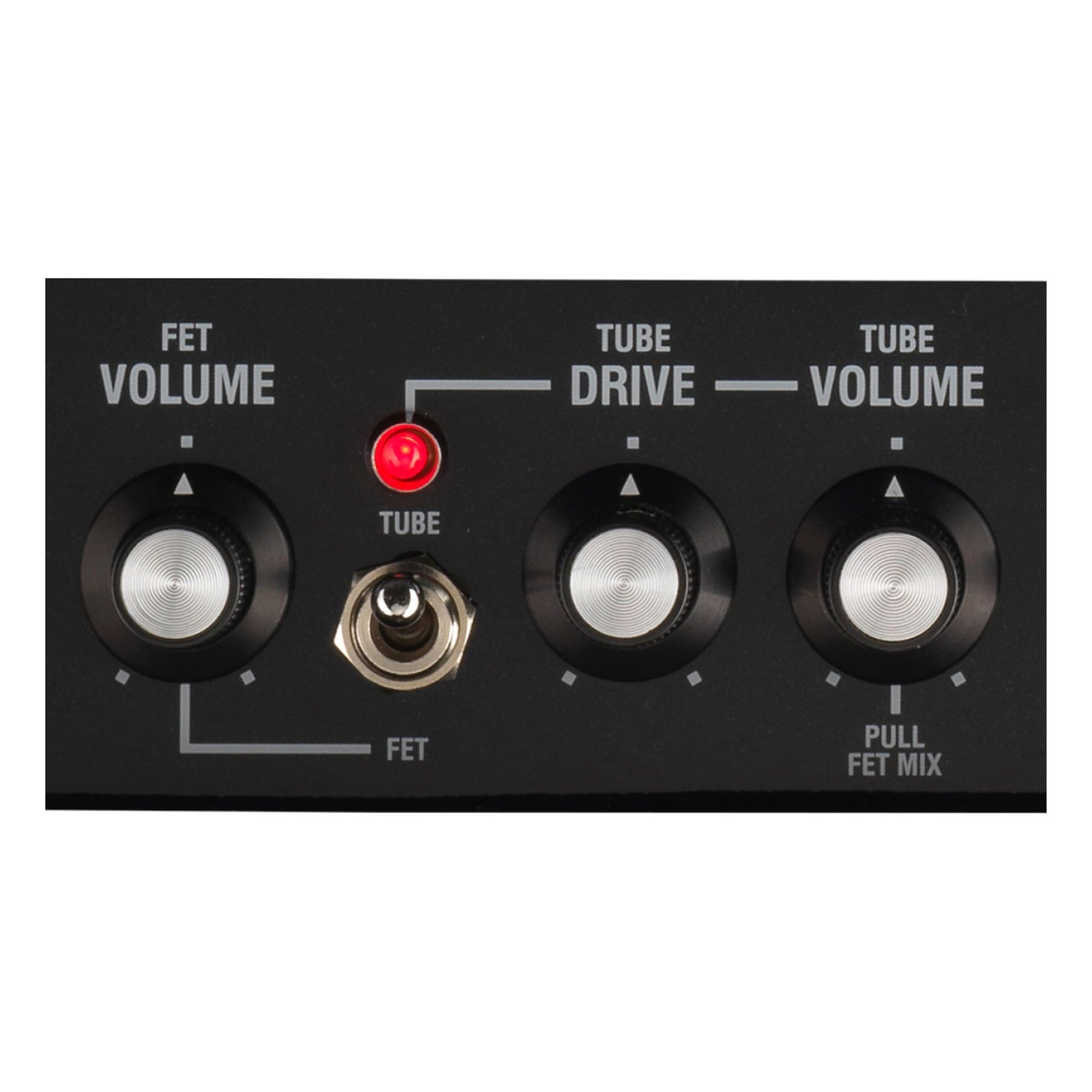

Channel Type	FET and Tube with Mix Control (Remote Switchable)
Power Output	2 x 500W RMS (minimum 4 ohms each output)
Instrument Inputs	Two Instrument Inputs Remote Switching Capability
Input 2 Features	Additional Gain Trim Matching Control
EQ Controls
Bass Control	± Level Adjustment
Middle Control	± Level Adjustment With Preshape Voice Select
Treble Control	± Level Adjustment
Tilt Control	± Level Adjustment

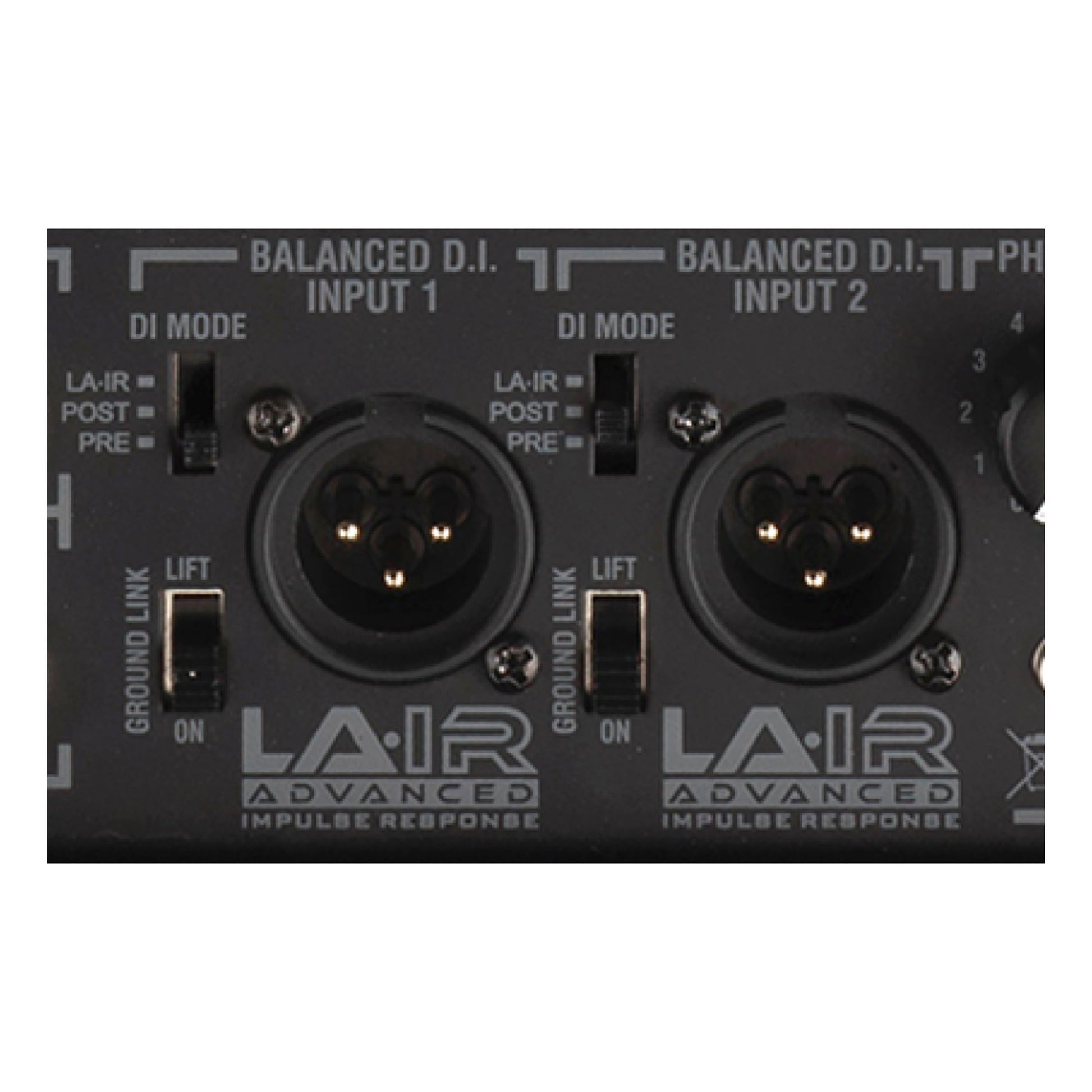

DI Outputs
DI Outputs	2 x LA·IR Equipped DI Outs Following Each Input With Ground Lift
DI Settings	Independent LA·IR Post & Pre Setting
LA·IR App	Free LA·IR App Load Custom IRs Adjust DI EQ
Connectivity
Speaker Outputs	2 x speakON Compatible Outputs 6.3mm Jack Compatible
USB Port	USB Type-C Socket with Audio In/Out
USB Type-C Support	Supports LA·IR App Connection
Dimensions & Weight
Item Dimensions	219mm x 470mm x 225mm (HWD)
Item Weight	8.5 Kg
Carton Dimensions	295mm x 620mm x 300mm (HWD)
Carton Weight	11.5 Kg
