Key Specifications

Frequency Response (-10 dB)

150 Hz - 18000 Hz

Max SPL @ 1m / 4m

99 dB / 87 dB

Coverage Angle

210°

System Sensitivity

86 dB (1W @ 4m: 74 dB)

Power Section

Power Handling

20 W RMS / 80 W PEAK

Protections

Thermal fuse

Recommended Amplifiers

DMA 504, DMA 162, DMA 162P, DXT 3000, DXT 4000, DXT 7000

Transducers

2 x 5.0'' Full Range

Input / Output Section

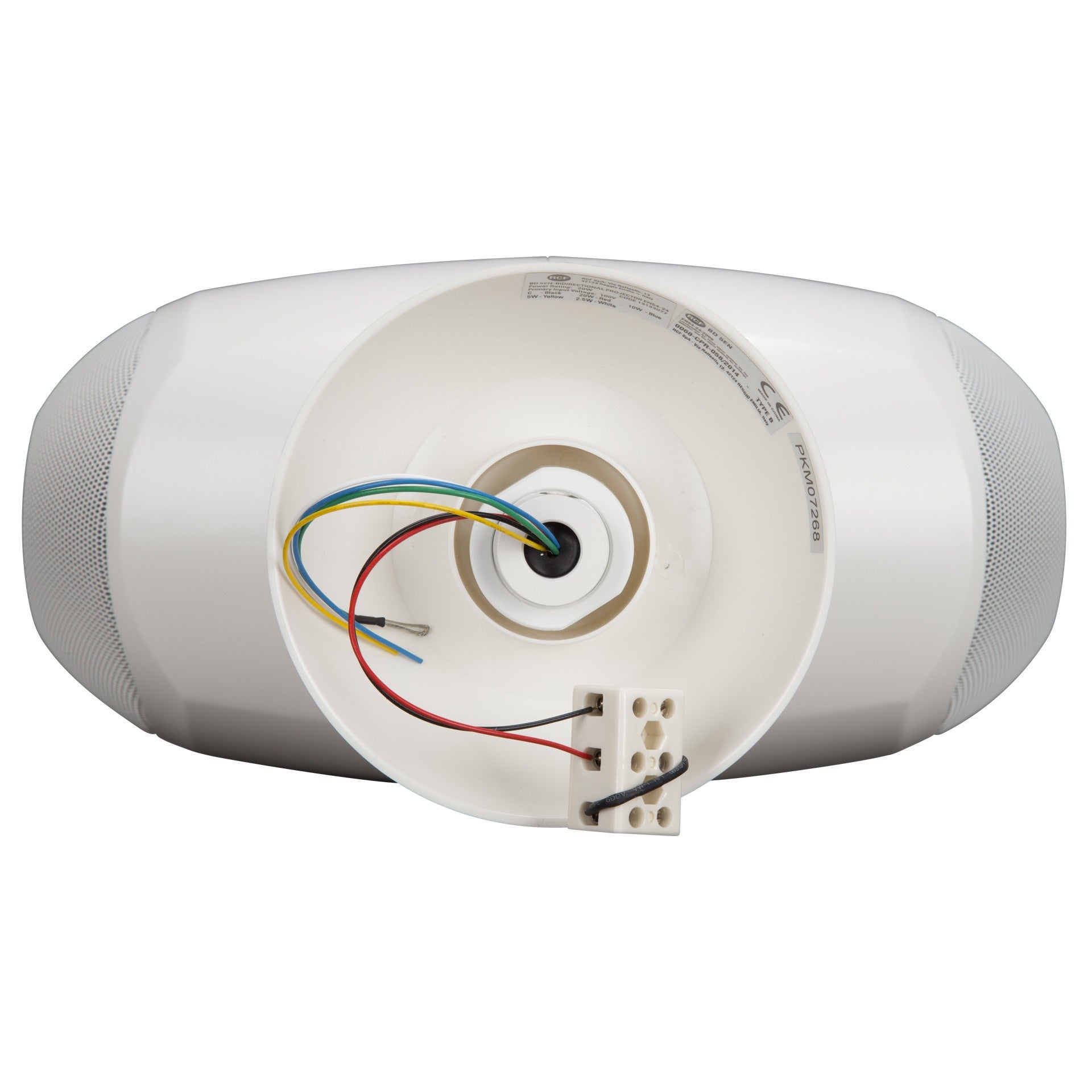

Input / Output Connectors

Ceramic screw terminals

Constant Voltage Transformer

100 V

Power Selection (Taps)

20 W, 10 W, 5 W, 2.5 W

Standard Compliance

IP Protection Grade

IP 65

Safety Agency

CE compliant, EN54-24 certified

CPR Number

0068-CPR-058/2014

Physical Specifications

Cabinet Material

Flameproof ABS, Steel grille

Hardware

Wall mount metal plate

Color

White - RAL 9016

Dimensions (H x W x D)

183 x 332 x 176 mm / 7.2 x 13.07 x 6.93 inches

Weight

3.59 kg / 7.91 lbs

Shipping Information

Package Dimensions (HxWxD)

230 x 400 x 380 mm / 9.06 x 15.75 x 14.96 inches

Package Weight

4.63 kg / 10.21 lbs
