Key Specifications

Main Frame Size

1U Half-Rack

Receiving Channel

Single Channel

Reception Method

Antenna diversity/frequency diversity/Time Diversity

Wireless Carrier Frequency

2.4-2.48GHz

Compatible Channels

≥ 14

Display Channel

LCD

Effective Distance

50 meters (open space)

Encryption

AES-256

Audio Performance

Audio Format

Relacart proprietary digital audio format

Sampling

24bit/48kHz

Delay

≤2.9ms, ≤ 3.8ms (encryption enabled)

Dynamic Range

≥ 110dB (A-weighted)

Frequency Response

20Hz-20kHz(± 1dB)

Comprehensive T.H.D

<0.1% @ 1KHz

System Gain Adjustment

(-18~18 dB)

Interfaces & Output

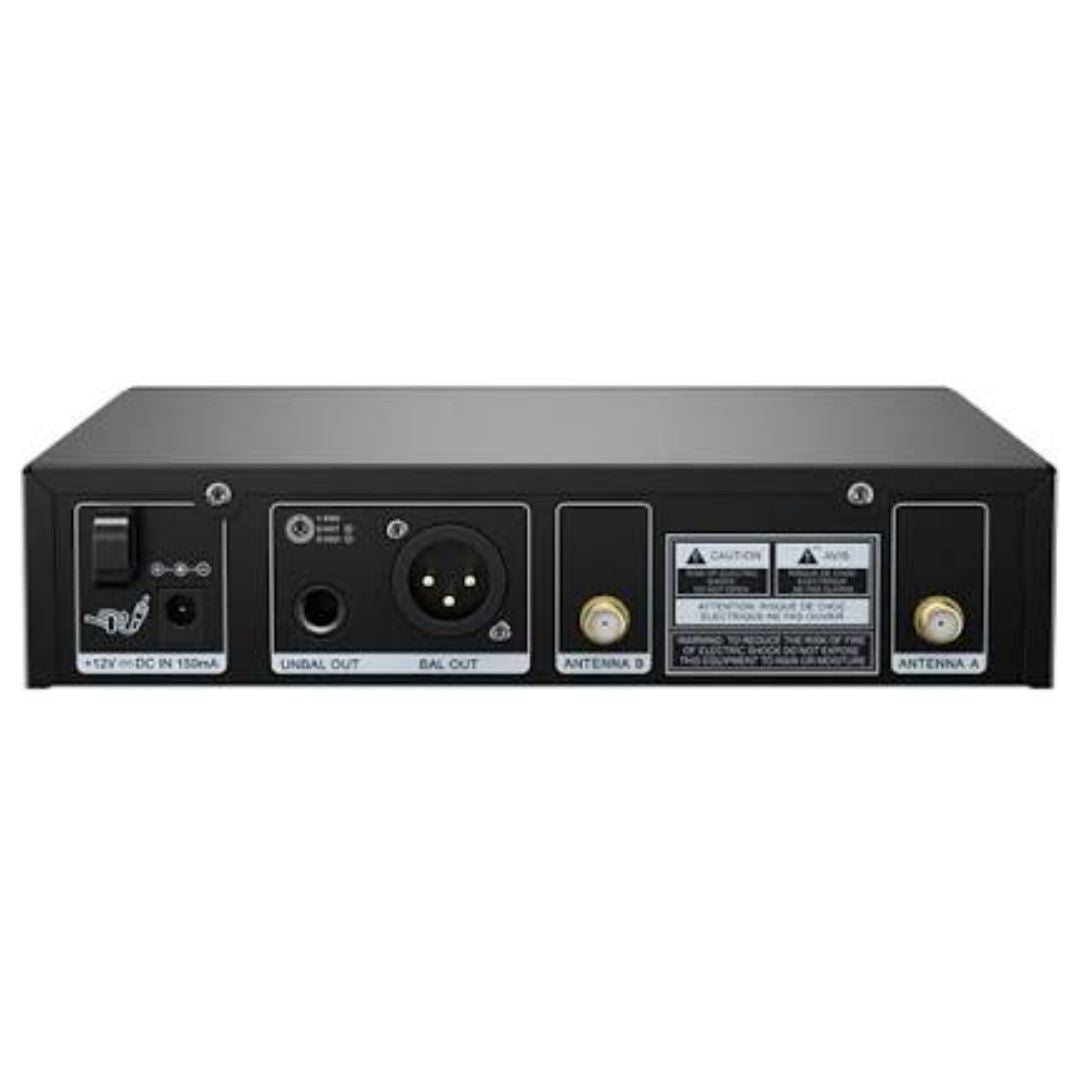

Audio Output Interface

XLR balanced output, 1/4 "unbalanced output

Power & Electrical

Power Supply

DC/12V

Current Load

≤150mA

Dimensions & Weight

Dimensions(mm)

200 (L) × 200 (D) × 44 (H), 2.3KG
