Key Specifications

Product / Accessory Type

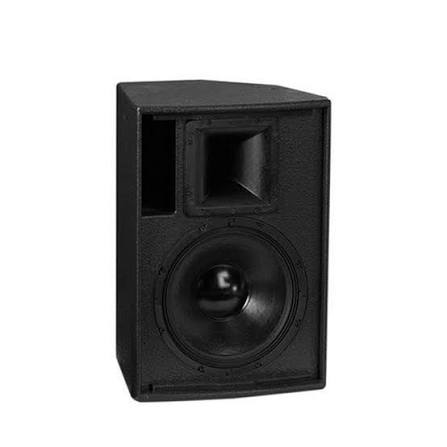

Compact 2-Way Passive PA Loudspeaker

Enclosure Material, Volume & Finish

68.00 L (2.40 cu. ft.) Multi-Laminate Birch Plywood with Textured Black Paint Finish

Grille Construction

Perforated Black Protective Steel Grille

Integrated Carrying Handles

2x Ergonomic Pocket Handles

Mounting, Rigging & Hardware Fittings

12x M8 Threaded Rigging Inserts, 1x Standard Mounting Pole Socket

Acoustic & Electrical Performance Specifications

Power Handling Capacity

400 W AES Continuous / 1,600 W Peak

Recommended System Amplification

MA3.0 Power Amplifier

System Nominal Sensitivity

100 dB (1 W at 1 m)

Maximum Sound Pressure Level (SPL)

126 dB Continuous / 132 dB Peak

Frequency Response

55 Hz to 18,000 Hz (18.00 kHz, ±3 dB); -10 dB at 45 Hz

Nominal Dispersion Angles (-6 dB)

80° Horizontal x 50° Vertical

Transducer Nominal Impedance

8 Ω

Passive Crossover Frequency

1,400 Hz (1.40 kHz)

Speaker Component Specifications

Low-Frequency Transducers (Woofer)

1x 380.00 mm (15.00") LF Driver with 75.00 mm (3.00") Voice Coil and Neodymium Magnet Assembly

High-Frequency Transducers (Compression Driver)

1x HF Compression Driver with 35.00 mm (1.40") Throat Exit

Connectivity & Termination Specifications

Input & Link Connectors

2x Neutrik NL4 SpeakON Connectors

Pin Configurations & Wiring

Full Range (FR+/-): Pins 1+ / 1-;
Link Through: Pins 2+ / 2-

Dimensions & Weight Specifications

Product Dimensions (W×H×D)

471.00 mm x 690.00 mm x 443.00 mm (18.54" x 27.17" x 17.44")

Product Net Weight

30.50 kg (67.24 lbs)
