Key Specifications

Product / Accessory Type

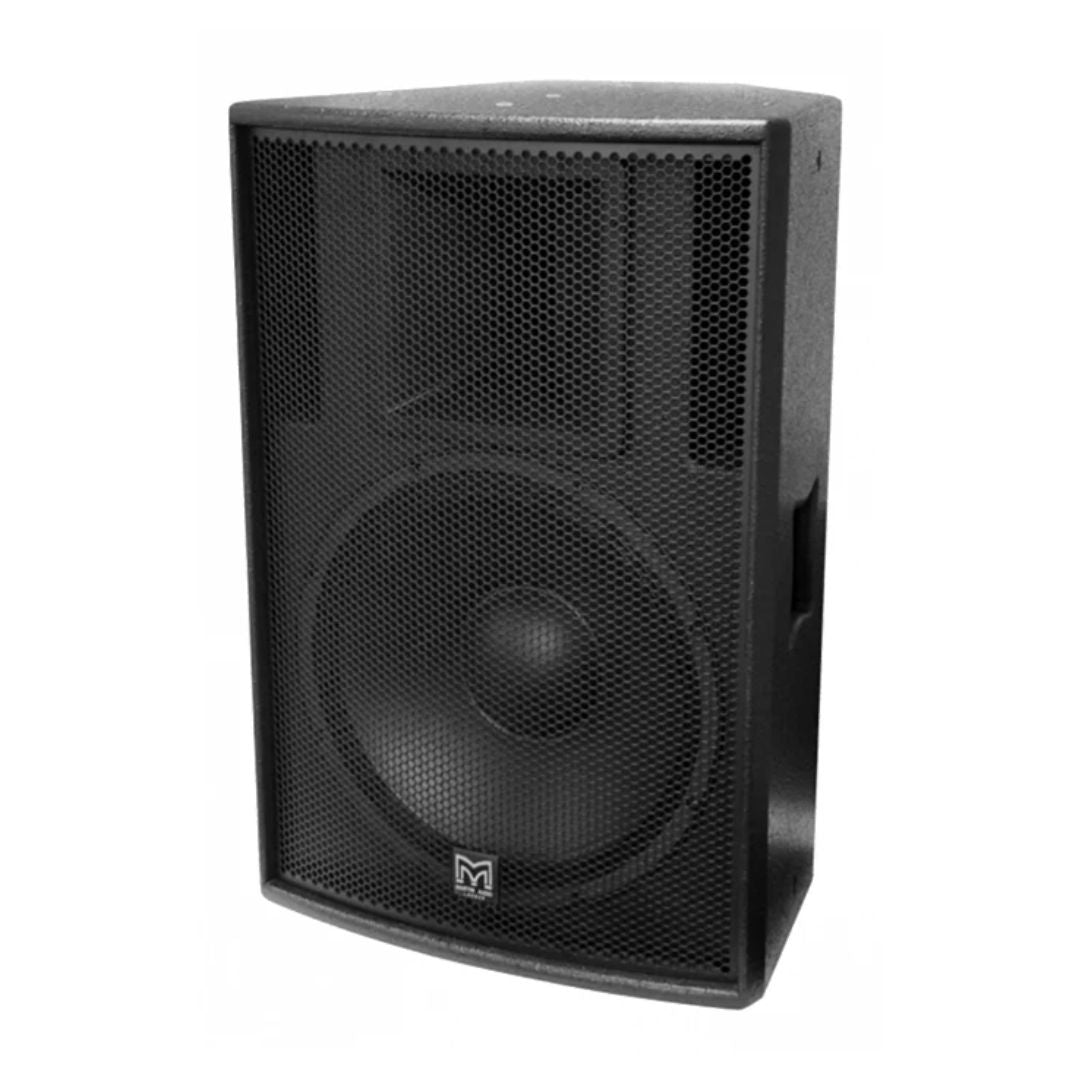

Very High-Output 2-Way Passive / Bi-Amp PA Loudspeaker

Enclosure Material, Volume & Finish

68.00 L (2.40 cu. ft.) Multi-Laminate Birch Plywood with Textured Black Paint Finish

Grille Construction

Perforated Black Protective Steel Grille

Integrated Carrying Handles

2x Ergonomic Pocket Handles

Mounting, Rigging & Hardware Fittings

15x M8 Threaded Rigging Inserts, 1x Standard 35.00 mm (1.38") Pole Mount Socket

Acoustic & Electrical Performance Specifications

Rated Power Handling (AES / Peak)

Low-Frequency (LF): 600 W AES Continuous / 2,400 W Peak;
High-Frequency (HF): 80 W AES Continuous / 320 W Peak

Recommended System Amplification

MA3.0, MA5.2K, MA6.8Q Power Amplifiers

System Nominal Sensitivity (1 W at 1 m)

Full-Range (FR): 99 dB SPL;
Low-Frequency (LF): 100 dB SPL;
High-Frequency (HF): 108 dB SPL

Maximum Sound Pressure Level (SPL)

Full-Range (FR): 126 dB Continuous / 132 dB Peak;
Low-Frequency (LF): 127 dB Continuous / 133 dB Peak;
High-Frequency (HF): 127 dB Continuous / 133 dB Peak

Frequency Response

55 Hz to 18,000 Hz (18.00 kHz, ±3 dB); -10 dB at 45 Hz

Nominal Dispersion Angles (-6 dB)

80° Horizontal x 50° Vertical

Transducer Nominal Impedance

Full-Range (FR) / Low-Frequency (LF): 8 Ω;
High-Frequency (HF): 16 Ω

Crossover Frequency & Operating Mode

1,200 Hz (1.20 kHz) Switchable Passive / Bi-Amp Crossover Architecture

Speaker Component Specifications

Low-Frequency Transducers (Woofer)

1x 380.00 mm (15.00") Long-Excursion LF Driver with 100.00 mm (4.00") Voice Coil and Neodymium Magnet Assembly

High-Frequency Transducers (Compression Driver)

1x Titanium Dome HF Compression Driver with 35.00 mm (1.40") Throat Exit, 75.00 mm (3.00") Voice Coil, and Neodymium Magnet Assembly

Connectivity & Termination Specifications

Input & Link Connectors

2x Neutrik® NL4 SpeakON Connectors (Wired Parallel)

Pin Configurations & Wiring

Full-Range / Low-Frequency (FR/LF +/-): Pins 1+ / 1-;
High-Frequency (HF +/-): Pins 2+ / 2-

Dimensions & Weight Specifications

Product Dimensions (W×H×D)

471.00 mm x 690.00 mm x 443.00 mm (18.54" x 27.17" x 17.44")

Product Net Weight

34.30 kg (75.62 lbs)
