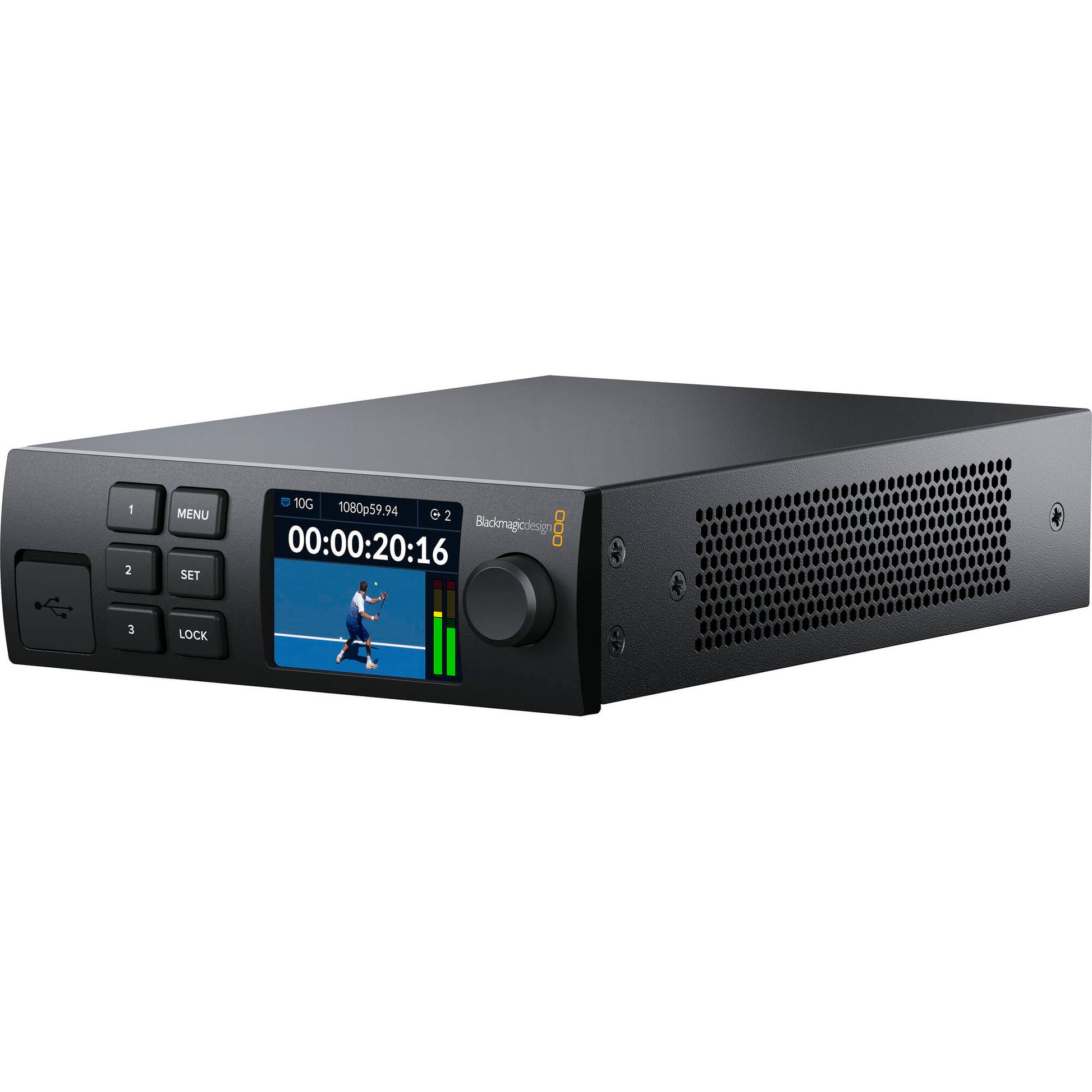

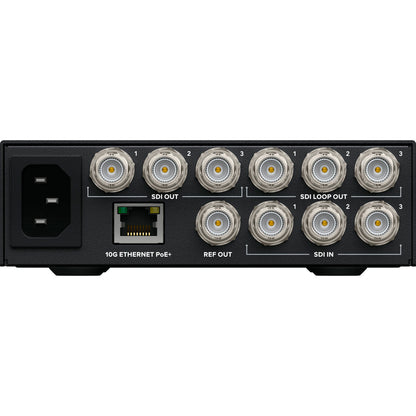

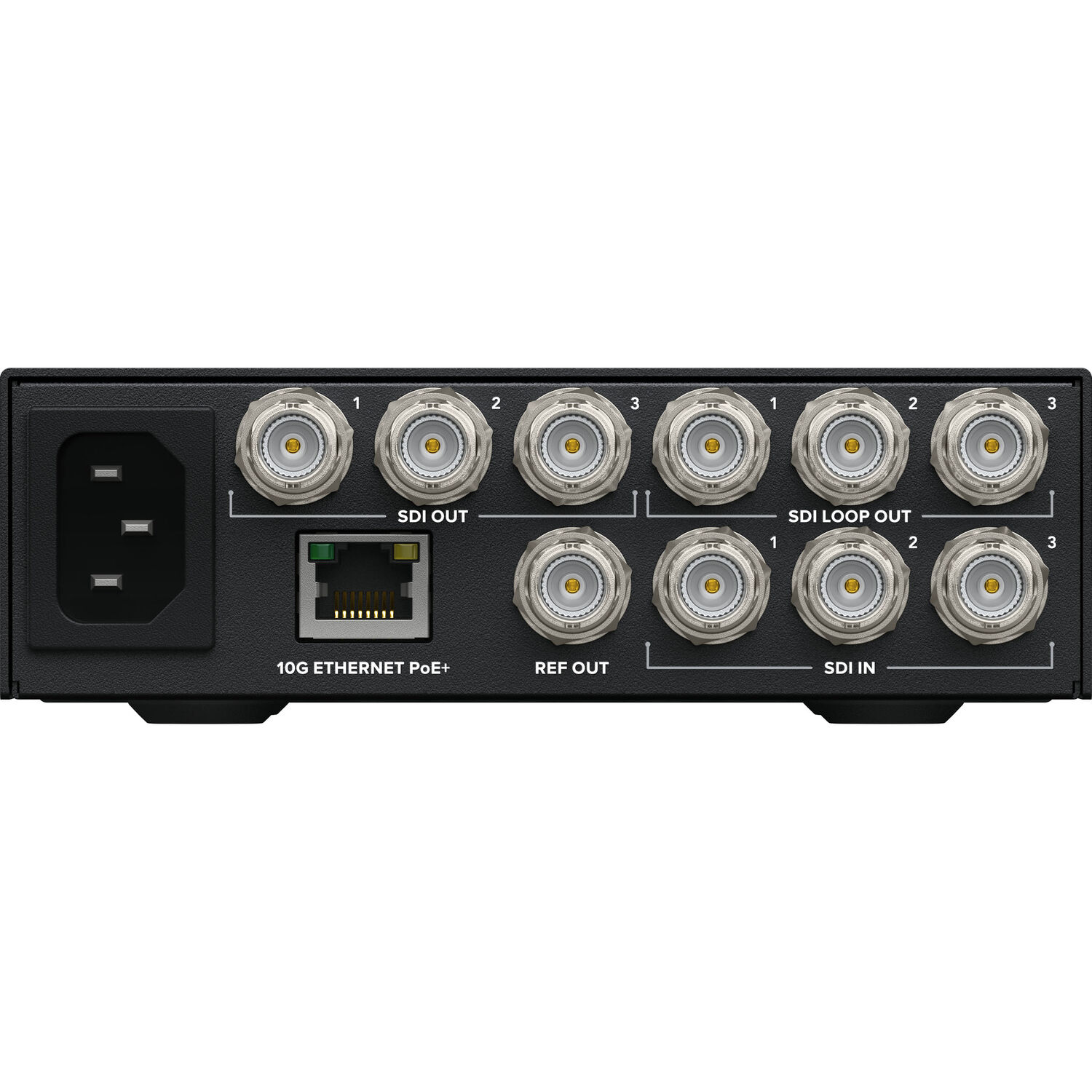

Convert the signals from three separate 3G-SDI devices to 2110 IP video systems with this 2110 IP Converter 3X3G from Blackmagic Design. The wide range of connectivity includes a 10G Ethernet port that handles up to three video channels simultaneously, three 3G-SDI inputs and three 3G-SDI outputs, as well as three loop outputs. The unit also handles up to 16 channels of embedded audio with their respective video signals, and the RJ45 10G Ethernet port supports 10/100/1000/10G BASE-T and can also be used for PoE+ power connectivity. The reference output is timed to the 2110 PTP clock.

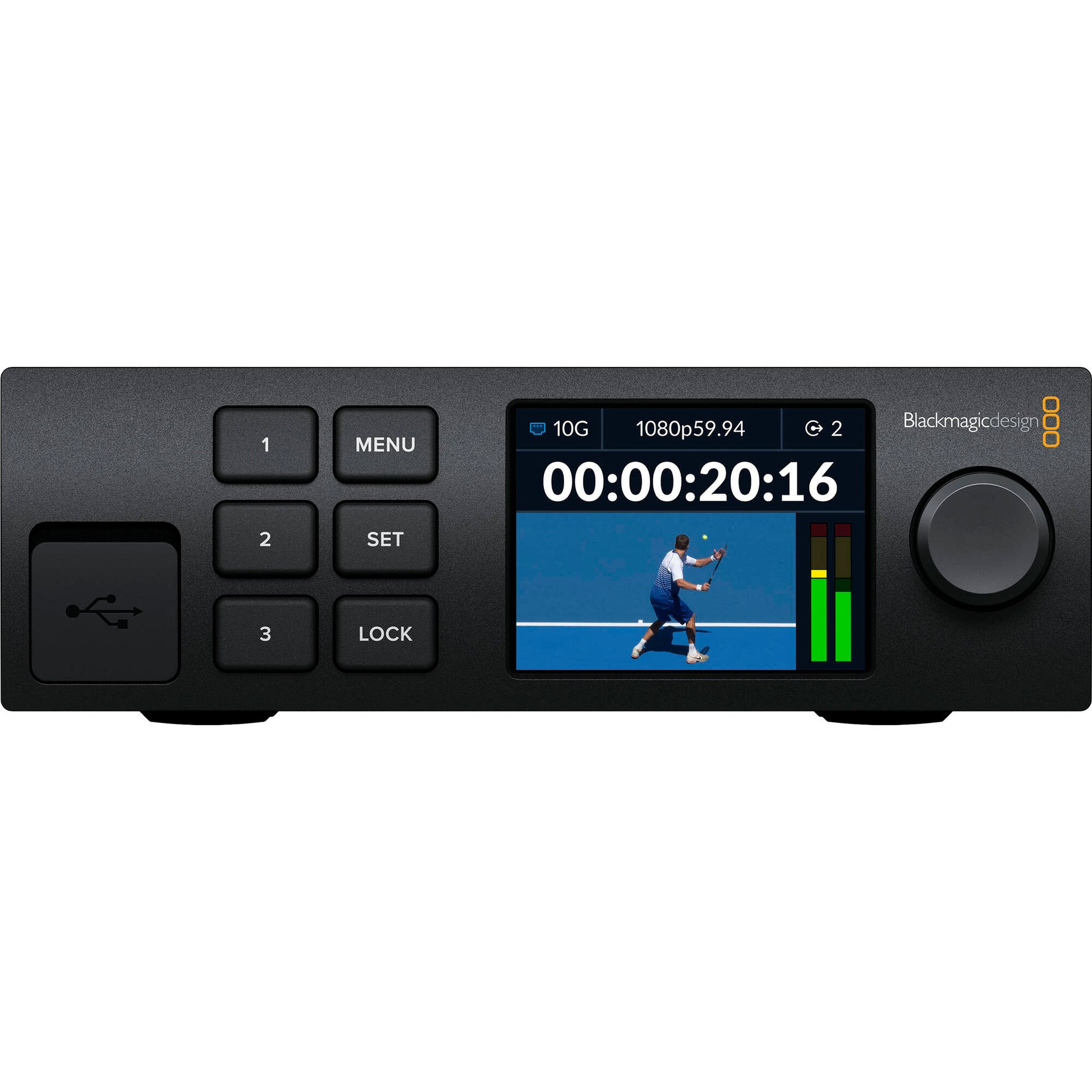

A 2.2" color LCD display on the front panel provides signal monitoring, menus, and diagnostic data. IP inputs can also be routed from the panel. Designed to integrate any 3G-SDI equipment into 2110 IP broadcast systems, the rackmount design allows the unit to be installed in equipment racks right beside the equipment you're converting. Employing an active fan-based cooling system, the unit remains cool even when mounted next to other gear. In addition to the PoE+ option, the unit also features a 100 to 240V AC power port.
