Key Specifications

Inputs/Outputs

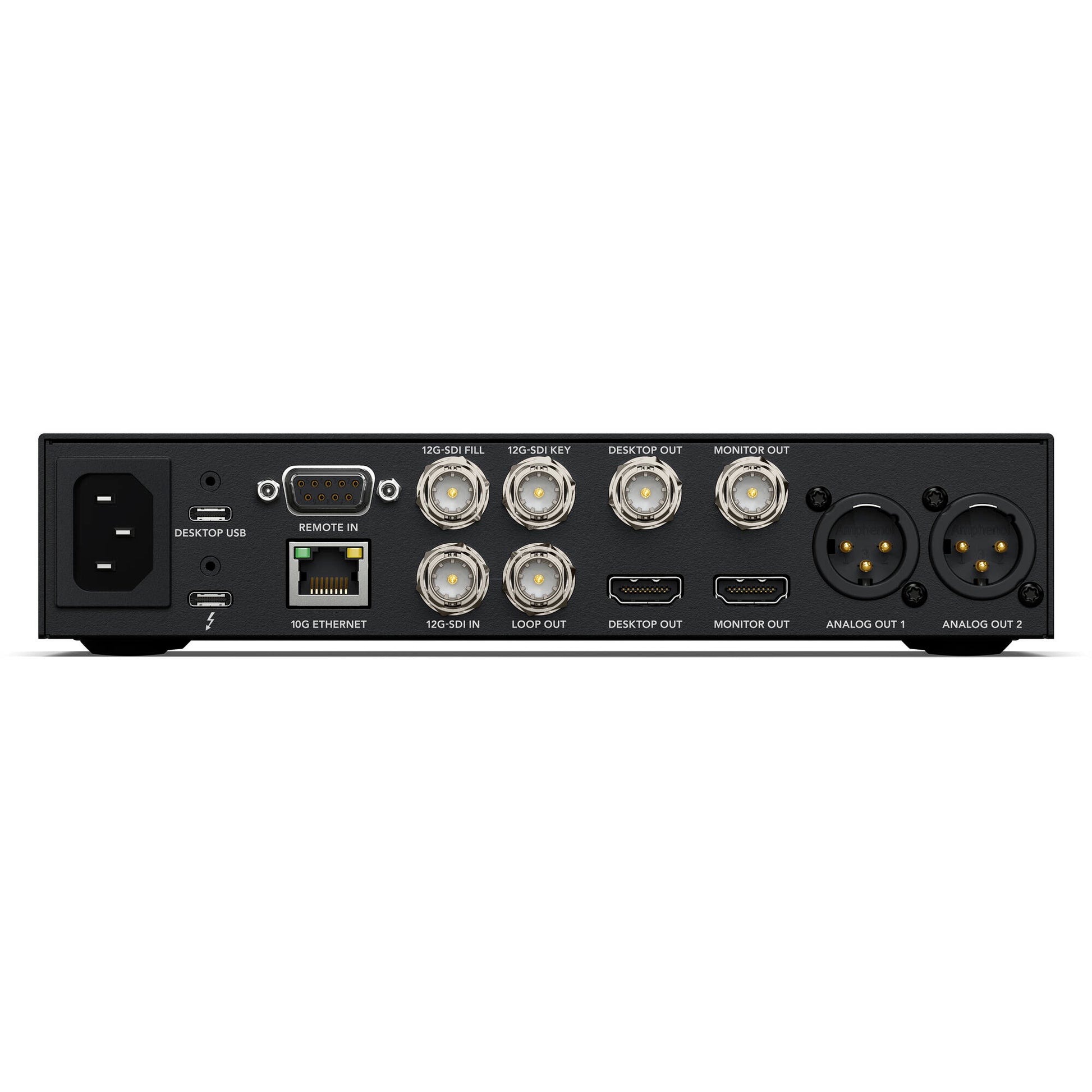

System Connection

USB-C (Thunderbolt 3)

Video I/O

• Input: 1x BNC (12G-SDI) Female
• Output: 4x BNC (12G-SDI) Female, 1x BNC (12G-SDI) Female (Loop Output), 1x HDMI (Unspecified Signal) Female (Monitor)

Audio I/O

• Output: 2x XLR 3-Pin Analog Female, 1x 1/4" TRS Analog Female

Other I/O

• Input/Output: 1x Thunderbolt 3 3.0 / 3.1/3.2 Gen 1, 1x USB-C 3.0 / 3.1/3.2 Gen 1, 1x RJ45 (10 GbE)
• Input: 1x DE-9/DB-9 (RS-422)

Format Support

Video Resolution

• BNC Input/Output (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV): 4096 x 2160 up to 60 fps, 3840 x 2160 up to 60 fps, 2048 x 1080p up to 60 fps, 2048 x 1080PsF up to 30 fps, 1920 x 1080p up to 60 fps, 1920 x 1080i up to 60 fps, 1280 x 720 up to 60 fps, 720 x 576i at 50 fps, 720 x 480i at 59.94 fps
• HDMI Output (8/10/12-Bit 4:4:4/4:2:2/4:2:0): 4096 x 2160 up to 60 fps, 3840 x 2160 up to 60 fps, 1920 x 1080p up to 60 fps, 1920 x 1080i up to 60 fps, 1280 x 720 up to 60 fps, 720 x 576i at 50 fps, 720 x 480i at 59.94 fps

Audio Format

Analog Output: 48 kHz / 24-Bit

Embedded Audio

HDMI/LAN (RJ45)/SDI/USB

Standards

HDCP Support

No

HDR Support

Yes: Hybrid Log Gamma

Hardware

OS Compatibility

Windows 10 to 11, macOS 13 or Later, Linux

Power

Power I/O

1x IEC C14 (100 to 240 VAC) Input

General

Operating Conditions

41 to 104°F / 5 to 40°C up to 90% Humidity

Storage Conditions

-4 to 113°F / -20 to 45°C up to 90% Humidity

Dimensions

8.98 x 8.28 x 1.74" / 22.81 x 21.03 x 4.42 cm

Weight

2.87 lb / 1.3 kg

Packaging Info

Package Weight

3.82 lb

Box Dimensions (L x W x H)

11 x 10.6 x 3.6"
