Key Specifications

Lens Mount

Micro Four Thirds

Image Sensor

17.78 x 10 mm (Four Thirds) CMOS

ISO/Gain Sensitivity

Native: 100 to 25,600 | Gain: 0 to 18 dB

Internal Recording (Blackmagic RAW)

3840 x 2160 at up to 60 fps [26 to 190 Mb/s]

Video Output (HDMI)

1920 x 1080 up to 60.00 fps

Video Output (SDI/BNC)

3840 x 2160 at up to 60.00 fps | 1920 x 1080 at up to 60.00 fps

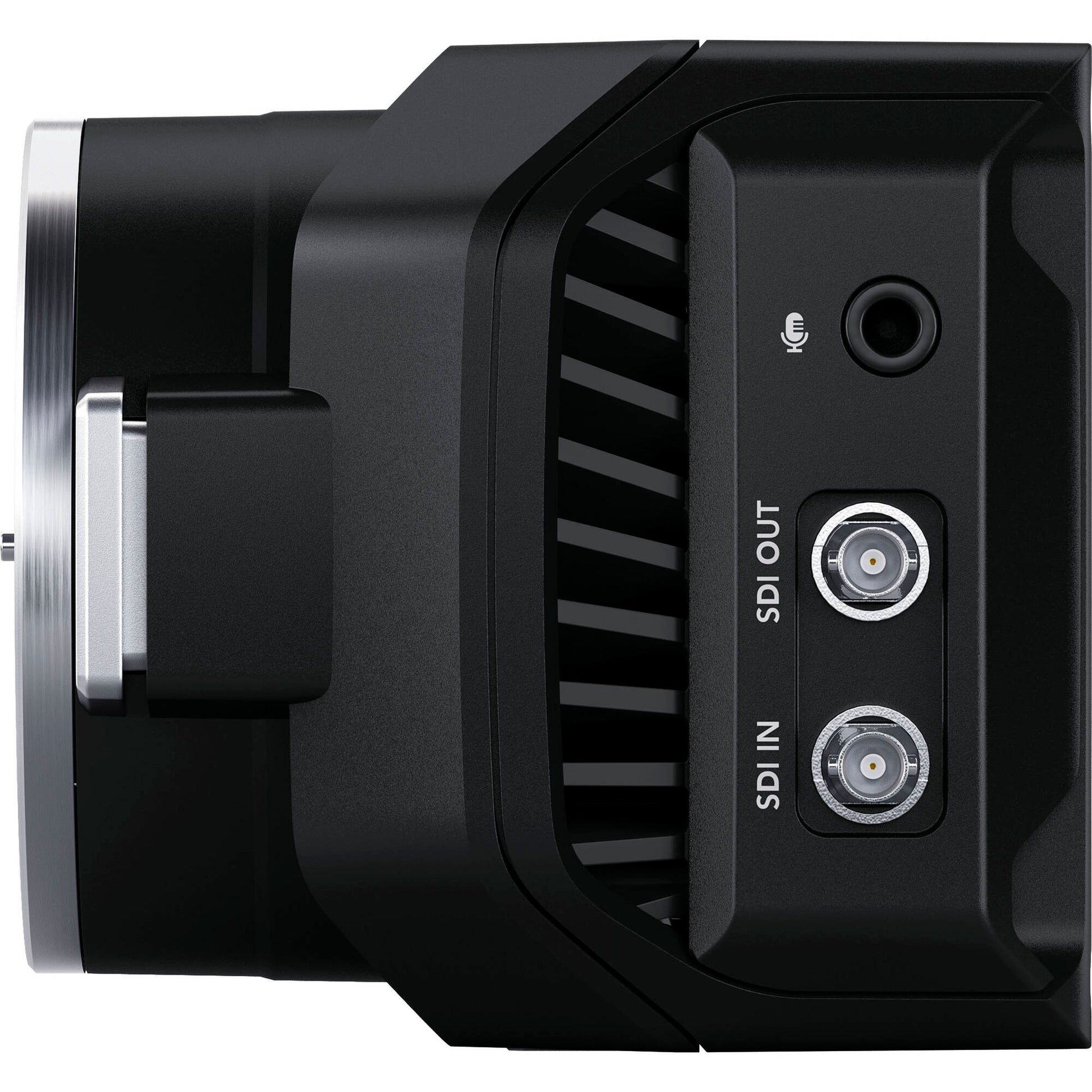

Video I/O

• 1x HDMI 2.0 Output
• 1x Micro BNC (12G-SDI) Input
• 1x Micro BNC (12G-SDI) Output

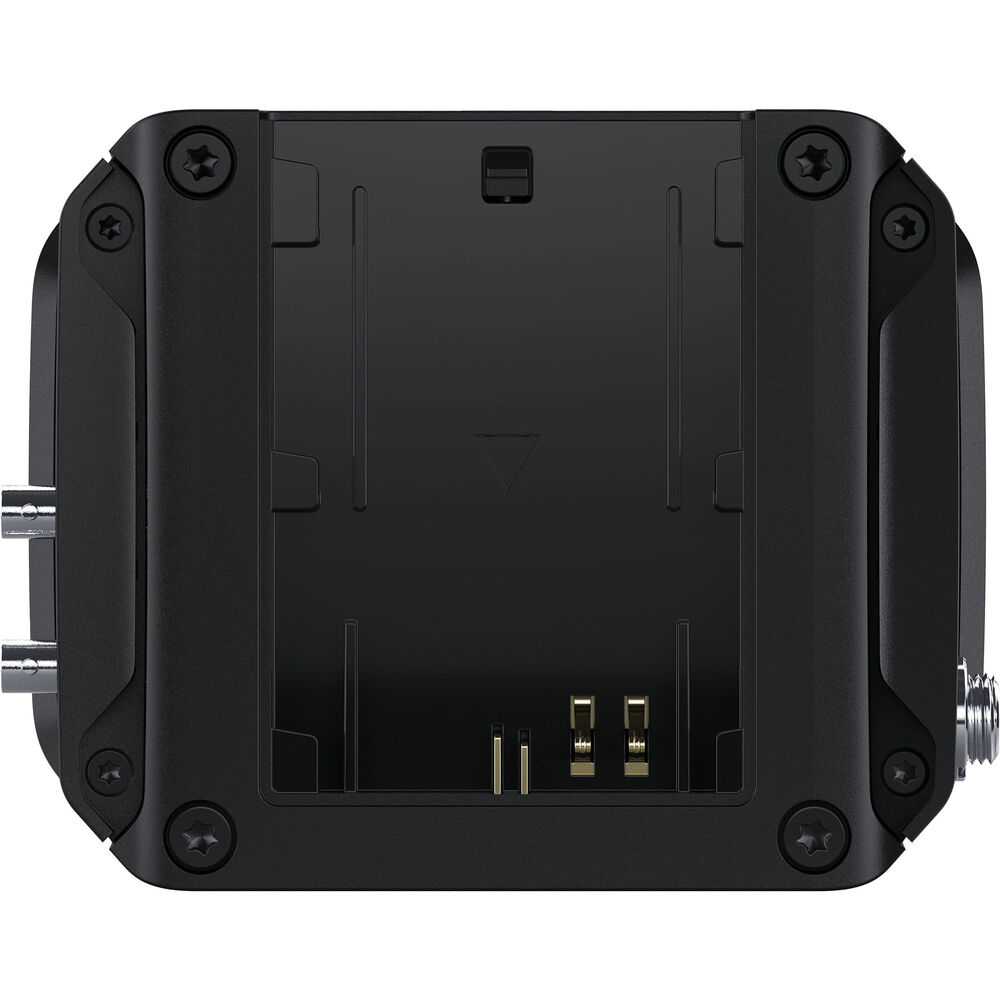

Battery

Built-In Lithium-Ion

Imaging

Lens Mount

Micro Four Thirds

Image Sensor

17.78 x 10 mm (Four Thirds) CMOS

Sensor Resolution

Not Specified by Manufacturer

Exposure Control

Shutter Type

Mechanical Focal Plane Shutter and Electronic Rolling Shutter

Video Capture

Internal Recording (Blackmagic RAW)

3840 x 2160 at up to 60 fps

Built-In Microphone

Stereo

Audio Recording

Raw: 2-Channel, 24-Bit at 48 kHz via LPCM Audio

Interface

Media/Memory Card Slot

No

CCU I/O

1x BNC

Video I/O

• 1x HDMI 2.0 Output
• 1x Micro BNC (12G-SDI) Input
• 1x Micro BNC (12G-SDI) Output

Audio I/O

1x 1/8" / 3.5 mm TRS Stereo Microphone Input

Power I/O

1x Barrel (12VDC) Input

Other I/O

1x USB-C (USB 3.2 / 3.1 Gen 1) Video/Data/Control Input/Output

Power

Power Consumption

>25 W

General

Dimensions (W x H x D)

3.3 x 2.6 x 2.74" / 8.4 x 6.6 x 6.96 cm (Without Protrusions)

Weight

10.58 oz / 0.30 kg (Body Only)

Packaging Info

Package Weight

1.48 lb

Box Dimensions (L x W x H)

7 x 5.2 x 4"
