The Blackmagic Design MultiDock 10G is designed as a fast, four-slot SSD dock that you can use to edit directly from your media disks. Up to four 2.5" disks can be accessed over a single 10 Gb/s USB-C interface, while an independent SATA driver chip on each disk slot ensures fast transfer speeds. You can connect directly to a Mac or Windows computer that has a USB-C port, and no software needs to be installed and used in the process. The MultiDock 10G works well with the optional HyperDeck Extreme 8K in various recording and playback workflows thanks to the matching USB-C external disk port on the HyperDeck. The MultiDock has a 1 RU rackmount design and can be installed right on top of the HyperDeck Extreme in a rack or console for a seamless workflow. It can also be used simultaneously with two HyperDeck Extreme units.

All-Metal Rackmount Design

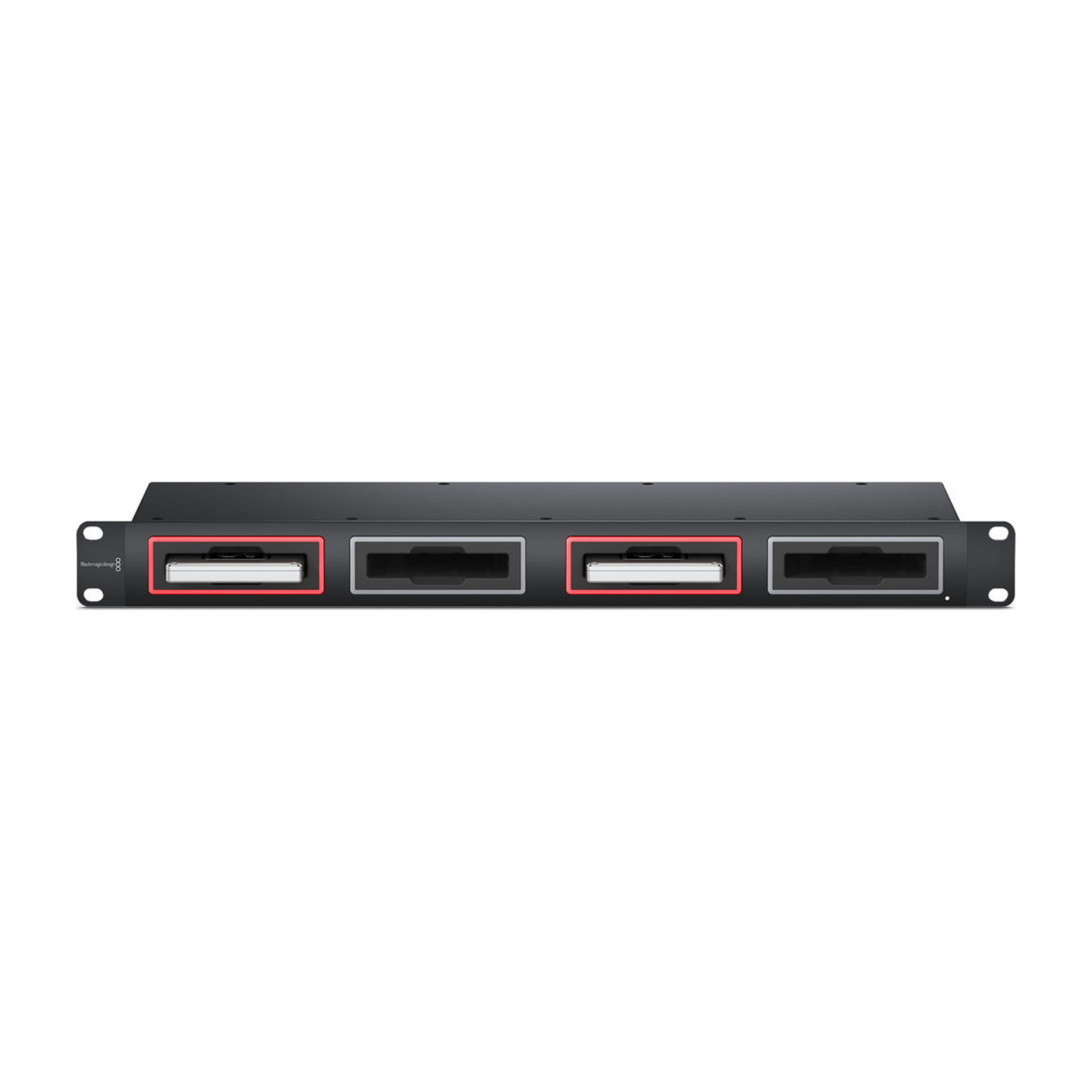

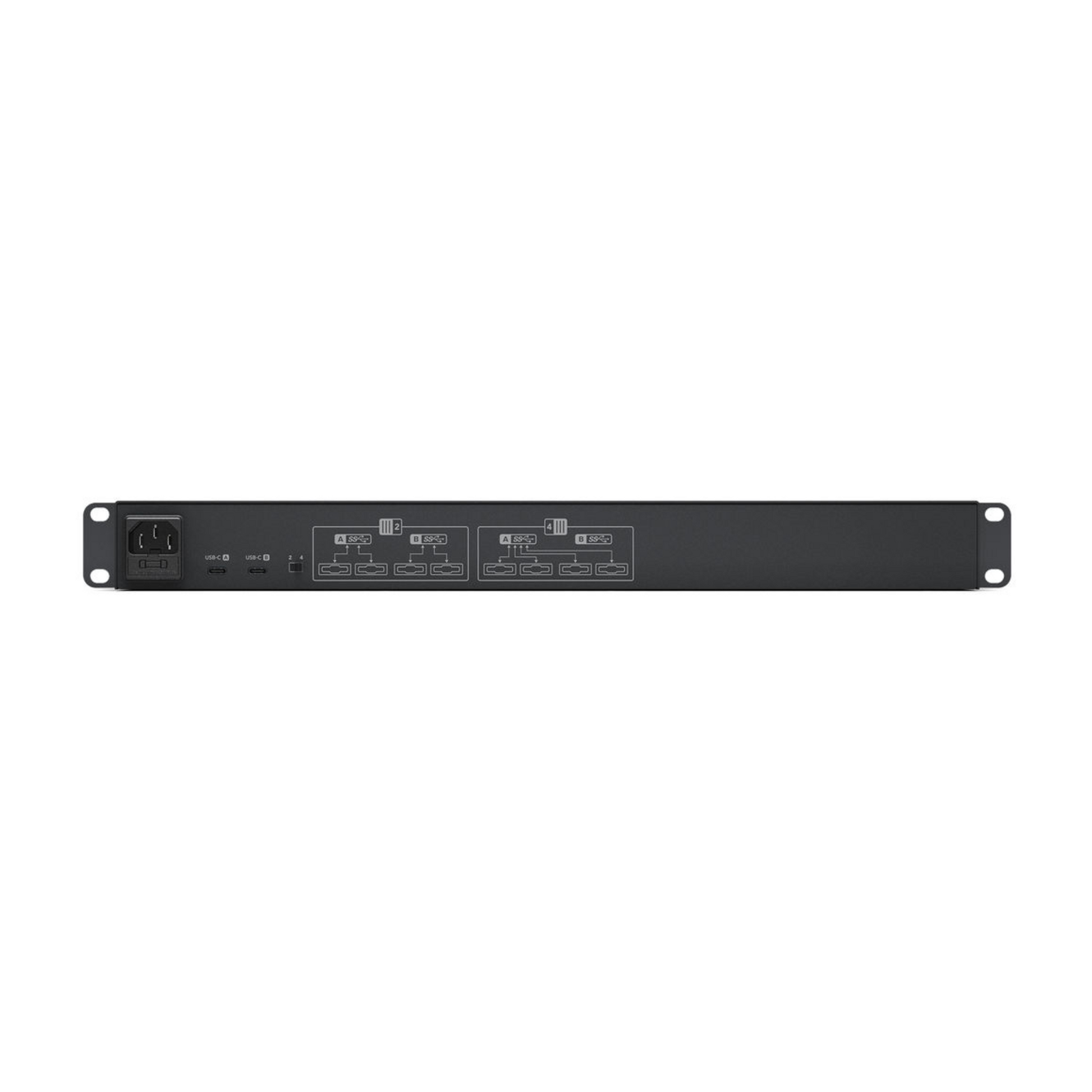

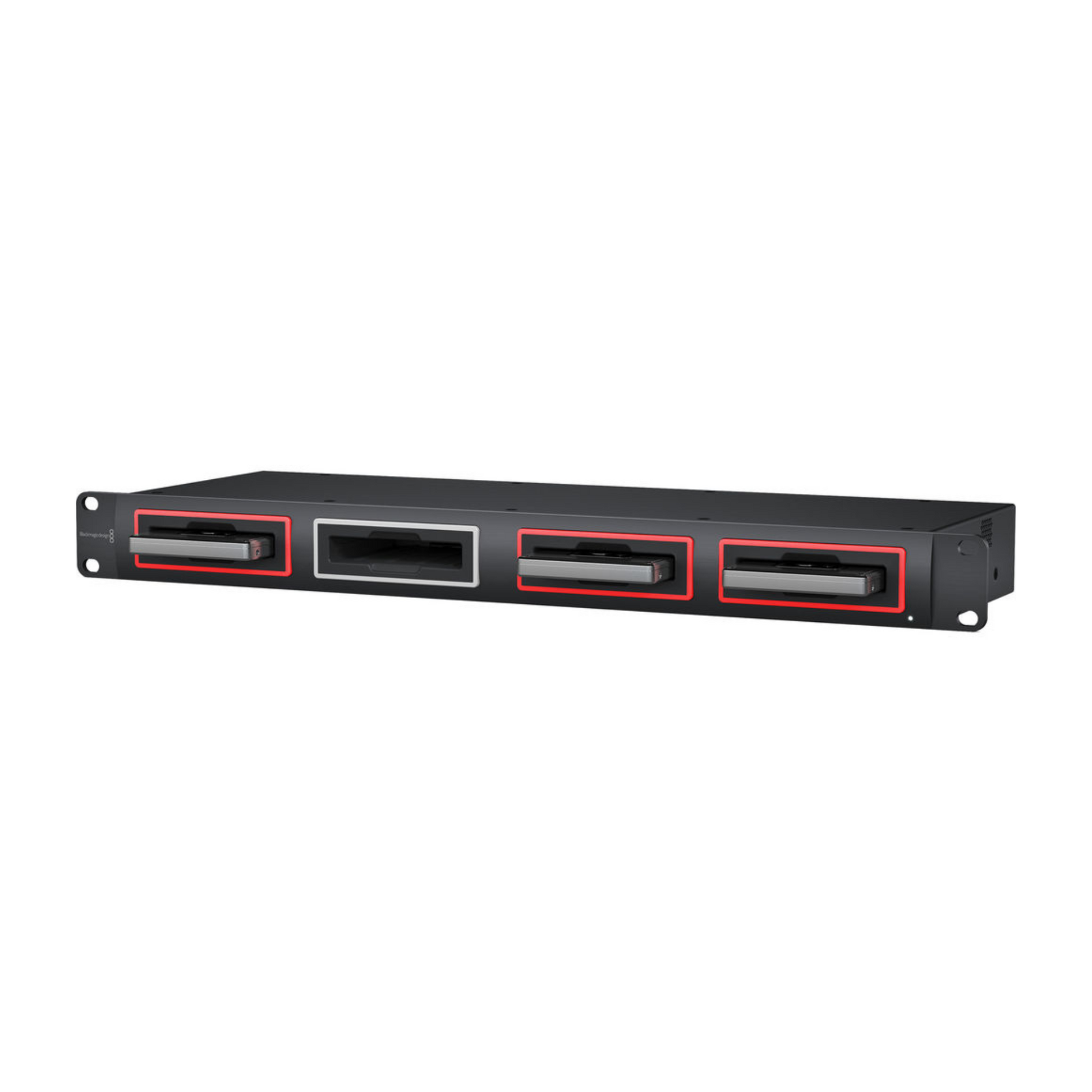

The MultiDock 10G features a 1 RU all-metal design for use in any professional rack. Each disk slot has an illuminated disk indicator so you can see when disks are being accessed. The design is also repairable, so you can replace the socket connector in each slot. Simply plug into any USB-C Mac or Windows computer port and begin using it without any software installation needed. The rear panel offers two USB-C connections and a slide switch to allow selecting between using four disk slots on a single USB-C port, or two slots on each port for shared use. Plus, the built-in AC power supply provides the power to run four SSDs or hard disks at the same time.

Dock and Edit

The MultiDock 10G supports up to four independent 2.5" SSDs, so it's possible to edit directly from the disks you recorded onto. Simply plug in your SSDs, and they will connect to your Mac OS X and Windows computers like regular hard disks. Because the MultiDock features four independent disk slots, you can mount all your media from a shoot all at the same time. Blackmagic MultiDock 10G can be used to access media recorded with the URSA Mini Pro SSD Recorder. It's also a suitable solution for adding SSD compatibility to the HyperDeck Extreme 8K, as it will let you interchange disks between HyperDeck Studio models. You can even stripe multiple disks together for a superfast RAID array.
