Key Specifications

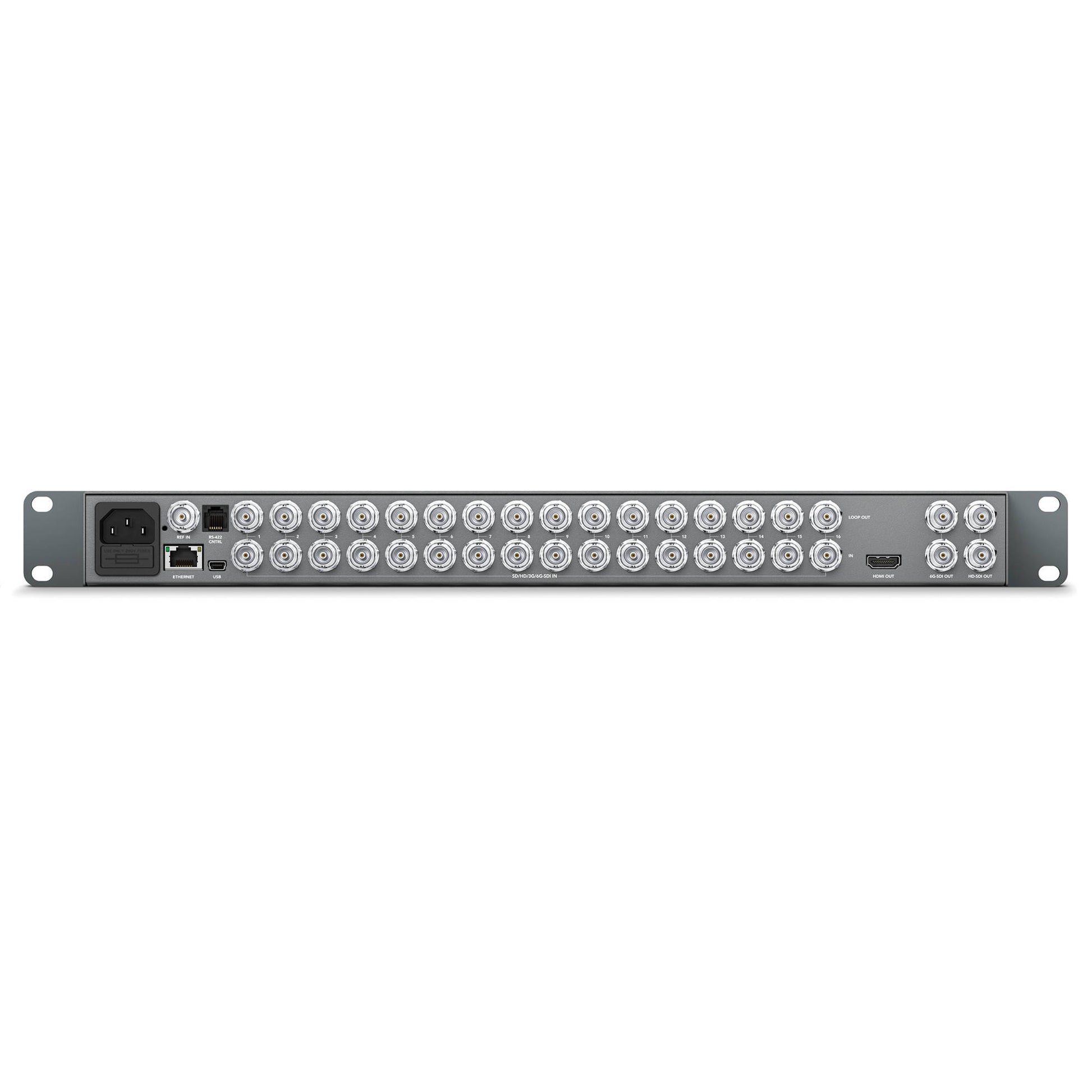

Interfaces

• Inputs: 16 x BNC (3G-SDI / 6G-SDI / HD-SDI)
• Embedded Audio: SDI
• Outputs: 16 x BNC (6G-SDI / HD-SDI / SD-SDI, Looping), 2 x BNC (6G-SDI), 2 x BNC (HD-SDI), 1 x HDMI
• Other I/O: 1 x RJ45 (RS-422), 1 x RJ45 (10/100 Mbps Ethernet), 1 x Mini-USB 2.0

Standards & Transmission

• Video Standards: SMPTE 259M/292M/296M/425M-B, ITU -R BT.601/BT.656
• Reclocking: Yes
• HDR Support: No
• HDCP Support: Yes
• EDID Support: Yes
• Max Data Rate: 6 Gb/s
• Max Sampling Rate: 48 kHz / 24-Bit

Video Format Support

• SDI (10-Bit 4:2:2 YUV, RGB)
• DCI 4K (4096x2160): up to 24 fps
• UHD 4K (3840x2160): up to 30 fps
• 2K/HD (2048x1080/1920x1080): up to 60 fps
• 720p: up to 60 fps
• Max Multiple Display: 4 x 4

General & Power

• Rack Form Factor: 1 U
• Construction: Metal
• Power: 90 to 240 VAC (45 W)
• Dimensions: 19.0 x 6.0 x 1.7" / 482.6 x 152.4 x 43.2 mm
• Weight: 5.07 lb / 2.3 kg
• Certifications: FCC Class A

Compatibility & Conditions

• OS: macOS 10.15 to 11.1+, Windows 10 (64-bit)
• Operating Temp: 32 to 104°F / 0 to 40°C
• Storage Temp: -4 to 113°F / -20 to 45°C
• Humidity: up to 90% non-condensing
