Key Specifications

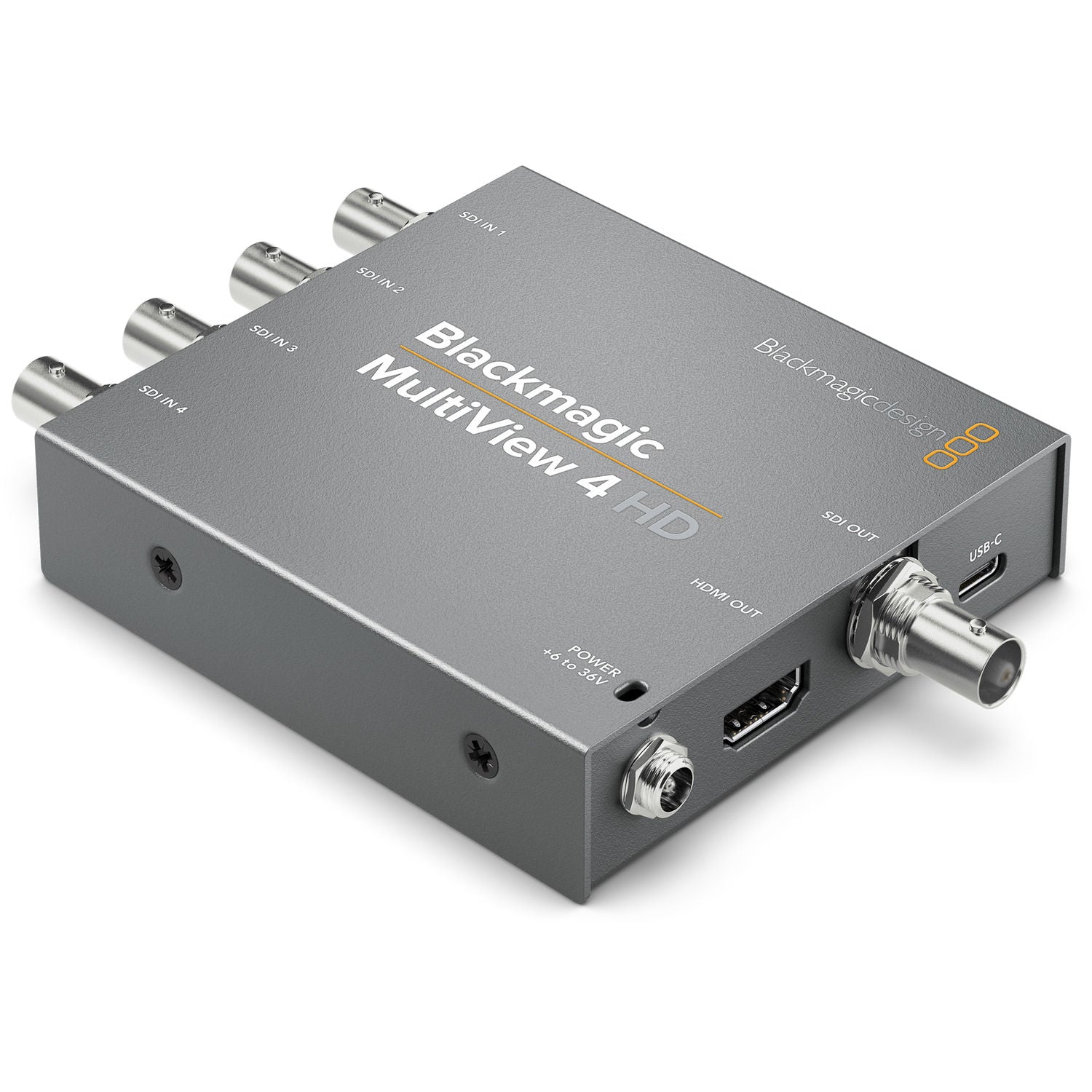

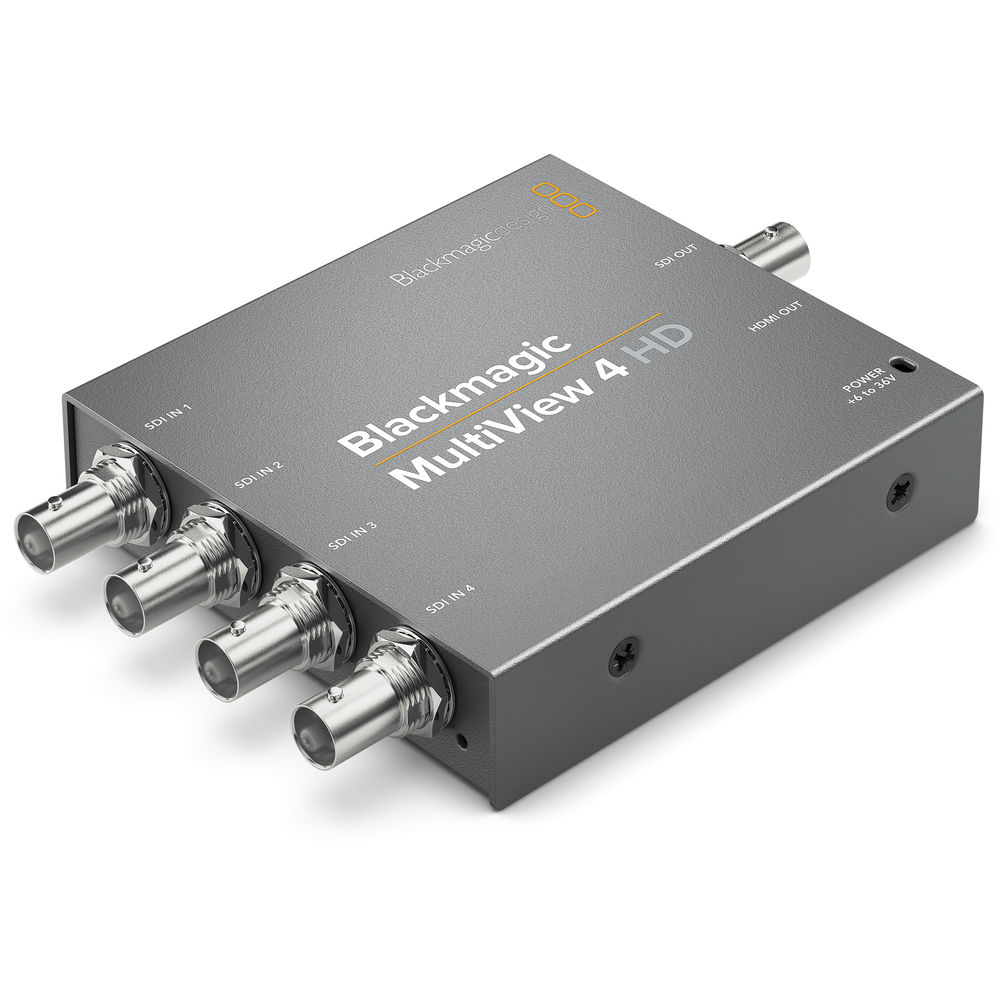

Inputs & Outputs

• Inputs: 4 x BNC (3G-SDI)
• Outputs: 1x BNC (3G-SDI), 1x HDMI
• Embedded Audio: SDI

Video Formats & Standards

• Video Format:
  • SDI (10-Bit 4:4:4/4:2:2 YUV, RGB)
  • 2048 x 1080
  • 1080p up to 60 fps
  • 1080PsF up to 24 fps
  • 1080i up to 60 fps
  • 720p up to 60 fps
• Video Standard Compliance: SMPTE 259M/292M/296M/310M/425M-B, ITU-R BT.601/BT.656

Technical Details

• Reclocking: No
• HDR Support: No
• HDCP Support: No
• EDID Support: Yes
• Maximum Sampling Rate: 48 kHz / 24-Bit

General & Power

• OS Compatibility: macOS 10.15, macOS 11.1+, Windows 10+ (64-Bit Only)
• Power I/O: 1x Barrel Input
• Power Consumption: 6 to 36 VDC (5.5 W)
• Operating Conditions: 32 to 104°F / 0 to 40°C
• Dimensions: 4.8 x 3.1 x 1.2" / 123.0 x 79.5 x 29.5 mm
• Weight: 8.53 oz / 0.24 kg
