Key Specifications

Imaging

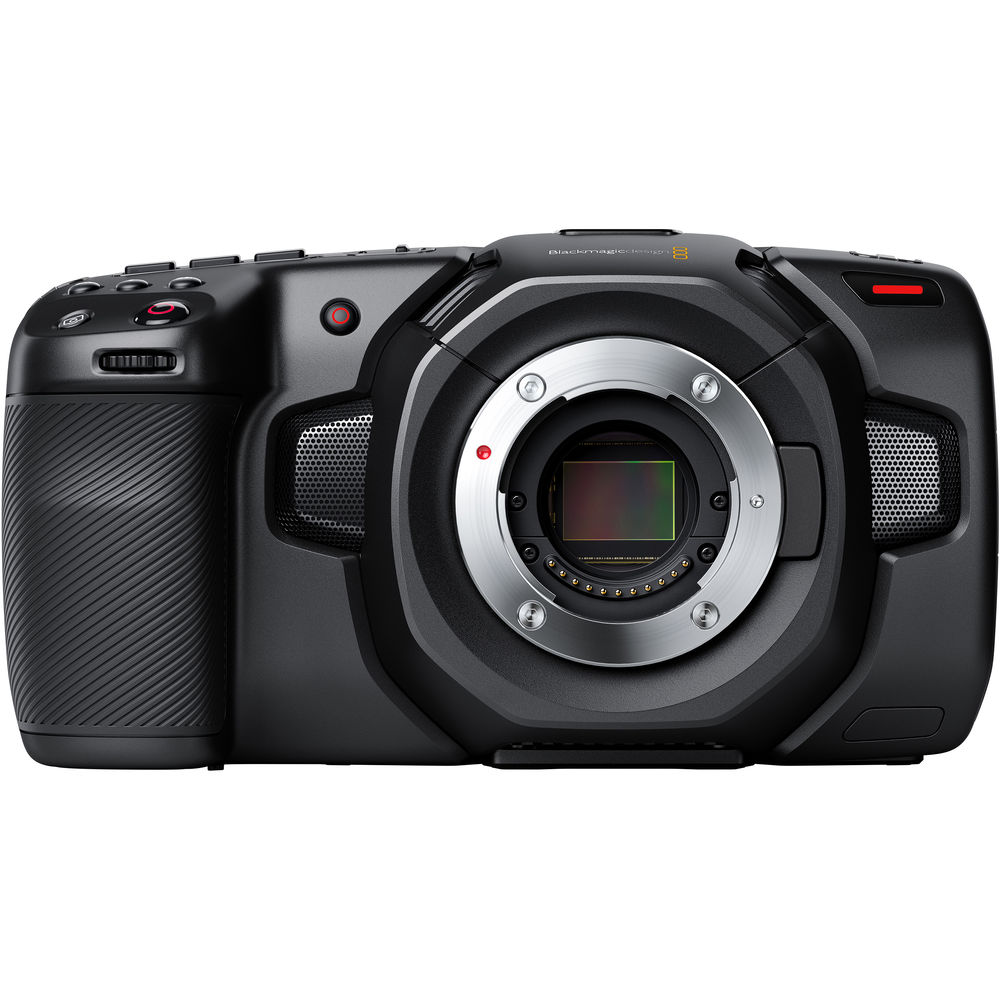

• Lens Mount: Micro Four Thirds
• Image Sensor: 18.96 x 10 mm (Four Thirds) CMOS
• Dynamic Range: 13 Stops
• ISO/Gain Sensitivity: Native 100 to 25,600
• Image Stabilization: No

Video Capture

• Internal Recording: Blackmagic RAW, ProRes 422 HQ, ProRes 422, ProRes 422 LT, ProRes 422 Proxy
• Resolutions & Frame Rates:
  • 4096 x 2160 up to 60 fps
  • 3840 x 2160 up to 60 fps
  • 2880 x 2160 up to 80 fps
  • 1920 x 1080p up to 120 fps
• Video Output:
  • HDMI (4:2:2 10-Bit) up to 1080p60
  • USB-C (RAW 12-Bit) up to 4K60

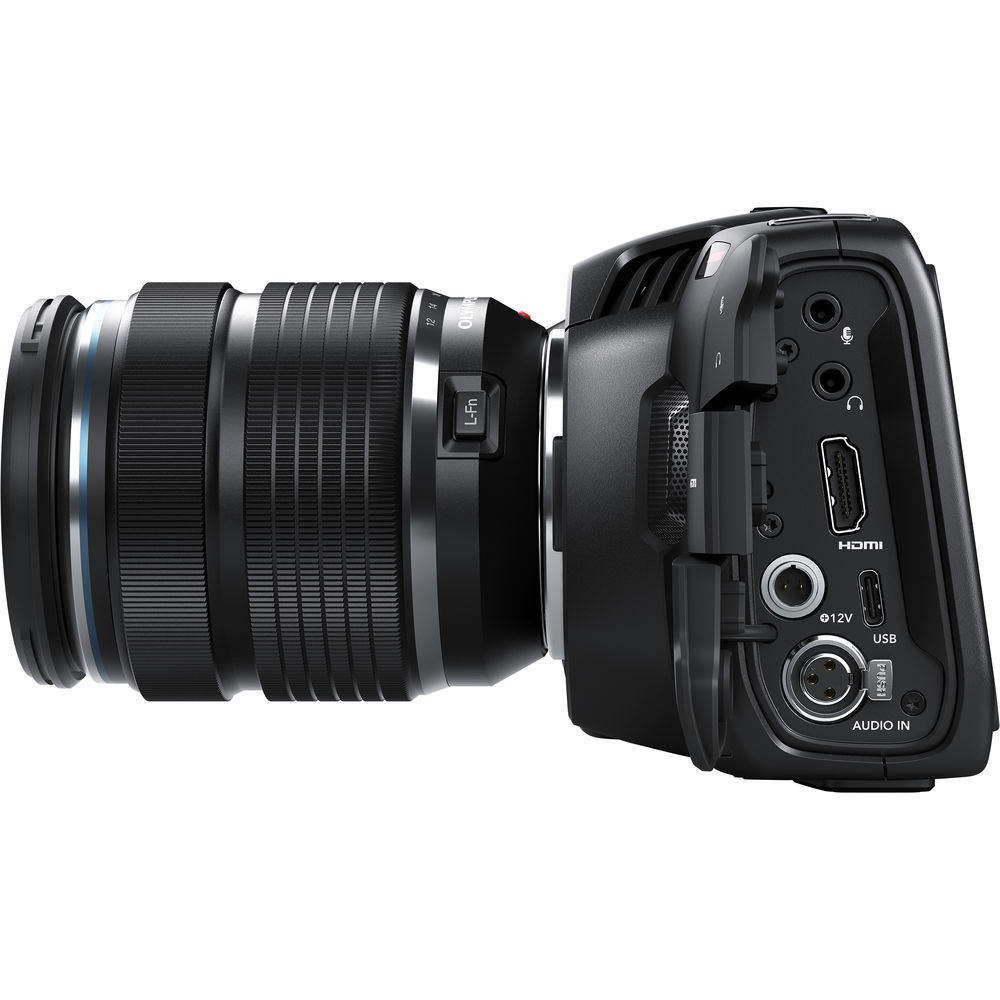

Interface

• Media Slots: 1 x CFast, 1 x SD/SDHC/SDXC (UHS-II)
• Video I/O: 1 x HDMI Output
• Audio I/O: 1 x Mini XLR Input, 1 x 3.5mm Mic/Line Input, 1 x 3.5mm Headphone Output
• Other I/O: 1 x USB-C (Shared with Video), 1 x 3.5mm Timecode Input
• Wireless: Bluetooth (for remote control via iOS app)

Monitor & Power

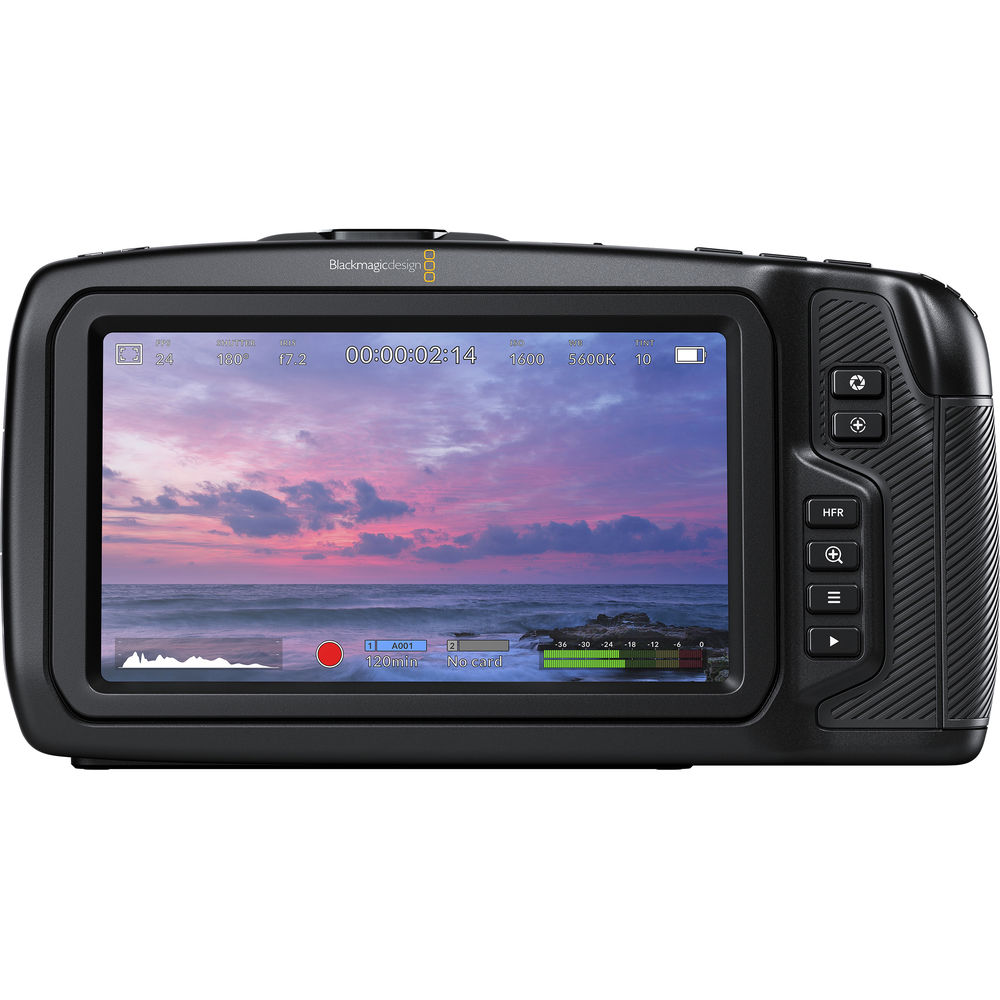

• Display Type: Fixed 5" Touchscreen LCD (1920 x 1080)
• Battery Type: Canon LP-E6
• Power I/O: 1 x Weipu SF610/S2 Input

General

• Dimensions: 7 x 3.8 x 3.4" / 177.8 x 96.5 x 86.4 mm
• Weight: 1.5 lb / 680.38 g (Body Only)
• Material: Carbon Fiber
• Tripod Mount: 1/4"-20 Female
• Accessory Thread: 1 x 1/4"-20

Environmental

• Operating Temp: 32 to 104°F / 0 to 40°C
• Storage Temp: -4 to 113°F / -20 to 45°C
• Operating Humidity: up to 90%
