Key Specifications

Imaging

• Lens Mount: Canon EF
• Lens Communication: Yes: with Autofocus Support
• Image Sensor: 23.1 x 12.99 mm (Super35) CMOS
• Sensor Resolution: Effective: 21.2 Megapixel (6144 x 3456)
• Image Stabilization: No
• Built-In ND Filter: Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
• Internal Filter Holder: No
• Capture Type: Stills & Video

Exposure Control

• Shutter Type: Electronic Rolling Shutter
• Shutter Angle: 5 to 360°
• ISO/Gain Sensitivity: Native: 100 to 25,600
• Advertised Dynamic Range: 13 Stops

Focus

• Focus Modes: Automatic, Manual Focus

Video Capture

• Internal Recording:
  • Blackmagic RAW
    • 6144 x 3456 up to 50 fps [49 to 483 MB/s]
    • 3728 x 3104 up to 59.94 fps [36 to 265 MB/s]
    • 5744 x 3024 up to 59.94 fps [40 to 395 MB/s]
    • 6144 x 2560 up to 59.94 fps [37 to 359 MB/s]
    • 4096 x 2160 up to 59.94 fps [28 to 163 MB/s]
    • 2880 x 1512 up to 120 fps [14 to 101 MB/s]
  • ProRes 422LT/ProRes 422 Proxy/ProRes 422 HQ/ProRes 422
    • DCI 4K (4096 x 2160) up to 59.94 fps [24.25 to 117.88 MB/s]
    • UHD 4K (3840 x 2160) up to 59.94 fps [22.4 to 110 MB/s]
    • 1920 x 1080p up to 120 fps [5.6 to 27.5 MB/s]
• Video Output:
  • Raw via USB
    • 6144 x 3456 at 23.98/50/24.00/25/29.97 fps
    • 5744 x 3024 at 23.98/50/24.00/25/59.94/29.97 fps
    • 6144 x 2560 at 23.98/50/24.00/25/59.94/29.97 fps
  • 4:2:2 10-Bit via HDMI
    • 1920 x 1080p
• Fast-/Slow-Motion Support: Yes
• Built-In Microphone: Stereo

Interface

• Media/Memory Card Slot: Slot 1: SD/SDHC/SDXC (UHS-II), Slot 2: CFast
• Internal Storage: No
• Video I/O: 1x HDMI Output
• Audio I/O: 2x Mini XLR Mic/Line Input (+48 V Phantom Power), 1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input, 1x 1/8" / 3.5 mm TRS Stereo Headphone Output
• Power I/O: 1x Weipu SF610/S2 (12 to 20VDC) Input
• Other I/O: 1x USB-C (USB 3.2 / 3.1 Gen 1) Control (Shared with Video Output), 1x 1/8" / 3.5 mm (Timecode) Input (Shared with Mic/Line Input)
• Wireless: Bluetooth
• Mobile App Compatible: No
• Global Positioning (GPS, GLONASS, etc.): No

Monitor

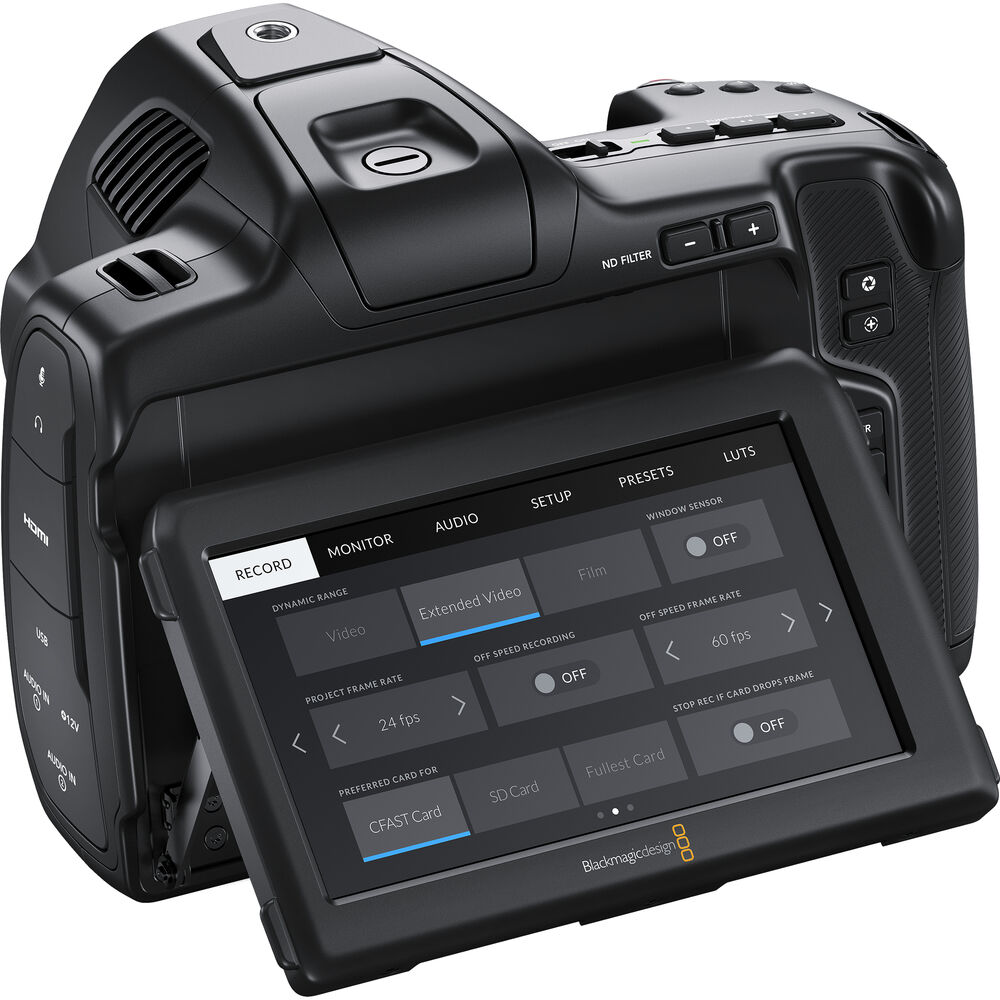

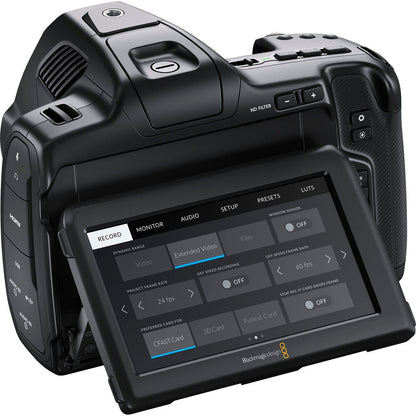

• Display Type: Primary Monitor: Tilting 5" Touchscreen LCD
• Resolution: Primary Monitor: 1920 x 1080

Viewfinder

• Type: Optional, Not Included

Power

• Battery Type: Sony L-Series

Environmental

• Operating Conditions: 32 to 104°F / 0 to 40°C up to 90% Humidity
• Storage Conditions: -4 to 113°F / -20 to 45°C

General

• Tripod Mount: 2x 1/4"-20 Female
• Accessory Mounting Thread: 1x 1/4"-20
• Material of Construction: Carbon Fiber
• Dimensions (W x H x D): 7.08 x 4.41 x 4.84" / 179.83 x 112.01 x 122.94 mm
• Weight: 2.73 lb / 1.24 kg (Body Only)

Packaging Info

• Package Weight: 4.61 lb
• Box Dimensions: 10.5 x 8.75 x 7" (LxWxH)
