Key Specifications

Lens Mount

Interchangeable Mount (Ships with PL Mount)

Image Sensor

35.64 x 23.32 mm (Large Format) CMOS

Sensor Resolution

Effective: 98.8 Megapixel (12,288 x 8040)

Image Stabilization

No

Internal Recording (Blackmagic RAW)

• 12288 x 8040 up to 40 fps
• 9648 x 8040 up to 40 fps
• 12288 x 6912 up to 45 fps
• 12288 x 6480 up to 50 fps
• 7680 x 6408 up to 50 fps
• 9648 x 6264 up to 50 fps
• 8192 x 5360 up to 72 fps
• 6432 x 5360 up to 72 fps
• 12288 x 5112 up to 60.00 fps
• 9312 x 4896 up to 65 fps
• 8688 x 4896 up to 65 fps
• 8192 x 4608 up to 84 fps
• 8192 x 4320 up to 90 fps
• 9312 x 3864 up to 80 fps
• 8192 x 3408 up to 112 fps
• 4096 x 2680
• 3216 x 2680
• 4096 x 2304
• 4096 x 2160
• 4096 x 1704

Video Output (SDI/BNC)

• 4096 x 2160 at 60.00/23.98/50/30.00/24.00/25/59.94/29.97 fps
• 1920 x 1080p at 60.00/23.98/50/30.00/24.00/25/59.94/29.97 fps

Media/Memory Card Slot

Dual Slot: CFexpress Type B

Video I/O

1x BNC (12G-SDI) Output

Mobile App Compatible

Yes: Android & iOS

Battery Type

Sony BP-U Series

Imaging

Lens Mount

Interchangeable Mount (Ships with PL Mount)

Lens Communication

Yes

Image Sensor

35.64 x 23.32 mm (Large Format) CMOS

Sensor Resolution

Effective: 98.8 Megapixel (12,288 x 8040)

Image Stabilization

No

Capture Type

Stills & Video

Exposure Control

Shutter Type

Electronic Rolling Shutter

Advertised Dynamic Range

16 Stops

Focus

Focus Modes

Automatic, Manual Focus

Video Capture

Internal Recording (Blackmagic RAW)

• 12288 x 8040 up to 40 fps
• 9648 x 8040 up to 40 fps
• 12288 x 6912 up to 45 fps
• 12288 x 6480 up to 50 fps
• 7680 x 6408 up to 50 fps
• 9648 x 6264 up to 50 fps
• 8192 x 5360 up to 72 fps
• 6432 x 5360 up to 72 fps
• 12288 x 5112 up to 60.00 fps
• 9312 x 4896 up to 65 fps
• 8688 x 4896 up to 65 fps
• 8192 x 4608 up to 84 fps
• 8192 x 4320 up to 90 fps
• 9312 x 3864 up to 80 fps
• 8192 x 3408 up to 112 fps
• 4096 x 2680
• 3216 x 2680
• 4096 x 2304
• 4096 x 2160
• 4096 x 1704

Video Output (SDI/BNC)

• 4096 x 2160 at 60.00/23.98/50/30.00/24.00/25/59.94/29.97 fps
• 1920 x 1080p at 60.00/23.98/50/30.00/24.00/25/59.94/29.97 fps

Fast-/Slow-Motion Support

No

Built-In Microphone

Stereo

Interface

Media/Memory Card Slot

Dual Slot: CFexpress Type B

Internal Storage

No

Video I/O

1x BNC (12G-SDI) Output

Audio I/O

• 1x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output
• 1x 1/8" / 3.5 mm TRS Stereo Microphone Input

Power I/O

1x LEMO 2-Pin (12VDC) Input

Other I/O

• 1x USB-C Viewfinder Output
• 1x USB-C Video/Data/Control
• 1x BNC (Reference, Timecode)
• 1x RJ45 (10 Gigabit Ethernet)

Wireless

Bluetooth

Mobile App Compatible

Yes: Android & iOS

Global Positioning (GPS, GLONASS, etc.)

No

Monitor

Display Type

Primary Monitor: Fixed 4" Touchscreen LCD

Resolution

Primary Monitor: 1920 x 1080

Power

Battery Type

Sony BP-U Series

Environmental

Operating Conditions

32 to 104°F / 0 to 40°C up to 90% Humidity

Storage Conditions

-4 to 113°F / -20 to 45°C

General

Tripod Mount

• 7x 1/4"-20 Female (Bottom)
• 2x 3/8"-16 Female (Bottom)

Accessory Mounting Thread

• 2x 1/4"-20 on Camera Body
• 1x 3/8"-16 on Camera Body
• 4x M4 on Camera Body

Dimensions (W x H x D)

5.94 x 4.69 x 4.17" / 15.09 x 11.91 x 10.59 cm

Weight

3.5 lb / 1.6 kg (Body Only)

Items Included

Included Items

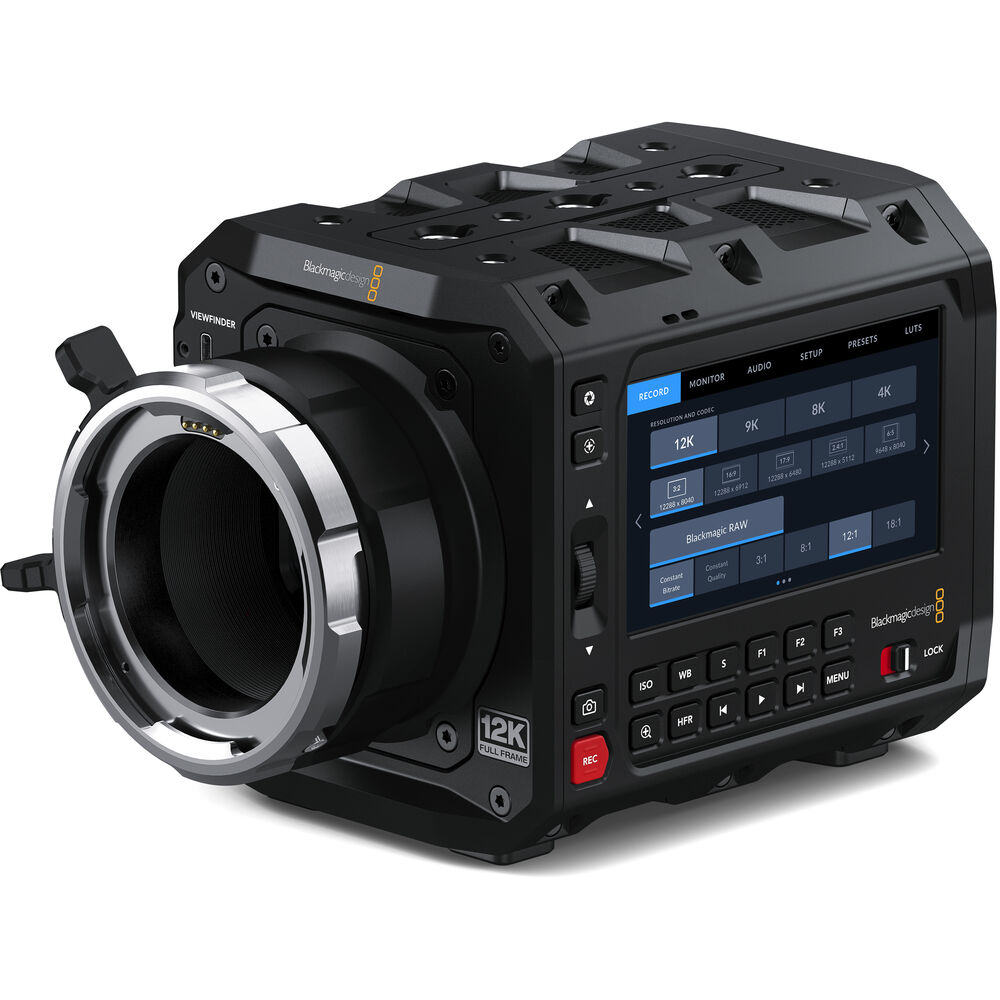

• Blackmagic Design PYXIS 12K Cinema Camera (ARRI PL)
• Lens Mount Cap
• PYXIS Standard Mounting Plate
• PYXIS SSD Mounting Plate
• Power Supply with International Adapters (90W)
• DaVinci Resolve Studio Activation Key
• Limited 1-Year Manufacturer Warranty

Not Included

Essential Accessories

• Recording Media
• Cine Lenses
• Batteries
• Chargers
