Key Specifications

IP Video

H.264/H.265: 4096 x 2160 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Decoding

Video I/O

• 1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input
• 2x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Output
• 1x HDMI (HDMI 2.0) Output

Embedded Audio

• SDI Input: 16-Channel
• SDI Output: 16-Channel (for 12G) and 2-Channel (for 3G/6G)
• HDMI Output: 8-Channel
• LAN (RJ45)/USB

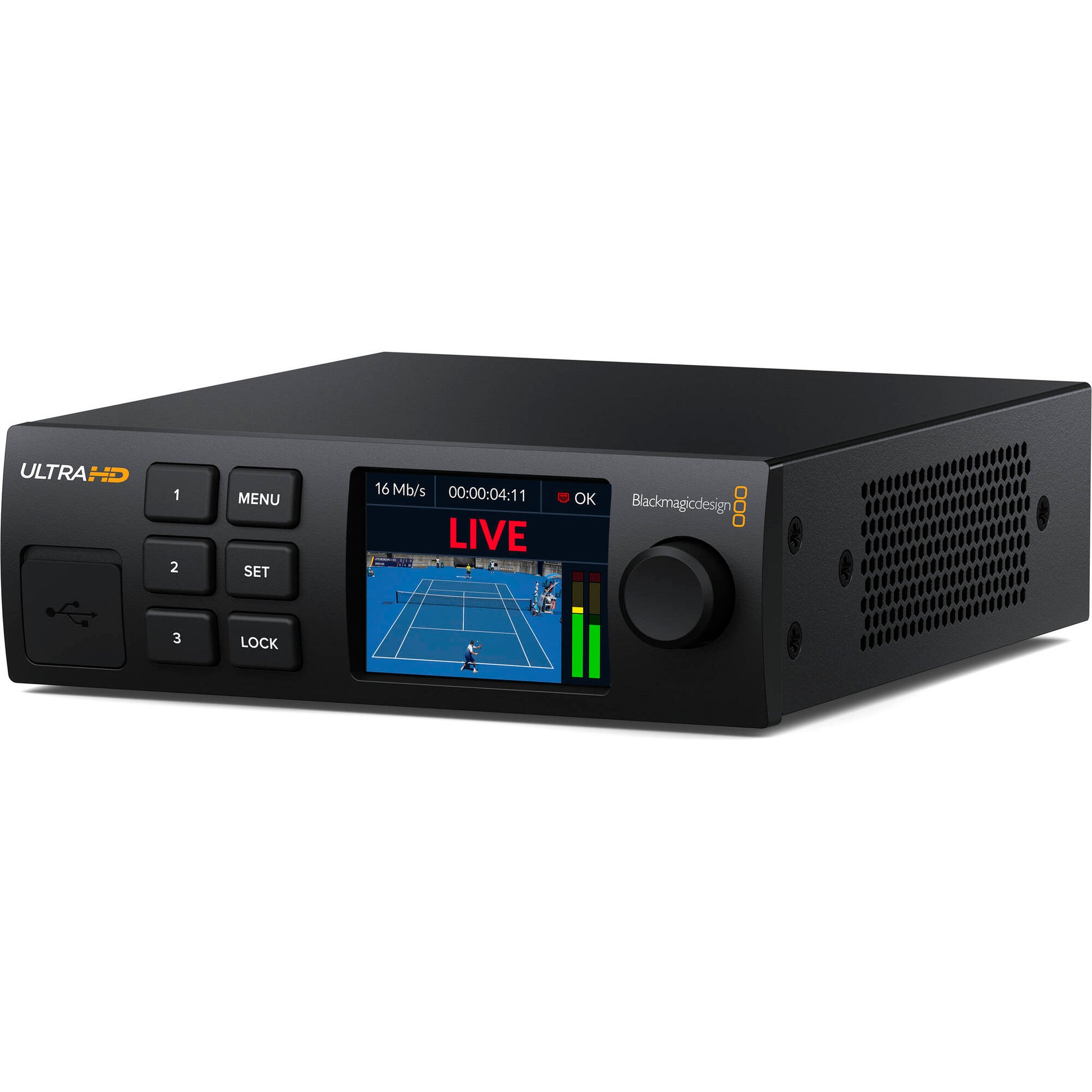

Display

LCD

IP Encoding/Decoding

IP Video

H.264/H.265: 4096 x 2160 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Decoding

Transport Protocols

RTMP, SRT

Wireless

Wireless

No

Wi-Fi

No

Bluetooth

No

Cellular Support

5G NR / 4G LTE via Unspecified SIM Type (SIM Card Slots Not Specified)

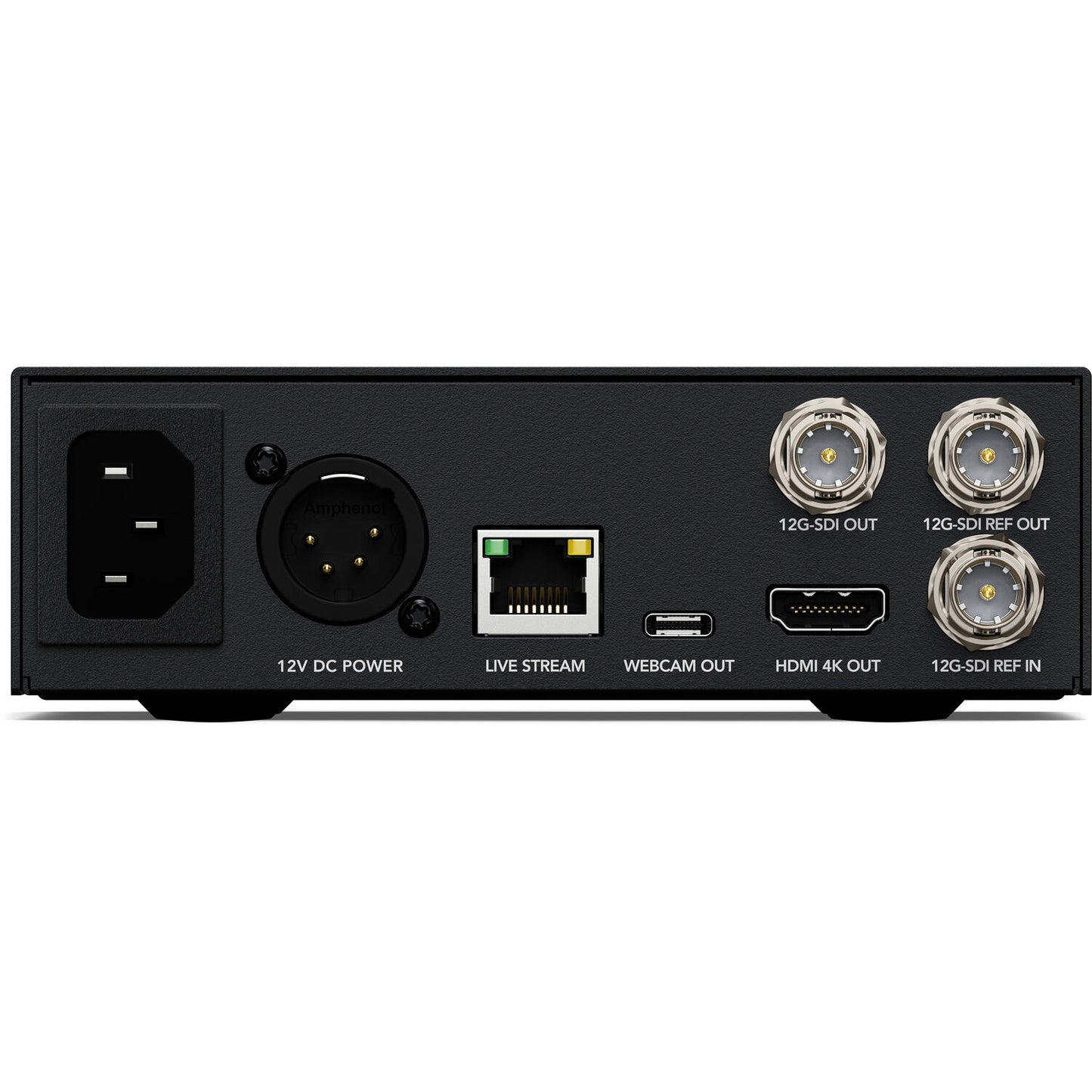

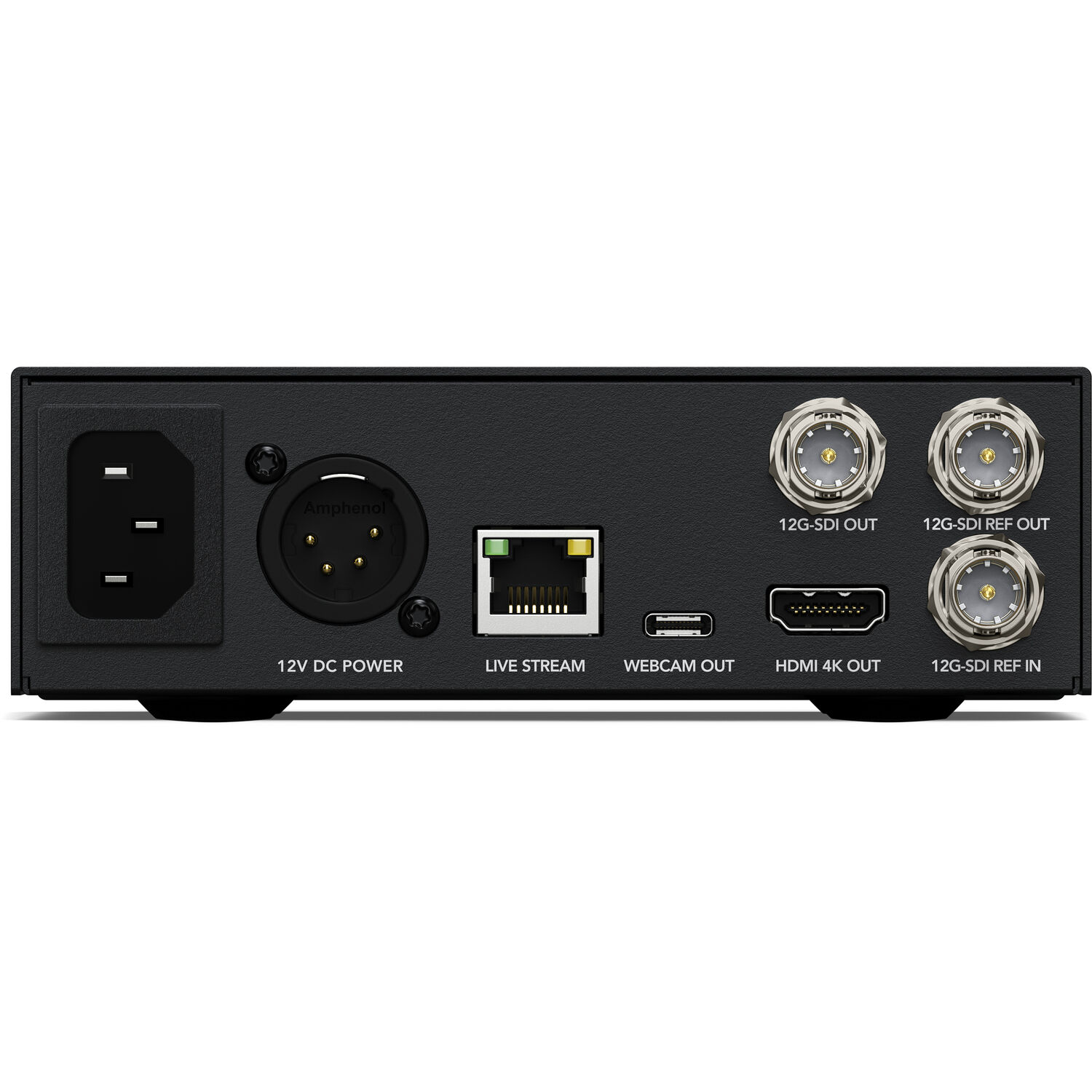

Interfaces

Video I/O

• 1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input
• 2x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Output
• 1x HDMI (HDMI 2.0) Output

Other I/O

• 1x RJ45 Fast Ethernet Input/Output

Embedded Audio

• SDI Input: 16-Channel
• SDI Output: 16-Channel, 2-Channel
• HDMI Output: 8-Channel
• LAN (RJ45)/USB

Power

Power I/O

• 1x IEC C14 Input
• 1x Mini-XLR 4-Pin (12 VDC) Input

General

Operating Conditions

32 to 104°F / 0 to 40°C at 0 to 90% Humidity

Storage Conditions

-4 to 113°F / -20 to 45°C at 0 to 90% Humidity

Display

LCD

Rackmount Size

1 U

Dimensions

6.9 x 5.5 x 1.75" / 17.5 x 14 x 4.45 cm

Weight

1.66 lb / 753 g

Packaging Info

Package Weight

2.135 lb

Box Dimensions (L x W x H)

10.5 x 7 x 2.6"
