Blackmagic Design 120x120 Specs

Processing & Standards

Switching Type

Pushbutton, Software

Processing Resolution

DCI 4K at 60 fps

Color Processing

10-Bit 4:2:2 YUV | 12-Bit 4:4:4 RGB

Audio Processing

48 kHz / 24-Bit

Video Standard Compliance

SMPTE 259M/292M/296M/372M/424M/425M | ITU-R BT.601/BT.656

HDCP / HDR Support

Yes / Yes

Video I/O & Formats

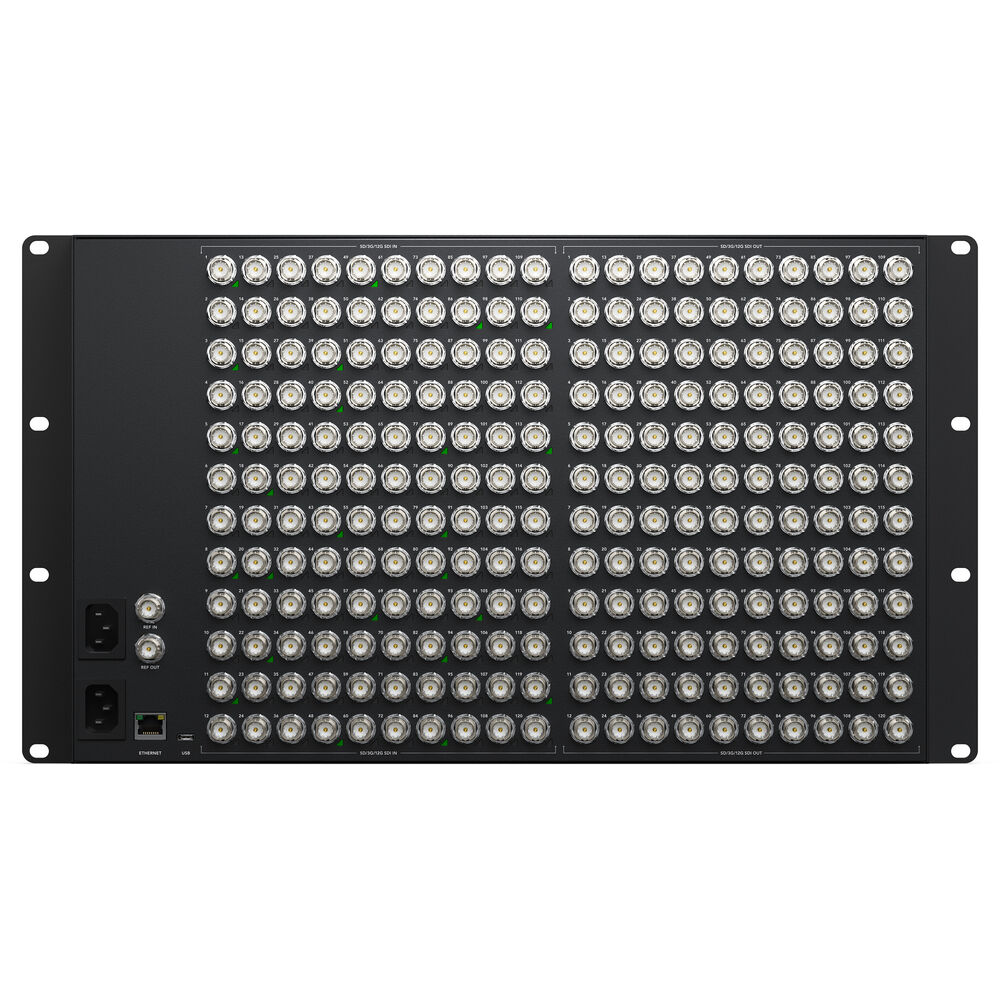

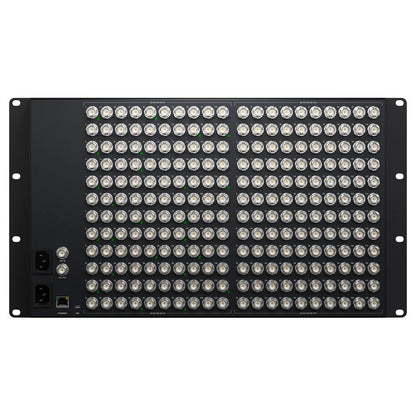

Video Inputs

120x BNC (12G-SDI)

Video Outputs

80x BNC (12G-SDI)

Input/Output Audio

SDI Embedded Audio

Supported Format (Max)

DCI/UHD 4K up to 60 fps (10-Bit 4:2:2)

SD/HD Format Support

720p/1080p/i up to 60 fps | 576i / 480i

Connectivity & Hardware

Other I/O

1x RJ45 LAN | 1x USB-C

Reference I/O

1x BNC Reference Input | 1x BNC Reference Output

Wireless Connectivity

Bluetooth | Wi-Fi

OS Compatibility

macOS 13 or Later | Windows 10 or Later

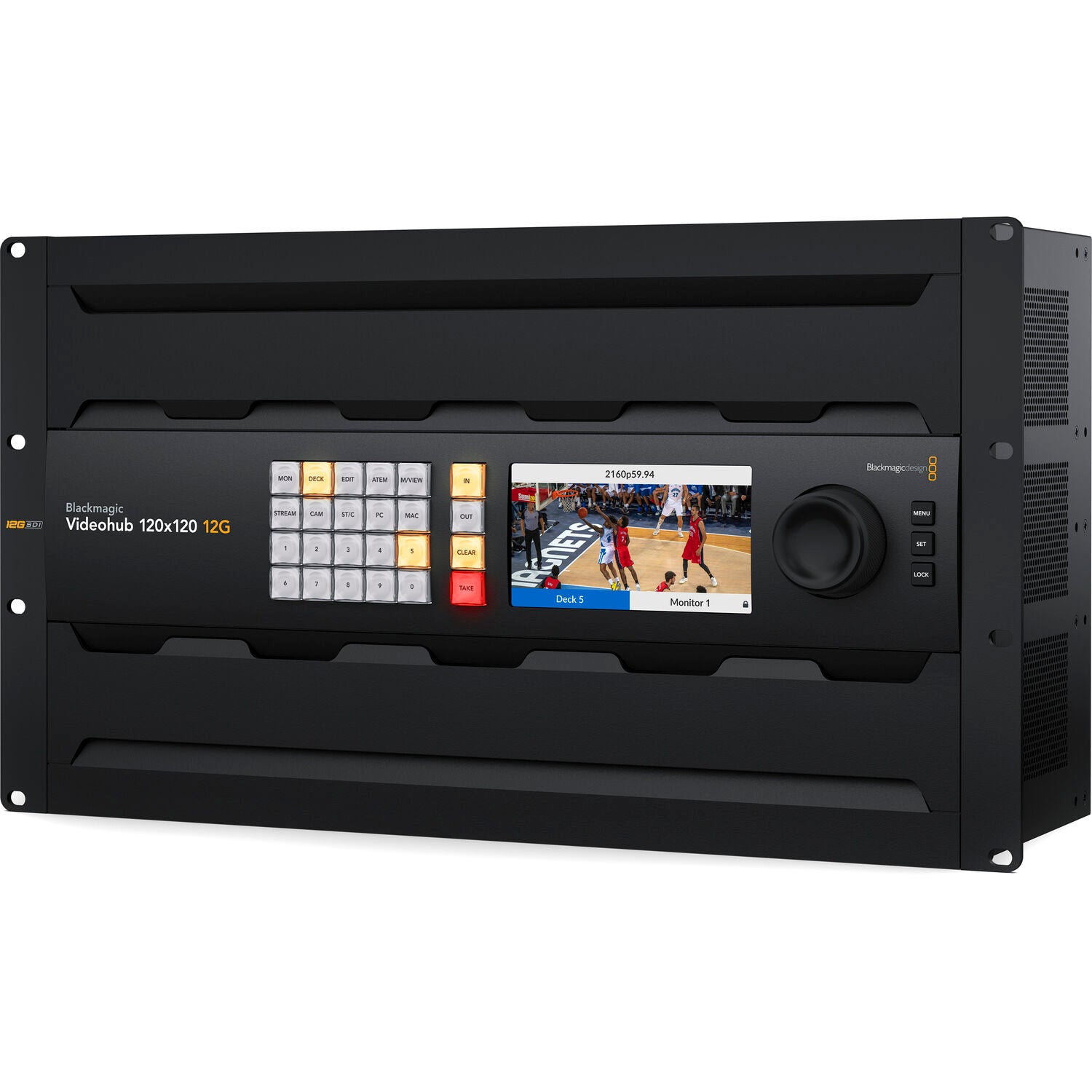

Internal Display

5" Display Size

Physical & Power

Rack Form Factor

6 U

Dimensions / Weight

19 x 10.47 x 6.52" / 48.3 x 26.59 x 16.56 cm | 33 lb / 15 kg

Power I/O

2x IEC C14 (100 to 240 VAC) Input

Power Consumption

140 W

Operating Conditions

32 to 104°F / 0 to 40°C up to 90% Humidity

Storage Conditions

-4 to 140°F / -20 to 60°C

Packaging Info

Package Weight / Box Dimensions

40.975 lb | 21.8 x 15.8 x 15.6" (LxWxH)
