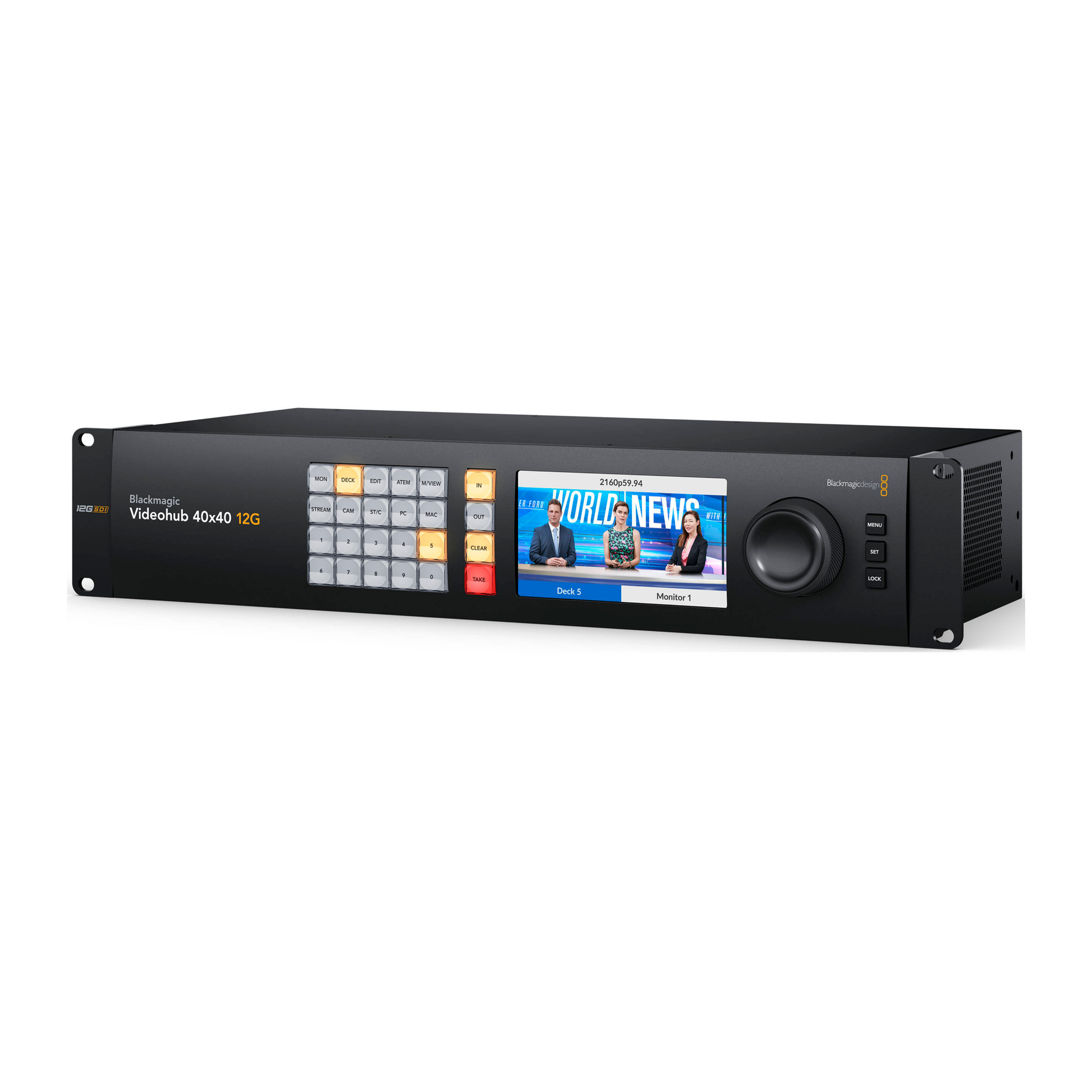

Videohub 40x40 12G
Videohub 40x40 12G
BLACKMAGICDESIGN
UNIT: PIECE/S
Product Code: SKU:BMD-VIDEOHUB40-CHN-145
Key Features
BLACKMAGICDESIGN Videohub 40x40 12G
BLACKMAGICDESIGN Videohub 40x40 12G
|
Key Specifications |
|
|
Processing & Switching |
|
|
Switching Type |
Pushbutton, Software |
|
Max Resolution / Color Processing |
DCI 4K at 60 fps / 8-Bit 4:2:2, 10-Bit 4:2:2, 12-Bit 4:4:4 |
|
Audio Processing |
48 kHz / 24-Bit (Embedded SDI) |
|
Video Inputs & Outputs |
|
|
Video Inputs (I/O) |
40x BNC (12G-SDI) |
|
Video Outputs (I/O) |
40x BNC (12G-SDI) |
|
Max Video Format (10-Bit 4:2:2) |
DCI 4K / UHD 4K up to 60 fps |
|
Max Video Format (10/12-Bit 4:4:4) |
DCI 4K / UHD 4K up to 30 fps |
|
SDI Compliance |
SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-10 | ITU -R BT.601/BT.656 |
|
Connectivity & Hardware |
|
|
Other I/O |
1x RJ45 LAN | 1x USB-C |
|
Display Size |
2.2" |
|
OS Compatibility |
macOS 12 or Later / Windows 10 or Later |
|
Physical & Power |
|
|
Rack Form Factor |
2 RU |
|
Dimensions (W x D x H) |
19 x 9.37 x 3.46" / 48.3 x 23.8 x 8.79 cm |
|
Weight |
12.3 lb / 5.6 kg |
|
Power I/O / Consumption |
1x IEC C14 (100 to 240 VAC) Input / 27.5 W |
BLACKMAGICDESIGN Videohub 40x40 12G Accessories
-

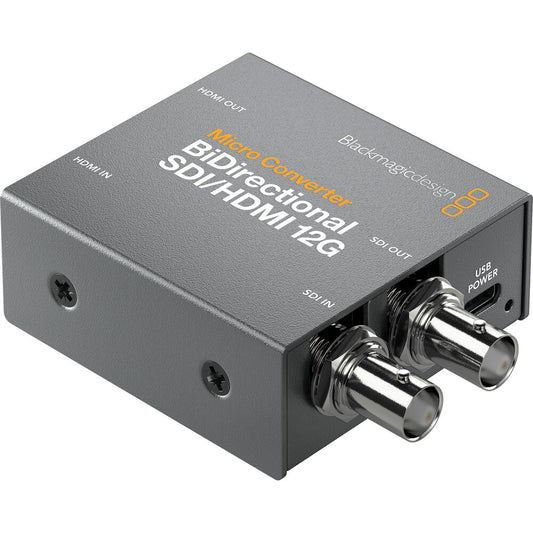

Micro Converter BiDirectional SDI/HDMI 12G w/ PSU
