Key Specifications

Processing & Standards

Switching Type

Pushbutton, Software

Processing Resolution

DCI 4K at 60 fps

Color Processing

8-Bit 4:2:2 | 10-Bit 4:2:2 | 12-Bit 4:4:4

Audio Processing

48 kHz / 24-Bit

Video Standard Compliance

SMPTE 259M/292M/296M/372M/424M/425M | ITU-R BT.601/BT.656

Video I/O & Formats

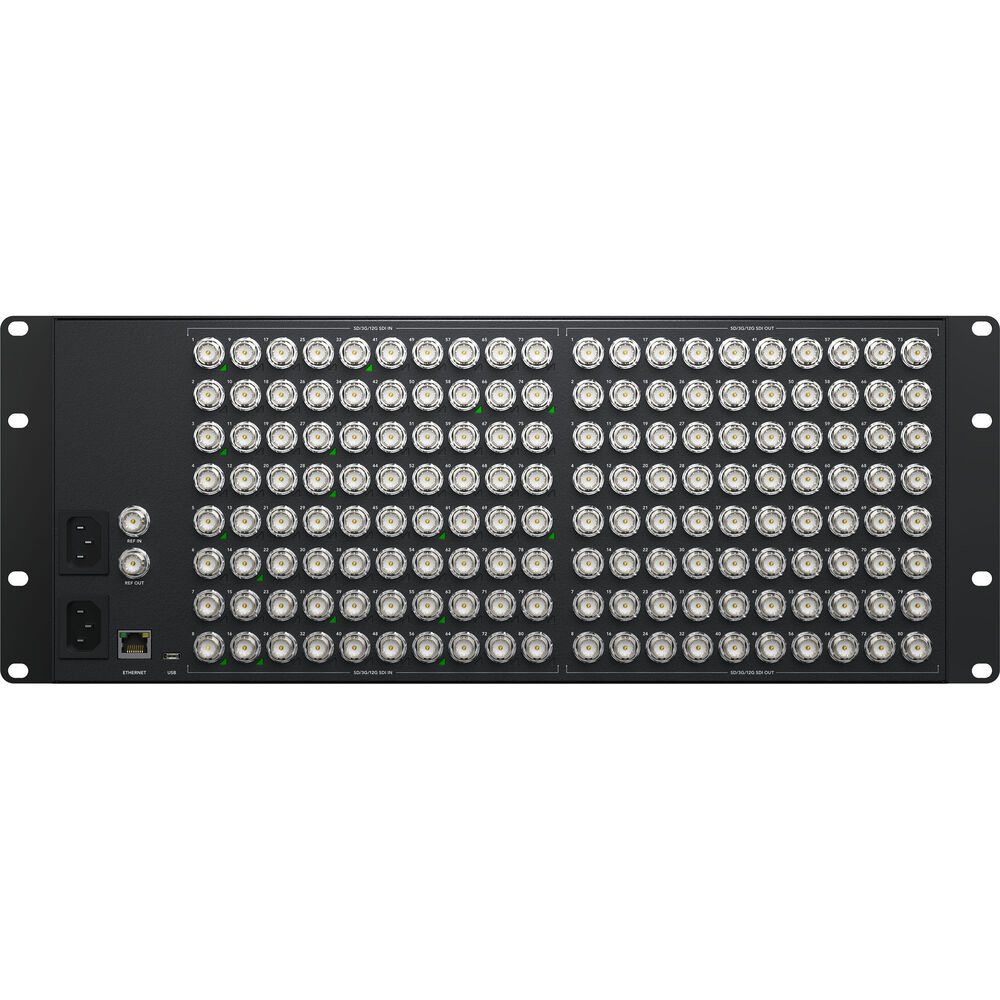

Video Inputs

80x BNC (12G-SDI)

Video Outputs

80x BNC (12G-SDI)

Input/Output Audio

SDI Embedded Audio

Supported Format (4:4:4)

DCI 4K up to 30 fps | 1080p/i up to 60 fps (10/12-Bit)

Supported Format (4:2:2)

DCI/UHD 4K up to 60 fps | 1080p/i up to 60 fps (10-Bit)

Connectivity & Hardware

Other I/O

1x RJ45 LAN | 1x USB-C

Reference I/O

1x BNC Reference Input | 1x BNC Reference Output

OS Compatibility

macOS 12 or Later | Windows 10 or Later

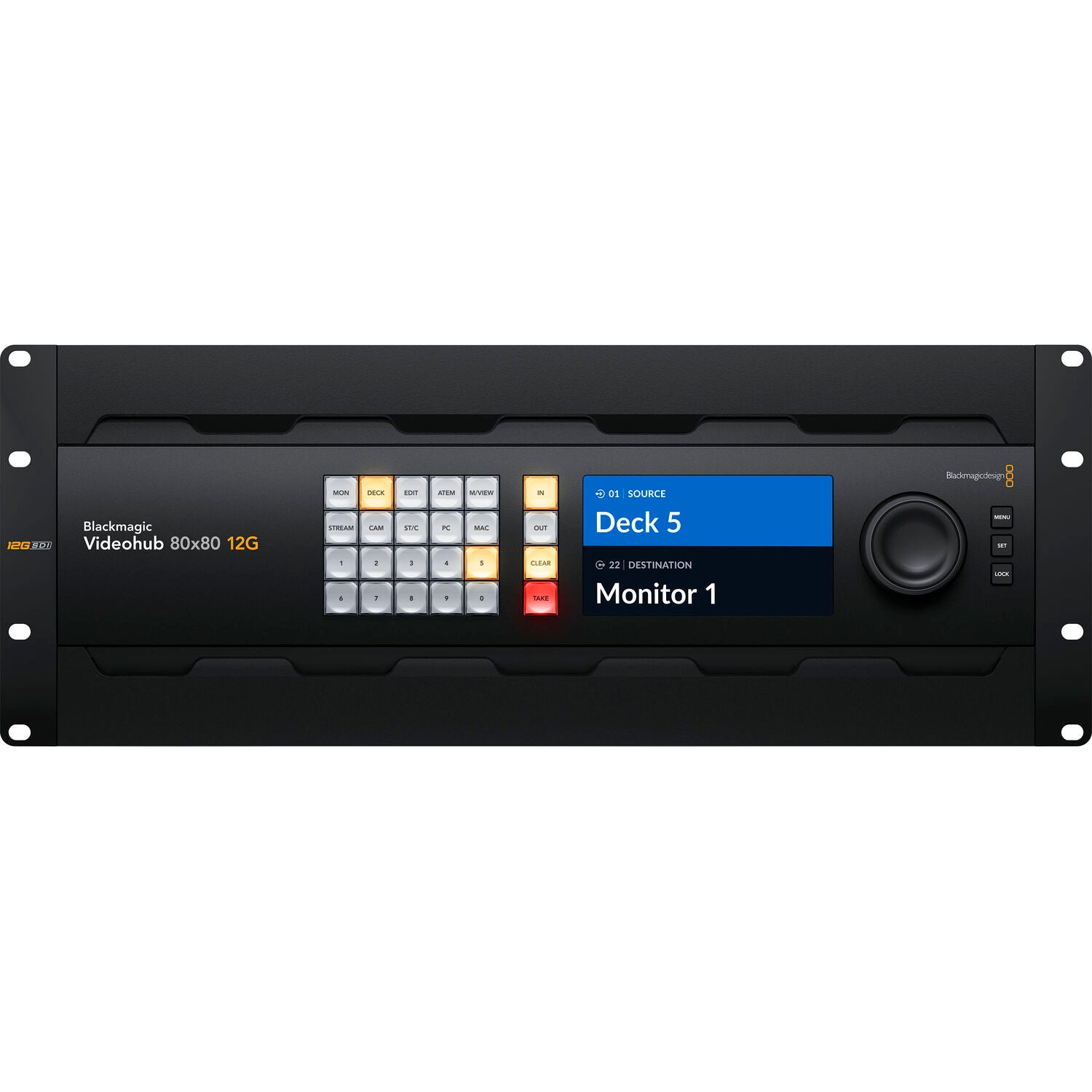

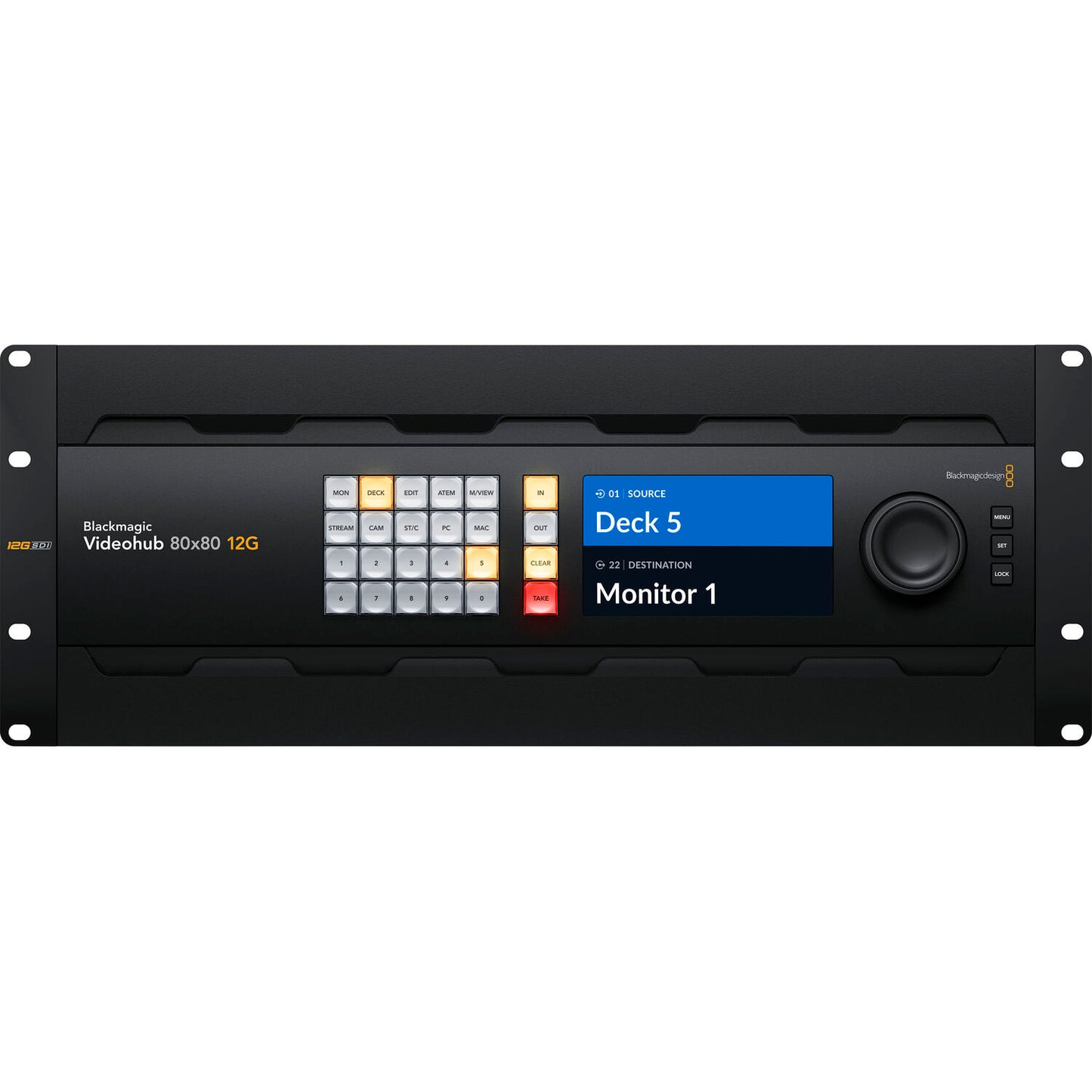

Internal Display

5" Display Size

Wireless

No

Physical & Power

Rack Form Factor

4 U

Dimensions / Weight

19 x 9.37 x 6.96" / 48.3 x 23.8 x 17.68 cm | 24 lb / 10.9 kg

Power I/O

2x IEC C14 (100 to 240 VAC) Input

Power Consumption

92 W

Operating Conditions

32 to 104°F / 0 to 40°C up to 90% Humidity

Storage Conditions

-4 to 140°F / -20 to 60°C

Packaging Info

Package Weight / Box Dimensions

27.07 lb | 20.9 x 11.2 x 10.5" (LxWxH)
