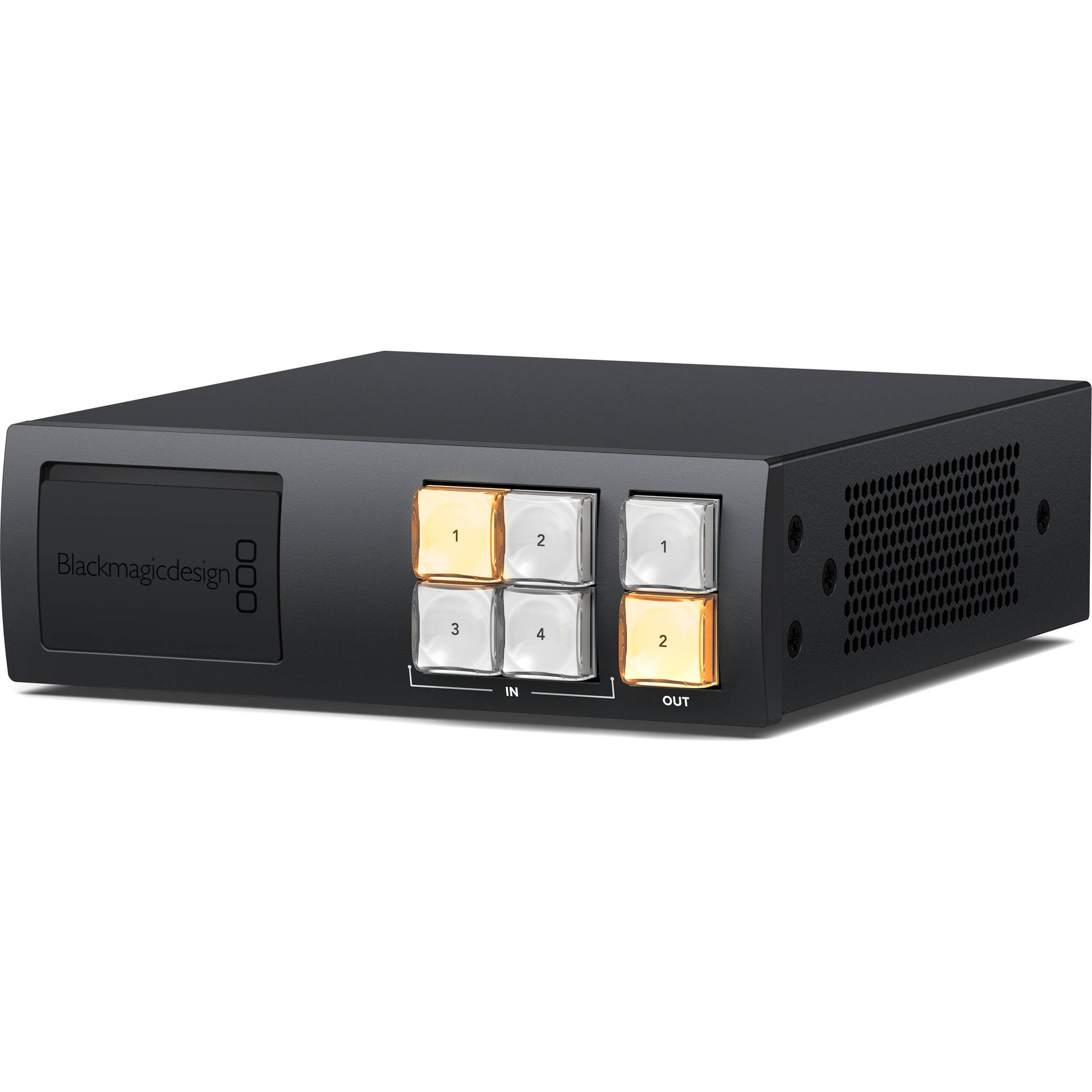

With an ultracompact size, the Videohub Mini 4x2 12G Router from Blackmagic Design is the ultimate device for live production flexibility. The mini router features four 12G-SDI inputs, four 12G-SDI loop outputs, and two 12G-SDI outputs on its back panel in a size that is only a third of a rack width. Control over the I/O ports can be achieved using the front push buttons, knob, or via Ethernet connection to automate functions. The front panel of the router also features a 12G-SDI input and USB-C output that override the functions of the back panel ports for when you need to route new sources on the fly. The USB-C output registers on your device as a webcam and lets you live stream directly from your computer. Clean switch functionality is programmed to the router's outputs, allowing you to route a specific source to a single output while switching that same source as a direct feed to other outputs.

Streamlines Cable Connections

The Videohub Mini router is designed to add extra inputs to SDI broadcast equipment without taking up significant rack space. You can add extra inputs to ATEM switchers or add input selection to streaming encoders and HyperDeck recorders. You can also use it to add extra inputs to video monitors! Routers are fantastic because you can make changes to connections without frantically patching cables in the middle of a job. If you have an urgent customer need or emergency, you can connect gear to the SDI connections on the front panel. That means you can handle the unexpected without rewiring your rack.

Front Panel Router Control & Video Patching

The front panel design of the Blackmagic Videohub Mini has been designed for fast cut-bus-style switching with dedicated buttons for outputs and inputs. To route a video connection, simply select the destination button and then press the source button! That provides all the routing control you need, even though the routers are designed to fit into small, portable racks. The front panel also has 12G-SDI video connections for patching in external gear, and the front panel input connection will override the highest rear input connection when video is connected. The front panel also has a USB webcam output, so you can connect a computer for recording, video scopes, or streaming software.
