Key Specifications

Wireless Technology

Analog UHF

Diversity

Yes

Max Operating Range

300' / 91.4 m (Line of Sight)

Receiver Type

1x Tabletop

Number of Audio Channels

1

Included Transmitters

1x Bodypack

Microphone Type

1x Headset

System

RF Frequency Band

K3E: 606 to 630 MHz

Max Transmitters per Band

12

Dynamic Range

100 dBA

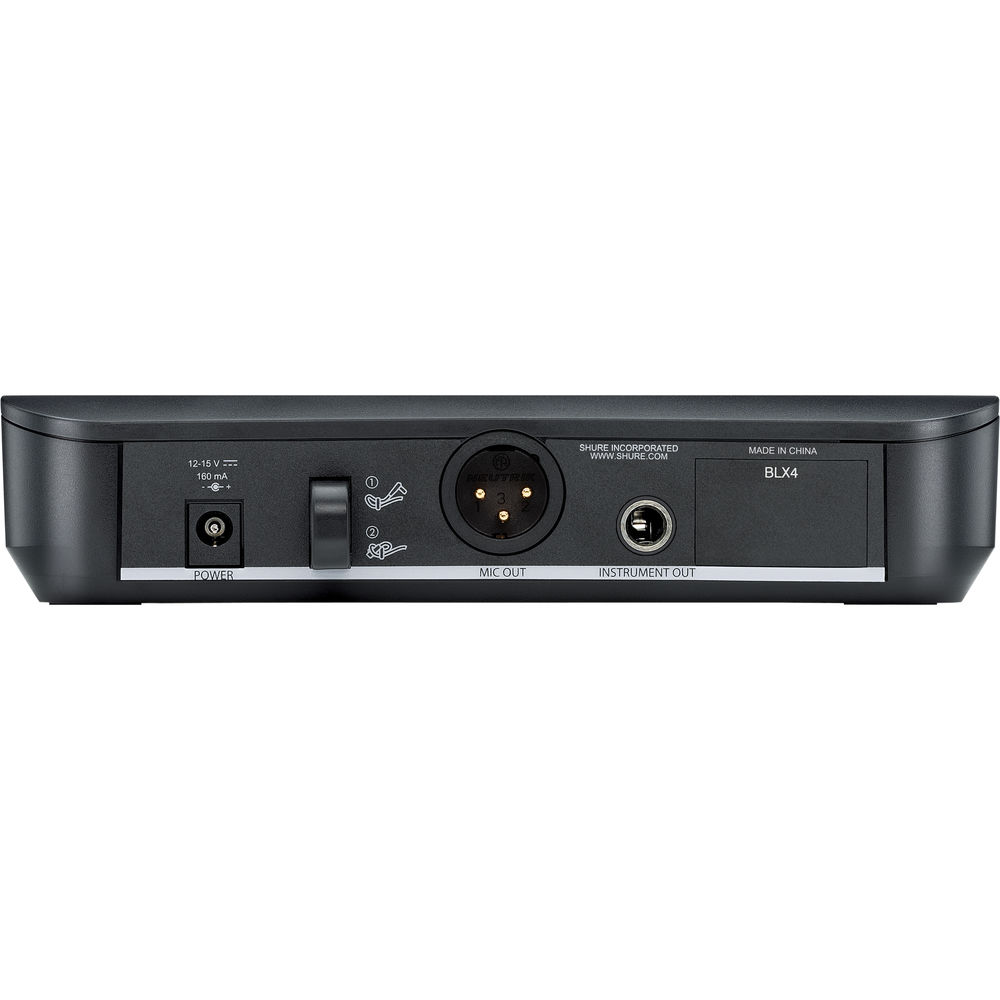

Receiver

Antenna

2x Internal

Audio I/O

1x XLR 3-Pin Balanced Output
1x 1/4" TS Unbalanced Output

Display

Alphanumeric LED

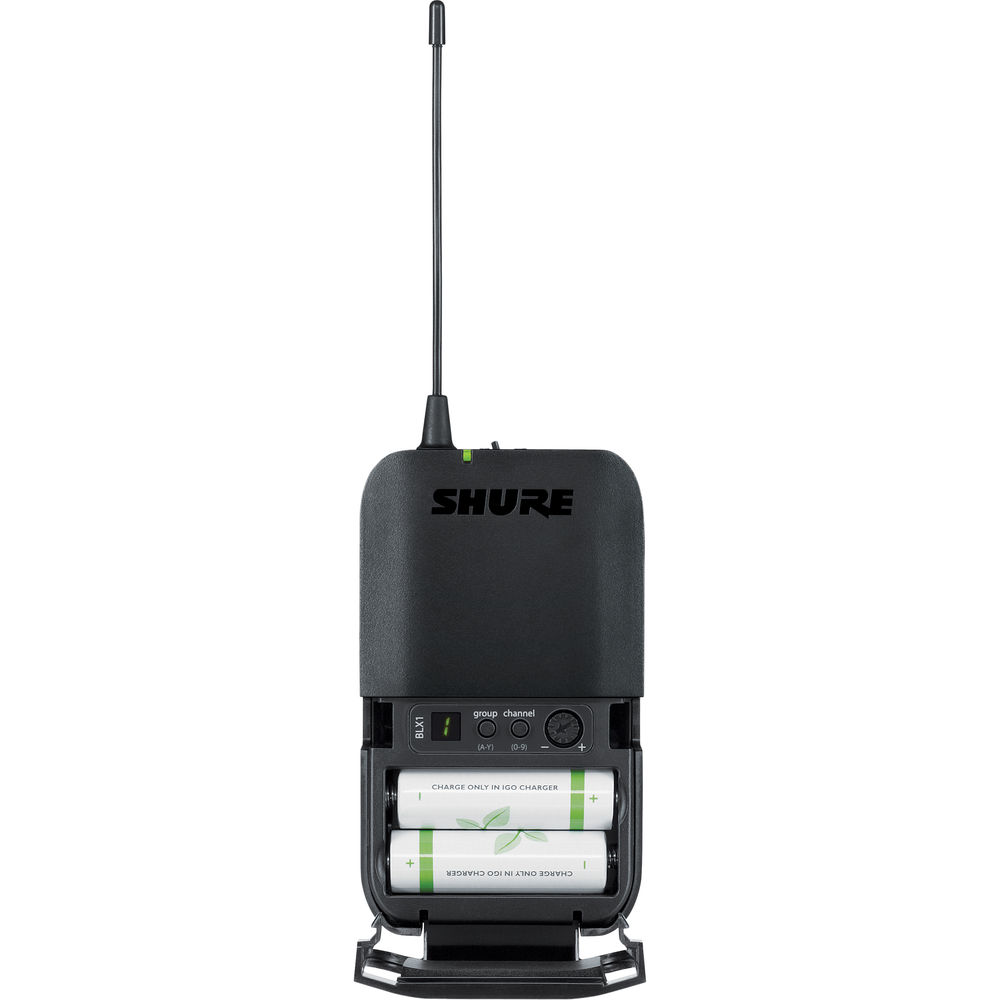

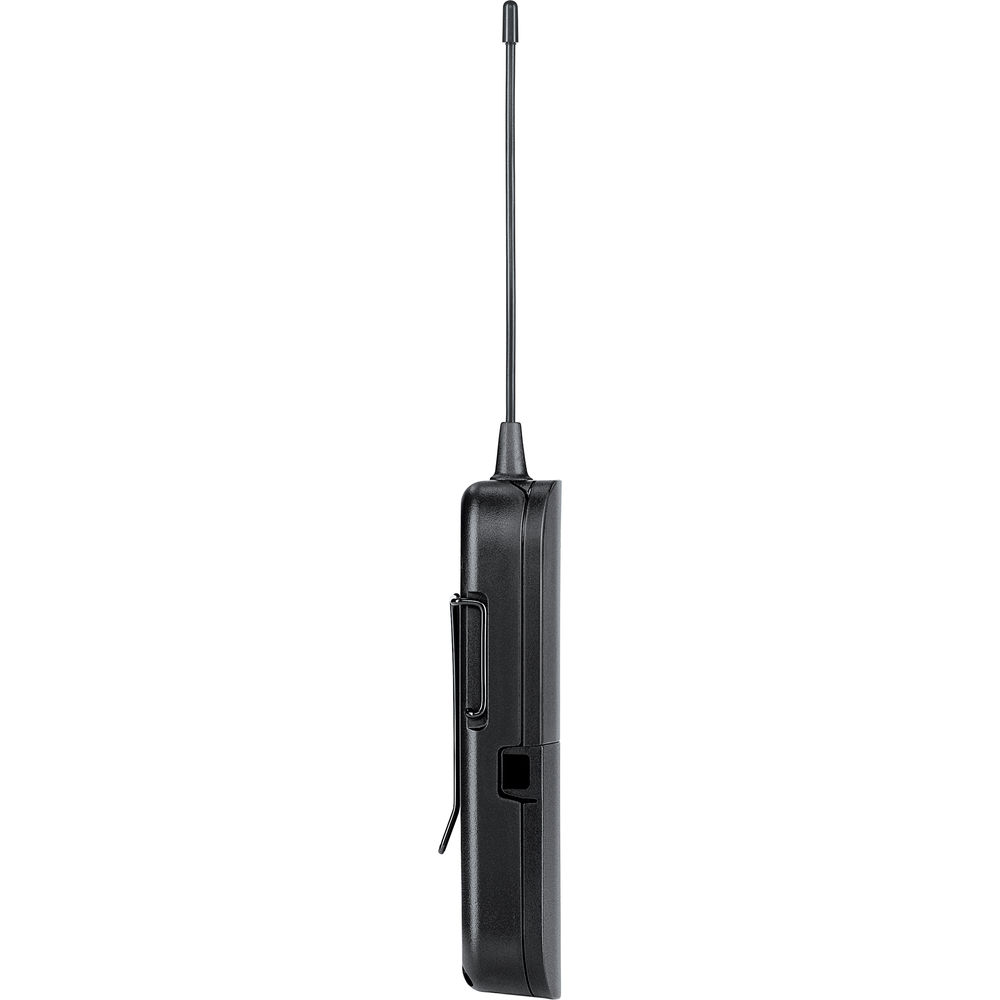

Transmitters

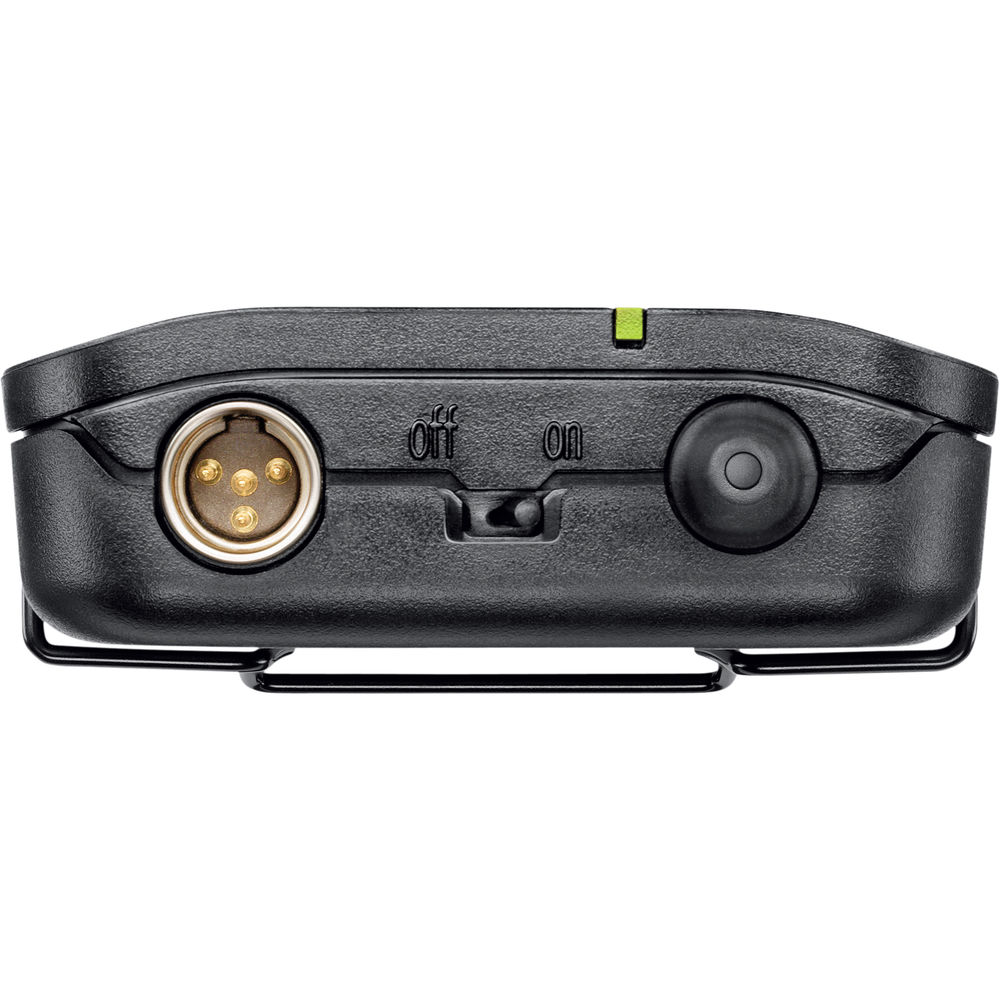

Audio I/O

1x TA4M/Mini-XLR 4-Pin Male Input

Gain Range

-16 to +10 dB

Microphones

Polar Pattern

Cardioid

Frequency Response

60 Hz to 20 kHz

Maximum SPL

145 dB

Power

Transmitter Battery Life

14 Hours (Alkaline)

Physical

Housing

ABS

Dimensions

Receiver: 7.4 x 4.1 x 1.6"
Transmitter: 4.3 x 2.5 x 0.8"

Weight

Receiver: 8.5 oz / 241 g
Transmitter: 2.6 oz / 75 g (without Batteries)
Microphone: 1.6 oz / 45 g

Packaging Info

Package Weight

2.81 lb

Box Dimensions (LxWxH)

13.55 x 11.8 x 4.1"
