Key Specifications

System Performance

Wireless Technology

Analog UHF (Microprocessor Diversity)

RF Frequency Band

H9: 512 to 542 MHz (123 Frequencies)

Max Operating Range

300' / 91.4 m (Line of Sight)

Max Transmitters per Band

Up to 12

Dynamic Range

100 dBA

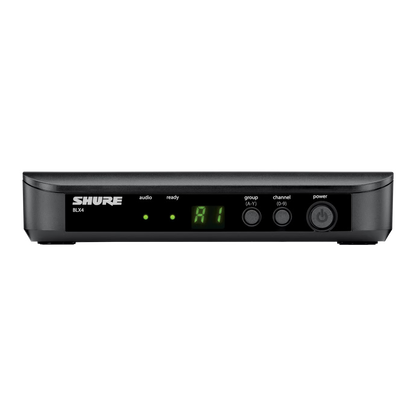

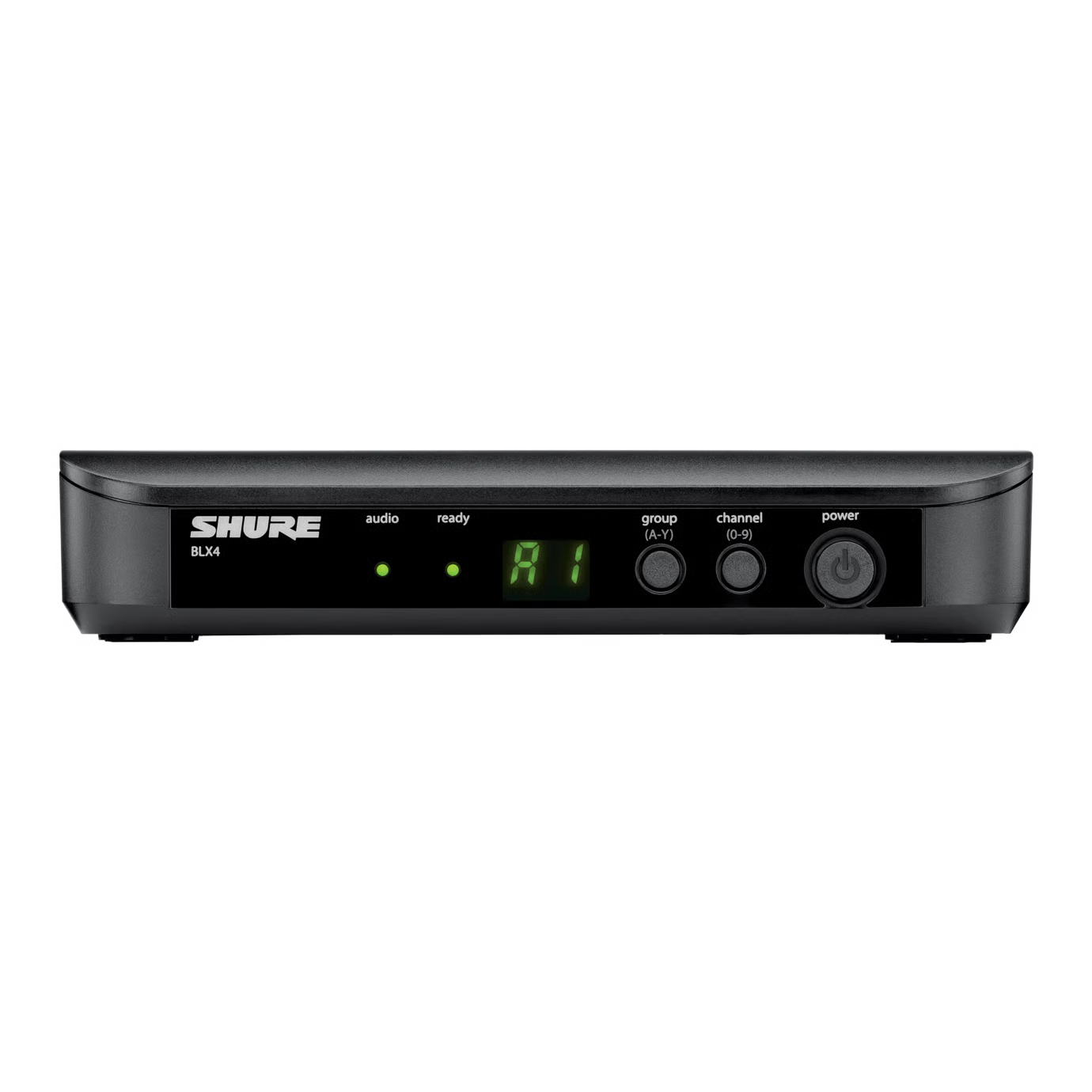

Receiver (BLX4)

Form Factor

Tabletop (Internal Antennas)

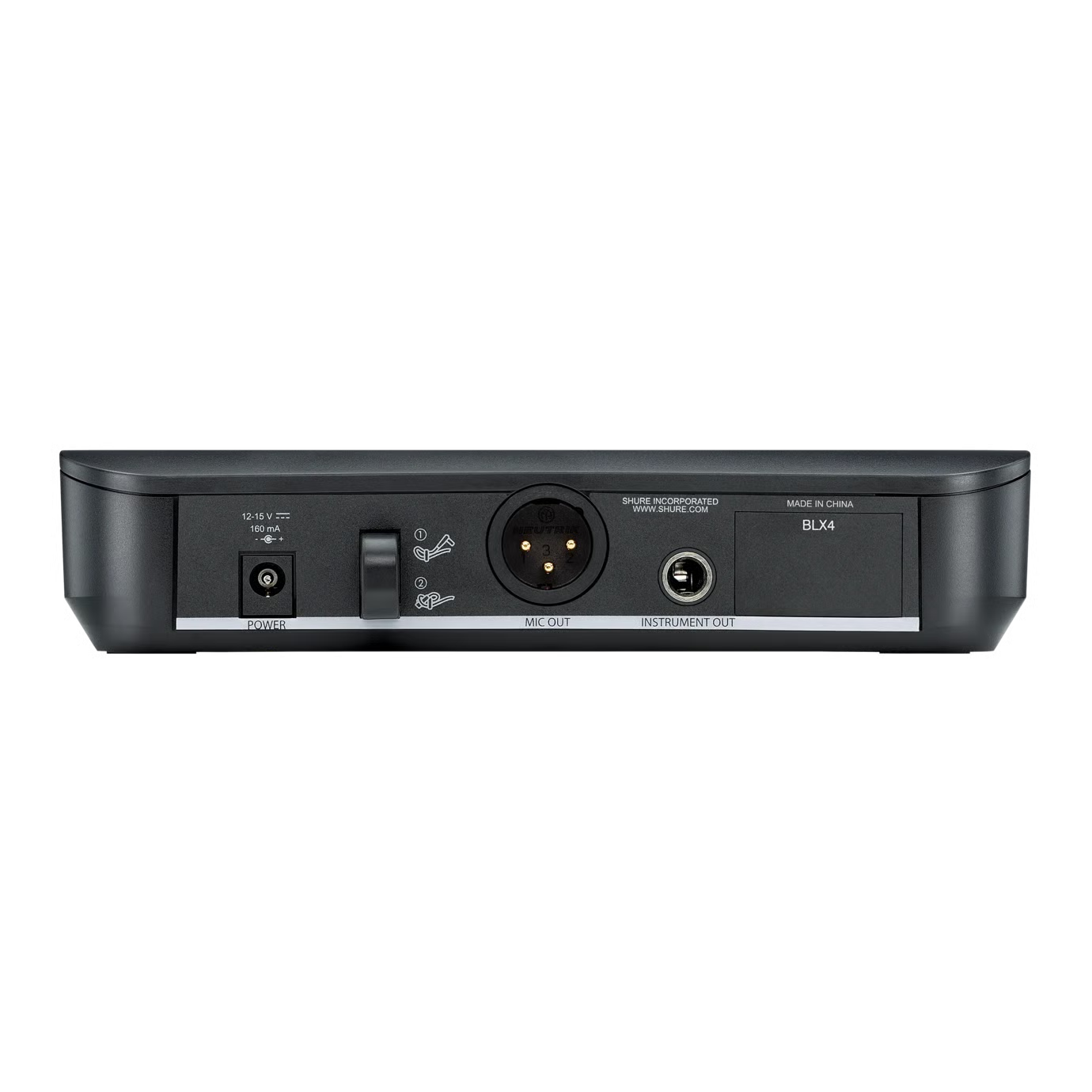

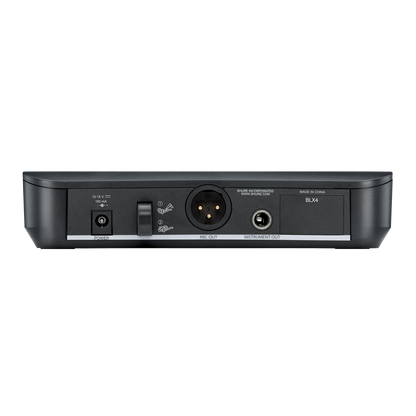

Audio Outputs

1x XLR Balanced; 1x 1/4" TS Unbalanced

Frequency Scan

One-touch QuickScan

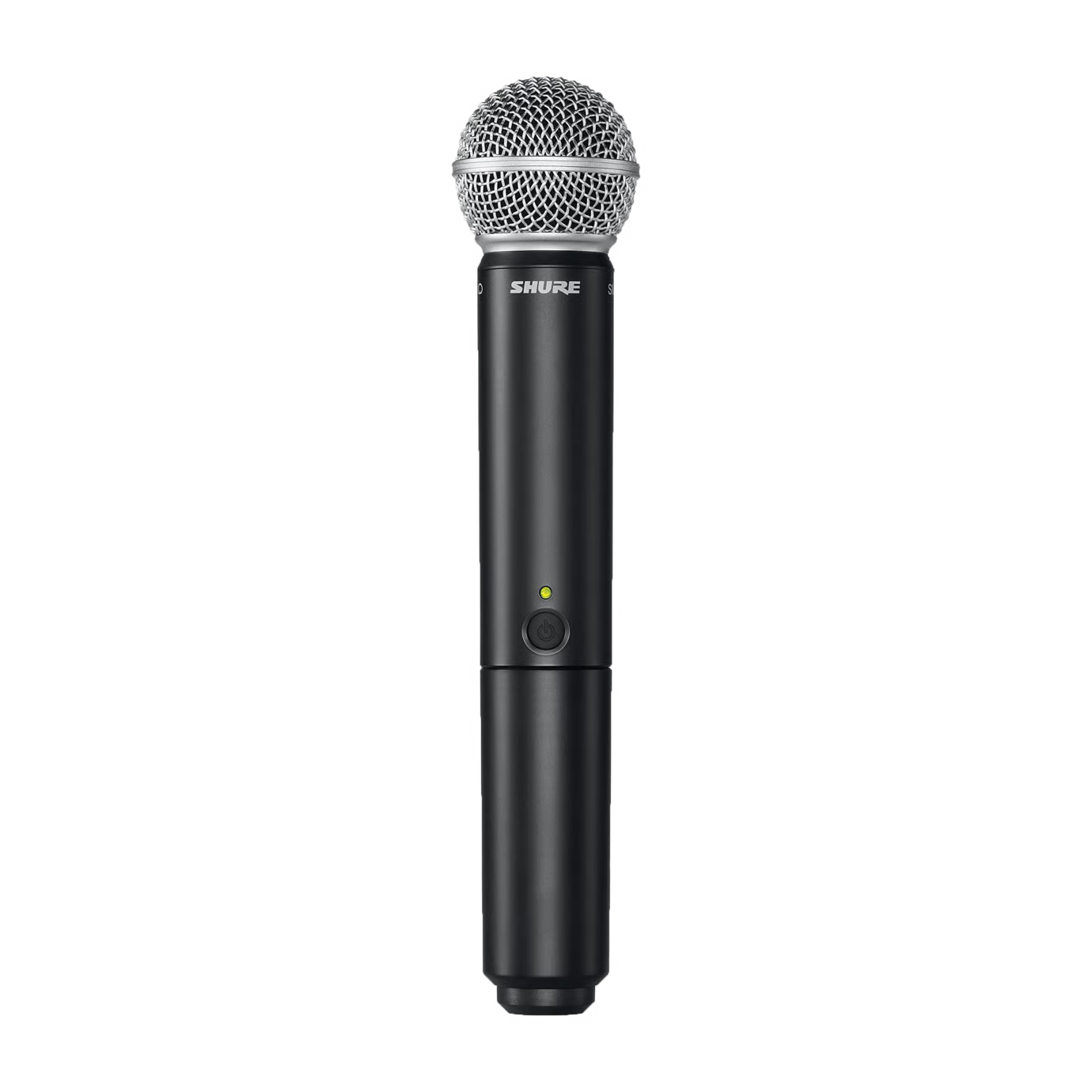

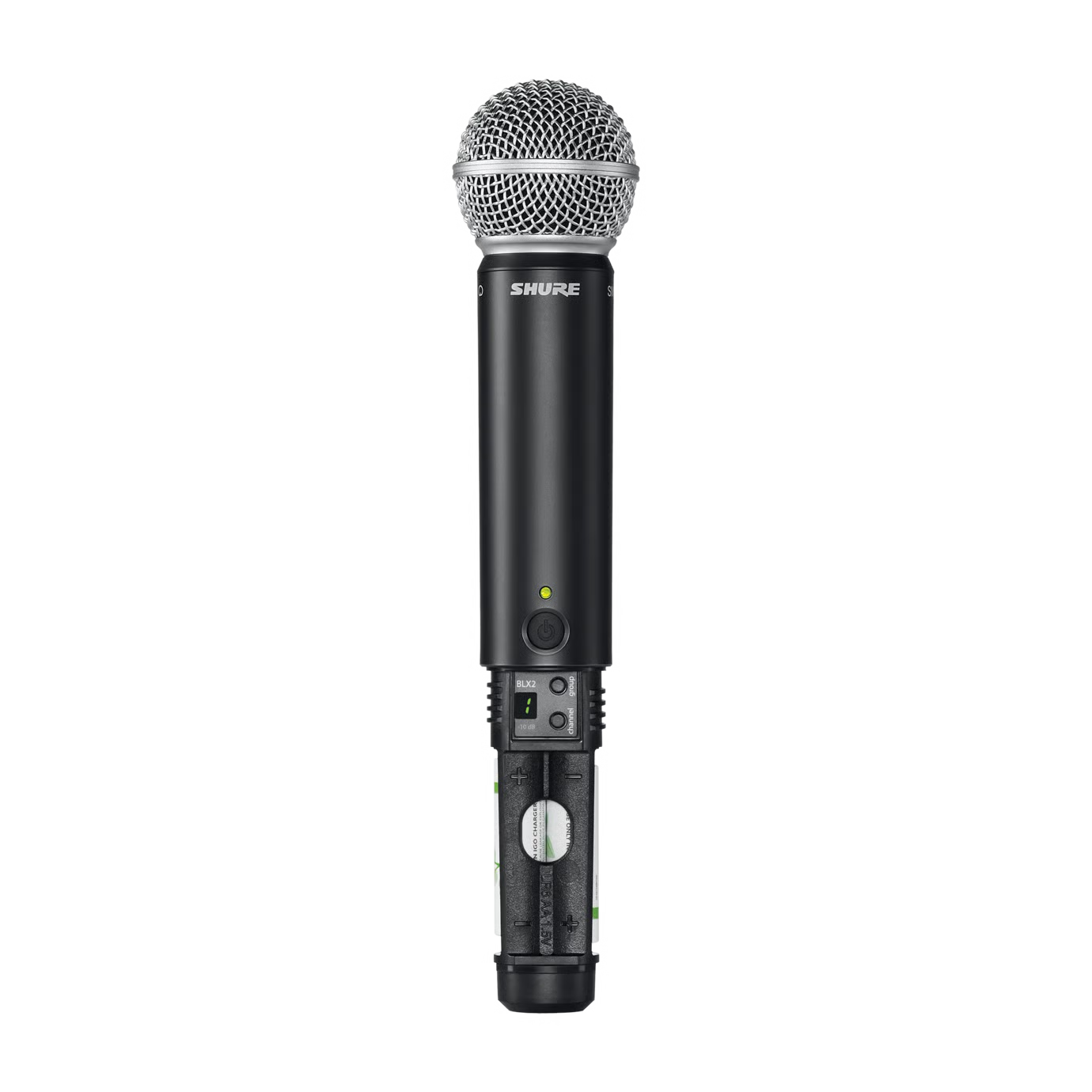

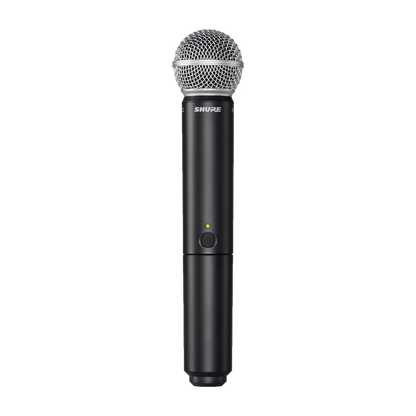

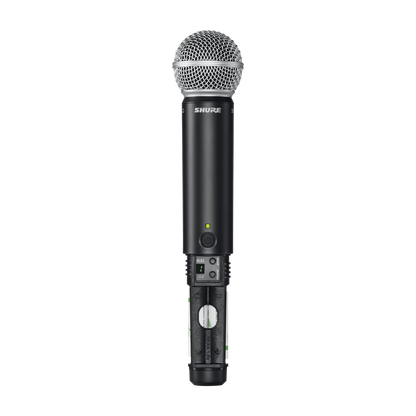

Transmitter & Capsule (BLX2/SM58)

Microphone Capsule

SM58 (Interchangeable)

Polar Pattern

Cardioid

Max SPL

146 dB

Battery Life

Up to 14 Hours (2x AA Alkaline)

Physical Specifications

Housing Material

ABS Polymer

Transmitter Weight

7.7 oz / 218 g (without batteries)

Package Weight

4.75 lb
