Key Specifications

Wireless Technology

Analog UHF

Diversity

Yes

Max Operating Range

300' / 91.4 m (Line of Sight)

Receiver Type

1x Tabletop

Number of Audio Channels

2

Included Transmitters

2x Handheld

Microphone Type

2x Handheld with Interchangeable Capsule (PG58 Included)

System

RF Frequency Band

H10: 542 to 572 MHz

Max Transmitters per Band

12

Dynamic Range

100 dBA

Receiver

Antenna

2x Internal

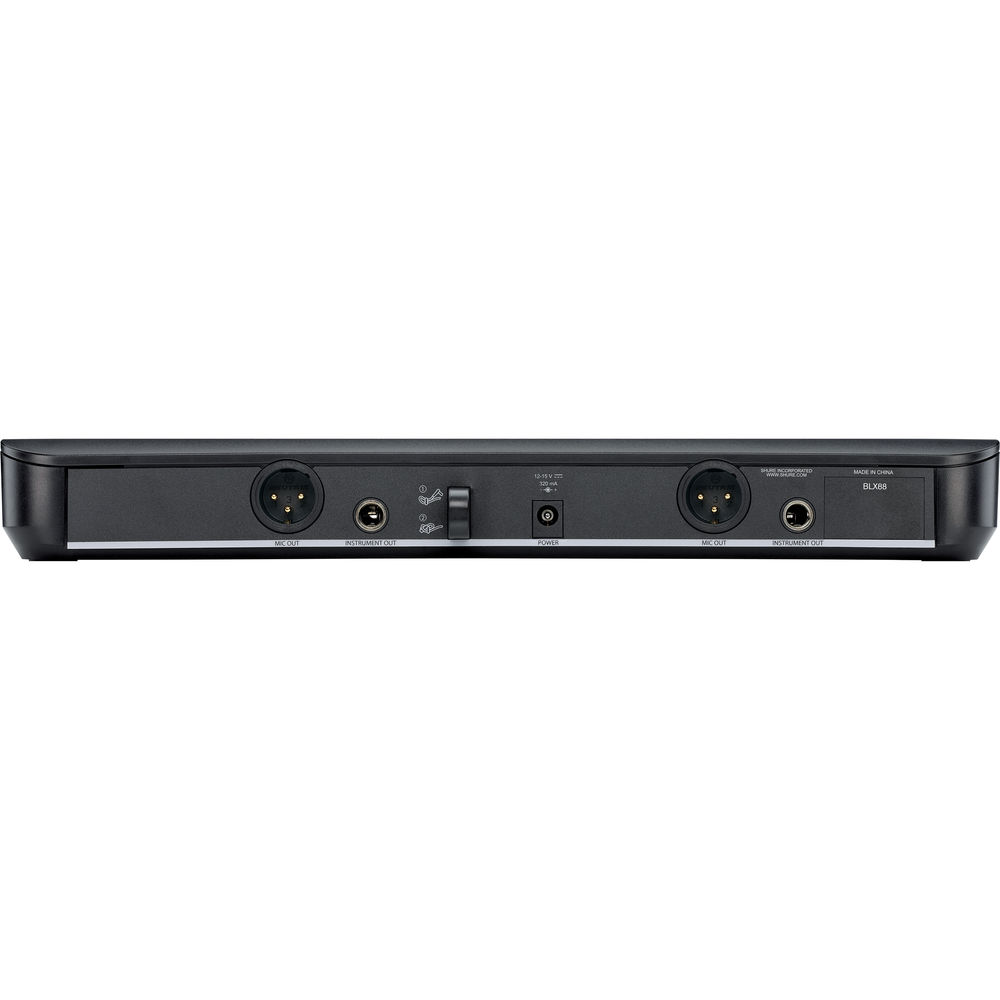

Audio I/O

2x XLR 3-Pin Balanced Output
2x 1/4" TS Unbalanced Output

Display

Alphanumeric LED

Transmitters

RF Output Power

10 mW

Gain Range

-20 to -10 dB

Microphones

Polar Pattern

Cardioid

Frequency Response

50 Hz to 16 kHz

Sensitivity

-55 dBV/Pa (at 1 kHz)

Power

Transmitter Battery Type

2x AA per Transmitter (Included)

Transmitter Battery Life

14 Hours (Alkaline)

Physical

Housing

ABS

Dimensions

Receiver: 15.3 x 4.6 x 1.6"
Transmitter: 4.3 x 2.5 x 0.8"

Weight

Receiver: 15.1 oz / 429 g
Transmitter: 7.7 oz / 218 g (without batteries)

Packaging Info

Package Weight

5.15 lb

Box Dimensions (LxWxH)

19.5 x 16.3 x 3.5"
