Key Specifications

Type

Electret

Directivity

Hypercardioid

Sensitivity

-55 dB

Frequency Response (-3 dB)

50 Hz - 20 kHz

Output Impedance

250 Ω

Console Specifications

Console Type

Paging

Compatibility

RCF DMA 82, DMA 162

Zones

4 Zones (Selective and General Call)

Preamplified

Yes

Connections & Functionality

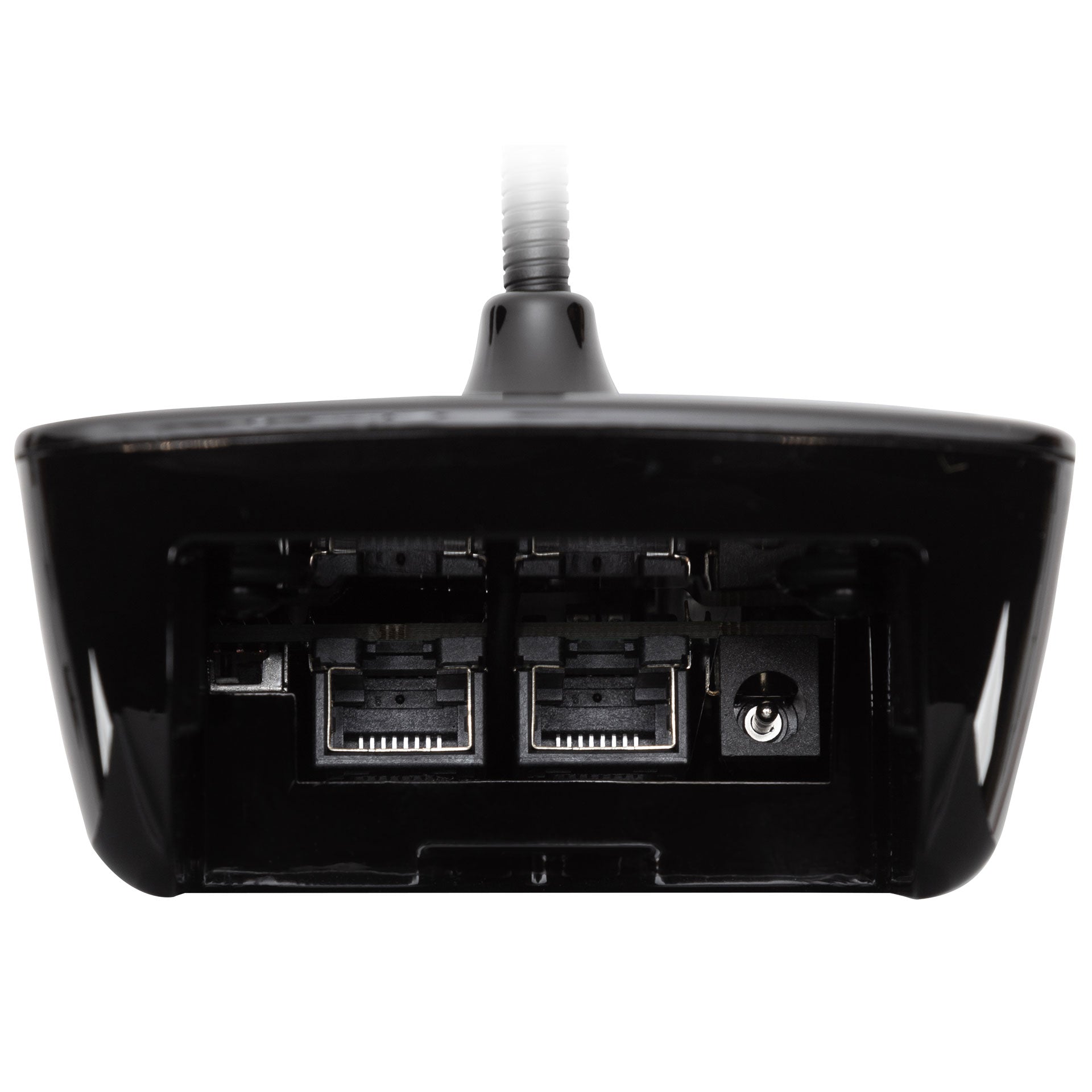

Connectors / Cable

RJ45 / FTP CAT 5

Daisy-chain Capacity

Yes (Max 4 units)

Functionalities

Priority, Chime Generator, AGC, Interlock

Power Requirements

Operating Voltage

24 V DC

Physical Specifications

Cabinet / Case Material

Plastic

Color

Black - RAL 9005

Dimensions (H × W × D)

40 x 181 x 89 mm / 1.57 x 7.13 x 3.5 inches

Weight

0.45 kg / 0.99 lbs

Shipping Information

Package Height

130 mm / 5.12 inches

Package Width

330 mm / 12.99 inches

Package Depth

150 mm / 5.91 inches

Package Weight

1.1 kg / 2.43 lbs
