Key Specifications

Form Factor/Type

Rackmount

Number of Channels

2

Amplifier Power Rating

70 V / 100 V: 1×100 W

Load Impedance / Voltage

70 / 100 V

DSP

24-Bit DSP at 48 kHz

Performance

Frequency Response

70 Hz to 18 kHz +0/-4 dB

Input Impedance

Line: 20 kΩ
Page: 2.4 kΩ

Max Input Level

+10 dBV

THD+N

< 0.3%

Signal Processing

Sample Rate

48 kHz

DSP

24-Bit DSP at 48 kHz

Latency

10.4 ms

Crossover

Yes

Filters

High-Pass: 70 Hz to 80 Hz

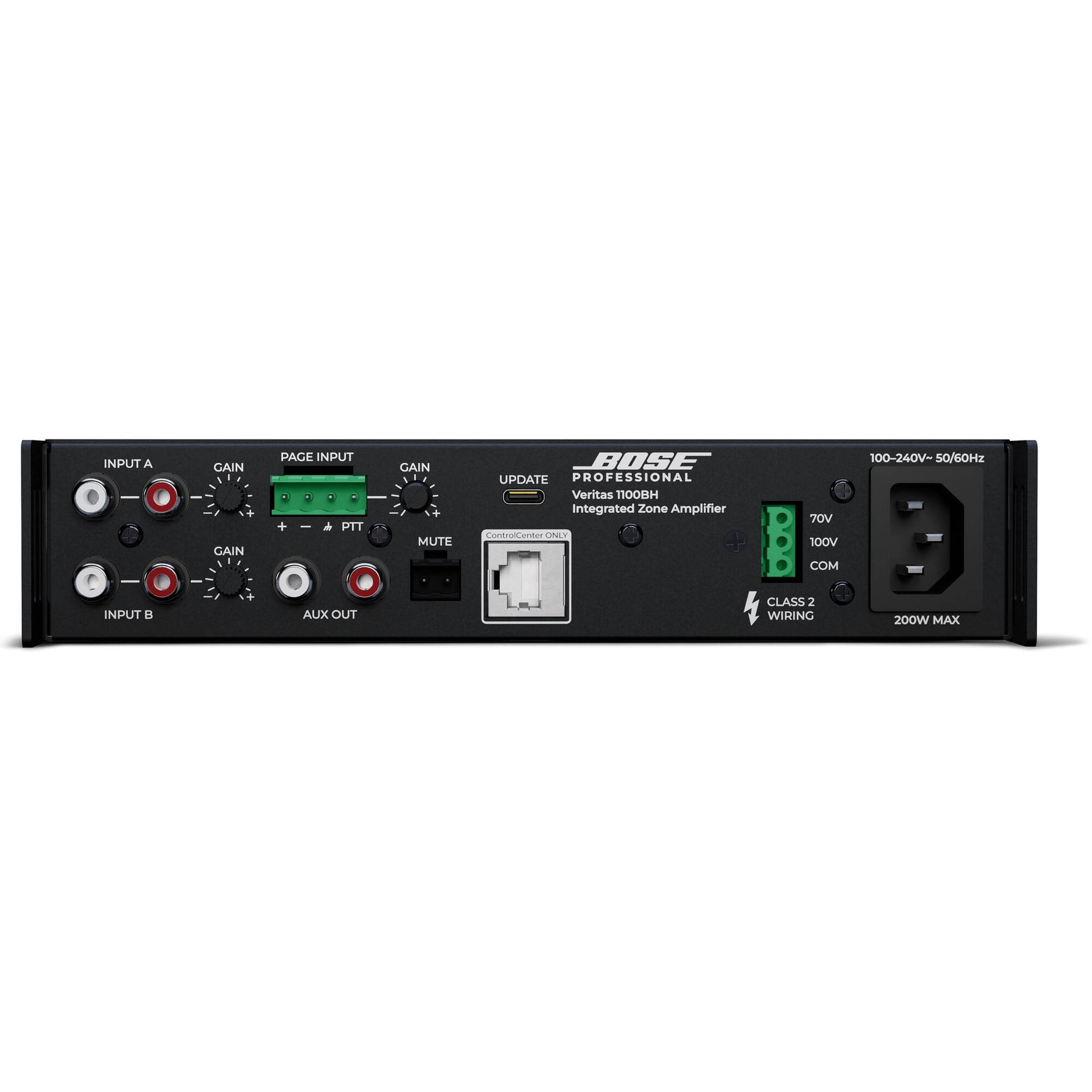

Connectivity

Analog Audio I/O

2× Stereo RCA Coaxial Unbalanced Line Input
1× Combo XLR-1/4" 3-Pin Balanced Line Input
1× Block 4-Pin Balanced Input
1× Block 3-Pin Unbalanced Line Output
1× Stereo RCA Coaxial Unbalanced Speaker Output

Digital I/O

No

Network I/O

No

USB I/O

No

Mobile App Compatible

No

Wireless

Bluetooth 5.0

Power

AC Input Power

100 to 240 VAC, 50 / 60 Hz

AC Power Connector

1× IEC

Physical

Display & Indicators

OLED

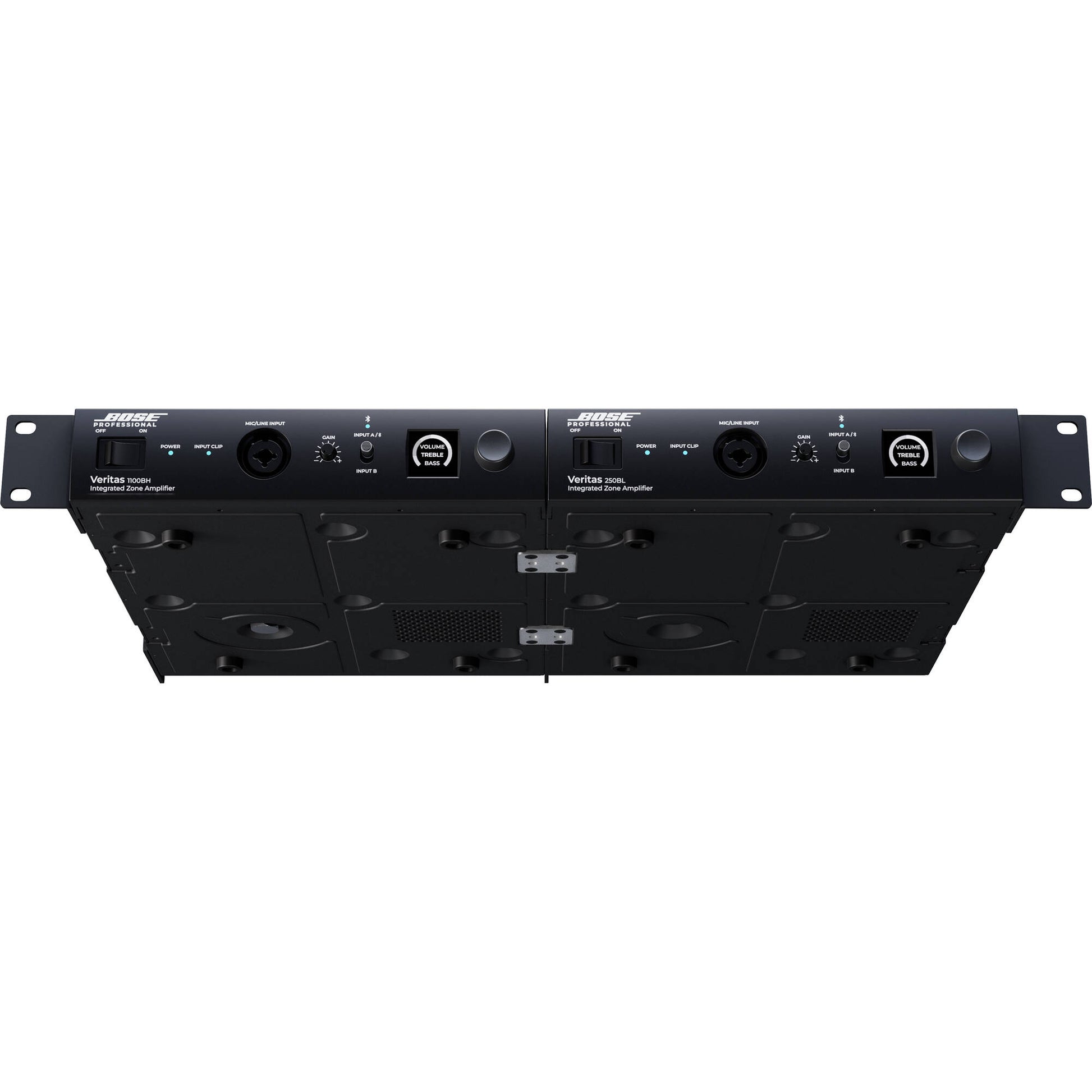

Rackmount Size

1 U (with Included Hardware)

Cooling

Convection

Dimensions

8.4 × 1.7 × 12.2" / 214 × 44 × 310 mm

Weight

7.1 lb / 3.2 kg
