Key Specifications

Product Model

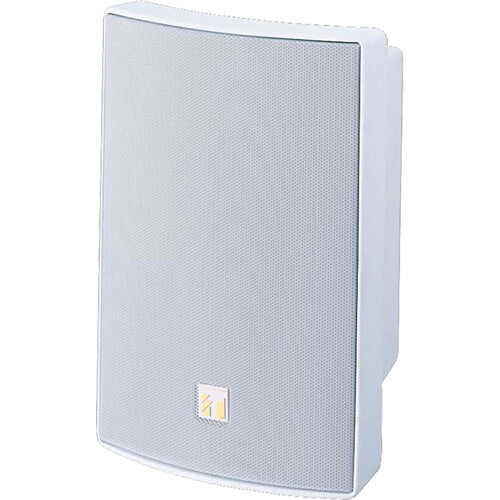

TOA Electronics BS-1030

Speaker Type

2-Way Bass-Reflex (Passive)

Power Capacity

30W Rated / 90W Peak (Continuous Program)

Transformer Taps

70V / 100V Line or 8 Ohms Direct

Acoustic Performance

Frequency Response

80 Hz to 20,000 Hz

Sensitivity

90 dB (1W, 1m)

Crossover Frequency

4,000 Hz

Drivers

• LF: 4.7" (120mm) Cone-type
• HF: 1" (25mm) Balanced Dome Tweeter

Physical & Environmental

Environmental Rating

IPX4 (Splash-proof)

Enclosure Material

UV-Resistant ABS Resin with Steel Grille

Dimensions

196 x 290 x 150 mm (7.7 x 11.4 x 5.9")

Weight

2.5 kg (5.5 lbs)
