Key Specifications

Frequency Response (-10 dB)

70 Hz - 20000 Hz

Max SPL @ 1m

126 dB

Coverage Angle (H x V)

90° x 60° (or 120° x 60°)

System Sensitivity

95 dB

Directivity Index (Q)

10

Power Section

Power Handling

300 W RMS / 1200 W PEAK

Nominal Impedance

8 Ω

Crossover Frequency

2000 Hz

Protections

Dynamic active mosfet

Recommended Amplifiers

QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K, IPS 1.5K

Transducers

Compression Driver

1.0'', 1.5'' v.c.

Woofer

8'', 2.0'' v.c.

Input / Output Section

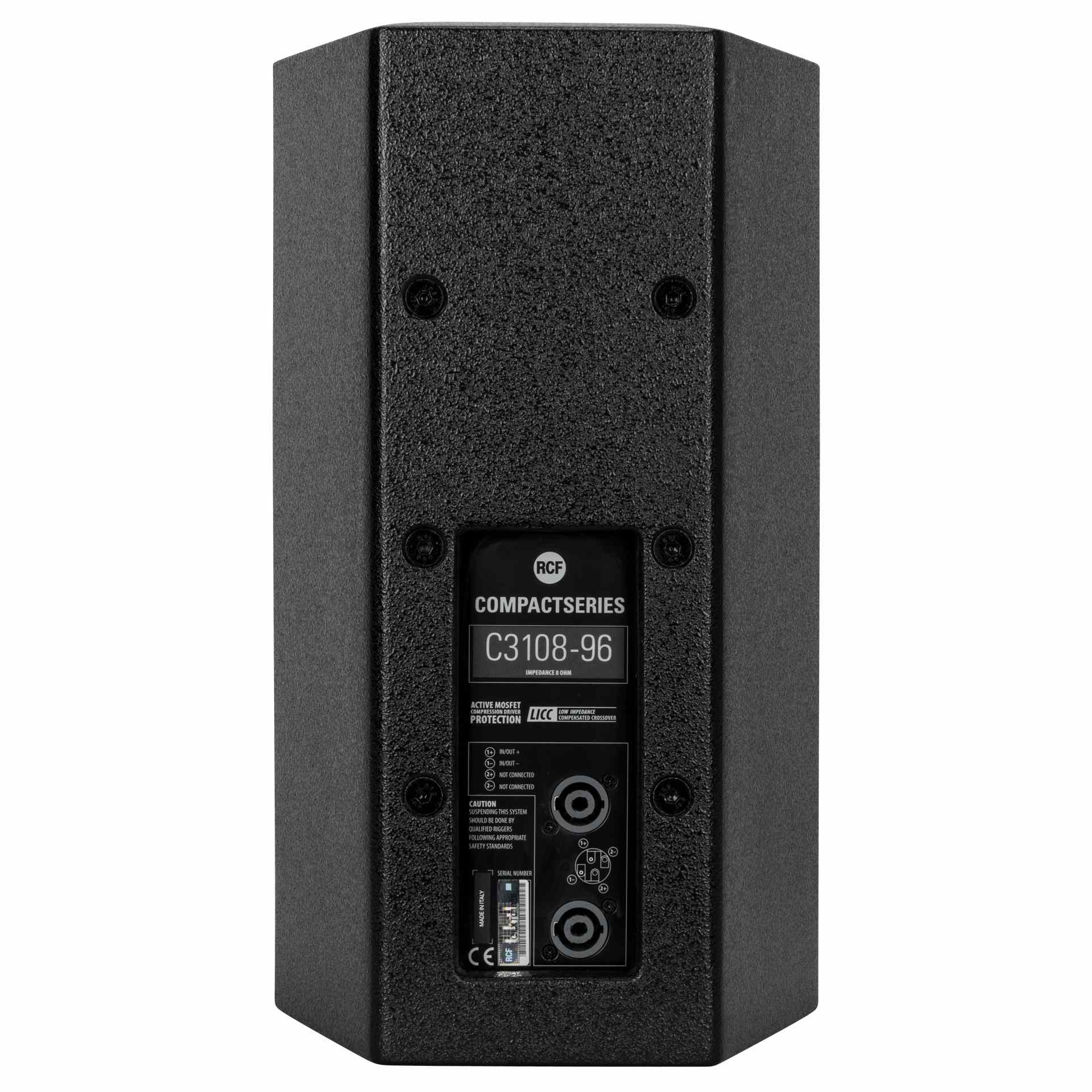

Input Connectors

Speakon® NL4

Output Connectors

Speakon® NL4

Physical Specifications

Cabinet Material

Baltic birch plywood

Hardware

6 x M8 (rear), 2 x M10 (side), multiplates (top/bottom)

Pole Mount / Cap

M20 thread

Grille

Steel with robust double mesh polyester clothing

Dimensions (H x W x D)

427 x 242 x 263 mm / 16.81 x 9.53 x 10.35 inches

Weight

12.2 kg / 26.9 lbs

Shipping Information

Package Height

494 mm / 19.45 inches

Package Width

329 mm / 12.95 inches

Package Depth

364 mm / 14.33 inches

Package Weight

13.8 kg / 30.42 lbs
