Key Specifications

Frequency Response (-10 dB)

67 Hz - 20000 Hz

Max SPL @ 1m

128 dB

Coverage Angle (H x V)

90° x 60° (Rotatable Horn)

System Sensitivity

97 dB

Directivity Index (Q)

11

Power Section

Power Handling

300 W RMS / 1200 W PEAK

Nominal Impedance

8 Ω

Crossover Frequency

2200 Hz

Protections

Dynamic active mosfet

Recommended Amplifiers

QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K, IPS 1.5K

Transducers

Compression Driver

1.0'', 1.5'' v.c.

Woofer

10'', 2.0'' v.c.

Input / Output Section

Input Connectors

Speakon® NL4

Output Connectors

Speakon® NL4

Physical Specifications

Cabinet Material

Baltic birch plywood

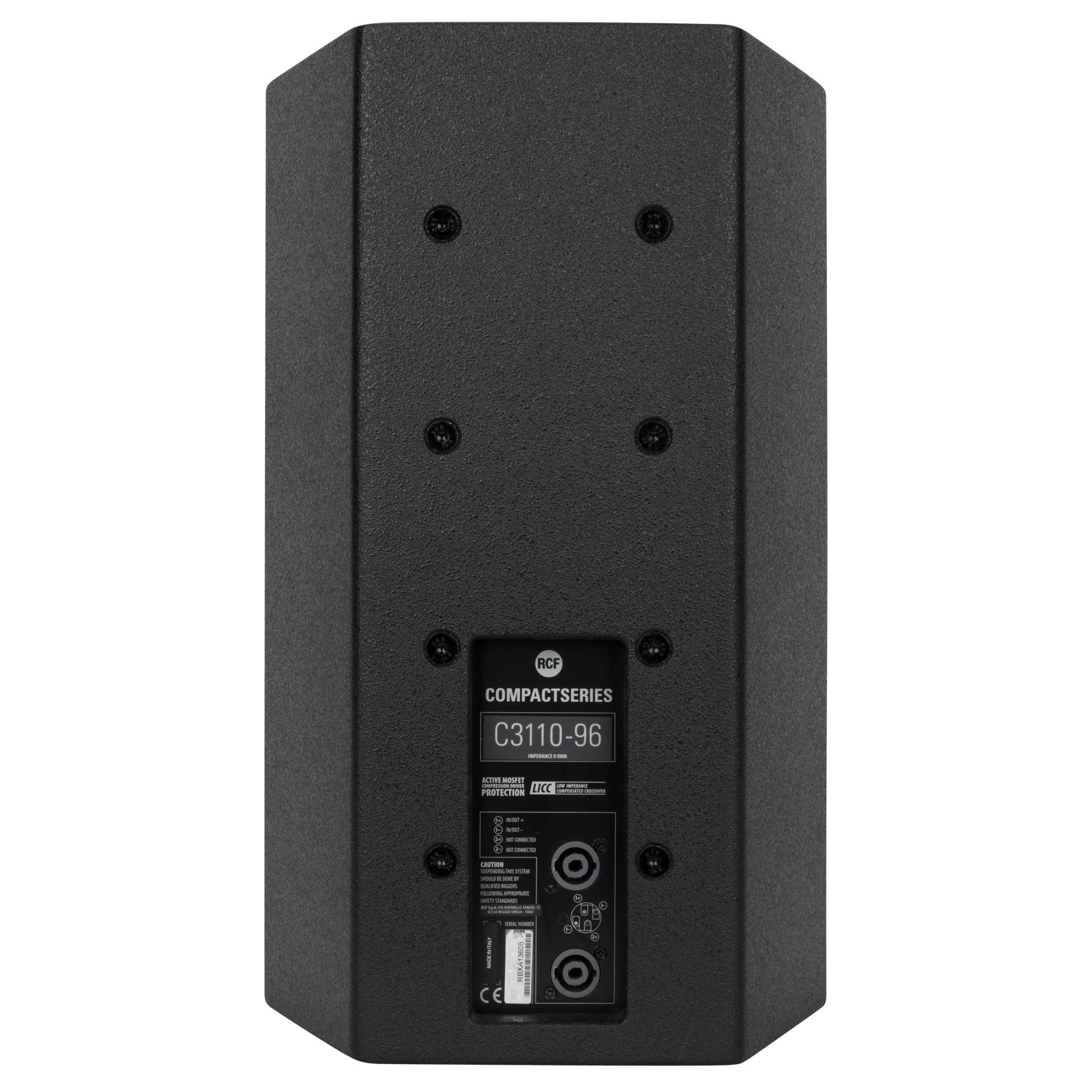

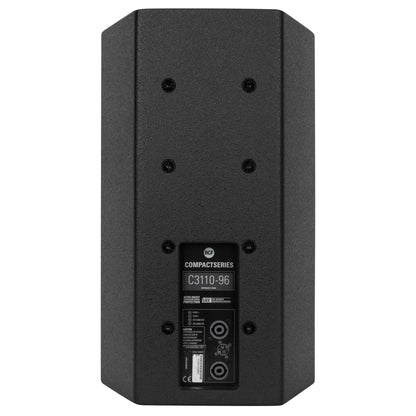

Hardware

8 x M8 (rear), 2 x M10 (lateral), multiplates (top/bottom)

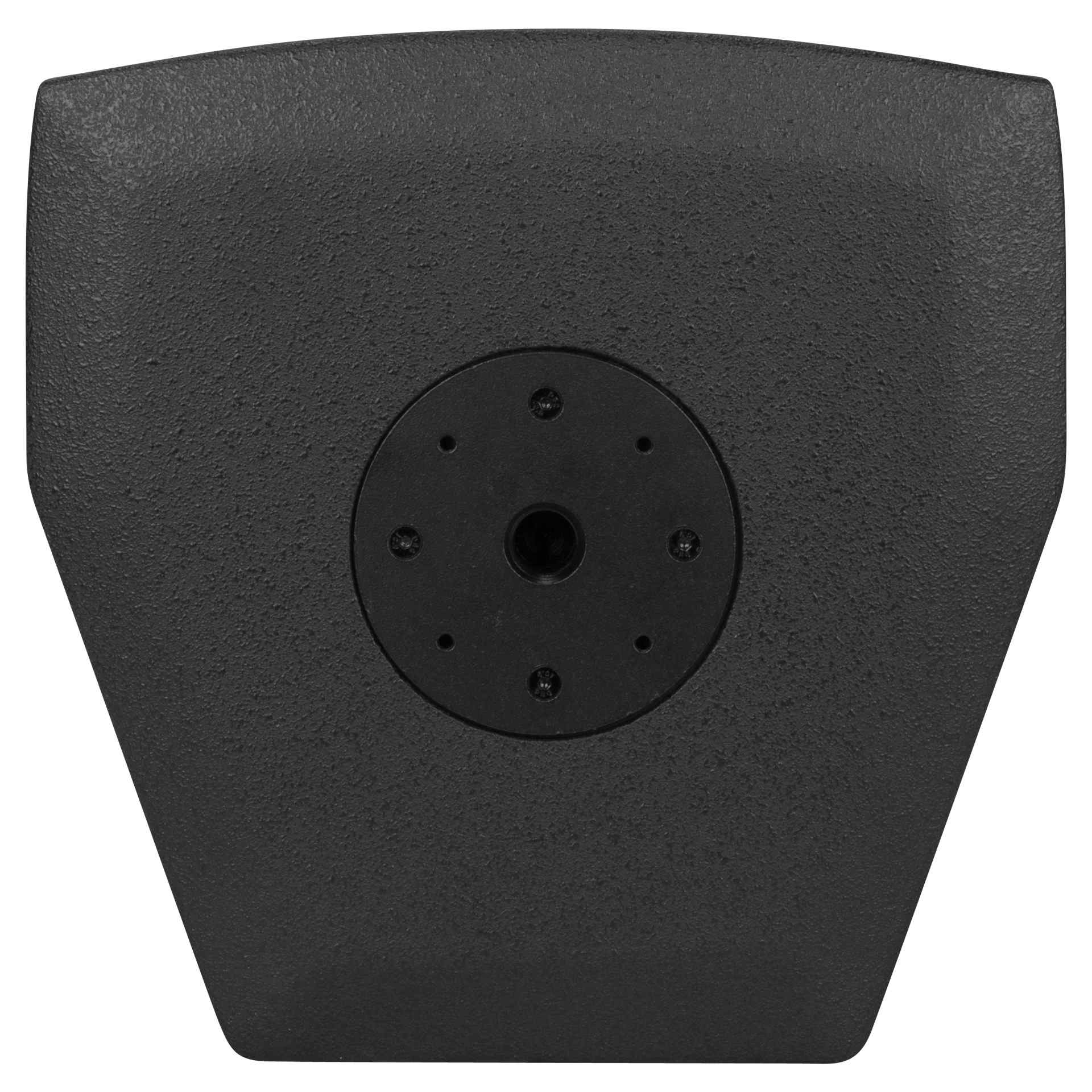

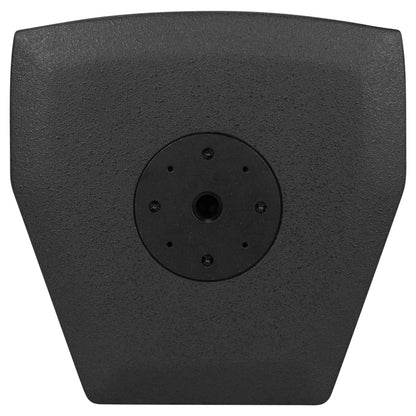

Pole Mount / Cap

M20 thread

Grille

Steel with robust double mesh polyester clothing

Dimensions (H x W x D)

500 x 300 x 298 mm / 19.69 x 11.81 x 11.73 inches

Weight

16 kg / 35.27 lbs

Shipping Information

Package Height

564 mm / 22.2 inches

Package Width

399 mm / 15.71 inches

Package Depth

384 mm / 15.12 inches

Package Weight

17.8 kg / 39.24 lbs
