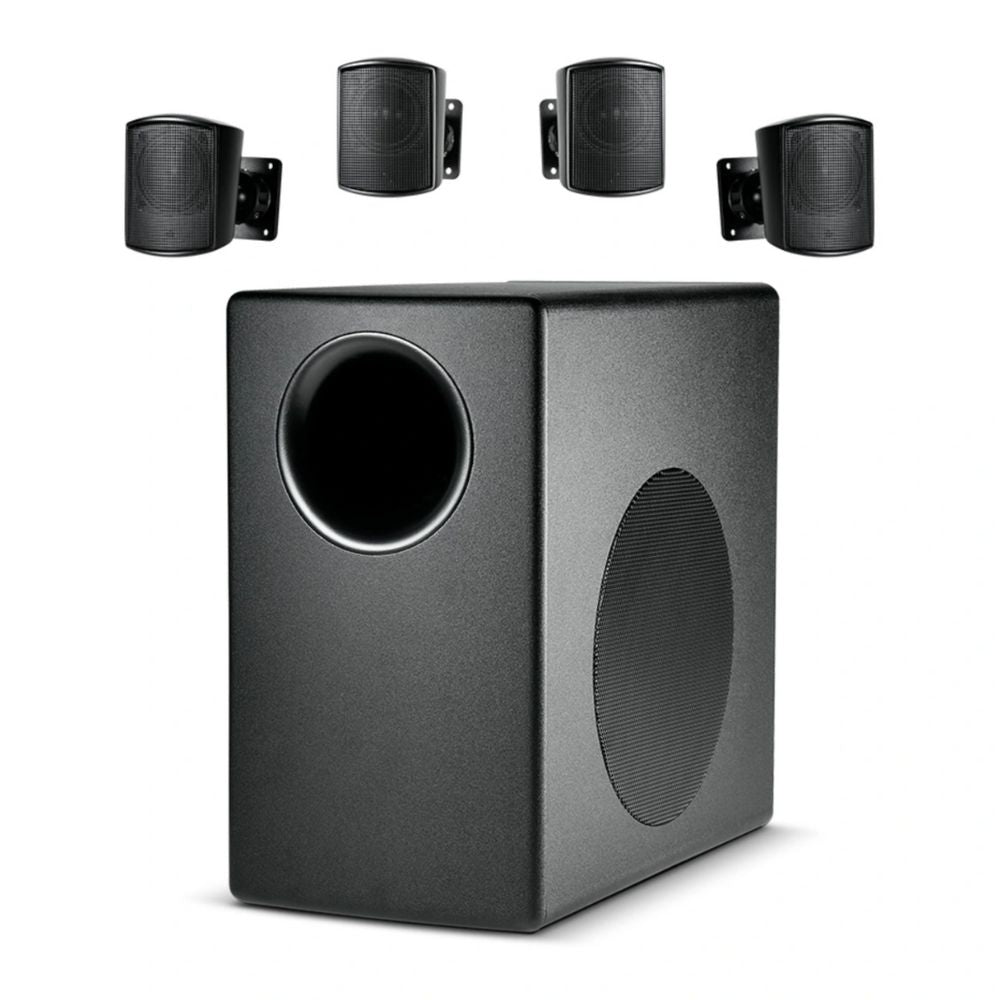

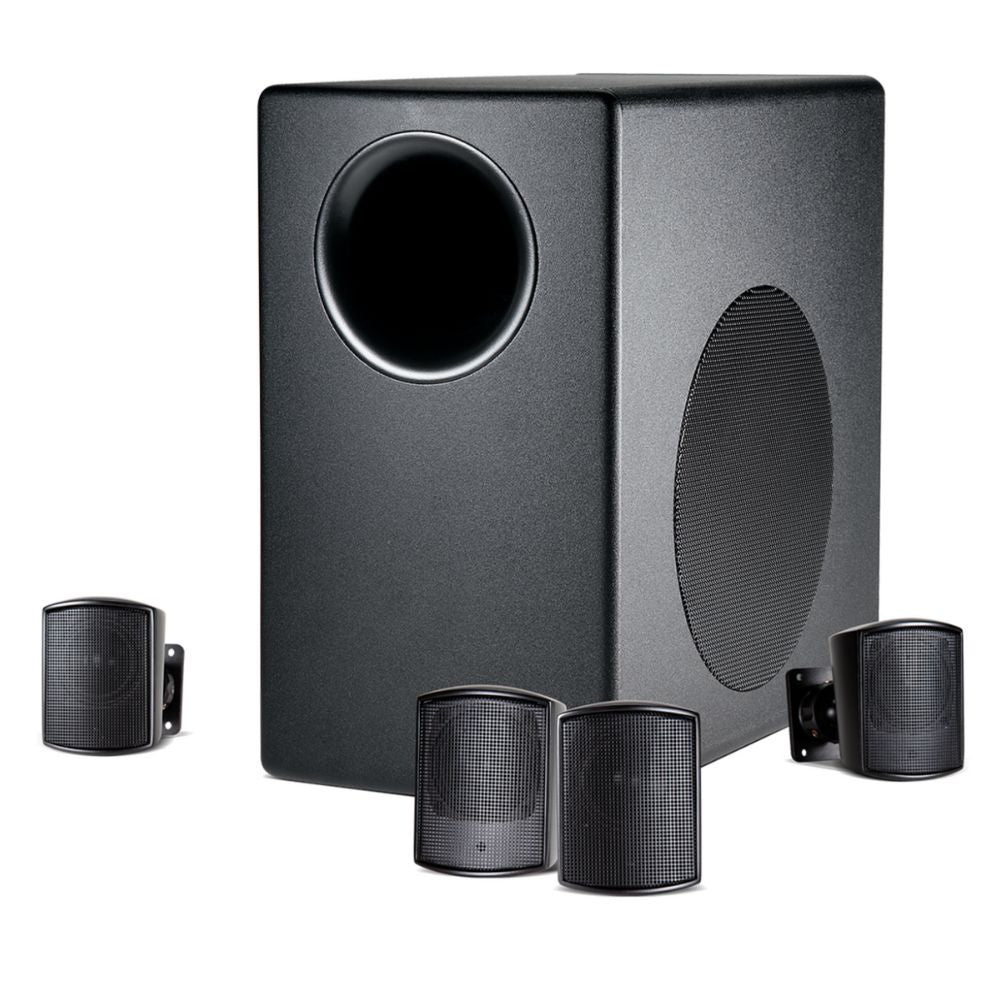

The JBL Control 50 Pack is a professional-quality speaker system that includes a set of 4 Control 52 loudspeakers and a Control 50S/T subwoofer.
Each speaker has a 2.5" driver with an efficient magnet structure, as well as a rubber half roll surround for enhanced bass performance. The copper-clad aluminum wire voice coil is on a vented Nomex former to provide high fidelity and reliability, while the copper-capped pole piece provides consistent impedance and extended HF response. The speaker can work with 70/100V distributed lines and low-impedance systems for terrific versatility, and the included wall mounting bracket lets you angle the speaker up to 45° off-axis.
The Control 50S/T subwoofer has a slim, unobtrusive cabinet that contains an 8" long-excursion driver with a high-mass cone and a 4-layer copper voice coil for extended low-frequency response and high motor strength. The aluminum former provides excellent transient response, while a rubber half roll surround provides enhanced bass performance.
The subwoofer has power handling capability of 150W of continuous power. It has selectable 70/100V output for distributed lines, and also has low-impedance operation. The subwoofer can be paired with 2 or 4 of the satellite speakers, depending on your needs. Mounting brackets are included for attaching the subwoofer to a wall.
JBL C50PACK
Key Specifications
Performance
Frequency Range (-10dB): 32 Hz – 20 kHz
Frequency Response (±3 dB): 50 Hz – 17 kHz
Sensitivity (System): 87 dB with 4 satellites, 85 dB with 2 satellites (depends on subwoofer boundary loading, see application note)
Maximum SPL (1m): 107 dB with 4 satellites, continuous (113 dB peak); 105 dB with 2 satellites, continuous (111 dB peak) (depends on subwoofer boundary loading, see application note)
Coverage Angle: Omnidirectional
Power & Impedance
Power Rating: 200 Watts Continuous Program Power (100 hrs), 100 Watts Continuous Pink Noise (100 hrs)
Impedance: 4 ohms with 4 satellites, 8 ohms with 2 satellites
Transformer Taps: 80W, 40W, 20W, (& 10W @ 70V), plus bypass/thru (listed as 8 ohms on switch to indicate subwoofer impedance)
Connectivity
Input Connectors: Removable locking 2-pin connectors with screw-down terminals.
